#include <StackFrame.h>

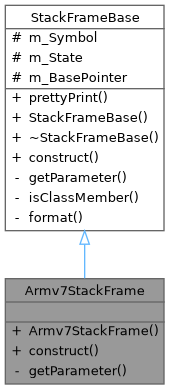

Inheritance diagram for ARMV7StackFrame:

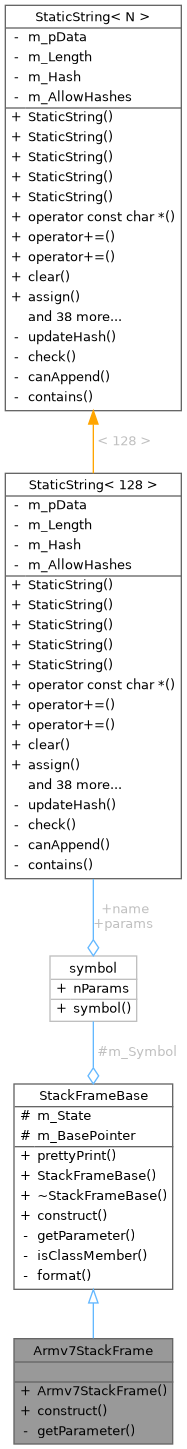

Collaboration diagram for ARMV7StackFrame:

Public Member Functions
	ARMV7StackFrame (const ProcessorState &State, uintptr_t basePointer, LargeStaticString mangledSymbol)

	~ARMV7StackFrame ()

Public Member Functions inherited from StackFrameBase
void	prettyPrint (HugeStaticString &buf)

	StackFrameBase (const ProcessorState &State, uintptr_t basePointer, LargeStaticString mangledSymbol)

virtual	~StackFrameBase ()

Static Public Member Functions
static void	construct (ProcessorState &state, uintptr_t returnAddress, unsigned int nParams,...)

Static Public Member Functions inherited from StackFrameBase
static void	construct (ProcessorState &state, uintptr_t returnAddress, unsigned int nParams,...)

Private Member Functions
virtual uintptr_t	getParameter (size_t n)

Additional Inherited Members
Protected Attributes inherited from StackFrameBase
symbol_t	m_Symbol

const ProcessorState &	m_State

uintptr_t	m_BasePointer

Detailed Description

mips32 StackFrame

Definition at line 31 of file armv7/StackFrame.h.

Constructor & Destructor Documentation

ARMV7StackFrame::ARMV7StackFrame	(	const ProcessorState &	State,
		uintptr_t	basePointer,
		LargeStaticString	mangledSymbol
	)

inline

Creates a stack frame based on the given processor state and also the given symbol name (mangled).

Definition at line 36 of file armv7/StackFrame.h.

ARMV7StackFrame::~ARMV7StackFrame ( )

inline

The destructor does nothing

Definition at line 43 of file armv7/StackFrame.h.

References construct(), and getParameter().

Member Function Documentation

void ARMV7StackFrame::construct	(	ProcessorState &	state,
		uintptr_t	returnAddress,
		unsigned int	nParams,
			...
	)

static

Construct a stack frame, given a ProcessorState. The stack frame should be constructed to comply with the default ABI for the current architecture - that implies the stack may be changed, so the getStackPointer() member of ProcessorState must be valid.

Parameters

[out]	state	The state to modify (construct a stack frame in).
	returnAddress	The return address of the stack frame.
	nParams	The number of parameters to the stack frame.
	...	The parameters, each sizeof(uintptr_t).

Definition at line 30 of file armv7/StackFrame.cc.

Referenced by ~ARMV7StackFrame().

Here is the caller graph for this function:
