Arm64InterruptManager Class Reference

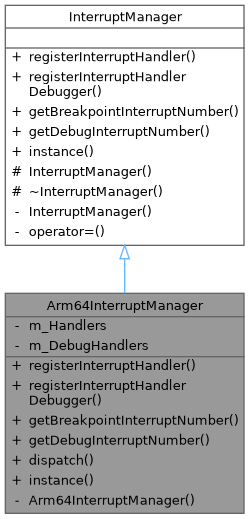

Inheritance diagram for Arm64InterruptManager:

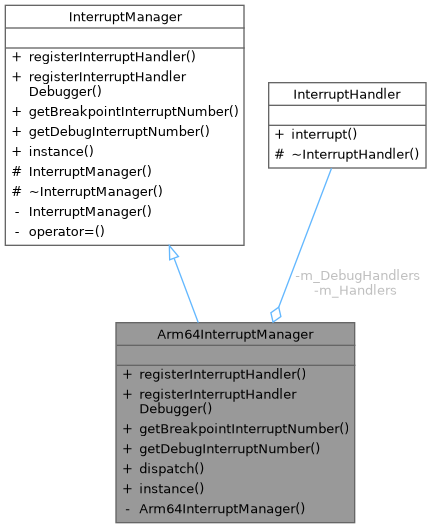

Collaboration diagram for Arm64InterruptManager:

Public Member Functions
bool	registerInterruptHandler (size_t number, InterruptHandler *handler) override
bool	registerInterruptHandlerDebugger (size_t number, InterruptHandler *handler) override
size_t	getBreakpointInterruptNumber () override
size_t	getDebugInterruptNumber () override
void	dispatch (size_t number, InterruptState &state)

Static Public Member Functions
static Arm64InterruptManager &	instance ()
Static Public Member Functions inherited from InterruptManager
static EXPORTED_PUBLIC InterruptManager &	instance ()

Private Attributes
InterruptHandler *	m_Handlers [32]
InterruptHandler *	m_DebugHandlers [32]

Additional Inherited Members
Protected Member Functions inherited from InterruptManager
	InterruptManager ()
virtual	~InterruptManager ()

Detailed Description

Definition at line 7 of file kernel/core/processor/arm64/InterruptManager.h.

Constructor & Destructor Documentation

Arm64InterruptManager()

Arm64InterruptManager::Arm64InterruptManager ( )

private

Definition at line 50 of file arm64/InterruptManager.cc.

Member Function Documentation

dispatch()

void Arm64InterruptManager::dispatch	(	size_t	number,
		InterruptState &	state
	)

Definition at line 95 of file arm64/InterruptManager.cc.

getBreakpointInterruptNumber()

size_t Arm64InterruptManager::getBreakpointInterruptNumber ( )

inlineoverridevirtual

Get the interrupt number of the breakpoint exception

Returns

the interrupt number of the breakpoint exception

Implements InterruptManager.

Definition at line 13 of file kernel/core/processor/arm64/InterruptManager.h.

getDebugInterruptNumber()

size_t Arm64InterruptManager::getDebugInterruptNumber ( )

inlineoverridevirtual

Get the interrupt number of the debug exception

Returns

the interrupt number of the debug exception

Implements InterruptManager.

Definition at line 16 of file kernel/core/processor/arm64/InterruptManager.h.

instance()

Arm64InterruptManager & Arm64InterruptManager::instance ( )

static

Definition at line 59 of file arm64/InterruptManager.cc.

registerInterruptHandler()

bool Arm64InterruptManager::registerInterruptHandler ( size_t  nInterruptNumber, InterruptHandler *  pHandler  )

overridevirtual

Register an interrupt handler

Parameters

[in]	nInterruptNumber	the interrupt's number
[in]	pHandler	the interrupt handler

Returns

true, if successfully registered, false otherwise

Implements InterruptManager.

Definition at line 68 of file arm64/InterruptManager.cc.

registerInterruptHandlerDebugger()

bool Arm64InterruptManager::registerInterruptHandlerDebugger ( size_t  nInterruptNumber, InterruptHandler *  pHandler  )

overridevirtual

Register an interrupt handler (for the kernel debugger)

Parameters

[in]	nInterruptNumber	the interrupt's number
[in]	pHandler	the interrupt handler

Returns

true, if successfully registered, false otherwise

Implements InterruptManager.

Definition at line 81 of file arm64/InterruptManager.cc.

Member Data Documentation

m_DebugHandlers

InterruptHandler* Arm64InterruptManager::m_DebugHandlers[32]

private

Definition at line 26 of file kernel/core/processor/arm64/InterruptManager.h.

m_Handlers

InterruptHandler* Arm64InterruptManager::m_Handlers[32]

private

Definition at line 24 of file kernel/core/processor/arm64/InterruptManager.h.

---

The documentation for this class was generated from the following files:

• kernel/core/processor/arm64/InterruptManager.h
• arm64/InterruptManager.cc
