#include <Ext2Filesystem.h>

Inheritance diagram for Ext2Filesystem:

Collaboration diagram for Ext2Filesystem:

Public Member Functions
virtual bool	initialise (Disk *pDisk)

virtual File *	getRoot () const

virtual String	getVolumeLabel () const

Public Member Functions inherited from Filesystem
	Filesystem ()

virtual	~Filesystem ()

virtual File *	find (const StringView &path)

virtual File *	find (const String &path)

virtual File *	find (const StringView &path, File *pStartNode)

virtual File *	find (const String &path, File *pStartNode)

bool	createFile (const StringView &path, uint32_t mask, File *pStartNode=0)

bool	createDirectory (const StringView &path, uint32_t mask, File *pStartNode=0)

bool	createSymlink (const StringView &path, const String &value, File *pStartNode=0)

bool	createLink (const StringView &path, File target, File pStartNode=0)

bool	remove (const StringView &path, File *pStartNode=0)

Disk *	getDisk ()

bool	isReadOnly ()

virtual bool	isCaseSensitive ()

Static Public Member Functions
static Filesystem *	probe (Disk *pDisk)

Protected Member Functions
virtual bool	createFile (File *parent, const String &filename, uint32_t mask)

virtual bool	createDirectory (File *parent, const String &filename, uint32_t mask)

virtual bool	createSymlink (File *parent, const String &filename, const String &value)

virtual bool	createLink (File parent, const String &filename, File target)

virtual bool	remove (File parent, File file)

Private Member Functions
virtual bool	createNode (File *parent, const String &filename, uint32_t mask, const String &value, size_t type, uint32_t inodeOverride=0)

	Ext2Filesystem (const Ext2Filesystem &)

void	operator= (const Ext2Filesystem &)

uintptr_t	readBlock (uint32_t block)

void	writeBlock (uint32_t block)

void	pinBlock (uint64_t location)

void	unpinBlock (uint64_t location)

void	sync (size_t offset, bool async)

uint32_t	findFreeBlock (uint32_t inode)

bool	findFreeBlocks (uint32_t inode, size_t count, Vector< uint32_t > &blocks)

size_t	findFreeBlocksInGroup (uint32_t group, size_t maxCount, Vector< uint32_t > &blocks)

uint32_t	findFreeInode ()

void	releaseBlock (uint32_t block)

bool	releaseInode (uint32_t inode)

Inode *	getInode (uint32_t num)

void	writeInode (uint32_t num)

void	ensureFreeBlockBitmapLoaded (size_t group)

void	ensureFreeInodeBitmapLoaded (size_t group)

void	ensureInodeTableLoaded (size_t group)

bool	checkOptionalFeature (size_t feature)

bool	checkRequiredFeature (size_t feature)

bool	checkReadOnlyFeature (size_t feature)

void	increaseInodeRefcount (uint32_t inode)

bool	decreaseInodeRefcount (uint32_t inode)

Private Attributes
Superblock *	m_pSuperblock

GroupDesc **	m_pGroupDescriptors

Vector< size_t > *	m_pInodeTables

Vector< size_t > *	m_pInodeBitmaps

Vector< size_t > *	m_pBlockBitmaps

uint32_t	m_BlockSize

uint32_t	m_InodeSize

size_t	m_nGroupDescriptors

Mutex	m_WriteLock

File *	m_pRoot

String	m_VolumeLabel

Friends
class	Ext2File

class	Ext2Node

class	Ext2Directory

class	Ext2Symlink

Additional Inherited Members
Public Types inherited from Filesystem
typedef Filesystem (	ProbeCallback) (Disk *)

Protected Attributes inherited from Filesystem
bool	m_bReadOnly

Disk *	m_pDisk

Detailed Description

This class provides an implementation of the second extended filesystem.

Definition at line 37 of file Ext2Filesystem.h.

Constructor & Destructor Documentation

Ext2Filesystem::Ext2Filesystem ( const Ext2Filesystem & )

private

Inaccessible copy constructor and operator=

Member Function Documentation

bool Ext2Filesystem::createDirectory	(	File *	parent,
		const String &	filename,
		uint32_t	mask
	)

protectedvirtual

createDirectory calls this after it has parsed the string path.

Implements Filesystem.

Definition at line 448 of file Ext2Filesystem.cc.

bool Ext2Filesystem::createFile	(	File *	parent,
		const String &	filename,
		uint32_t	mask
	)

protectedvirtual

createFile calls this after it has parsed the string path.

Implements Filesystem.

Definition at line 442 of file Ext2Filesystem.cc.

bool Ext2Filesystem::createLink	(	File *	parent,
		const String &	filename,
		File *	target
	)

protectedvirtual

createLink calls this after it has parsed the string path.

Reimplemented from Filesystem.

Definition at line 464 of file Ext2Filesystem.cc.

References File::isDirectory(), and File::isSymlink().

bool Ext2Filesystem::createNode	(	File *	parent,
		const String &	filename,
		uint32_t	mask,
		const String &	value,
		size_t	type,
		uint32_t	inodeOverride = `0`
	)

privatevirtual

Todo:: Endianness!

Todo:: save group descriptor block number elsewhere

Definition at line 257 of file Ext2Filesystem.cc.

References Ext2Directory::addEntry(), Ext2Node::ensureLargeEnough(), ERROR, Ext2File::Ext2File(), FATAL, Hex, Processor::information(), File::isDirectory(), File::isSymlink(), NOTICE, File::setAccessedTime(), File::setModifiedTime(), File::write(), and Ext2File::writeBlock().

bool Ext2Filesystem::createSymlink	(	File *	parent,
		const String &	filename,
		const String &	value
	)

protectedvirtual

createSymlink calls this after it has parsed the string path.

Implements Filesystem.

Definition at line 458 of file Ext2Filesystem.cc.

bool Ext2Filesystem::findFreeBlocks	(	uint32_t	inode,
		size_t	count,
		Vector< uint32_t > &	blocks
	)

private

Todo:: should release blocks if we failed to allocate enough blocks.

Definition at line 604 of file Ext2Filesystem.cc.

References ERROR.

Referenced by Ext2Node::ensureLargeEnough().

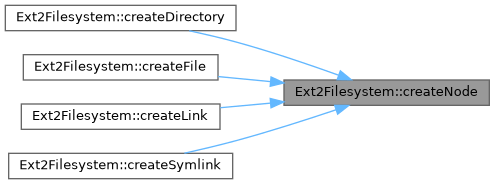

Here is the caller graph for this function:

size_t Ext2Filesystem::findFreeBlocksInGroup	(	uint32_t	group,
		size_t	maxCount,
		Vector< uint32_t > &	blocks
	)

private

Todo:: Endianness - to ensure correct operation, must ptr be little endian?

Todo:: save group descriptor block number elsewhere

Definition at line 635 of file Ext2Filesystem.cc.

References Vector< T >::pushBack(), and Ext2File::writeBlock().

uint32_t Ext2Filesystem::findFreeInode ( )

private

Todo:: Endianness - to ensure correct operation, must ptr be little endian?

Todo:: save group descriptor block number elsewhere

Definition at line 773 of file Ext2Filesystem.cc.

References assert, and Ext2File::writeBlock().

File * Ext2Filesystem::getRoot ( ) const

virtual

Returns the root filesystem node.

Implements Filesystem.

Definition at line 247 of file Ext2Filesystem.cc.

String Ext2Filesystem::getVolumeLabel ( ) const

virtual

Returns a string identifying the volume label.

Implements Filesystem.

Definition at line 252 of file Ext2Filesystem.cc.

bool Ext2Filesystem::initialise ( Disk * pDisk )

virtual

Populates this filesystem with data from the given Disk device.

Returns: true on success, false on failure.

Todo:: Check for journal required features.

Todo:: Check all read-only features.

Todo:: Set g_pSparseBlock as read-only.

Implements Filesystem.

Definition at line 85 of file Ext2Filesystem.cc.

References assert, ERROR, Disk::getName(), initialise(), NOTICE, Ext2File::readBlock(), and WARNING.

Referenced by initialise().

Here is the caller graph for this function:

uintptr_t Ext2Filesystem::readBlock ( uint32_t block )

private

Reads a block of data from the disk.

Definition at line 557 of file Ext2Filesystem.cc.

Referenced by Ext2Directory::addEntry(), Ext2Directory::cacheDirectoryContents(), Ext2Node::ensureLargeEnough(), Ext2Directory::removeEntry(), and Ext2Node::~Ext2Node().

Here is the caller graph for this function:

void Ext2Filesystem::releaseBlock ( uint32_t block )

private

Todo:: save group descriptor block number elsewhere

Definition at line 860 of file Ext2Filesystem.cc.

References Dec, ERROR, FATAL, Hex, and Ext2File::writeBlock().

Referenced by Ext2Node::wipe().

Here is the caller graph for this function:

bool Ext2Filesystem::releaseInode ( uint32_t inode )

private

Releases the given inode, returns true if the inode had no more links.

Todo:: save group descriptor block number elsewhere

Definition at line 915 of file Ext2Filesystem.cc.

References VFS::addProbeCallback(), assert, VFS::instance(), Ext2File::pinBlock(), Vector< T >::pushBack(), Ext2File::readBlock(), Vector< T >::size(), WARNING, and Ext2File::writeBlock().

Referenced by Ext2Directory::removeEntry().

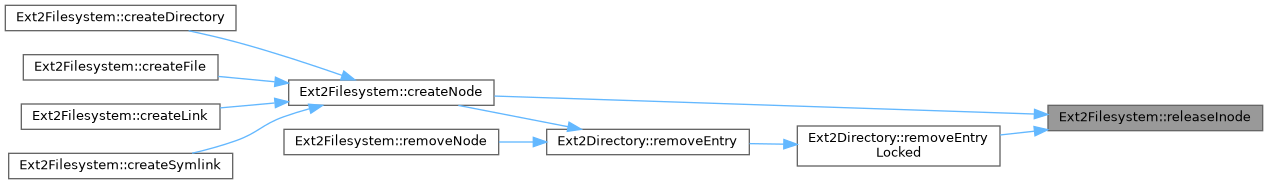

Here is the caller graph for this function:

bool Ext2Filesystem::remove	(	File *	parent,
		File *	file
	)

protectedvirtual

Remove a file given a parent and file, assuming path parsing already completed.

Todo:: save group descriptor block number elsewhere

Implements Filesystem.

Definition at line 500 of file Ext2Filesystem.cc.

References File::getName(), File::isDirectory(), File::isSymlink(), NOTICE, Ext2Directory::removeEntry(), and Ext2File::writeBlock().

void Ext2Filesystem::writeBlock ( uint32_t block )

private

Writes a block of data to the disk.

Definition at line 566 of file Ext2Filesystem.cc.

Referenced by Ext2Directory::addEntry(), Ext2Node::ensureLargeEnough(), Ext2Directory::removeEntry(), and Ext2Node::~Ext2Node().

Here is the caller graph for this function:

Member Data Documentation

uint32_t Ext2Filesystem::m_BlockSize

private

Size of a block.

Definition at line 126 of file Ext2Filesystem.h.

Referenced by Ext2Directory::addEntry(), Ext2Directory::cacheDirectoryContents(), Ext2Node::ensureLargeEnough(), Ext2Node::Ext2Node(), Ext2Node::fileAttributeChanged(), Ext2File::getBlockSize(), Ext2Symlink::readBytewise(), Ext2Directory::removeEntry(), Ext2Node::updateMetadata(), Ext2Symlink::writeBytewise(), and Ext2Node::~Ext2Node().

uint32_t Ext2Filesystem::m_InodeSize

private

Size of an Inode.

Definition at line 129 of file Ext2Filesystem.h.

size_t Ext2Filesystem::m_nGroupDescriptors

private

Number of group descriptors.

Definition at line 132 of file Ext2Filesystem.h.

Vector<size_t>* Ext2Filesystem::m_pBlockBitmaps

private

Free block bitmaps, indexed by group descriptor.

Definition at line 123 of file Ext2Filesystem.h.

GroupDesc** Ext2Filesystem::m_pGroupDescriptors

private

Group descriptors, in a tree because each GroupDesc* may be in a different block.

Definition at line 116 of file Ext2Filesystem.h.

Vector<size_t>* Ext2Filesystem::m_pInodeBitmaps

private

Free inode bitmaps, indexed by group descriptor.

Definition at line 121 of file Ext2Filesystem.h.

Vector<size_t>* Ext2Filesystem::m_pInodeTables

private

Inode tables, indexed by group descriptor.

Definition at line 119 of file Ext2Filesystem.h.

File* Ext2Filesystem::m_pRoot

private

The root filesystem node.

Definition at line 141 of file Ext2Filesystem.h.

Superblock* Ext2Filesystem::m_pSuperblock

private

Our superblock.

Definition at line 112 of file Ext2Filesystem.h.

String Ext2Filesystem::m_VolumeLabel

private

Cached volume label.

Definition at line 144 of file Ext2Filesystem.h.

Mutex Ext2Filesystem::m_WriteLock

private

Write lock - we're finding some inodes and updating the superblock and block group structures.

Definition at line 137 of file Ext2Filesystem.h.
