#include <FatFilesystem.h>

Inheritance diagram for FatFilesystem:

Collaboration diagram for FatFilesystem:

Classes
struct	NodeState

struct	PendingAttributes

union	RootDirInfo

class	ShrinkPlan

Public Member Functions
bool	initialise (Disk *pDisk) override

File *	getRoot () const override

const String &	getVolumeLabel () const override

bool	getUuid (String &) const override

SyncStatus	sync () override

SyncStatus	shutdown () override

bool	deviceRemoved (bool deviceAvailable=false) override

uint64_t	read (File *pFile, uint64_t location, uint64_t size, uintptr_t buffer, bool bCanBlock=true)

uint64_t	write (File *pFile, uint64_t location, uint64_t size, uintptr_t buffer, bool bCanBlock=true)

void	truncate (File *pFile)

void	fileAttributeChanged (File *pFile)

void	cacheDirectoryContents (File *pFile)

void	extend (File *pFile, size_t size)

Public Member Functions inherited from Filesystem
	Filesystem ()

virtual	~Filesystem ()

virtual File *	find (const StringView &path)

virtual File *	find (const String &path)

virtual File *	find (const StringView &path, File *pStartNode)

virtual File *	find (const String &path, File *pStartNode)

File *	findRetained (const StringView &path, Directory::ChildLease &result, File *pStartNode=nullptr)

virtual FileHandleStatus	encodeFileHandle (File &file, FileHandle &handle)

virtual FileHandleStatus	decodeFileHandle (const FileHandle &handle, RetainedFile &file)

virtual FileHandleStatus	fileHandleFsid (FileSystemId &id)

bool	tryAcquireOperation (OperationBarrier::Lease &operation) const

bool	isDeviceRemoved () const

virtual QuotaStatus	quotaControl (const QuotaRequest &, QuotaResponse &, File *quotaFile=nullptr)

bool	createFile (const StringView &path, uint32_t mask, File *pStartNode=0)

bool	createDirectory (const StringView &path, uint32_t mask, File *pStartNode=0)

bool	createSymlink (const StringView &path, const String &value, File *pStartNode=0)

bool	createLink (const StringView &path, File target, File pStartNode=0)

bool	remove (const StringView &path, File *pStartNode=0)

bool	remove (const StringView &path, File pStartNode, File expected)

bool	rename (const StringView &oldPath, File oldStart, const StringView &newPath, File newStart, bool noReplace=false)

Disk *	getDisk ()

bool	isReadOnly ()

virtual bool	isCaseSensitive ()

bool	remove (File parent, File file)

Static Public Member Functions
static Filesystem *	probe (Disk *pDisk)

Protected Member Functions
bool	createFile (File *parent, const String &filename, uint32_t mask) override

bool	createDirectory (File *parent, const String &filename, uint32_t mask) override

bool	createSymlink (File *parent, const String &filename, const String &value) override

bool	removeNode (File parent, const String &filename, File file) override

bool	renameNode (Directory oldParent, const String &oldName, File source, Directory newParent, const String &newName, File replaced) override

	FatFilesystem (const FatFilesystem &)

void	operator= (const FatFilesystem &)

void	loadRootDir ()

void	cacheVolumeLabel ()

bool	readCluster (uint32_t block, uintptr_t buffer) const

bool	writeCluster (uint32_t block, uintptr_t buffer)

bool	writeSectorBlock (uint32_t sec, size_t size, uintptr_t buffer)

bool	readSectorBlock (uint32_t sec, size_t size, uintptr_t buffer) const

uint32_t	getSectorNumber (uint32_t cluster) const

uint32_t	getClusterEntry (uint32_t cluster, bool bLock=true)

bool	setClusterEntry (uint32_t cluster, uint32_t value, bool bLock=true, bool persist=true)

String	convertFilenameTo (String filename) const

String	convertFilenameFrom (String filename) const

uint32_t	findFreeCluster (bool *persisted=nullptr)

bool	syncFat (bool bLock=true)

bool	invalidateFsInfoHints ()

uint8_t *	getFatSector (uint32_t sector)

bool	chainExtent (File *file, uint32_t &count, uint32_t &last)

uint32_t	fileClusterAt (File *, size_t)

bool	truncateFile (File *file)

bool	prepareFileShrink (FatFile *, size_t, UniquePointer< File::PreparedShrink > &)

bool	trimFileAllocation (FatFile *)

void	publishSize (File *, size_t)

void	unlinkNode (File *)

void	retireNode (File *)

void	moveNode (File *, uint32_t, uint32_t)

bool	isNodeUnlinked (File *) const

void	writeEntryAttributes (File , Dir , bool creating=false)

void	encodeEntryAttributes (const File::Attributes &, Dir *, bool creating=false)

bool	syncNodeAttributes (File *)

bool	syncNode (File *)

bool	writePendingAttributes (const PendingAttributes &)

bool	syncPendingAttributes ()

void	movePendingAttributes (uint32_t oldCluster, uint32_t oldOffset, uint32_t newCluster, uint32_t newOffset)

void	discardPendingAttributes (uint32_t cluster, uint32_t offset)

void	clearPendingAttributes ()

FatFile::State *	acquireFileState (FatFile *, uintptr_t, size_t, uint32_t, uint32_t, Time::Timestamp, Time::Timestamp, Time::Timestamp)

void	releaseFileState (FatFile *)

uintptr_t	fileIdentifier (uint32_t cluster, uint32_t offset)

uintptr_t	fileIdentifierLocked (uint64_t slot)

bool	writeCachedPages (FatFile::State &, const Cache::WritebackPage *, size_t)

bool	drainFileStates (bool checked=false)

void	registerNode (File *)

void	releaseNode (File *)

void	moveNonFileNode (File *, uint32_t, uint32_t)

void	unlinkNonFileNode (File *)

bool	ensureCapacity (File *file, size_t size)

bool	zeroRange (File *file, size_t begin, size_t end)

bool	updateFileMetadata (File *file, size_t size)

bool	syncFileMetadata (File *file)

uint64_t	allocatedBlocks (File *file)

void *	readDirectoryPortion (uint32_t clus) const

bool	readDirectoryPortion (uint32_t clus, uintptr_t buffer) const

bool	writeDirectoryPortion (uint32_t clus, void *p)

File *	createFile (File *parentDir, const String &filename, uint32_t mask, bool bDirectory=false, uint32_t dirClus=0, bool publish=true)

bool	releaseClusterChain (uint32_t clus, bool lockFile=true)

Dir *	getDirectoryEntry (uint32_t clus, uint32_t offset) const

bool	writeDirectoryEntry (Dir *dir, uint32_t clus, uint32_t offset)

bool	isEof (uint32_t cluster) const

uint32_t	eofValue () const

Time::Timestamp	getUnixTimestamp (uint16_t time, uint16_t date) const

uint16_t	getFatDate (Time::Timestamp timestamp) const

uint16_t	getFatTime (Time::Timestamp timestamp) const

Protected Member Functions inherited from Filesystem
virtual bool	createLink (File parent, const String &filename, File target)

bool	beginDeviceRemoval (bool deviceAvailable)

Protected Attributes
bool	m_FsInfoInvalidated = false

uint64_t	m_ChainRevision = 1

PendingAttributes *	m_PendingAttributes = nullptr

Tree< uintptr_t, NodeState * >	m_NodeStates

Tree< File , NodeState >	m_NodeAliases

Mutex	m_StateLock

Tree< uint64_t, FatFile::State * >	m_FileStates

Tree< uint64_t, uintptr_t >	m_FileIdentifiers

uintptr_t	m_NextFileIdentifier = 0x10000000

FatFile::State *	m_StateList = nullptr

bool	m_IoFailed = false

bool	m_ShutdownComplete = false

Mutex	m_FileMutationLock

Superblock	m_Superblock

Superblock16	m_Superblock16

Superblock32	m_Superblock32

FSInfo32	m_FsInfo

FatType	m_Type

uint64_t	m_DataAreaStart

uint32_t	m_RootDirCount

uint16_t	m_FatSector

union FatFilesystem::RootDirInfo	m_RootDir

uint32_t	m_BlockSize

uint32_t	m_ClusterCount

uint8_t *	m_pFatCache

UnlikelyLock	m_FatLock

Mutex	m_AllocationLock

File *	m_pRoot

Tree< uintptr_t, uintptr_t >	m_FatCache

Tree< uint32_t, bool >	m_DirtyFatSectors

uint32_t	m_FreeClusterHint

String	m_VolumeLabel

Protected Attributes inherited from Filesystem
bool	m_bReadOnly

Disk *	m_pDisk

DiskUse	m_DiskUse

OperationBarrier	m_Operations

Friends
class	FatFile

class	FatDirectory

class	FatSymlink

Additional Inherited Members
Public Types inherited from Filesystem
enum class	SyncStatus { Success , Unsupported , NoMemory , IoError }

typedef Filesystem (	ProbeCallback) (Disk *)

Detailed Description

This class provides an implementation of the FAT filesystem.

Definition at line 37 of file FatFilesystem.h.

Constructor & Destructor Documentation

◆ FatFilesystem()

FatFilesystem::FatFilesystem ( )

Definition at line 58 of file FatFilesystem.cc.

◆ ~FatFilesystem()

FatFilesystem::~FatFilesystem ( )

override

Definition at line 82 of file FatFilesystem.cc.

Member Function Documentation

◆ acquireFileState()

FatFile::State * FatFilesystem::acquireFileState	(	FatFile *	file,
		uintptr_t	inode,
		size_t	size,
		uint32_t	cluster,
		uint32_t	offset,
		Time::Timestamp	accessed,
		Time::Timestamp	modified,
		Time::Timestamp	changed
	)

protected

Definition at line 75 of file FatFilesystem-state.cc.

◆ allocatedBlocks()

uint64_t FatFilesystem::allocatedBlocks ( File * file )

protected

Definition at line 553 of file FatFilesystem.cc.

◆ cacheDirectoryContents()

void FatFilesystem::cacheDirectoryContents ( File * pFile )

Definition at line 800 of file FatFilesystem.cc.

◆ cacheVolumeLabel()

void FatFilesystem::cacheVolumeLabel ( )

protected

Definition at line 268 of file FatFilesystem.cc.

◆ chainExtent()

bool FatFilesystem::chainExtent	(	File *	file,
		uint32_t &	count,
		uint32_t &	last
	)

protected

Definition at line 12 of file FatFilesystem-chain.cc.

◆ clearPendingAttributes()

void FatFilesystem::clearPendingAttributes ( )

protected

Definition at line 221 of file FatFilesystem-attributes.cc.

◆ convertFilenameFrom()

String FatFilesystem::convertFilenameFrom ( String filename ) const

protected

Converts a string from 8.3 format

Definition at line 1063 of file FatFilesystem.cc.

◆ convertFilenameTo()

String FatFilesystem::convertFilenameTo ( String filename ) const

protected

Converts a string to 8.3 format

Todo:: This should increment if a file is found with the same name!

todo Increment on duplicate

Definition at line 980 of file FatFilesystem.cc.

◆ createDirectory()

bool FatFilesystem::createDirectory	(	File *	parent,
		const String &	filename,
		uint32_t	mask
	)

overrideprotectedvirtual

createDirectory calls this after it has parsed the string path.

Implements Filesystem.

Definition at line 1159 of file FatFilesystem.cc.

References FatDirectory::addEntry(), createFile(), findFreeCluster(), Directory::fromFile(), Filesystem::m_bReadOnly, releaseClusterChain(), and setClusterEntry().

◆ createFile() [1/2]

bool FatFilesystem::createFile	(	File *	parent,
		const String &	filename,
		uint32_t	mask
	)

overrideprotectedvirtual

createFile calls this after it has parsed the string path.

Implements Filesystem.

Definition at line 1154 of file FatFilesystem.cc.

References createFile().

Referenced by createDirectory(), and createFile().

Here is the caller graph for this function:

◆ createFile() [2/2]

File * FatFilesystem::createFile	(	File *	parentDir,
		const String &	filename,
		uint32_t	mask,
		bool	bDirectory = `false`,
		uint32_t	dirClus = `0`,
		bool	publish = `true`
	)

protected

Creates a file - actual doer for the public createFile

Definition at line 1092 of file FatFilesystem.cc.

References FatDirectory::addEntry(), Directory::fromFile(), getClusterEntry(), File::isDirectory(), isEof(), m_BlockSize, Filesystem::m_bReadOnly, releaseClusterChain(), and writeCluster().

◆ createSymlink()

bool FatFilesystem::createSymlink	(	File *	parent,
		const String &	filename,
		const String &	value
	)

overrideprotectedvirtual

createSymlink calls this after it has parsed the string path.

Implements Filesystem.

Definition at line 1197 of file FatFilesystem.cc.

References FatDirectory::addEntry(), findFreeCluster(), Directory::fromFile(), File::isDirectory(), Filesystem::m_bReadOnly, and releaseClusterChain().

◆ deviceRemoved()

bool FatFilesystem::deviceRemoved ( bool deviceAvailable = false )

overridevirtual

Rejects backend operations and releases a removed device's ownership.

Reimplemented from Filesystem.

Definition at line 28 of file FatFilesystem-state.cc.

References Filesystem::deviceRemoved().

◆ discardPendingAttributes()

void FatFilesystem::discardPendingAttributes	(	uint32_t	cluster,
		uint32_t	offset
	)

protected

Definition at line 207 of file FatFilesystem-attributes.cc.

◆ drainFileStates()

bool FatFilesystem::drainFileStates ( bool checked = false )

protected

Definition at line 287 of file FatFilesystem-state.cc.

◆ encodeEntryAttributes()

void FatFilesystem::encodeEntryAttributes	(	const File::Attributes &	attributes,
		Dir *	entry,
		bool	creating = `false`
	)

protected

Definition at line 97 of file FatFilesystem-attributes.cc.

◆ ensureCapacity()

bool FatFilesystem::ensureCapacity	(	File *	file,
		size_t	size
	)

protected

Definition at line 568 of file FatFilesystem.cc.

◆ eofValue()

uint32_t FatFilesystem::eofValue ( ) const

inlineprotected

EOF values

Definition at line 212 of file FatFilesystem.h.

References m_Type.

Referenced by findFreeCluster(), and isEof().

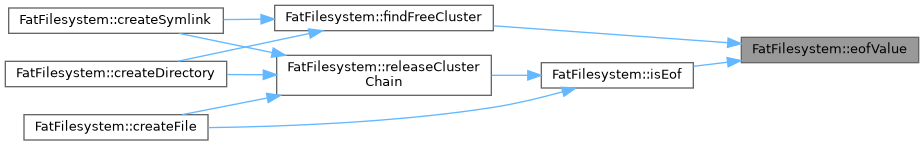

Here is the caller graph for this function:

◆ extend()

void FatFilesystem::extend	(	File *	pFile,
		size_t	size
	)

Definition at line 128 of file FatFilesystem-resize.cc.

◆ fileAttributeChanged()

void FatFilesystem::fileAttributeChanged ( File * pFile )

Definition at line 229 of file FatFilesystem-attributes.cc.

◆ fileClusterAt()

uint32_t FatFilesystem::fileClusterAt	(	File *	file,
		size_t	index
	)

protected

Definition at line 60 of file FatFilesystem-chain.cc.

◆ fileIdentifier()

uintptr_t FatFilesystem::fileIdentifier	(	uint32_t	cluster,
		uint32_t	offset
	)

protected

Definition at line 59 of file FatFilesystem-state.cc.

◆ fileIdentifierLocked()

uintptr_t FatFilesystem::fileIdentifierLocked ( uint64_t slot )

protected

Definition at line 64 of file FatFilesystem-state.cc.

◆ findFreeCluster()

uint32_t FatFilesystem::findFreeCluster ( bool * persisted = nullptr )

protected

Finds and reserves a free cluster.

Definition at line 446 of file FatFilesystem.cc.

References eofValue(), getClusterEntry(), m_AllocationLock, m_ClusterCount, m_FreeClusterHint, and setClusterEntry().

Referenced by createDirectory(), and createSymlink().

Here is the caller graph for this function:

◆ getClusterEntry()

uint32_t FatFilesystem::getClusterEntry	(	uint32_t	cluster,
		bool	bLock = `true`
	)

protected

Grabs a cluster entry - bLock determines if this should enforce locking internally or allow the caller to ensure the FAT is locked.

Definition at line 873 of file FatFilesystem.cc.

References UnlikelyLock::acquire(), m_FatLock, m_Superblock, m_Type, and UnlikelyLock::release().

Referenced by createFile(), findFreeCluster(), initialise(), and releaseClusterChain().

Here is the caller graph for this function:

◆ getDirectoryEntry()

Dir * FatFilesystem::getDirectoryEntry	(	uint32_t	clus,
		uint32_t	offset
	)		const

protected

Reads a directory entry from disk

Definition at line 759 of file FatFilesystem.cc.

References m_BlockSize, m_Superblock, and readDirectoryPortion().

◆ getFatDate()

uint16_t FatFilesystem::getFatDate ( Time::Timestamp timestamp ) const

protected

Definition at line 61 of file FatFilesystem-attributes.cc.

◆ getFatSector()

uint8_t * FatFilesystem::getFatSector ( uint32_t sector )

protected

Definition at line 859 of file FatFilesystem.cc.

◆ getFatTime()

uint16_t FatFilesystem::getFatTime ( Time::Timestamp timestamp ) const

protected

Definition at line 66 of file FatFilesystem-attributes.cc.

◆ getRoot()

File * FatFilesystem::getRoot ( ) const

overridevirtual

Returns the root filesystem node.

Implements Filesystem.

Definition at line 264 of file FatFilesystem.cc.

References m_pRoot.

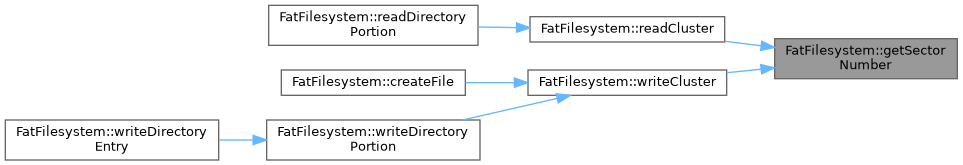

◆ getSectorNumber()

uint32_t FatFilesystem::getSectorNumber ( uint32_t cluster ) const

protected

Obtains the first sector given a cluster number

Definition at line 855 of file FatFilesystem.cc.

References m_DataAreaStart, and m_Superblock.

Referenced by readCluster(), and writeCluster().

Here is the caller graph for this function:

◆ getUnixTimestamp()

Time::Timestamp FatFilesystem::getUnixTimestamp	(	uint16_t	time,
		uint16_t	date
	)		const

protected

Definition at line 71 of file FatFilesystem-attributes.cc.

◆ getUuid()

bool FatFilesystem::getUuid ( String & uuid ) const

overridevirtual

Returns the canonical filesystem UUID when this filesystem has one.

Reimplemented from Filesystem.

Definition at line 49 of file FatFilesystem-attributes.cc.

References m_Type.

◆ getVolumeLabel()

const String & FatFilesystem::getVolumeLabel ( ) const

overridevirtual

Returns a string identifying the volume label.

Implements Filesystem.

Definition at line 338 of file FatFilesystem.cc.

References m_VolumeLabel.

◆ initialise()

bool FatFilesystem::initialise ( Disk * pDisk )

overridevirtual

Populates this filesystem with data from the given Disk device.

Returns: true on success, false on failure.

Validate the BPB and check for FAT FS

Check the FAT FS itself, ensuring it's valid

Start loading actual FS info

Implements Filesystem.

Definition at line 96 of file FatFilesystem.cc.

References getClusterEntry(), Disk::getName(), m_BlockSize, m_ClusterCount, m_DataAreaStart, m_FatSector, m_FreeClusterHint, Filesystem::m_pDisk, m_pRoot, m_Superblock, m_Type, Disk::read(), readSectorBlock(), and Disk::unpin().

◆ invalidateFsInfoHints()

bool FatFilesystem::invalidateFsInfoHints ( )

protected

Definition at line 12 of file FatFilesystem-fsinfo.cc.

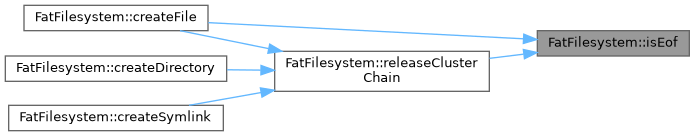

◆ isEof()

bool FatFilesystem::isEof ( uint32_t cluster ) const

inlineprotected

Is a given cluster VALUE EOF?

Definition at line 207 of file FatFilesystem.h.

References eofValue().

Referenced by createFile(), and releaseClusterChain().

Here is the caller graph for this function:

◆ isNodeUnlinked()

bool FatFilesystem::isNodeUnlinked ( File * file ) const

protected

Definition at line 150 of file FatFilesystem-state.cc.

◆ loadRootDir()

void FatFilesystem::loadRootDir ( )

protected

Definition at line 248 of file FatFilesystem.cc.

◆ moveNode()

void FatFilesystem::moveNode	(	File *	file,
		uint32_t	cluster,
		uint32_t	offset
	)

protected

Definition at line 180 of file FatFilesystem-state.cc.

◆ moveNonFileNode()

void FatFilesystem::moveNonFileNode	(	File *	file,
		uint32_t	cluster,
		uint32_t	offset
	)

protected

Definition at line 88 of file FatFilesystem-node-state.cc.

◆ movePendingAttributes()

void FatFilesystem::movePendingAttributes	(	uint32_t	oldCluster,
		uint32_t	oldOffset,
		uint32_t	newCluster,
		uint32_t	newOffset
	)

protected

Definition at line 192 of file FatFilesystem-attributes.cc.

◆ prepareFileShrink()

bool FatFilesystem::prepareFileShrink	(	FatFile *	file,
		size_t	size,
		UniquePointer< File::PreparedShrink > &	prepared
	)

protected

Definition at line 32 of file FatFilesystem-resize.cc.

◆ probe()

Filesystem * FatFilesystem::probe ( Disk * pDisk )

static

Definition at line 238 of file FatFilesystem.cc.

◆ publishSize()

void FatFilesystem::publishSize	(	File *	file,
		size_t	size
	)

protected

Definition at line 137 of file FatFilesystem-state.cc.

◆ read()

uint64_t FatFilesystem::read	(	File *	pFile,
		uint64_t	location,
		uint64_t	size,
		uintptr_t	buffer,
		bool	bCanBlock = `true`
	)

Definition at line 344 of file FatFilesystem.cc.

◆ readCluster()

bool FatFilesystem::readCluster	(	uint32_t	block,
		uintptr_t	buffer
	)		const

protected

Reads a cluster from the disk.

Definition at line 802 of file FatFilesystem.cc.

References getSectorNumber(), m_BlockSize, and readSectorBlock().

Referenced by readDirectoryPortion().

Here is the caller graph for this function:

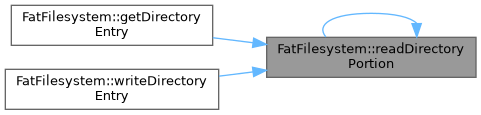

◆ readDirectoryPortion() [1/2]

void * FatFilesystem::readDirectoryPortion ( uint32_t clus ) const

protected

Reads part of a directory into a buffer, returns the allocated buffer (which needs to be freed

Definition at line 712 of file FatFilesystem.cc.

References m_BlockSize, m_Superblock, m_Type, and readDirectoryPortion().

Referenced by getDirectoryEntry(), readDirectoryPortion(), and writeDirectoryEntry().

Here is the caller graph for this function:

◆ readDirectoryPortion() [2/2]

bool FatFilesystem::readDirectoryPortion	(	uint32_t	clus,
		uintptr_t	buffer
	)		const

protected

Reads part of a directory into a caller-provided buffer.

Definition at line 726 of file FatFilesystem.cc.

References m_Superblock, m_Type, readCluster(), and readSectorBlock().

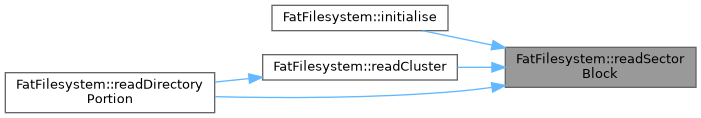

◆ readSectorBlock()

bool FatFilesystem::readSectorBlock	(	uint32_t	sec,
		size_t	size,
		uintptr_t	buffer
	)		const

protected

Reads a block starting from a specific sector from the disk.

Definition at line 807 of file FatFilesystem.cc.

References Filesystem::m_pDisk, m_Superblock, Disk::read(), and Disk::unpin().

Referenced by initialise(), readCluster(), and readDirectoryPortion().

Here is the caller graph for this function:

◆ registerNode()

void FatFilesystem::registerNode ( File * file )

protected

Definition at line 13 of file FatFilesystem-node-state.cc.

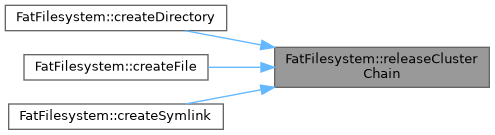

◆ releaseClusterChain()

bool FatFilesystem::releaseClusterChain	(	uint32_t	clus,
		bool	lockFile = `true`
	)

protected

Releases a validated cluster chain as one allocation transaction.

Definition at line 1248 of file FatFilesystem.cc.

References getClusterEntry(), isEof(), m_AllocationLock, m_ClusterCount, m_FileMutationLock, and setClusterEntry().

Referenced by createDirectory(), createFile(), and createSymlink().

Here is the caller graph for this function:

◆ releaseFileState()

void FatFilesystem::releaseFileState ( FatFile * file )

protected

Definition at line 102 of file FatFilesystem-state.cc.

◆ releaseNode()

void FatFilesystem::releaseNode ( File * file )

protected

Definition at line 58 of file FatFilesystem-node-state.cc.

◆ removeNode()

bool FatFilesystem::removeNode	(	File *	parent,
		const String &	filename,
		File *	file
	)

overrideprotectedvirtual

Remove a backing node while the VFS holds the parent's namespace lock. A successful implementation must retire the parent's cached entry before returning and must recheck directory emptiness while holding the child's namespace lock.

Implements Filesystem.

Definition at line 1285 of file FatFilesystem.cc.

References Directory::fromFile(), Directory::isDetached(), File::isDirectory(), Directory::isEmpty(), Filesystem::m_bReadOnly, FatDirectory::m_Lock, Directory::namespaceMutationLock(), and FatDirectory::removeEntry().

◆ renameNode()

bool FatFilesystem::renameNode	(	Directory *	oldParent,
		const String &	oldName,
		File *	source,
		Directory *	newParent,
		const String &	newName,
		File *	replaced
	)

overrideprotectedvirtual

Change backing entries while the VFS reserves both names and owns their namespace locks. Do not call ordinary lookup/add/remove APIs here. Failure must leave both names unchanged; the VFS publishes cache changes on success.

Reimplemented from Filesystem.

Definition at line 411 of file FatFilesystem-namespace.cc.

References File::isDirectory(), File::isSymlink(), m_FileMutationLock, and FatDirectory::m_Lock.

◆ retireNode()

void FatFilesystem::retireNode ( File * file )

protected

Definition at line 208 of file FatFilesystem-state.cc.

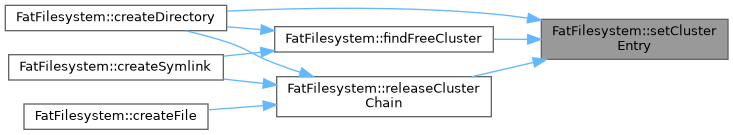

◆ setClusterEntry()

bool FatFilesystem::setClusterEntry	(	uint32_t	cluster,
		uint32_t	value,
		bool	bLock = `true`,
		bool	persist = `true`
	)

protected

Sets a cluster entry - bLock determines if this should enforce locking internally or allow the caller to ensure the FAT is locked.

Definition at line 896 of file FatFilesystem.cc.

References UnlikelyLock::acquire(), Tree< K, E >::insert(), m_AllocationLock, m_ClusterCount, m_FatLock, m_Superblock, m_Type, and UnlikelyLock::release().

Referenced by createDirectory(), findFreeCluster(), and releaseClusterChain().

Here is the caller graph for this function:

◆ shutdown()

Filesystem::SyncStatus FatFilesystem::shutdown ( )

overridevirtual

After all users drain, finish teardown writes before backend destruction.

Reimplemented from Filesystem.

Definition at line 261 of file FatFilesystem-state.cc.

References FatFile::sync().

◆ sync()

Filesystem::SyncStatus FatFilesystem::sync ( )

overridevirtual

Completes data, metadata and device writeback for changes made before entry.

Reimplemented from Filesystem.

Definition at line 226 of file FatFilesystem-state.cc.

References Vector< T >::count(), Vector< T >::pushBack(), and Cache::syncAll().

◆ syncFat()

bool FatFilesystem::syncFat ( bool bLock = true )

protected

Definition at line 933 of file FatFilesystem.cc.

◆ syncFileMetadata()

bool FatFilesystem::syncFileMetadata ( File * file )

protected

Definition at line 697 of file FatFilesystem.cc.

◆ syncNode()

bool FatFilesystem::syncNode ( File * file )

protected

Definition at line 273 of file FatFilesystem-attributes.cc.

◆ syncNodeAttributes()

bool FatFilesystem::syncNodeAttributes ( File * file )

protected

Definition at line 129 of file FatFilesystem-attributes.cc.

◆ syncPendingAttributes()

bool FatFilesystem::syncPendingAttributes ( )

protected

Definition at line 174 of file FatFilesystem-attributes.cc.

◆ trimFileAllocation()

bool FatFilesystem::trimFileAllocation ( FatFile * file )

protected

Definition at line 62 of file FatFilesystem-resize.cc.

◆ truncate()

void FatFilesystem::truncate ( File * pFile )

Definition at line 120 of file FatFilesystem-resize.cc.

◆ truncateFile()

bool FatFilesystem::truncateFile ( File * file )

protected

Definition at line 124 of file FatFilesystem-resize.cc.

◆ unlinkNode()

void FatFilesystem::unlinkNode ( File * file )

protected

Definition at line 158 of file FatFilesystem-state.cc.

◆ unlinkNonFileNode()

void FatFilesystem::unlinkNonFileNode ( File * file )

protected

Definition at line 112 of file FatFilesystem-node-state.cc.

◆ updateFileMetadata()

bool FatFilesystem::updateFileMetadata	(	File *	file,
		size_t	size
	)

protected

Definition at line 626 of file FatFilesystem.cc.

◆ write()

uint64_t FatFilesystem::write	(	File *	pFile,
		uint64_t	location,
		uint64_t	size,
		uintptr_t	buffer,
		bool	bCanBlock = `true`
	)

Definition at line 485 of file FatFilesystem.cc.

◆ writeCachedPages()

bool FatFilesystem::writeCachedPages	(	FatFile::State &	state,
		const Cache::WritebackPage *	pages,
		size_t	count
	)

protected

Definition at line 7 of file FatFilesystem-writeback.cc.

◆ writeCluster()

bool FatFilesystem::writeCluster	(	uint32_t	block,
		uintptr_t	buffer
	)

protected

Writes a cluster to the disk.

Definition at line 837 of file FatFilesystem.cc.

References getSectorNumber(), m_BlockSize, and writeSectorBlock().

Referenced by createFile(), and writeDirectoryPortion().

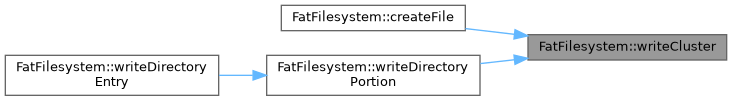

Here is the caller graph for this function:

◆ writeDirectoryEntry()

bool FatFilesystem::writeDirectoryEntry	(	Dir *	dir,
		uint32_t	clus,
		uint32_t	offset
	)

protected

Writes a directry entry to disk

Definition at line 777 of file FatFilesystem.cc.

References m_BlockSize, m_Superblock, readDirectoryPortion(), and writeDirectoryPortion().

◆ writeDirectoryPortion()

bool FatFilesystem::writeDirectoryPortion	(	uint32_t	clus,
		void *	p
	)

protected

Writes part of a directory from a buffer

Definition at line 740 of file FatFilesystem.cc.

References m_BlockSize, m_Superblock, m_Type, writeCluster(), and writeSectorBlock().

Referenced by writeDirectoryEntry().

Here is the caller graph for this function:

◆ writeEntryAttributes()

void FatFilesystem::writeEntryAttributes	(	File *	file,
		Dir *	entry,
		bool	creating = `false`
	)

protected

Definition at line 92 of file FatFilesystem-attributes.cc.

◆ writePendingAttributes()

bool FatFilesystem::writePendingAttributes ( const PendingAttributes & pending )

protected

Definition at line 112 of file FatFilesystem-attributes.cc.

◆ writeSectorBlock()

bool FatFilesystem::writeSectorBlock	(	uint32_t	sec,
		size_t	size,
		uintptr_t	buffer
	)

protected

Writes a block starting from a specific sector to the disk.

Definition at line 842 of file FatFilesystem.cc.

References Filesystem::m_pDisk, m_Superblock, and Disk::syncData().

Referenced by writeCluster(), and writeDirectoryPortion().

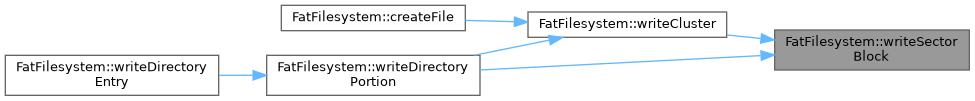

Here is the caller graph for this function:

◆ zeroRange()

bool FatFilesystem::zeroRange	(	File *	file,
		size_t	begin,
		size_t	end
	)

protected

Definition at line 661 of file FatFilesystem.cc.

Friends And Related Symbol Documentation

◆ FatDirectory

friend class FatDirectory

friend

Definition at line 39 of file FatFilesystem.h.

◆ FatFile

friend class FatFile

friend

Definition at line 38 of file FatFilesystem.h.

◆ FatSymlink

friend class FatSymlink

friend

Definition at line 40 of file FatFilesystem.h.

Member Data Documentation

◆ m_AllocationLock

Mutex FatFilesystem::m_AllocationLock

protected

Serialises the scan-and-reserve transaction across the whole volume.

Definition at line 263 of file FatFilesystem.h.

Referenced by findFreeCluster(), releaseClusterChain(), and setClusterEntry().

◆ m_BlockSize

uint32_t FatFilesystem::m_BlockSize

protected

Size of a block (in this case, a cluster)

Definition at line 249 of file FatFilesystem.h.

Referenced by createFile(), FatDirectory::FatDirectory(), getDirectoryEntry(), initialise(), readCluster(), readDirectoryPortion(), writeCluster(), writeDirectoryEntry(), and writeDirectoryPortion().

◆ m_ChainRevision

uint64_t FatFilesystem::m_ChainRevision = 1

protected

Definition at line 121 of file FatFilesystem.h.

◆ m_ClusterCount

uint32_t FatFilesystem::m_ClusterCount

protected

Number of addressable data clusters.

Definition at line 252 of file FatFilesystem.h.

Referenced by findFreeCluster(), initialise(), releaseClusterChain(), and setClusterEntry().

◆ m_DataAreaStart

uint64_t FatFilesystem::m_DataAreaStart

protected

Required information

Definition at line 236 of file FatFilesystem.h.

Referenced by getSectorNumber(), and initialise().

◆ m_DirtyFatSectors

Tree<uint32_t, bool> FatFilesystem::m_DirtyFatSectors

protected

Definition at line 272 of file FatFilesystem.h.

◆ m_FatCache

Tree<uintptr_t, uintptr_t> FatFilesystem::m_FatCache

protected

Definition at line 271 of file FatFilesystem.h.

◆ m_FatLock

UnlikelyLock FatFilesystem::m_FatLock

protected

FAT lock

Definition at line 259 of file FatFilesystem.h.

Referenced by getClusterEntry(), and setClusterEntry().

◆ m_FatSector

uint16_t FatFilesystem::m_FatSector

protected

FAT sector

Definition at line 240 of file FatFilesystem.h.

Referenced by initialise().

◆ m_FileIdentifiers

Tree<uint64_t, uintptr_t> FatFilesystem::m_FileIdentifiers

protected

Definition at line 169 of file FatFilesystem.h.

◆ m_FileMutationLock

Mutex FatFilesystem::m_FileMutationLock

protected

Serialises chain changes and attribute snapshots across file aliases.

Definition at line 181 of file FatFilesystem.h.

Referenced by FatFilesystem::ShrinkPlan::commit(), releaseClusterChain(), and renameNode().

◆ m_FileStates

Tree<uint64_t, FatFile::State*> FatFilesystem::m_FileStates

protected

Definition at line 168 of file FatFilesystem.h.

◆ m_FreeClusterHint

uint32_t FatFilesystem::m_FreeClusterHint

protected

Hint for the free cluster code, to avoid searching the ENTIRE FAT each time someone wants a free cluster (on non-FAT32 volumes).

Definition at line 278 of file FatFilesystem.h.

Referenced by findFreeCluster(), and initialise().

◆ m_FsInfo

FSInfo32 FatFilesystem::m_FsInfo

protected

Definition at line 230 of file FatFilesystem.h.

◆ m_FsInfoInvalidated

bool FatFilesystem::m_FsInfoInvalidated = false

protected

Definition at line 117 of file FatFilesystem.h.

◆ m_IoFailed

bool FatFilesystem::m_IoFailed = false

protected

Definition at line 172 of file FatFilesystem.h.

◆ m_NextFileIdentifier

uintptr_t FatFilesystem::m_NextFileIdentifier = 0x10000000

protected

Definition at line 170 of file FatFilesystem.h.

◆ m_NodeAliases

Tree<File*, NodeState*> FatFilesystem::m_NodeAliases

protected

Definition at line 162 of file FatFilesystem.h.

◆ m_NodeStates

Tree<uintptr_t, NodeState*> FatFilesystem::m_NodeStates

protected

Definition at line 161 of file FatFilesystem.h.

◆ m_PendingAttributes

PendingAttributes* FatFilesystem::m_PendingAttributes = nullptr

protected

Definition at line 140 of file FatFilesystem.h.

◆ m_pFatCache

uint8_t* FatFilesystem::m_pFatCache

protected

FAT cache

Definition at line 255 of file FatFilesystem.h.

◆ m_pRoot

File* FatFilesystem::m_pRoot

protected

Root filesystem node.

Definition at line 267 of file FatFilesystem.h.

Referenced by getRoot(), and initialise().

◆ m_RootDirCount

uint32_t FatFilesystem::m_RootDirCount

protected

Definition at line 237 of file FatFilesystem.h.

◆ m_ShutdownComplete

bool FatFilesystem::m_ShutdownComplete = false

protected

Definition at line 173 of file FatFilesystem.h.

◆ m_StateList

FatFile::State* FatFilesystem::m_StateList = nullptr

protected

Definition at line 171 of file FatFilesystem.h.

◆ m_StateLock

Mutex FatFilesystem::m_StateLock

protected

Definition at line 167 of file FatFilesystem.h.

◆ m_Superblock

Superblock FatFilesystem::m_Superblock

protected

Our superblocks

Definition at line 227 of file FatFilesystem.h.

Referenced by getClusterEntry(), getDirectoryEntry(), getSectorNumber(), initialise(), readDirectoryPortion(), readDirectoryPortion(), readSectorBlock(), setClusterEntry(), FatDirectory::setInode(), writeDirectoryEntry(), writeDirectoryPortion(), and writeSectorBlock().

◆ m_Superblock16

Superblock16 FatFilesystem::m_Superblock16

protected

Definition at line 228 of file FatFilesystem.h.

◆ m_Superblock32

Superblock32 FatFilesystem::m_Superblock32

protected

Definition at line 229 of file FatFilesystem.h.

◆ m_Type

FatType FatFilesystem::m_Type

protected

Type of the FAT

Definition at line 233 of file FatFilesystem.h.

Referenced by eofValue(), FatDirectory::FatDirectory(), getClusterEntry(), getUuid(), initialise(), readDirectoryPortion(), readDirectoryPortion(), setClusterEntry(), FatDirectory::setInode(), and writeDirectoryPortion().

◆ m_VolumeLabel

String FatFilesystem::m_VolumeLabel

protected

Cached volume label for the filesystem.

Definition at line 281 of file FatFilesystem.h.

Referenced by getVolumeLabel().

The documentation for this class was generated from the following files:

Classes

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ FatFilesystem()

◆ ~FatFilesystem()

Member Function Documentation

◆ acquireFileState()

◆ allocatedBlocks()

◆ cacheDirectoryContents()

◆ cacheVolumeLabel()

◆ chainExtent()

◆ clearPendingAttributes()

◆ convertFilenameFrom()

◆ convertFilenameTo()

◆ createDirectory()

◆ createFile() [1/2]

◆ createFile() [2/2]

◆ createSymlink()

◆ deviceRemoved()

◆ discardPendingAttributes()

◆ drainFileStates()

◆ encodeEntryAttributes()

◆ ensureCapacity()

◆ eofValue()

◆ extend()

◆ fileAttributeChanged()

◆ fileClusterAt()

◆ fileIdentifier()

◆ fileIdentifierLocked()

◆ findFreeCluster()

◆ getClusterEntry()

◆ getDirectoryEntry()

◆ getFatDate()

◆ getFatSector()

◆ getFatTime()

◆ getRoot()

◆ getSectorNumber()

◆ getUnixTimestamp()

◆ getUuid()

◆ getVolumeLabel()

◆ initialise()

◆ invalidateFsInfoHints()

◆ isEof()

◆ isNodeUnlinked()

◆ loadRootDir()

◆ moveNode()

◆ moveNonFileNode()

◆ movePendingAttributes()

◆ prepareFileShrink()

◆ probe()

◆ publishSize()

◆ read()

◆ readCluster()

◆ readDirectoryPortion() [1/2]

◆ readDirectoryPortion() [2/2]

◆ readSectorBlock()

◆ registerNode()

◆ releaseClusterChain()

◆ releaseFileState()

◆ releaseNode()

◆ removeNode()

◆ renameNode()

◆ retireNode()

◆ setClusterEntry()

◆ shutdown()

◆ sync()

◆ syncFat()

◆ syncFileMetadata()

◆ syncNode()

◆ syncNodeAttributes()

◆ syncPendingAttributes()

◆ trimFileAllocation()

◆ truncate()

◆ truncateFile()
