#include <InputManager.h>

Collaboration diagram for InputManager:

Classes
struct	CallbackItem
	Item in the kernel callback list. More...

struct	InputNotification

Public Types
typedef int	CallbackType

typedef void(*	callback_t) (InputNotification &)
	Callback function type.

Public Member Functions
	InputManager ()
	Default constructor.

virtual	~InputManager ()
	Default destructor.

void	initialise ()
	Begins the worker thread.

void	shutdown ()
	Shuts down the worker thread, clears queues, and removes callbacks.

void	keyPressed (uint64_t key)
	Called whenever a key is pressed and needs to be added to the queue.

void	rawKeyUpdate (uint8_t scancode, bool bKeyUp)

void	machineKeyUpdate (uint8_t scancode, bool bKeyUp)
	Called whenever a machine-specific key scancode comes in.

void	mouseUpdate (ssize_t relX, ssize_t relY, ssize_t relZ, uint32_t buttonBitmap)
	Called whenever mouse input comes in.

void	absoluteMouseUpdate (uint32_t x, uint32_t y, ssize_t wheel, uint32_t buttonBitmap)
	Position coordinates use the evdev 0..0x7fff absolute pointer range.

void	joystickUpdate (ssize_t relX, ssize_t relY, ssize_t relZ, uint32_t buttonBitmap)
	Called whenever joystick input comes in.

void	installCallback (CallbackType filter, callback_t callback, void *meta=0)
	Installs a callback.

void	removeCallback (callback_t callback, void *meta=0)
	Removes a callback.

void	mainThread ()
	Main worker thread.

bool	isActive () const
	Returns whether the instance is creating notifications.

Static Public Member Functions
static InputManager &	instance ()
	Singleton design.

static int	trampoline (void *ptr)
	Thread trampoline.

Static Public Attributes
static const int	Key = 1

static const int	Mouse = 2

static const int	Joystick = 4

static const int	RawKey = 8

static const int	MachineKey = 16

static const int	AbsoluteMouse = 32

static const int	Unknown = 255

Private Member Functions
void	putNotification (InputNotification *note)

void	removeCallbacks (callback_t callback, void *meta)

void	drainCallback (CallbackItem *item)

Private Attributes
List< InputNotification * >	m_InputQueue
	Input queue (for distribution to applications)

Spinlock	m_QueueLock

List< CallbackItem * >	m_Callbacks
	Callback list.

Semaphore	m_InputQueueSize
	Key press queue Semaphore.

Thread *	m_pThread
	Thread object for our worker thread.

Thread *	m_pCallbackDispatchThread
	Set only while the input worker is executing a committed callback.

Atomic< bool >	m_bActive
	Are we active?

Static Private Attributes
static InputManager	m_Instance
	Static instance.

Detailed Description

Global manager for all input from HID devices.

Definition at line 39 of file InputManager.h.

Member Typedef Documentation

◆ callback_t

typedef void(* InputManager::callback_t) (InputNotification &)

Callback function type.

Definition at line 97 of file InputManager.h.

◆ CallbackType

typedef int InputManager::CallbackType

Definition at line 51 of file InputManager.h.

Constructor & Destructor Documentation

◆ InputManager()

InputManager::InputManager ( )

Default constructor.

Definition at line 41 of file InputManager.cc.

◆ ~InputManager()

InputManager::~InputManager ( )

virtual

Default destructor.

Definition at line 55 of file InputManager.cc.

Member Function Documentation

◆ absoluteMouseUpdate()

void InputManager::absoluteMouseUpdate	(	uint32_t	x,
		uint32_t	y,
		ssize_t	wheel,
		uint32_t	buttonBitmap
	)

Position coordinates use the evdev 0..0x7fff absolute pointer range.

Definition at line 150 of file InputManager.cc.

References putNotification().

◆ drainCallback()

void InputManager::drainCallback ( CallbackItem * item )

private

Definition at line 349 of file InputManager.cc.

◆ initialise()

void InputManager::initialise ( )

Begins the worker thread.

Definition at line 57 of file InputManager.cc.

References ProcessorBase::information(), m_bActive, m_pThread, and trampoline().

◆ installCallback()

void InputManager::installCallback	(	CallbackType	filter,
		callback_t	callback,
		void *	meta = `0`
	)

Installs a callback.

Definition at line 258 of file InputManager.cc.

References InputManager::CallbackItem::deferredRemoval, InputManager::CallbackItem::draining, InputManager::CallbackItem::enabled, InputManager::CallbackItem::filter, InputManager::CallbackItem::func, InputManager::CallbackItem::inFlight, m_Callbacks, m_QueueLock, InputManager::CallbackItem::meta, and InputManager::CallbackItem::removers.

Referenced by DevFs::initialise().

Here is the caller graph for this function:

◆ instance()

static InputManager & InputManager::instance ( )

inlinestatic

Singleton design.

Definition at line 112 of file InputManager.h.

Referenced by DevFs::initialise(), HidInputManager::keyDown(), HidInputManager::keyUp(), InputFile::releaseVfsReference(), EvdevFile::releaseVfsReference(), HidUtils::sendInputToManager(), and HidInputManager::timer().

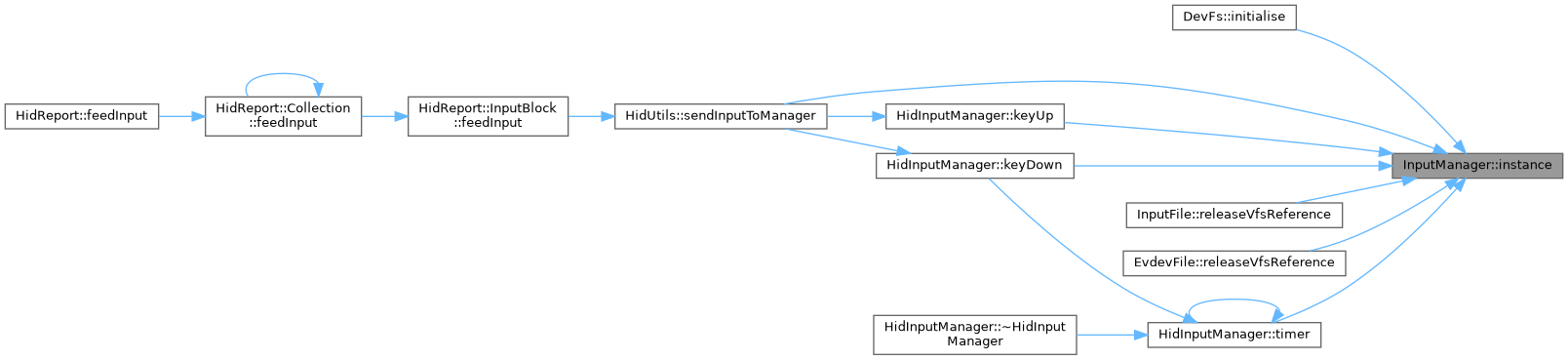

Here is the caller graph for this function:

◆ isActive()

bool InputManager::isActive ( ) const

inline

Returns whether the instance is creating notifications.

Definition at line 148 of file InputManager.h.

Referenced by mainThread().

Here is the caller graph for this function:

◆ joystickUpdate()

void InputManager::joystickUpdate	(	ssize_t	relX,
		ssize_t	relY,
		ssize_t	relZ,
		uint32_t	buttonBitmap
	)

Called whenever joystick input comes in.

Definition at line 163 of file InputManager.cc.

References putNotification().

Referenced by HidUtils::sendInputToManager().

Here is the caller graph for this function:

◆ keyPressed()

void InputManager::keyPressed ( uint64_t key )

Called whenever a key is pressed and needs to be added to the queue.

Definition at line 107 of file InputManager.cc.

References Key, and putNotification().

Referenced by HidInputManager::keyDown(), and HidInputManager::timer().

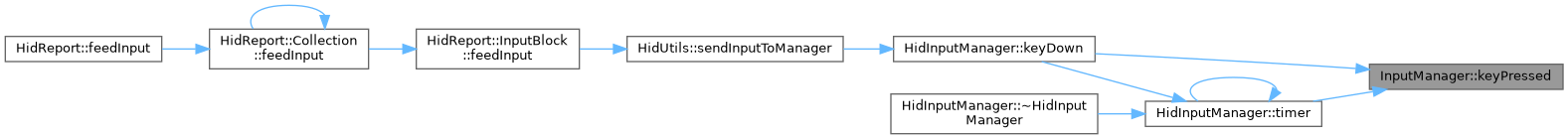

Here is the caller graph for this function:

◆ machineKeyUpdate()

void InputManager::machineKeyUpdate	(	uint8_t	scancode,
		bool	bKeyUp
	)

Called whenever a machine-specific key scancode comes in.

Definition at line 124 of file InputManager.cc.

References InputManager::InputNotification::keyUp, putNotification(), and InputManager::InputNotification::scancode.

◆ mainThread()

void InputManager::mainThread ( )

Main worker thread.

Definition at line 401 of file InputManager.cc.

References Spinlock::acquire(), Semaphore::acquire(), Thread::Continue, Vector< T >::count(), ProcessorBase::information(), Scheduler::instance(), isActive(), Key, m_Callbacks, m_InputQueue, m_InputQueueSize, m_pCallbackDispatchThread, m_QueueLock, Vector< T >::pushBack(), Spinlock::release(), and Scheduler::yield().

Referenced by trampoline().

Here is the caller graph for this function:

◆ mouseUpdate()

void InputManager::mouseUpdate	(	ssize_t	relX,
		ssize_t	relY,
		ssize_t	relZ,
		uint32_t	buttonBitmap
	)

Called whenever mouse input comes in.

Definition at line 133 of file InputManager.cc.

References putNotification().

Referenced by HidUtils::sendInputToManager().

Here is the caller graph for this function:

◆ putNotification()

void InputManager::putNotification ( InputNotification * note )

private

Puts a notification into the queue (doer for all main functions)

Note: Deletes note if THREADS is not defined

Definition at line 175 of file InputManager.cc.

References Spinlock::acquire(), Key, m_bActive, m_Callbacks, m_InputQueue, m_InputQueueSize, m_QueueLock, Vector< T >::pushBack(), Spinlock::release(), and Semaphore::release().

Referenced by absoluteMouseUpdate(), joystickUpdate(), keyPressed(), machineKeyUpdate(), mouseUpdate(), and rawKeyUpdate().

Here is the caller graph for this function:

◆ rawKeyUpdate()

void InputManager::rawKeyUpdate	(	uint8_t	scancode,
		bool	bKeyUp
	)

Called whenever a raw key signal comes in

Parameters

scancode a HID scancode

Definition at line 115 of file InputManager.cc.

References InputManager::InputNotification::keyUp, putNotification(), and InputManager::InputNotification::scancode.

Referenced by HidInputManager::keyDown(), and HidInputManager::keyUp().

Here is the caller graph for this function:

◆ removeCallback()

void InputManager::removeCallback	(	callback_t	callback,
		void *	meta = `0`
	)

Removes a callback.

Definition at line 279 of file InputManager.cc.

References m_Callbacks, and m_QueueLock.

Referenced by InputFile::releaseVfsReference(), and EvdevFile::releaseVfsReference().

Here is the caller graph for this function:

◆ removeCallbacks()

void InputManager::removeCallbacks	(	callback_t	callback,
		void *	meta
	)

private

Definition at line 299 of file InputManager.cc.

◆ shutdown()

void InputManager::shutdown ( )

Shuts down the worker thread, clears queues, and removes callbacks.

Definition at line 70 of file InputManager.cc.

References Spinlock::acquire(), InputManager::CallbackItem::inFlight, Thread::joinForCompletion(), m_bActive, m_Callbacks, m_InputQueue, m_InputQueueSize, m_pThread, m_QueueLock, Vector< T >::pushBack(), Spinlock::release(), and Semaphore::release().

◆ trampoline()

int InputManager::trampoline ( void * ptr )

static

Thread trampoline.

Definition at line 395 of file InputManager.cc.

References mainThread().

Referenced by initialise().

Here is the caller graph for this function:

Member Data Documentation

◆ AbsoluteMouse

const int InputManager::AbsoluteMouse = 32

static

Definition at line 48 of file InputManager.h.

◆ Joystick

const int InputManager::Joystick = 4

static

Definition at line 45 of file InputManager.h.

◆ Key

const int InputManager::Key = 1

static

The type for a given callback (enum values can't be used for bitwise operations, so we define these as constants).

Definition at line 43 of file InputManager.h.

Referenced by DevFs::initialise(), keyPressed(), mainThread(), and putNotification().

◆ m_bActive

Atomic<bool> InputManager::m_bActive

private

Are we active?

Definition at line 228 of file InputManager.h.

Referenced by initialise(), putNotification(), and shutdown().

◆ m_Callbacks

List<CallbackItem*> InputManager::m_Callbacks

private

Callback list.

Definition at line 214 of file InputManager.h.

Referenced by installCallback(), mainThread(), putNotification(), removeCallback(), and shutdown().

◆ m_InputQueue

List<InputNotification*> InputManager::m_InputQueue

private

Input queue (for distribution to applications)

Definition at line 205 of file InputManager.h.

Referenced by mainThread(), putNotification(), and shutdown().

◆ m_InputQueueSize

Semaphore InputManager::m_InputQueueSize

private

Key press queue Semaphore.

Definition at line 218 of file InputManager.h.

Referenced by mainThread(), putNotification(), and shutdown().

◆ m_Instance

InputManager InputManager::m_Instance

staticprivate

Static instance.

Definition at line 160 of file InputManager.h.

◆ m_pCallbackDispatchThread

Thread* InputManager::m_pCallbackDispatchThread

private

Set only while the input worker is executing a committed callback.

Definition at line 224 of file InputManager.h.

Referenced by mainThread().

◆ m_pThread

Thread* InputManager::m_pThread

private

Thread object for our worker thread.

Definition at line 221 of file InputManager.h.

Referenced by initialise(), and shutdown().

◆ m_QueueLock

Spinlock InputManager::m_QueueLock

private

Spinlock for work on queues.

Note: Using a Spinlock here because a lot of our work will happen in the middle of an IRQ where it's potentially dangerous to reschedule (which may happen with a Mutex or Semaphore).

Definition at line 211 of file InputManager.h.

Referenced by installCallback(), mainThread(), putNotification(), removeCallback(), and shutdown().

◆ MachineKey

const int InputManager::MachineKey = 16

static

Definition at line 47 of file InputManager.h.

◆ Mouse

const int InputManager::Mouse = 2

static

Definition at line 44 of file InputManager.h.

◆ RawKey

const int InputManager::RawKey = 8

static

Definition at line 46 of file InputManager.h.

◆ Unknown

const int InputManager::Unknown = 255

static

Definition at line 49 of file InputManager.h.

The documentation for this class was generated from the following files:

Classes

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Member Typedef Documentation

◆ callback_t

◆ CallbackType

Constructor & Destructor Documentation

◆ InputManager()

◆ ~InputManager()

Member Function Documentation

◆ absoluteMouseUpdate()

◆ drainCallback()

◆ initialise()

◆ installCallback()

◆ instance()

◆ isActive()

◆ joystickUpdate()

◆ keyPressed()

◆ machineKeyUpdate()

◆ mainThread()

◆ mouseUpdate()

◆ putNotification()

◆ rawKeyUpdate()

◆ removeCallback()

◆ removeCallbacks()

◆ shutdown()

◆ trampoline()

Member Data Documentation

◆ AbsoluteMouse

◆ Joystick

◆ Key

◆ m_bActive

◆ m_Callbacks

◆ m_InputQueue

◆ m_InputQueueSize

◆ m_Instance

◆ m_pCallbackDispatchThread

◆ m_pThread

◆ m_QueueLock

◆ MachineKey

◆ Mouse

◆ RawKey

◆ Unknown
