I/O port range. More...

#include <IoPort.h>

Inheritance diagram for IoPort:

Collaboration diagram for IoPort:

Public Member Functions
	IoPort (const char *name)

virtual	~IoPort ()

virtual size_t	size () const

virtual uint8_t	read8 (size_t offset=0)

virtual uint16_t	read16 (size_t offset=0)

virtual uint32_t	read32 (size_t offset=0)

virtual uint64_t	read64 (size_t offset=0)

virtual void	write8 (uint8_t value, size_t offset=0)

virtual void	write16 (uint16_t value, size_t offset=0)

virtual void	write32 (uint32_t value, size_t offset=0)

virtual void	write64 (uint64_t value, size_t offset=0)

virtual	operator bool () const

io_port_t	base () const

const char *	name () const

void	free ()

bool	allocate (io_port_t ioPort, size_t size)

Public Member Functions inherited from IoBase
virtual	~IoBase ()

uint64_t	read64LowFirst (size_t offset=0)

uint64_t	read64HighFirst (size_t offset=0)

void	write64LowFirst (uint64_t value, size_t offset=0)

void	write64HighFirst (uint64_t value, size_t offset=0)

Private Member Functions
	IoPort (const IoPort &)

IoPort &	operator= (const IoPort &)

Private Attributes
io_port_t	m_IoPort

size_t	m_Size

const char *	m_Name

Additional Inherited Members
Protected Member Functions inherited from IoBase
	IoBase ()

Detailed Description

I/O port range.

IoPort provides access to a range of hardware I/O port

Definition at line 33 of file IoPort.h.

Constructor & Destructor Documentation

◆ IoPort() [1/2]

IoPort::IoPort ( const char * name )

The default constructor does nothing

Definition at line 23 of file IoPort.cc.

◆ ~IoPort()

IoPort::~IoPort ( )

virtual

The destructor frees the allocated ressources

Definition at line 25 of file IoPort.cc.

References free().

◆ IoPort() [2/2]

IoPort::IoPort ( const IoPort & )

private

The copy-constructor

Note: NOT implemented

Member Function Documentation

◆ allocate()

bool IoPort::allocate	(	io_port_t	ioPort,
		size_t	size
	)

Allocate an I/O port range

Parameters

[in]	ioPort	the base I/O port
[in]	size	the number of successive I/O ports - 1

Returns: true, if successfull, false otherwise

Definition at line 29 of file IoPort.cc.

References allocate(), free(), IoPortManager::instance(), m_IoPort, m_Size, and size().

Referenced by Device::Address::Address(), allocate(), Pic::initialise(), Pit::initialise(), Rtc::initialise1(), PciAtaController::PciAtaController(), and X86Serial::setBase().

Here is the caller graph for this function:

◆ base()

io_port_t IoPort::base ( ) const

Get the base I/O port

Definition at line 55 of file IoPort.cc.

References m_IoPort.

Referenced by IoPortManager::free().

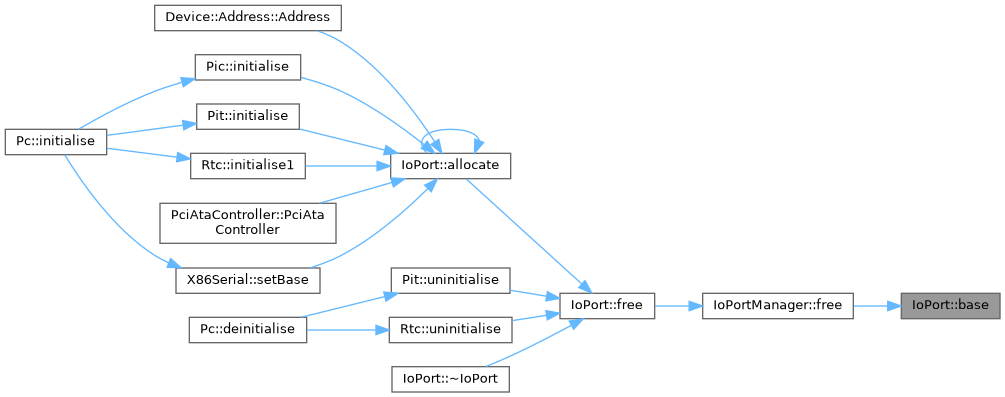

Here is the caller graph for this function:

◆ free()

void IoPort::free ( )

Free an I/O port range

Definition at line 42 of file IoPort.cc.

References IoPortManager::free(), IoPortManager::instance(), m_IoPort, and m_Size.

Referenced by allocate(), Pit::uninitialise(), Rtc::uninitialise(), and ~IoPort().

Here is the caller graph for this function:

◆ name()

const char * IoPort::name ( ) const

Get the name of the I/O port range

Returns: pointer to the name of the I/O port range

Definition at line 63 of file IoPort.cc.

References m_Name.

◆ operator bool()

IoPort::operator bool ( ) const

virtual

Check whether this class is usable

Returns: true, if the class holds a ressource that is correctly allocated and usable

Implements IoBase.

Definition at line 59 of file IoPort.cc.

◆ operator=()

IoPort & IoPort::operator= ( const IoPort & )

private

The assignment operator

Note: NOT implemented

◆ read16()

uint16_t IoPort::read16 ( size_t offset = 0 )

virtual

Read two byte (16bit) from the I/O Port or the memory-mapped I/O region

Parameters

[in] offset offset from the I/O base port or the I/O base memory address

Returns: the two byte (16bit) that have been read

Implements IoBase.

Definition at line 34 of file x86_common/IoPort.cc.

References m_IoPort, m_Size, and panic().

◆ read32()

uint32_t IoPort::read32 ( size_t offset = 0 )

virtual

Read four byte (32bit) from the I/O Port or the memory-mapped I/O region

Parameters

[in] offset offset from the I/O base port or the I/O base memory address

Returns: the four byte (32bit) that have been read

Implements IoBase.

Definition at line 44 of file x86_common/IoPort.cc.

References m_IoPort, m_Size, and panic().

◆ read64()

uint64_t IoPort::read64 ( size_t offset = 0 )

virtual

Read eight byte (64bit) from the I/O Port or the memory-mapped I/O region.

Parameters

[in] offset offset from the I/O base port or the I/O base memory address

Returns: the eight byte (64bit) that have been read

Implements IoBase.

Definition at line 55 of file x86_common/IoPort.cc.

References ProcessorBase::halt().

◆ read8()

uint8_t IoPort::read8 ( size_t offset = 0 )

virtual

Read a byte (8bit) from the I/O Port or the memory-mapped I/O region

Parameters

[in] offset offset from the I/O base port or the I/O base memory address

Returns: the byte (8bit) that have been read

Implements IoBase.

Definition at line 24 of file x86_common/IoPort.cc.

References m_IoPort, m_Size, and panic().

Referenced by Pic::reservePciRoute(), X86Serial::setBase(), Rtc::setIndexLocked(), Pic::spuriousLocked(), and Rtc::waitForUpdateCompletion().

Here is the caller graph for this function:

◆ size()

size_t IoPort::size ( ) const

virtual

Get the size of the I/O region in bytes

Implements IoBase.

Definition at line 51 of file IoPort.cc.

References m_Size.

Referenced by allocate(), and IoPortManager::free().

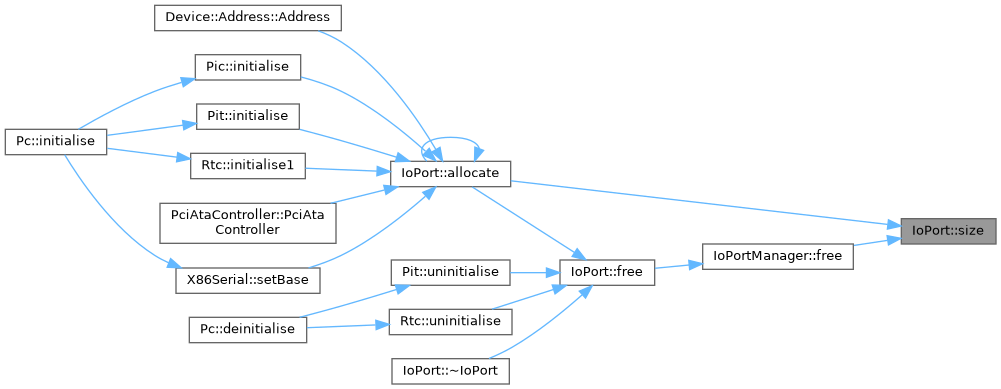

Here is the caller graph for this function:

◆ write16()

void IoPort::write16	(	uint16_t	value,
		size_t	offset = `0`
	)

virtual

Write two byte (16bit) to the I/O port or the memory-mapped I/O region

Parameters

[in]	value	the value that should be written
[in]	offset	offset from the I/O base port or the I/O base memory address

Implements IoBase.

Definition at line 68 of file x86_common/IoPort.cc.

References m_IoPort, m_Size, and panic().

◆ write32()

void IoPort::write32	(	uint32_t	value,
		size_t	offset = `0`
	)

virtual

Write four byte (32bit) to the I/O port or the memory-mapped I/O region

Parameters

[in]	value	the value that should be written
[in]	offset	offset from the I/O base port or the I/O base memory address

Implements IoBase.

Definition at line 76 of file x86_common/IoPort.cc.

References m_IoPort, m_Size, and panic().

◆ write64()

void IoPort::write64	(	uint64_t	value,
		size_t	offset = `0`
	)

virtual

Write eight byte (64bit) to the I/O Port or the memory-mapped I/O region.

Parameters

[in]	value	the value that should be written
[in]	offset	offset from the I/O base port or the I/O base memory address

Implements IoBase.

Definition at line 85 of file x86_common/IoPort.cc.

References ProcessorBase::halt().

◆ write8()

void IoPort::write8	(	uint8_t	value,
		size_t	offset = `0`
	)

virtual

Write a byte (8bit) to the I/O port or the memory-mapped I/O region

Parameters

[in]	value	the value that should be written
[in]	offset	offset from the I/O base port or the I/O base memory address

Implements IoBase.

Definition at line 60 of file x86_common/IoPort.cc.

References m_IoPort, m_Size, and panic().

Referenced by Pic::initialise(), Pit::initialise(), X86IsaDma::initTransfer(), Pic::interrupt(), PciAtaController::PciAtaController(), X86Serial::setBase(), Rtc::setIndexLocked(), and Pic::spuriousLocked().

Here is the caller graph for this function:

Member Data Documentation

◆ m_IoPort

io_port_t IoPort::m_IoPort

private

The base I/O port

Definition at line 80 of file IoPort.h.

Referenced by allocate(), base(), free(), read16(), read32(), read8(), write16(), write32(), and write8().

◆ m_Name

const char* IoPort::m_Name

private

User-visible name of this I/O port range

Definition at line 84 of file IoPort.h.

Referenced by name().

◆ m_Size

size_t IoPort::m_Size

private

The number of successive I/O ports - 1

Definition at line 82 of file IoPort.h.

Referenced by allocate(), free(), read16(), read32(), read8(), size(), write16(), write32(), and write8().

The documentation for this class was generated from the following files:
