#include <IrqManager.h>

Inheritance diagram for IrqManager:

Collaboration diagram for IrqManager:

Public Types
enum	ControlCode { MitigationThreshold }

Public Member Functions
virtual irq_id_t	registerIsaIrqHandler (uint8_t irq, IrqHandler *handler, const IrqPolicy &policy)=0

virtual irq_id_t	registerPciIrqHandler (IrqHandler handler, Device pDevice, const IrqPolicy &policy)=0

virtual irq_id_t	registerPciMessageIrqHandler (IrqHandler handler, Device pDevice, const IrqPolicy &intxFallbackPolicy)

virtual bool	registerPciMsixIrqHandlers (Device device, IrqHandler const handlers, size_t count, irq_id_t ids, bool &fallbackSafe, const size_t *processors=nullptr)

virtual irq_id_t	registerHardIsaIrqHandler (uint8_t irq, HardIrqHandler *handler, const IrqPolicy &policy)=0

virtual irq_id_t	registerHardPciIrqHandler (HardIrqHandler handler, Device pDevice, const IrqPolicy &policy)=0

virtual irq_id_t	registerHardPciMessageIrqHandler (HardIrqHandler handler, Device pDevice, const IrqPolicy &intxFallbackPolicy)

virtual irq_id_t	registerSchedulerIrqHandler (uint8_t irq, SchedulerIrqHandler *handler, const IrqPolicy &policy)

virtual bool	unregisterSchedulerIrqHandler (irq_id_t Id, SchedulerIrqHandler *handler)

virtual bool	unregisterHandler (irq_id_t Id, IrqHandlerBase *handler)=0

virtual void	enable (uint8_t irq, bool enable)=0

virtual size_t	snapshotIrqLines (IrqLineDiagnosticSnapshot *out, size_t capacity) const

virtual void	tick ()

virtual bool	control (uint8_t irq, ControlCode code, size_t argument)

Protected Member Functions
	IrqManager ()

virtual	~IrqManager ()

Private Member Functions
	IrqManager (const IrqManager &)

IrqManager &	operator= (const IrqManager &)

Detailed Description

This class handles IRQ (un)registration

Definition at line 282 of file include/pedigree/kernel/machine/IrqManager.h.

Member Enumeration Documentation

◆ ControlCode

enum IrqManager::ControlCode

Control codes for the control function

Definition at line 285 of file include/pedigree/kernel/machine/IrqManager.h.

Constructor & Destructor Documentation

◆ IrqManager() [1/2]

IrqManager::IrqManager ( )

protecteddefault

The default constructor

◆ ~IrqManager()

IrqManager::~IrqManager ( )

protectedvirtualdefault

The destructor

◆ IrqManager() [2/2]

IrqManager::IrqManager ( const IrqManager & )

private

The copy-constructor

Note: NOT implemented

Member Function Documentation

◆ control()

bool IrqManager::control	(	uint8_t	irq,
		ControlCode	code,
		size_t	argument
	)

virtual

Controls specific elements of a given IRQ

Reimplemented in Pic, and HostedIrqManager.

Definition at line 55 of file IrqManager.cc.

◆ operator=()

IrqManager & IrqManager::operator= ( const IrqManager & )

private

The assignment operator

Note: NOT implemented

◆ registerHardIsaIrqHandler()

virtual irq_id_t IrqManager::registerHardIsaIrqHandler	(	uint8_t	irq,
		HardIrqHandler *	handler,
		const IrqPolicy &	policy
	)

pure virtual

Register an ISA handler which must run in hard IRQ context.

Implemented in Pic, HostedIrqManager, and VirtIrqManager.

Referenced by SplitIrqHandler::registerIsaSplitIrq().

Here is the caller graph for this function:

◆ registerHardPciIrqHandler()

virtual irq_id_t IrqManager::registerHardPciIrqHandler	(	HardIrqHandler *	handler,
		Device *	pDevice,
		const IrqPolicy &	policy
	)

pure virtual

Register a PCI handler which must run in hard IRQ context.

Implemented in HostedIrqManager, VirtIrqManager, and Pic.

Referenced by registerHardPciMessageIrqHandler().

Here is the caller graph for this function:

◆ registerHardPciMessageIrqHandler()

irq_id_t IrqManager::registerHardPciMessageIrqHandler	(	HardIrqHandler *	handler,
		Device *	pDevice,
		const IrqPolicy &	intxFallbackPolicy
	)

virtual

Prefer a PCI message interrupt for a hard handler, with an INTx fallback.

Reimplemented in Pic, and VirtIrqManager.

Definition at line 36 of file IrqManager.cc.

References registerHardPciIrqHandler().

◆ registerIsaIrqHandler()

virtual irq_id_t IrqManager::registerIsaIrqHandler	(	uint8_t	irq,
		IrqHandler *	handler,
		const IrqPolicy &	policy
	)

pure virtual

Register an ISA irq

Parameters

[in]	irq	the ISA irq number (from 0 to 15)
[in]	handler	pointer to the IrqHandler class
[in]	policy	electrical, acknowledgement, and completion policy

Returns: the irq's identifier

Implemented in Pic, HostedIrqManager, and VirtIrqManager.

Referenced by Ps2Controller::initialise3(), Rtc::initialise3(), and PciAtaController::PciAtaController().

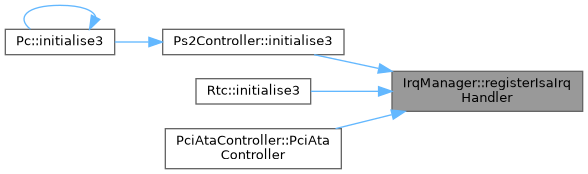

Here is the caller graph for this function:

◆ registerPciIrqHandler()

virtual irq_id_t IrqManager::registerPciIrqHandler	(	IrqHandler *	handler,
		Device *	pDevice,
		const IrqPolicy &	policy
	)

pure virtual

Register a PCI irq

Implemented in HostedIrqManager, VirtIrqManager, and Pic.

Referenced by Ne2k::Ne2k(), Nic3C90x::Nic3C90x(), PciAtaController::PciAtaController(), and registerPciMessageIrqHandler().

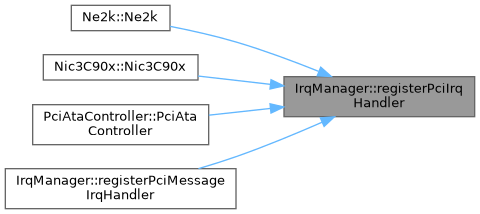

Here is the caller graph for this function:

◆ registerPciMessageIrqHandler()

irq_id_t IrqManager::registerPciMessageIrqHandler	(	IrqHandler *	handler,
		Device *	pDevice,
		const IrqPolicy &	intxFallbackPolicy
	)

virtual

Prefer a PCI message interrupt, falling back to INTx with the given policy.

Reimplemented in Pic, and VirtIrqManager.

Definition at line 25 of file IrqManager.cc.

References registerPciIrqHandler().

◆ registerPciMsixIrqHandlers()

bool IrqManager::registerPciMsixIrqHandlers	(	Device *	device,
		IrqHandler const	handlers,
		size_t	count,
		irq_id_t *	ids,
		bool &	fallbackSafe,
		const size_t *	processors = `nullptr`
	)

virtual

Register distinct MSI-X entries as one group. Failure permits a fallback only when fallbackSafe is true. Optional dense processor indices are placement hints; platforms without affinity support may retain their default destination.

Reimplemented in Pic, and VirtIrqManager.

Definition at line 30 of file IrqManager.cc.

◆ registerSchedulerIrqHandler()

irq_id_t IrqManager::registerSchedulerIrqHandler	(	uint8_t	irq,
		SchedulerIrqHandler *	handler,
		const IrqPolicy &	policy
	)

virtual

Install the platform's dedicated scheduler-timer interrupt source.

Unlike a generic hard handler, this callback is the terminal action for an occurrence and is allowed to abandon its interrupt frame. Platforms which do not provide a direct scheduler route reject the request.

Reimplemented in Pic, HostedIrqManager, and VirtIrqManager.

Definition at line 41 of file IrqManager.cc.

Referenced by HostedSchedulerTimer::initialise(), and Pit::initialise().

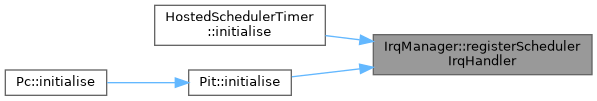

Here is the caller graph for this function:

◆ snapshotIrqLines()

size_t IrqManager::snapshotIrqLines	(	IrqLineDiagnosticSnapshot *	out,
		size_t	capacity
	)		const

virtual

Copies up to capacity detached line diagnostics without taking an IRQ manager or handler-registry lock. Unsupported managers return zero.

Reimplemented in Pic.

Definition at line 49 of file IrqManager.cc.

Referenced by IrqsCommand::execute().

Here is the caller graph for this function:

◆ tick()

void IrqManager::tick ( )

virtual

Called every millisecond, typically handles IRQ mitigation.

Reimplemented in Pic.

Definition at line 53 of file IrqManager.cc.

Referenced by Rtc::processElapsedTime(), and HostedTimer::processTimerBatch().

Here is the caller graph for this function:

◆ unregisterHandler()

virtual bool IrqManager::unregisterHandler	(	irq_id_t	Id,
		IrqHandlerBase *	handler
	)

pure virtual

Unregister a previously registered IrqHandler.

A successful return is an ownership barrier: no callback can begin or remain active for the handler. A callback cannot synchronously remove itself, and an atomic context cannot wait for an active callback; those requests return false.

Parameters

[in] Id the irq's identifier

Returns: true if removal completed synchronously

Implemented in Pic, HostedIrqManager, and VirtIrqManager.

Referenced by PciAtaController::shutdown(), SplitIrqHandler::shutdownSplitIrq(), and Ps2Controller::uninitialise().

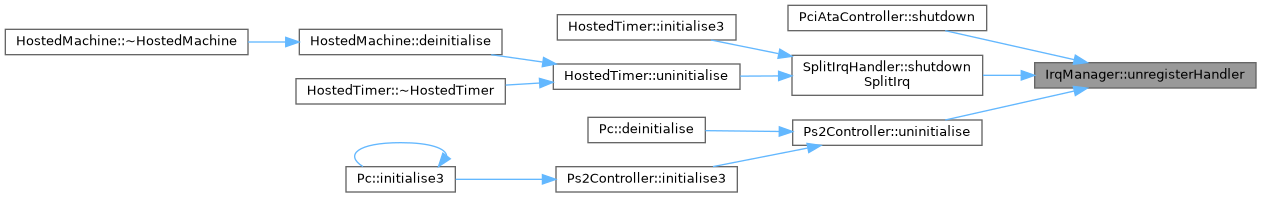

Here is the caller graph for this function:

◆ unregisterSchedulerIrqHandler()

bool IrqManager::unregisterSchedulerIrqHandler	(	irq_id_t	Id,
		SchedulerIrqHandler *	handler
	)

virtual

Stop admitting future callbacks for the exact scheduler source. The source must be quiesced first unless removal synchronously masks its controller line. Its handler has static machine lifetime because an already-admitted callback may not return.

Reimplemented in Pic, HostedIrqManager, and VirtIrqManager.

Definition at line 45 of file IrqManager.cc.

Referenced by HostedSchedulerTimer::initialise(), HostedSchedulerTimer::uninitialise(), and Pit::uninitialise().

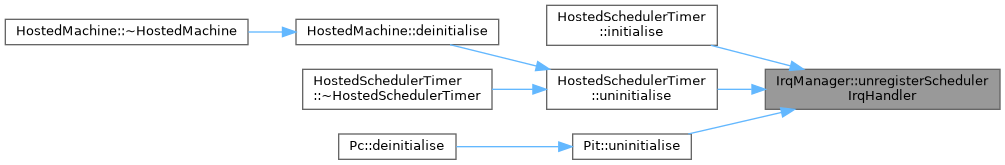

Here is the caller graph for this function:

The documentation for this class was generated from the following files:
