IrqPolicy Class Reference

#include <IrqManager.h>

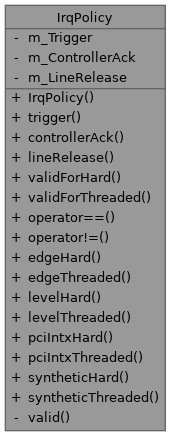

Collaboration diagram for IrqPolicy:

Public Member Functions
constexpr	IrqPolicy (IrqTrigger trigger, IrqControllerAck controllerAck, IrqLineRelease lineRelease)
constexpr IrqTrigger	trigger () const
constexpr IrqControllerAck	controllerAck () const
constexpr IrqLineRelease	lineRelease () const
constexpr bool	validForHard () const
constexpr bool	validForThreaded () const
constexpr bool	operator== (const IrqPolicy &other) const
constexpr bool	operator!= (const IrqPolicy &other) const

Static Public Member Functions
static constexpr IrqPolicy	edgeHard ()
static constexpr IrqPolicy	edgeThreaded ()
static constexpr IrqPolicy	levelHard ()
static constexpr IrqPolicy	levelThreaded ()
static constexpr IrqPolicy	pciIntxHard ()
static constexpr IrqPolicy	pciIntxThreaded ()
static constexpr IrqPolicy	syntheticHard ()
static constexpr IrqPolicy	syntheticThreaded ()

Private Member Functions
constexpr bool	valid () const

Private Attributes
IrqTrigger	m_Trigger
IrqControllerAck	m_ControllerAck
IrqLineRelease	m_LineRelease

Detailed Description

Orthogonal interrupt-line delivery policy.

The hard stage is either a HardIrqHandler callback or publication to an IrqHandler worker. Device acknowledgement remains the handler's responsibility: a split hard callback must quiesce its source before it defers, while a normal level-triggered worker runs with the controller line masked until it reports completion.

Definition at line 68 of file include/pedigree/kernel/machine/IrqManager.h.

Constructor & Destructor Documentation

IrqPolicy()

constexpr IrqPolicy::IrqPolicy ( IrqTrigger  trigger, IrqControllerAck  controllerAck, IrqLineRelease  lineRelease  )

inlineconstexpr

Definition at line 70 of file include/pedigree/kernel/machine/IrqManager.h.

Member Function Documentation

controllerAck()

constexpr IrqControllerAck IrqPolicy::controllerAck ( ) const

inlineconstexpr

Definition at line 114 of file include/pedigree/kernel/machine/IrqManager.h.

edgeHard()

static constexpr IrqPolicy IrqPolicy::edgeHard ( )

inlinestaticconstexpr

Definition at line 74 of file include/pedigree/kernel/machine/IrqManager.h.

edgeThreaded()

static constexpr IrqPolicy IrqPolicy::edgeThreaded ( )

inlinestaticconstexpr

Definition at line 79 of file include/pedigree/kernel/machine/IrqManager.h.

levelHard()

static constexpr IrqPolicy IrqPolicy::levelHard ( )

inlinestaticconstexpr

Definition at line 84 of file include/pedigree/kernel/machine/IrqManager.h.

levelThreaded()

static constexpr IrqPolicy IrqPolicy::levelThreaded ( )

inlinestaticconstexpr

Definition at line 89 of file include/pedigree/kernel/machine/IrqManager.h.

lineRelease()

constexpr IrqLineRelease IrqPolicy::lineRelease ( ) const

inlineconstexpr

Definition at line 118 of file include/pedigree/kernel/machine/IrqManager.h.

operator!=()

constexpr bool IrqPolicy::operator!= ( const IrqPolicy &  other ) const

inlineconstexpr

Definition at line 140 of file include/pedigree/kernel/machine/IrqManager.h.

operator==()

constexpr bool IrqPolicy::operator== ( const IrqPolicy &  other ) const

inlineconstexpr

Definition at line 135 of file include/pedigree/kernel/machine/IrqManager.h.

pciIntxHard()

static constexpr IrqPolicy IrqPolicy::pciIntxHard ( )

inlinestaticconstexpr

Definition at line 94 of file include/pedigree/kernel/machine/IrqManager.h.

pciIntxThreaded()

static constexpr IrqPolicy IrqPolicy::pciIntxThreaded ( )

inlinestaticconstexpr

Definition at line 98 of file include/pedigree/kernel/machine/IrqManager.h.

syntheticHard()

static constexpr IrqPolicy IrqPolicy::syntheticHard ( )

inlinestaticconstexpr

Definition at line 102 of file include/pedigree/kernel/machine/IrqManager.h.

syntheticThreaded()

static constexpr IrqPolicy IrqPolicy::syntheticThreaded ( )

inlinestaticconstexpr

Definition at line 106 of file include/pedigree/kernel/machine/IrqManager.h.

trigger()

constexpr IrqTrigger IrqPolicy::trigger ( ) const

inlineconstexpr

Definition at line 110 of file include/pedigree/kernel/machine/IrqManager.h.

valid()

constexpr bool IrqPolicy::valid ( ) const

inlineconstexprprivate

Definition at line 145 of file include/pedigree/kernel/machine/IrqManager.h.

validForHard()

constexpr bool IrqPolicy::validForHard ( ) const

inlineconstexpr

Definition at line 122 of file include/pedigree/kernel/machine/IrqManager.h.

validForThreaded()

constexpr bool IrqPolicy::validForThreaded ( ) const

inlineconstexpr

Definition at line 128 of file include/pedigree/kernel/machine/IrqManager.h.

Member Data Documentation

m_ControllerAck

IrqControllerAck IrqPolicy::m_ControllerAck

private

Definition at line 156 of file include/pedigree/kernel/machine/IrqManager.h.

m_LineRelease

IrqLineRelease IrqPolicy::m_LineRelease

private

Definition at line 157 of file include/pedigree/kernel/machine/IrqManager.h.

m_Trigger

IrqTrigger IrqPolicy::m_Trigger

private

Definition at line 155 of file include/pedigree/kernel/machine/IrqManager.h.

---

The documentation for this class was generated from the following file:

• include/pedigree/kernel/machine/IrqManager.h
