#include <KeymapManager.h>

Collaboration diagram for KeymapManager:

Classes
struct	KeymapEntry
	Structure representing an entry in the keymap table. More...

struct	KeyState

struct	SparseEntry
	Structure representing an entry in the sparse table. More...

Public Types
enum	EscapeState { EscapeNone = 0 , EscapeE0 , EscapeE1 }

Public Member Functions
	KeymapManager ()
	Default constructor.

virtual	~KeymapManager ()
	Default destructor.

void	useKeymap (uint8_t pSparseTable, uint8_t pDataTable)
	Changes the current keymap to the given one.

bool	useCompiledKeymap (uint32_t *pCompiledKeymap, size_t keymapLength)
	Changes the current keymap to the given (compiled) one.

bool	handleHidModifier (uint8_t keyCode, bool bDown)

uint64_t	resolveHidKeycode (uint8_t keyCode)

uint8_t	convertPc102ScancodeToHidKeycode (uint8_t scancode, EscapeState &escape)
	Converts a pc102 scancode into a HID keycode.

KeymapEntry *	getKeymapEntry (bool bCtrl, bool bShift, bool bAlt, bool bAltGr, uint8_t nCombinator, uint8_t keyCode)
	Returns the keymap entry corresponding to given keycode and modifiers.

Static Public Member Functions
static KeymapManager &	instance ()
	Singleton design.

Private Types
enum	IndexModifiers { IndexCtrl = 1 , IndexShift = 2 , IndexAlt = 4 , IndexAltGr = 8 }

enum	HidModifiers { HidCapsLock = 0x39 , HidLeftCtrl = 0xE0 , HidLeftShift = 0xE1 , HidLeftAlt = 0xE2 , HidLeftGui = 0xE3 , HidRightCtrl = 0xE4 , HidRightShift = 0xE5 , HidRightAlt = 0xE6 , HidRightGui = 0xE7 }
	HID keycodes corresponding to modifiers. More...

Private Attributes
SparseEntry *	m_pSparseTable
	The sparse and data tables for the current keymap.

KeymapEntry *	m_pDataTable

bool	m_bLeftCtrl
	State of the modifiers, true if down, false if up.

bool	m_bLeftShift

bool	m_bLeftAlt

bool	m_bRightCtrl

bool	m_bRightShift

bool	m_bRightAlt

bool	m_bCapsLock
	True if caps lock is on.

uint8_t	m_nCombinator
	Index of the current active combinator, if any.

Tree< uint8_t, KeyState * >	m_KeyStates
	Current key states (for periodic callbacks while a key is down)

Spinlock	m_KeyLock

bool	m_bHaveLoadedKeymap

Static Private Attributes
static KeymapManager	m_Instance
	Static instance.

Detailed Description

Global manager for keymaps

Definition at line 31 of file KeymapManager.h.

Member Enumeration Documentation

◆ EscapeState

enum KeymapManager::EscapeState

Definition at line 59 of file KeymapManager.h.

◆ HidModifiers

enum KeymapManager::HidModifiers

private

HID keycodes corresponding to modifiers.

Definition at line 83 of file KeymapManager.h.

◆ IndexModifiers

enum KeymapManager::IndexModifiers

private

Definition at line 80 of file KeymapManager.h.

Constructor & Destructor Documentation

◆ KeymapManager()

KeymapManager::KeymapManager ( )

Default constructor.

Definition at line 41 of file KeymapManager.cc.

References m_pSparseTable.

◆ ~KeymapManager()

KeymapManager::~KeymapManager ( )

virtual

Default destructor.

Definition at line 60 of file KeymapManager.cc.

Member Function Documentation

◆ convertPc102ScancodeToHidKeycode()

uint8_t KeymapManager::convertPc102ScancodeToHidKeycode	(	uint8_t	scancode,
		EscapeState &	escape
	)

Converts a pc102 scancode into a HID keycode.

Definition at line 317 of file KeymapManager.cc.

Referenced by X86Keyboard::scancodeToAscii().

Here is the caller graph for this function:

◆ getKeymapEntry()

KeymapManager::KeymapEntry * KeymapManager::getKeymapEntry	(	bool	bCtrl,
		bool	bShift,
		bool	bAlt,
		bool	bAltGr,
		uint8_t	nCombinator,
		uint8_t	keyCode
	)

Returns the keymap entry corresponding to given keycode and modifiers.

Definition at line 239 of file KeymapManager.cc.

References m_pSparseTable.

Referenced by resolveHidKeycode().

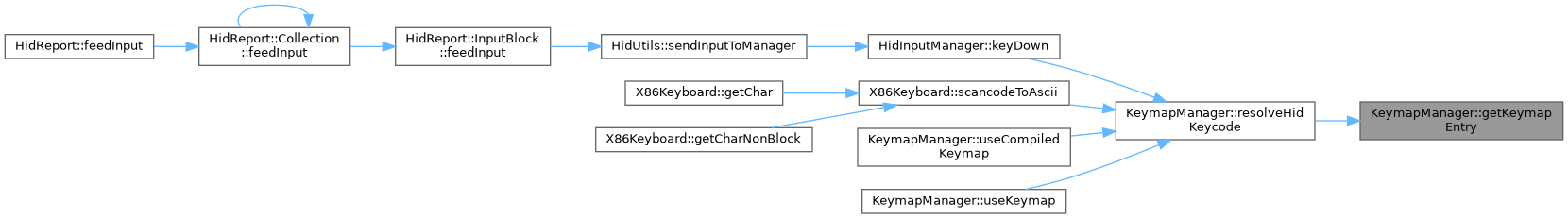

Here is the caller graph for this function:

◆ handleHidModifier()

bool KeymapManager::handleHidModifier	(	uint8_t	keyCode,
		bool	bDown
	)

If the given keycode is a modifier, applies it and returns true, otherwise it returns false.

Definition at line 134 of file KeymapManager.cc.

References m_bCapsLock, and m_bLeftCtrl.

Referenced by HidInputManager::keyDown().

Here is the caller graph for this function:

◆ instance()

static KeymapManager & KeymapManager::instance ( )

inlinestatic

Singleton design.

Definition at line 40 of file KeymapManager.h.

Referenced by HidInputManager::keyDown(), HidInputManager::keyUp(), and X86Keyboard::scancodeToAscii().

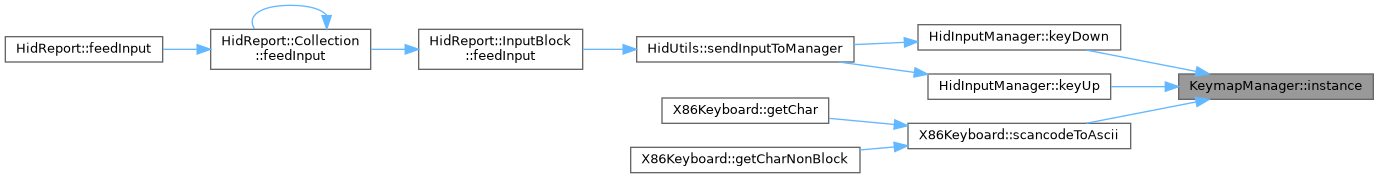

Here is the caller graph for this function:

◆ resolveHidKeycode()

uint64_t KeymapManager::resolveHidKeycode ( uint8_t keyCode )

Resolves a HID keycode using the current keymap and returns a "real" character in UTF-32 format, plus modifier flags in the top 32-bits.

Definition at line 157 of file KeymapManager.cc.

References getKeymapEntry(), m_bCapsLock, m_bLeftCtrl, and m_nCombinator.

Referenced by HidInputManager::keyDown(), X86Keyboard::scancodeToAscii(), useCompiledKeymap(), and useKeymap().

Here is the caller graph for this function:

◆ useCompiledKeymap()

bool KeymapManager::useCompiledKeymap	(	uint32_t *	pCompiledKeymap,
		size_t	keymapLength
	)

Changes the current keymap to the given (compiled) one.

Definition at line 91 of file KeymapManager.cc.

References HidInputManager::instance(), m_bHaveLoadedKeymap, m_pSparseTable, resolveHidKeycode(), and HidInputManager::updateKeys().

◆ useKeymap()

void KeymapManager::useKeymap	(	uint8_t *	pSparseTable,
		uint8_t *	pDataTable
	)

Changes the current keymap to the given one.

Definition at line 62 of file KeymapManager.cc.

References HidInputManager::instance(), m_bHaveLoadedKeymap, m_pSparseTable, resolveHidKeycode(), and HidInputManager::updateKeys().

Member Data Documentation

◆ m_bCapsLock

bool KeymapManager::m_bCapsLock

private

True if caps lock is on.

Definition at line 118 of file KeymapManager.h.

Referenced by handleHidModifier(), and resolveHidKeycode().

◆ m_bHaveLoadedKeymap

bool KeymapManager::m_bHaveLoadedKeymap

private

Whether or not we've loaded a new keymap. Used to figure out if we can safely free the old keymap data.

Definition at line 144 of file KeymapManager.h.

Referenced by useCompiledKeymap(), and useKeymap().

◆ m_bLeftAlt

bool KeymapManager::m_bLeftAlt

private

Definition at line 112 of file KeymapManager.h.

◆ m_bLeftCtrl

bool KeymapManager::m_bLeftCtrl

private

State of the modifiers, true if down, false if up.

Definition at line 110 of file KeymapManager.h.

Referenced by handleHidModifier(), and resolveHidKeycode().

◆ m_bLeftShift

bool KeymapManager::m_bLeftShift

private

Definition at line 111 of file KeymapManager.h.

◆ m_bRightAlt

bool KeymapManager::m_bRightAlt

private

Definition at line 115 of file KeymapManager.h.

◆ m_bRightCtrl

bool KeymapManager::m_bRightCtrl

private

Definition at line 113 of file KeymapManager.h.

◆ m_bRightShift

bool KeymapManager::m_bRightShift

private

Definition at line 114 of file KeymapManager.h.

◆ m_Instance

KeymapManager KeymapManager::m_Instance

staticprivate

Static instance.

Definition at line 103 of file KeymapManager.h.

◆ m_KeyLock

Spinlock KeymapManager::m_KeyLock

private

Spinlock for work on keys.

Note: Using a Spinlock here because a lot of our work will happen in the middle of an IRQ where it's potentially dangerous to reschedule (which may happen with a Mutex or Semaphore).

Definition at line 140 of file KeymapManager.h.

◆ m_KeyStates

Tree<uint8_t, KeyState*> KeymapManager::m_KeyStates

private

Current key states (for periodic callbacks while a key is down)

Definition at line 134 of file KeymapManager.h.

◆ m_nCombinator

uint8_t KeymapManager::m_nCombinator

private

Index of the current active combinator, if any.

Definition at line 121 of file KeymapManager.h.

Referenced by resolveHidKeycode().

◆ m_pDataTable

KeymapEntry* KeymapManager::m_pDataTable

private

Definition at line 107 of file KeymapManager.h.

◆ m_pSparseTable

SparseEntry* KeymapManager::m_pSparseTable

private

The sparse and data tables for the current keymap.

Definition at line 106 of file KeymapManager.h.

Referenced by getKeymapEntry(), KeymapManager(), useCompiledKeymap(), and useKeymap().

The documentation for this class was generated from the following files:
