the kernel's log More...

#include <Log.h>

Collaboration diagram for Log:

Classes
struct	CallbackPin

struct	CallbackSlot

class	LogCallback

struct	LogEntry

Public Types
enum	SeverityLevel { Debug = 0 , Notice , Warning , Error , Fatal }

typedef LogEntry	StaticLogEntry

typedef LogEntry	DynamicLogEntry

Public Member Functions
void	initialise1 ()

void	initialise2 ()

EXPORTED_PUBLIC bool	installCallback (LogCallback *pCallback, bool bSkipBacklog=false)

EXPORTED_PUBLIC bool	removeCallback (LogCallback *pCallback)

EXPORTED_PUBLIC void	addEntry (const LogEntry &entry, bool lock=true)

size_t	getStaticEntryCount () const

size_t	getDynamicEntryCount () const

const StaticLogEntry &	getStaticEntry (size_t n) const

const DynamicLogEntry &	getDynamicEntry (size_t n) const

EXPORTED_PUBLIC size_t	copyText (char *buffer, size_t capacity)

bool	echoToSerial ()

const LogEntry &	getLatestEntry () const

void	enableTimestamps ()

void	disableTimestamps ()

Static Public Member Functions
static EXPORTED_PUBLIC Log &	instance ()

static constexpr size_t	textCapacity ()

Public Attributes
Spinlock	m_Lock

Private Member Functions
	Log ()

	~Log ()

	Log (const Log &)

Log &	operator= (const Log &)

const NormalStaticString &	getTimestamp ()

const TinyStaticString &	severityToString (SeverityLevel level) const

size_t	snapshotCallbacks (CallbackPin pins[LOG_CALLBACK_COUNT])

bool	pinCallback (CallbackSlot *slot, CallbackPin &pin)

bool	callbackEnabled (const CallbackPin &pin)

void	releaseCallback (CallbackPin &pin)

void	dispatchCallbacks (CallbackPin pins[LOG_CALLBACK_COUNT], size_t count, const LogCord &message, bool locked)

void	dispatchCallback (CallbackSlot *slot, const LogCord &message, bool locked)

void *	currentCallbackOwner ()

bool	isCallbackContext (void *owner)

void	clearCallback (CallbackSlot *slot)

Private Attributes
StaticLogEntry	m_StaticLog [LOG_ENTRIES]

size_t	m_StaticEntries

size_t	m_StaticEntryStart

size_t	m_StaticEntryEnd

bool	m_EchoToSerial

WaitQueue	m_CallbackWaiters

CallbackSlot	m_OutputCallbacks [LOG_CALLBACK_COUNT]

CallbackPin *	m_ActiveCallbackPins

size_t	m_nOutputCallbacks

uint64_t	m_LastEntryHash

SeverityLevel	m_LastEntrySeverity

size_t	m_HashMatchedCount

bool	m_Timestamps

Time::Timestamp	m_LastTime

NormalStaticString	m_CachedTimestamp

Static Private Attributes
static EXPORTED_PUBLIC Log	m_Instance

static TinyStaticString	m_DebugSeverityString

static TinyStaticString	m_NoticeSeverityString

static TinyStaticString	m_WarningSeverityString

static TinyStaticString	m_ErrorSeverityString

static TinyStaticString	m_FatalSeverityString

static TinyStaticString	m_LineEnding

static NormalStaticString	m_DedupeHead

static TinyStaticString	m_DedupeTail

Detailed Description

the kernel's log

Implements a kernel log that can be used to debug problems.

Note: You should use the NOTICE, WARNING, ERROR and FATAL macros to write something into the log. Direct access to the log should only be needed to retrieve the entries from the log (within the debugger's log viewer for example).

Definition at line 155 of file Log.h.

Member Typedef Documentation

◆ DynamicLogEntry

typedef LogEntry Log::DynamicLogEntry

Definition at line 285 of file Log.h.

◆ StaticLogEntry

typedef LogEntry Log::StaticLogEntry

Type of a static log entry (no memory-management involved)

Definition at line 284 of file Log.h.

Member Enumeration Documentation

◆ SeverityLevel

enum Log::SeverityLevel

Severity level of the log entry

Definition at line 170 of file Log.h.

Constructor & Destructor Documentation

◆ Log() [1/2]

Log::Log ( )

private

Default constructor - does nothing.

Definition at line 85 of file Log.cc.

References LOG_CALLBACK_COUNT.

◆ ~Log()

Log::~Log ( )

private

Default destructor - does nothing

Definition at line 109 of file Log.cc.

References addEntry(), and NoTimestamp.

◆ Log() [2/2]

Log::Log ( const Log & )

private

Copy-constructor

Note: NOT implemented

Member Function Documentation

◆ addEntry()

void Log::addEntry	(	const LogEntry &	entry,
		bool	lock = `true`
	)

Adds an entry to the log and immediately flushes.

Definition at line 612 of file Log.cc.

References Spinlock::acquire(), ProcessorBase::breakpoint(), EMIT_IF, Machine::getSerial(), LOG_CALLBACK_COUNT, LOG_ENTRIES, m_DedupeHead, m_HashMatchedCount, m_LastEntryHash, m_LastEntrySeverity, m_LineEnding, m_Lock, m_StaticEntries, m_StaticLog, m_Timestamps, panic(), and Spinlock::release().

Referenced by Debugger::start(), and ~Log().

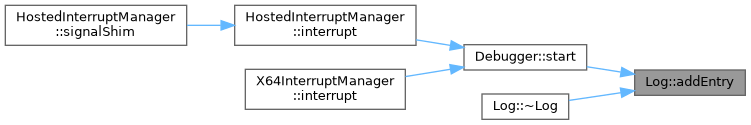

Here is the caller graph for this function:

◆ callbackEnabled()

bool Log::callbackEnabled ( const CallbackPin & pin )

private

Definition at line 372 of file Log.cc.

◆ clearCallback()

void Log::clearCallback ( CallbackSlot * slot )

private

Definition at line 323 of file Log.cc.

◆ copyText()

size_t Log::copyText	(	char *	buffer,
		size_t	capacity
	)

Copies the newest log text without consuming entries or invoking callbacks.

Definition at line 454 of file Log.cc.

References getStaticEntry(), m_Lock, m_StaticEntries, and Log::LogEntry::str.

◆ currentCallbackOwner()

void * Log::currentCallbackOwner ( )

private

Definition at line 300 of file Log.cc.

◆ disableTimestamps()

void Log::disableTimestamps ( )

Definition at line 744 of file Log.cc.

◆ dispatchCallback()

void Log::dispatchCallback	(	CallbackSlot *	slot,
		const LogCord &	message,
		bool	locked
	)

private

Definition at line 422 of file Log.cc.

◆ dispatchCallbacks()

void Log::dispatchCallbacks	(	CallbackPin	pins[LOG_CALLBACK_COUNT],
		size_t	count,
		const LogCord &	message,
		bool	locked
	)

private

Definition at line 405 of file Log.cc.

◆ echoToSerial()

bool Log::echoToSerial ( )

Definition at line 486 of file Log.cc.

◆ enableTimestamps()

void Log::enableTimestamps ( )

Definition at line 739 of file Log.cc.

◆ getDynamicEntry()

const Log::DynamicLogEntry & Log::getDynamicEntry ( size_t n ) const

Returns the (n - getStaticEntryCount())'th dynamic log entry

Definition at line 450 of file Log.cc.

References m_StaticLog.

◆ getDynamicEntryCount()

size_t Log::getDynamicEntryCount ( ) const

Get the number of dynamic entries in the log

Returns: the number of dynamic entries in the log

Definition at line 442 of file Log.cc.

◆ getLatestEntry()

const Log::LogEntry & Log::getLatestEntry ( ) const

Definition at line 490 of file Log.cc.

◆ getStaticEntry()

const Log::StaticLogEntry & Log::getStaticEntry ( size_t n ) const

Returns the n'th static log entry, counting from the start.

Definition at line 446 of file Log.cc.

References LOG_ENTRIES, and m_StaticLog.

Referenced by copyText().

Here is the caller graph for this function:

◆ getStaticEntryCount()

size_t Log::getStaticEntryCount ( ) const

Get the number of static entries in the log.

Returns: the number of static entries in the log

Definition at line 438 of file Log.cc.

References m_StaticEntries.

◆ getTimestamp()

const NormalStaticString & Log::getTimestamp ( )

private

Definition at line 759 of file Log.cc.

◆ initialise1()

void Log::initialise1 ( )

Initialises the Log

Definition at line 121 of file Log.cc.

References m_EchoToSerial.

◆ initialise2()

void Log::initialise2 ( )

Initialises the default Log callback (to a serial port)

Definition at line 138 of file Log.cc.

References EMIT_IF, and m_EchoToSerial.

◆ installCallback()

bool Log::installCallback	(	LogCallback *	pCallback,
		bool	bSkipBacklog = `false`
	)

Installs an output callback.

A callback may only be registered once. Returns false for a null, duplicate, or full registration.

Note: This could send a massive batch of log entries on the callback. If the callback isn't designed to handle big buffers this may fail.

Definition at line 145 of file Log.cc.

References Log::LogEntry::lockfree, LOG_CALLBACK_COUNT, LOG_ENTRIES, m_CallbackWaiters, m_LineEnding, m_Lock, m_StaticEntries, m_StaticLog, m_Timestamps, Log::LogEntry::severity, and Log::LogEntry::str.

◆ instance()

Log & Log::instance ( )

static

Retrieves the static Log instance.

Returns: instance of the log class

Definition at line 117 of file Log.cc.

References m_Instance.

Referenced by Debugger::start().

Here is the caller graph for this function:

◆ isCallbackContext()

bool Log::isCallbackContext ( void * owner )

private

Definition at line 314 of file Log.cc.

◆ operator=()

Log & Log::operator= ( const Log & )

private

Assignment operator

Note: NOT implemented

◆ pinCallback()

bool Log::pinCallback	(	CallbackSlot *	slot,
		CallbackPin &	pin
	)

private

Definition at line 356 of file Log.cc.

◆ releaseCallback()

void Log::releaseCallback ( CallbackPin & pin )

private

Definition at line 377 of file Log.cc.

◆ removeCallback()

bool Log::removeCallback ( LogCallback * pCallback )

Closes a callback registration and drains committed invocations.

Returns true once no invocation can still use the callback. A live target cannot be drained from callback context, so admission is closed and false retains the registration for a later external retry. An idle target may be removed immediately from any context.

Definition at line 228 of file Log.cc.

References ProcessorBase::getInterrupts(), ProcessorBase::information(), LOG_CALLBACK_COUNT, and m_CallbackWaiters.

◆ severityToString()

const TinyStaticString & Log::severityToString ( SeverityLevel level ) const

private

Definition at line 786 of file Log.cc.

◆ snapshotCallbacks()

size_t Log::snapshotCallbacks ( CallbackPin pins[LOG_CALLBACK_COUNT] )

private

Definition at line 330 of file Log.cc.

◆ textCapacity()

static constexpr size_t Log::textCapacity ( )

inlinestaticconstexpr

Definition at line 295 of file Log.h.

Member Data Documentation

◆ m_ActiveCallbackPins

CallbackPin* Log::m_ActiveCallbackPins

private

Definition at line 370 of file Log.h.

◆ m_CachedTimestamp

NormalStaticString Log::m_CachedTimestamp

private

Cached timestamp string.

Definition at line 392 of file Log.h.

◆ m_CallbackWaiters

WaitQueue Log::m_CallbackWaiters

private

Callback registrations and their committed invocation pins.

Definition at line 368 of file Log.h.

Referenced by installCallback(), and removeCallback().

◆ m_DebugSeverityString

TinyStaticString Log::m_DebugSeverityString

staticprivate

Log severity tag strings.

Definition at line 395 of file Log.h.

◆ m_DedupeHead

NormalStaticString Log::m_DedupeHead

staticprivate

Dedupe information strings.

Definition at line 405 of file Log.h.

Referenced by addEntry().

◆ m_DedupeTail

TinyStaticString Log::m_DedupeTail

staticprivate

Definition at line 406 of file Log.h.

◆ m_EchoToSerial

bool Log::m_EchoToSerial

private

If we should output to serial

Definition at line 365 of file Log.h.

Referenced by initialise1(), and initialise2().

◆ m_ErrorSeverityString

TinyStaticString Log::m_ErrorSeverityString

staticprivate

Definition at line 398 of file Log.h.

◆ m_FatalSeverityString

TinyStaticString Log::m_FatalSeverityString

staticprivate

Definition at line 399 of file Log.h.

◆ m_HashMatchedCount

size_t Log::m_HashMatchedCount

private

Number of entries that matched the last entry hash.

Definition at line 383 of file Log.h.

Referenced by addEntry().

◆ m_Instance

Log Log::m_Instance

staticprivate

The Log instance (singleton class)

Definition at line 374 of file Log.h.

Referenced by instance().

◆ m_LastEntryHash

uint64_t Log::m_LastEntryHash

private

Last seen message hash (for cleaning up dupes).

Definition at line 377 of file Log.h.

Referenced by addEntry().

◆ m_LastEntrySeverity

SeverityLevel Log::m_LastEntrySeverity

private

Last seen message severity (for cleaning up dupes).

Definition at line 380 of file Log.h.

Referenced by addEntry().

◆ m_LastTime

Time::Timestamp Log::m_LastTime

private

Last timestamp seen in getTimestamp().

Definition at line 389 of file Log.h.

◆ m_LineEnding

TinyStaticString Log::m_LineEnding

staticprivate

Log line ending string.

Definition at line 402 of file Log.h.

Referenced by addEntry(), and installCallback().

◆ m_Lock

Spinlock Log::m_Lock

The lock

Note: this should only be acquired by the NOTICE, WARNING, ERROR and FATAL macros

Definition at line 175 of file Log.h.

Referenced by addEntry(), copyText(), and installCallback().

◆ m_NoticeSeverityString

TinyStaticString Log::m_NoticeSeverityString

staticprivate

Definition at line 396 of file Log.h.

◆ m_nOutputCallbacks

size_t Log::m_nOutputCallbacks

private

Definition at line 371 of file Log.h.

◆ m_OutputCallbacks

CallbackSlot Log::m_OutputCallbacks[LOG_CALLBACK_COUNT]

private

Definition at line 369 of file Log.h.

◆ m_StaticEntries

size_t Log::m_StaticEntries

private

Dynamic buffer of log messages Number of entries in the static log

Definition at line 360 of file Log.h.

Referenced by addEntry(), copyText(), getStaticEntryCount(), and installCallback().

◆ m_StaticEntryEnd

size_t Log::m_StaticEntryEnd

private

Definition at line 362 of file Log.h.

◆ m_StaticEntryStart

size_t Log::m_StaticEntryStart

private

Definition at line 362 of file Log.h.

◆ m_StaticLog

StaticLogEntry Log::m_StaticLog[LOG_ENTRIES]

private

Static buffer of log messages.

Definition at line 356 of file Log.h.

Referenced by addEntry(), getDynamicEntry(), getStaticEntry(), and installCallback().

◆ m_Timestamps

bool Log::m_Timestamps

private

Are timestamps enabled?

Definition at line 386 of file Log.h.

Referenced by addEntry(), and installCallback().

◆ m_WarningSeverityString

TinyStaticString Log::m_WarningSeverityString

staticprivate

Definition at line 397 of file Log.h.

The documentation for this class was generated from the following files:

Log.h
Log.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Member Typedef Documentation

◆ DynamicLogEntry

◆ StaticLogEntry

Member Enumeration Documentation

◆ SeverityLevel

Constructor & Destructor Documentation

◆ Log() [1/2]

◆ ~Log()

◆ Log() [2/2]

Member Function Documentation

◆ addEntry()

◆ callbackEnabled()

◆ clearCallback()

◆ copyText()

◆ currentCallbackOwner()

◆ disableTimestamps()

◆ dispatchCallback()

◆ dispatchCallbacks()

◆ echoToSerial()

◆ enableTimestamps()

◆ getDynamicEntry()

◆ getDynamicEntryCount()

◆ getLatestEntry()

◆ getStaticEntry()

◆ getStaticEntryCount()

◆ getTimestamp()

◆ initialise1()

◆ initialise2()

◆ installCallback()

◆ instance()

◆ isCallbackContext()

◆ operator=()

◆ pinCallback()

◆ releaseCallback()

◆ removeCallback()

◆ severityToString()

◆ snapshotCallbacks()

◆ textCapacity()

Member Data Documentation

◆ m_ActiveCallbackPins

◆ m_CachedTimestamp

◆ m_CallbackWaiters

◆ m_DebugSeverityString

◆ m_DedupeHead

◆ m_DedupeTail

◆ m_EchoToSerial

◆ m_ErrorSeverityString

◆ m_FatalSeverityString

◆ m_HashMatchedCount

◆ m_Instance

◆ m_LastEntryHash

◆ m_LastEntrySeverity

◆ m_LastTime

◆ m_LineEnding

◆ m_Lock

◆ m_NoticeSeverityString

◆ m_nOutputCallbacks

◆ m_OutputCallbacks

◆ m_StaticEntries

◆ m_StaticEntryEnd

◆ m_StaticEntryStart

◆ m_StaticLog

◆ m_Timestamps

◆ m_WarningSeverityString
