#include <MemoryMappedFile.h>

Inheritance diagram for MemoryMappedObject:

Collaboration diagram for MemoryMappedObject:

Public Types
typedef int	Permissions

Public Member Functions
	MemoryMappedObject (uintptr_t address, bool bCopyOnWrite, size_t length, Permissions perms, Permissions maximumPerms=Read\|Write\|Exec)

virtual MemoryMappedObject *	clone ()=0

virtual MemoryMappedObject *	split (uintptr_t at)=0

virtual MemoryMappedObject *	stageSlice (uintptr_t source, size_t sourceLength, uintptr_t destination, size_t destinationLength)=0

void	setMappingOwnership (bool ownsMappings)

virtual void	releaseDetachedPage (uintptr_t oldAddress, const VirtualAddressSpace::DetachedPage &page)=0

virtual void	discardRange (VirtualAddressSpace &space, uintptr_t base, size_t length)=0

virtual File *	backingFile () const

virtual bool	backingRangeValid (uintptr_t source, size_t length) const

virtual bool	resident (VirtualAddressSpace &space, uintptr_t address, FileResidencyAccess access, void *credentials)

virtual bool	remove (size_t length)=0

virtual void	setPermissions (Permissions perms)=0

virtual bool	preparePermissions (uintptr_t base, size_t length, Permissions perms)

virtual bool	sync (uintptr_t at, bool async)

virtual bool	syncRange (uintptr_t at, size_t length, bool async)

virtual void	invalidate (uintptr_t at)

virtual bool	sharedBacking (uintptr_t at, uintptr_t &identity, size_t &offset) const

virtual bool	usesBacking (uintptr_t identity) const

virtual bool	beyondBackingEnd (uintptr_t at) const

virtual void	discardFilePages (VirtualAddressSpace &space, size_t end)

virtual void	unmap ()=0

virtual bool	trap (VirtualAddressSpace &space, uintptr_t address, bool bWrite, PopulationStatus *population=nullptr)=0

virtual PopulationStatus	prepareResidentAccess (VirtualAddressSpace &space, uintptr_t address)

PopulationStatus	populatePage (VirtualAddressSpace &space, uintptr_t address)

MemoryLockMode	lockMode () const

virtual bool	supportsPageOut (VirtualAddressSpace &space, uintptr_t address)

virtual SwapStatus	pageOutAt (VirtualAddressSpace &space, uintptr_t address, bool &released)

virtual bool	reclaimAnonymousPage (VirtualAddressSpace &space)

virtual SwapStatus	restoreSwapPages (VirtualAddressSpace &space)

virtual bool	compact ()

bool	matches (uintptr_t address)

uintptr_t	address () const

size_t	length () const

Permissions	permissions () const

Permissions	maximumPermissions () const

Static Public Attributes
static const int	None = 0x0

static const int	Read = 0x1

static const int	Write = 0x2

static const int	Exec = 0x4

Protected Attributes
bool	m_bCopyOnWrite

uintptr_t	m_Address

size_t	m_Length

Permissions	m_Permissions

Permissions	m_MaximumPermissions

SharedPointer< MappingAttachment >	m_Attachment

Process *	m_OwnerProcess

bool	m_OwnsMappings

MemoryLockMode	m_LockMode

Private Member Functions
	MemoryMappedObject ()

Friends
class	MemoryMapManager

Detailed Description

Generic base for a memory mapped file or object.

Provides the interface for implementation, while centralising common functionality (such as extents, CoW flags, shared state, etc)

Definition at line 138 of file MemoryMappedFile.h.

Member Typedef Documentation

◆ Permissions

typedef int MemoryMappedObject::Permissions

Permissions to assign to a mapping when it is created.

Definition at line 147 of file MemoryMappedFile.h.

Constructor & Destructor Documentation

◆ MemoryMappedObject() [1/2]

MemoryMappedObject::MemoryMappedObject ( )

private

Default constructor, don't use.

◆ MemoryMappedObject() [2/2]

MemoryMappedObject::MemoryMappedObject	(	uintptr_t	address,
		bool	bCopyOnWrite,
		size_t	length,
		Permissions	perms,
		Permissions	maximumPerms = `Read \| Write \| Exec`
	)

inline

Constructor - bring up common metadata.

Definition at line 155 of file MemoryMappedFile.h.

◆ ~MemoryMappedObject()

MemoryMappedObject::~MemoryMappedObject ( )

virtual

Definition at line 138 of file MemoryMappedFile.cc.

Member Function Documentation

◆ address()

uintptr_t MemoryMappedObject::address ( ) const

inline

Getter for base address.

Definition at line 309 of file MemoryMappedFile.h.

References m_Address.

Referenced by MemoryMapManager::allows(), AnonymousMemoryMap::clone(), MemoryMapManager::clone(), MemoryMappedFile::compact(), MemoryMapManager::findAttachment(), matches(), MemoryMapManager::removeAttachment(), AnonymousMemoryMap::setPermissions(), MemoryMappedFile::setPermissions(), AnonymousMemoryMap::split(), AnonymousMemoryMap::stageSlice(), AnonymousMemoryMap::supportsPageOut(), MemoryMappedFile::syncRange(), AnonymousMemoryMap::trap(), and MemoryMappedFile::trap().

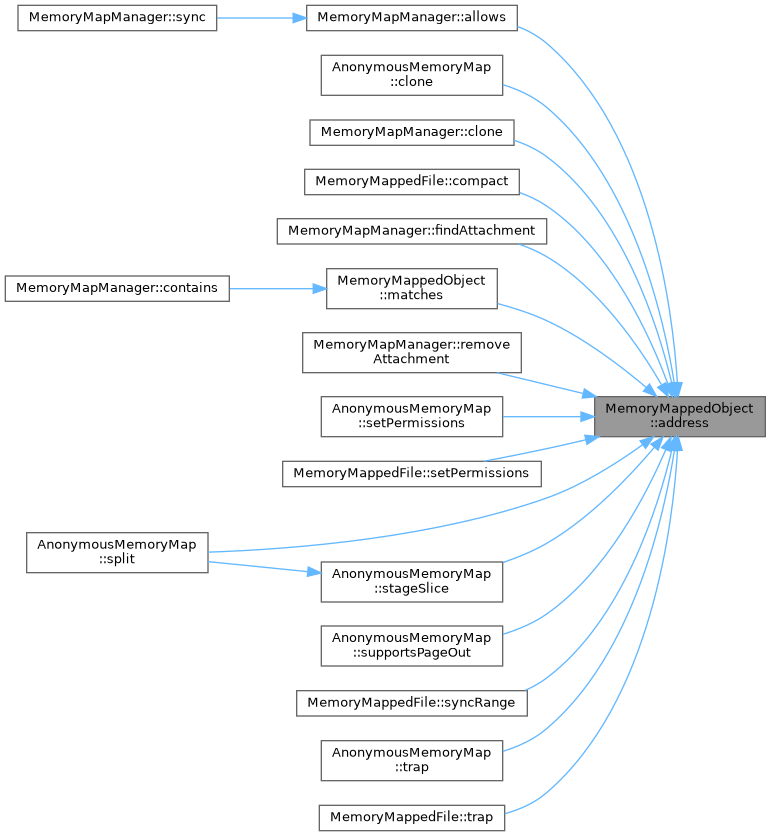

Here is the caller graph for this function:

◆ backingFile()

virtual File * MemoryMappedObject::backingFile ( ) const

inlinevirtual

Definition at line 197 of file MemoryMappedFile.h.

◆ backingRangeValid()

virtual bool MemoryMappedObject::backingRangeValid	(	uintptr_t	source,
		size_t	length
	)		const

inlinevirtual

Definition at line 200 of file MemoryMappedFile.h.

◆ beyondBackingEnd()

virtual bool MemoryMappedObject::beyondBackingEnd ( uintptr_t at ) const

inlinevirtual

Definition at line 248 of file MemoryMappedFile.h.

◆ clone()

virtual MemoryMappedObject * MemoryMappedObject::clone ( )

pure virtual

Clones the existing metadata of this object into another.

Returns a MemoryMappedObject that exactly matches this one, but which can be used for reference in a new address space. Used for address space clones.

Note that mappings are automatically cloned - only clone metadata in this method.

Implemented in AnonymousMemoryMap, and MemoryMappedFile.

Referenced by MemoryMapManager::clone().

Here is the caller graph for this function:

◆ compact()

virtual bool MemoryMappedObject::compact ( )

inlinevirtual

Reimplemented in MemoryMappedFile.

Definition at line 295 of file MemoryMappedFile.h.

◆ discardFilePages()

virtual void MemoryMappedObject::discardFilePages	(	VirtualAddressSpace &	space,
		size_t	end
	)

inlinevirtual

Definition at line 251 of file MemoryMappedFile.h.

◆ invalidate()

virtual void MemoryMappedObject::invalidate ( uintptr_t at )

inlinevirtual

Invalidate cached state without discarding private modifications.

Reimplemented in MemoryMappedFile.

Definition at line 239 of file MemoryMappedFile.h.

◆ length()

size_t MemoryMappedObject::length ( ) const

inline

Getter for length.

Definition at line 316 of file MemoryMappedFile.h.

References m_Length.

Referenced by MemoryMapManager::allows(), AnonymousMemoryMap::remove(), MemoryMappedFile::remove(), syncRange(), MemoryMappedFile::syncRange(), MemoryMapManager::unmap(), and MemoryMapManager::unmapAllUnlocked().

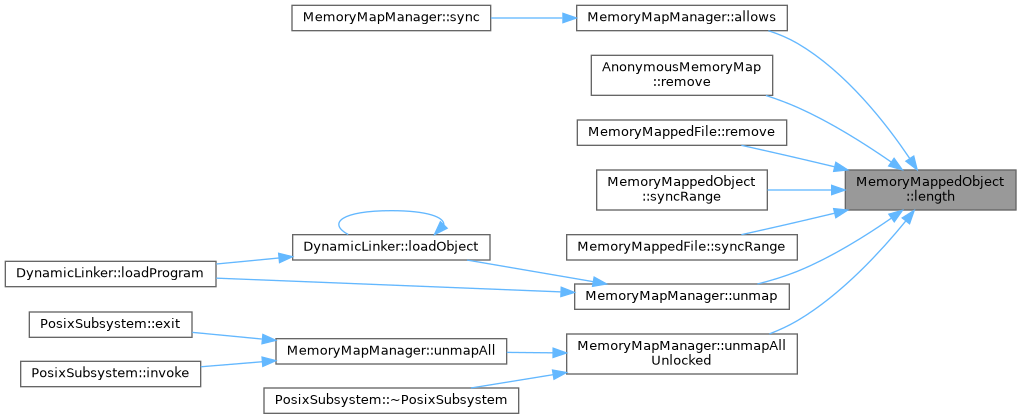

Here is the caller graph for this function:

◆ lockMode()

MemoryLockMode MemoryMappedObject::lockMode ( ) const

inline

Definition at line 274 of file MemoryMappedFile.h.

◆ matches()

bool MemoryMappedObject::matches ( uintptr_t address )

inline

Determines if the given address is within this object's mapping.

Definition at line 302 of file MemoryMappedFile.h.

References address(), m_Address, and m_Length.

Referenced by MemoryMapManager::contains().

Here is the caller graph for this function:

◆ maximumPermissions()

Permissions MemoryMappedObject::maximumPermissions ( ) const

inline

Definition at line 325 of file MemoryMappedFile.h.

◆ pageOutAt()

virtual SwapStatus MemoryMappedObject::pageOutAt	(	VirtualAddressSpace &	space,
		uintptr_t	address,
		bool &	released
	)

inlinevirtual

Definition at line 286 of file MemoryMappedFile.h.

◆ permissions()

Permissions MemoryMappedObject::permissions ( ) const

inline

Permissions granted to this mapping.

Definition at line 321 of file MemoryMappedFile.h.

References m_Permissions.

Referenced by MemoryMapManager::allows(), and AnonymousMemoryMap::setPermissions().

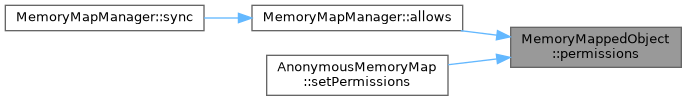

Here is the caller graph for this function:

◆ populatePage()

PopulationStatus MemoryMappedObject::populatePage	(	VirtualAddressSpace &	space,
		uintptr_t	address
	)

Definition at line 73 of file MemoryMappedFile-lock.cc.

◆ preparePermissions()

virtual bool MemoryMappedObject::preparePermissions	(	uintptr_t	base,
		size_t	length,
		Permissions	perms
	)

inlinevirtual

Definition at line 224 of file MemoryMappedFile.h.

◆ prepareResidentAccess()

virtual PopulationStatus MemoryMappedObject::prepareResidentAccess	(	VirtualAddressSpace &	space,
		uintptr_t	address
	)

inlinevirtual

Definition at line 270 of file MemoryMappedFile.h.

◆ reclaimAnonymousPage()

virtual bool MemoryMappedObject::reclaimAnonymousPage ( VirtualAddressSpace & space )

inlinevirtual

Definition at line 289 of file MemoryMappedFile.h.

◆ remove()

virtual bool MemoryMappedObject::remove ( size_t length )

pure virtual

Removes pages from the start of this MemoryMappedObject.

To remove pages from the middle or end of a MemoryMappedObject, use split() and then remove()/unmap() on the returned object).

Returns: true if the remove() has effectively removed the entire MemoryMappedObject, false otherwise.

Implemented in AnonymousMemoryMap, and MemoryMappedFile.

◆ resident()

bool MemoryMappedObject::resident	(	VirtualAddressSpace &	space,
		uintptr_t	address,
		FileResidencyAccess	access,
		void *	credentials
	)

virtual

Definition at line 12 of file MemoryMappedFile-advice.cc.

◆ restoreSwapPages()

virtual SwapStatus MemoryMappedObject::restoreSwapPages ( VirtualAddressSpace & space )

inlinevirtual

Definition at line 292 of file MemoryMappedFile.h.

◆ setMappingOwnership()

void MemoryMappedObject::setMappingOwnership ( bool ownsMappings )

inline

Definition at line 191 of file MemoryMappedFile.h.

◆ setPermissions()

virtual void MemoryMappedObject::setPermissions ( Permissions perms )

pure virtual

Sets permissions on this object.

Resident pages retain their contents and ownership.

Implemented in AnonymousMemoryMap, and MemoryMappedFile.

◆ sharedBacking()

virtual bool MemoryMappedObject::sharedBacking	(	uintptr_t	at,
		uintptr_t &	identity,
		size_t &	offset
	)		const

inlinevirtual

Definition at line 241 of file MemoryMappedFile.h.

◆ split()

virtual MemoryMappedObject * MemoryMappedObject::split ( uintptr_t at )

pure virtual

Splits the metadata of this object at the given address and creates a new MemoryMappedObject that begins at the page of the split.

Implemented in AnonymousMemoryMap, and MemoryMappedFile.

◆ stageSlice()

virtual MemoryMappedObject * MemoryMappedObject::stageSlice	(	uintptr_t	source,
		size_t	sourceLength,
		uintptr_t	destination,
		size_t	destinationLength
	)

pure virtual

Prepared slices transfer existing page ownership only after publication.

Implemented in AnonymousMemoryMap, and MemoryMappedFile.

◆ supportsPageOut()

virtual bool MemoryMappedObject::supportsPageOut	(	VirtualAddressSpace &	space,
		uintptr_t	address
	)

inlinevirtual

Release memory that can be released.

Default implementation returns 'no pages released'.

Reimplemented in AnonymousMemoryMap.

Definition at line 283 of file MemoryMappedFile.h.

◆ sync()

virtual bool MemoryMappedObject::sync	(	uintptr_t	at,
		bool	async
	)

inlinevirtual

Sync back the given page to a backing store, if one exists.

Reimplemented in MemoryMappedFile.

Definition at line 231 of file MemoryMappedFile.h.

Referenced by syncRange().

Here is the caller graph for this function:

◆ syncRange()

bool MemoryMappedObject::syncRange	(	uintptr_t	at,
		size_t	length,
		bool	async
	)

virtual

Synchronise a contiguous mapping range without imposing a barrier per page.

Reimplemented in MemoryMappedFile.

Definition at line 470 of file MemoryMappedFile.cc.

References PhysicalMemoryManager::getPageSize(), length(), and sync().

◆ trap()

virtual bool MemoryMappedObject::trap	(	VirtualAddressSpace &	space,
		uintptr_t	address,
		bool	bWrite,
		PopulationStatus *	population = `nullptr`
	)

pure virtual

Trap entry

Implement this in your implementation to actually perform the mapping of memory into the address space.

Returns: true if the trap was successful, false otherwise.

Implemented in AnonymousMemoryMap, and MemoryMappedFile.

◆ unmap()

virtual void MemoryMappedObject::unmap ( )

pure virtual

Unmaps existing mappings in this object from the address space.

Implementations are expected to track these as necessary for the implementation.

Implemented in AnonymousMemoryMap, and MemoryMappedFile.

◆ usesBacking()

virtual bool MemoryMappedObject::usesBacking ( uintptr_t identity ) const

inlinevirtual

Definition at line 245 of file MemoryMappedFile.h.

Friends And Related Symbol Documentation

◆ MemoryMapManager

friend class MemoryMapManager

friend

Definition at line 139 of file MemoryMappedFile.h.

Member Data Documentation

◆ Exec

const int MemoryMappedObject::Exec = 0x4

static

Definition at line 152 of file MemoryMappedFile.h.

◆ m_Address

uintptr_t MemoryMappedObject::m_Address

protected

Base address of this mapping.

The region from base -> base+length will trap into this object when an access attempt is made that faults.

Definition at line 345 of file MemoryMappedFile.h.

Referenced by address(), AnonymousMemoryMap::clone(), MemoryMappedFile::clone(), MemoryMappedFile::compact(), matches(), AnonymousMemoryMap::remove(), MemoryMappedFile::remove(), MemoryMappedFile::setPermissions(), AnonymousMemoryMap::split(), MemoryMappedFile::split(), AnonymousMemoryMap::stageSlice(), MemoryMappedFile::stageSlice(), MemoryMappedFile::sync(), MemoryMappedFile::syncRange(), and MemoryMappedFile::trap().

◆ m_Attachment

SharedPointer<MappingAttachment> MemoryMappedObject::m_Attachment

protected

Definition at line 366 of file MemoryMappedFile.h.

◆ m_bCopyOnWrite

bool MemoryMappedObject::m_bCopyOnWrite

protected

Is this a Copy-on-Write mapping?

A non-copy-on-write mapping will cause writes to hit the backing store directly. This makes sense for some types of mapping and not for others.

Definition at line 337 of file MemoryMappedFile.h.

Referenced by MemoryMappedFile::clone(), MemoryMappedFile::compact(), MemoryMapManager::hasSharedWriteCapability(), MemoryMappedFile::remove(), MemoryMappedFile::setPermissions(), MemoryMappedFile::split(), AnonymousMemoryMap::stageSlice(), MemoryMappedFile::stageSlice(), AnonymousMemoryMap::supportsPageOut(), MemoryMappedFile::sync(), MemoryMappedFile::syncRange(), and MemoryMappedFile::trap().

◆ m_Length

size_t MemoryMappedObject::m_Length

protected

Size of the object.

To clarify, this is the size of the mapping itself, not of the entire backing object.

Definition at line 353 of file MemoryMappedFile.h.

Referenced by AnonymousMemoryMap::clone(), MemoryMappedFile::clone(), MemoryMappedFile::compact(), length(), matches(), AnonymousMemoryMap::remove(), MemoryMappedFile::remove(), AnonymousMemoryMap::split(), MemoryMappedFile::split(), AnonymousMemoryMap::stageSlice(), MemoryMappedFile::stageSlice(), MemoryMappedFile::sync(), MemoryMappedFile::syncRange(), and MemoryMappedFile::trap().

◆ m_LockMode

MemoryLockMode MemoryMappedObject::m_LockMode

protected

Definition at line 371 of file MemoryMappedFile.h.

◆ m_MaximumPermissions

Permissions MemoryMappedObject::m_MaximumPermissions

protected

Definition at line 365 of file MemoryMappedFile.h.

◆ m_OwnerProcess

Process* MemoryMappedObject::m_OwnerProcess

protected

Definition at line 369 of file MemoryMappedFile.h.

◆ m_OwnsMappings

bool MemoryMappedObject::m_OwnsMappings

protected

Definition at line 370 of file MemoryMappedFile.h.

◆ m_Permissions

Permissions MemoryMappedObject::m_Permissions

protected

Permissions for mappings created by this object.

For example, 'None' would mean that a trap will NEVER succeed, and that no premapping will be done. 'Read' might mean that writes will never magically map in a page for writing to.

'Exec' only works on systems that support this (eg, x86_64).

Definition at line 364 of file MemoryMappedFile.h.

Referenced by AnonymousMemoryMap::clone(), MemoryMappedFile::clone(), permissions(), AnonymousMemoryMap::setPermissions(), MemoryMappedFile::setPermissions(), MemoryMappedFile::split(), AnonymousMemoryMap::stageSlice(), MemoryMappedFile::stageSlice(), AnonymousMemoryMap::trap(), and MemoryMappedFile::trap().

◆ None

const int MemoryMappedObject::None = 0x0

static

Definition at line 149 of file MemoryMappedFile.h.

◆ Read

const int MemoryMappedObject::Read = 0x1

static

Definition at line 150 of file MemoryMappedFile.h.

◆ Write

const int MemoryMappedObject::Write = 0x2

static

Definition at line 151 of file MemoryMappedFile.h.

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Static Public Attributes

Protected Attributes

Private Member Functions

Friends

Detailed Description

Member Typedef Documentation

◆ Permissions

Constructor & Destructor Documentation

◆ MemoryMappedObject() [1/2]

◆ MemoryMappedObject() [2/2]

◆ ~MemoryMappedObject()

Member Function Documentation

◆ address()

◆ backingFile()

◆ backingRangeValid()

◆ beyondBackingEnd()

◆ clone()

◆ compact()

◆ discardFilePages()

◆ invalidate()

◆ length()

◆ lockMode()

◆ matches()

◆ maximumPermissions()

◆ pageOutAt()

◆ permissions()

◆ populatePage()

◆ preparePermissions()

◆ prepareResidentAccess()

◆ reclaimAnonymousPage()

◆ remove()

◆ resident()

◆ restoreSwapPages()

◆ setMappingOwnership()

◆ setPermissions()

◆ sharedBacking()

◆ split()

◆ stageSlice()

◆ supportsPageOut()

◆ sync()

◆ syncRange()

◆ trap()

◆ unmap()

◆ usesBacking()

Friends And Related Symbol Documentation

◆ MemoryMapManager

Member Data Documentation

◆ Exec

◆ m_Address

◆ m_Attachment

◆ m_bCopyOnWrite

◆ m_Length

◆ m_LockMode

◆ m_MaximumPermissions

◆ m_OwnerProcess

◆ m_OwnsMappings

◆ m_Permissions

◆ None

◆ Read

◆ Write
