OperationBarrier Class Reference

#include <OperationBarrier.h>

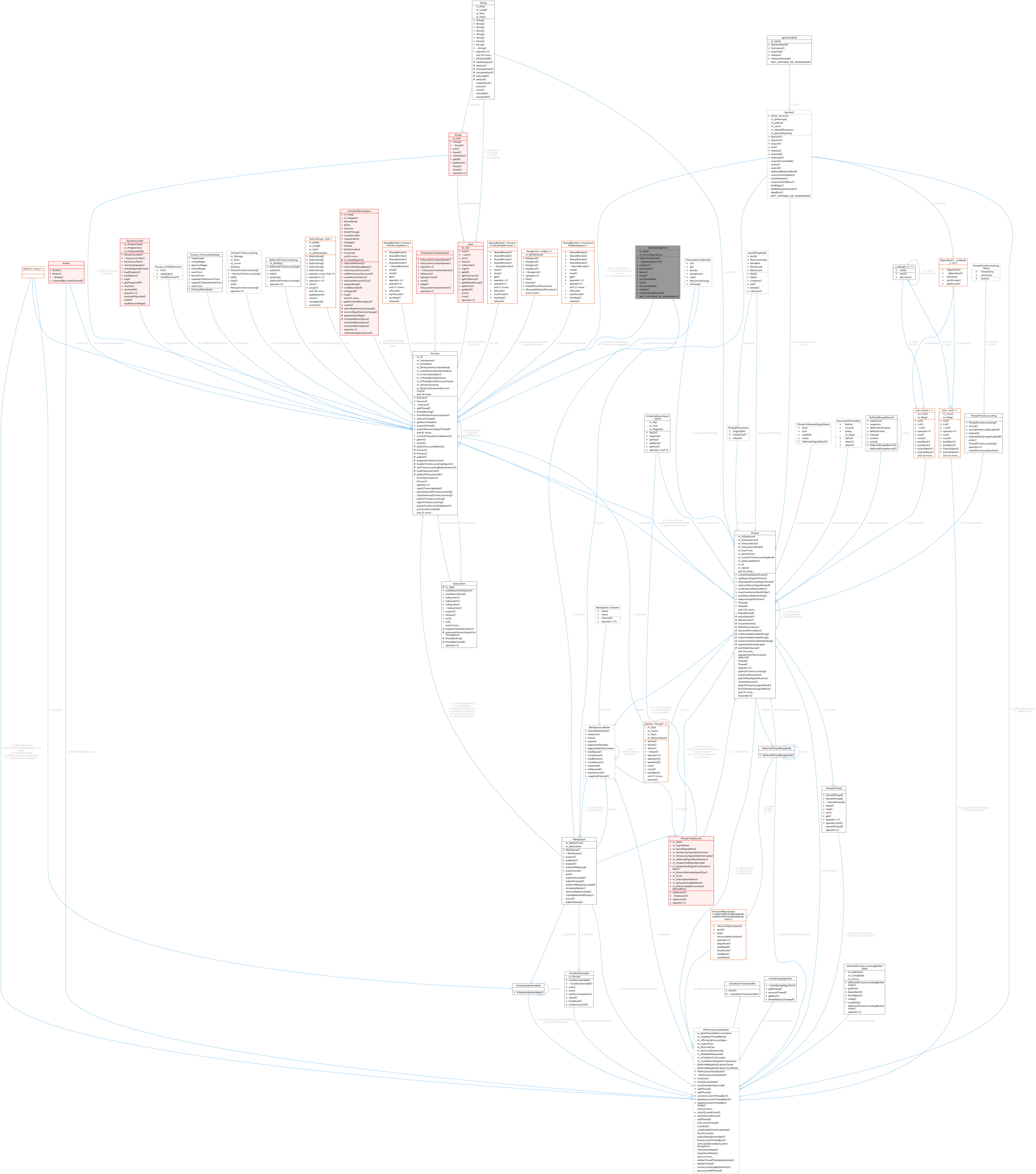

Collaboration diagram for OperationBarrier:

Classes
class	Lease

Public Member Functions
MUST_USE_RESULT bool	tryEnter ()
MUST_USE_RESULT bool	tryAcquire (Lease &lease)
void	leave ()
void	close ()
MUST_USE_RESULT bool	tryCloseIfIdle ()
void	wait ()
void	closeAndWait ()
bool	isOpen ()
bool	isClosedAndDrained ()

Private Member Functions
	NOT_COPYABLE_OR_ASSIGNABLE (OperationBarrier)

Private Attributes
WaitQueue	m_Waiters
size_t	m_State

Static Private Attributes
static constexpr size_t	Closed = size_t{1} << (sizeof(size_t) * 8 - 1)
static constexpr size_t	CountMask = Closed - 1

Detailed Description

Closes admission to asynchronous work and drains work already admitted.

tryEnter() is safe in non-sleeping contexts. Every successful admission must have exactly one matching leave() after its final owner has stopped touching the protected object. Teardown closes admission before waiting, so late work is rejected without racing the final active operation.

Definition at line 23 of file OperationBarrier.h.

Constructor & Destructor Documentation

OperationBarrier()

OperationBarrier::OperationBarrier

(

)

Definition at line 44 of file OperationBarrier.cc.

~OperationBarrier()

OperationBarrier::~OperationBarrier

(

)

Definition at line 46 of file OperationBarrier.cc.

Member Function Documentation

close()

void OperationBarrier::close

(

)

Rejects future admissions without waiting for existing work.

Definition at line 96 of file OperationBarrier.cc.

Referenced by ServiceManager::addService(), closeAndWait(), NetworkStack::deRegisterDevice(), UnixSocketSyscalls::lastDescriptorClosed(), VFS::removeDiskFilesystem(), ServiceManager::removeService(), and VFS::retireOwnedFilesystem().

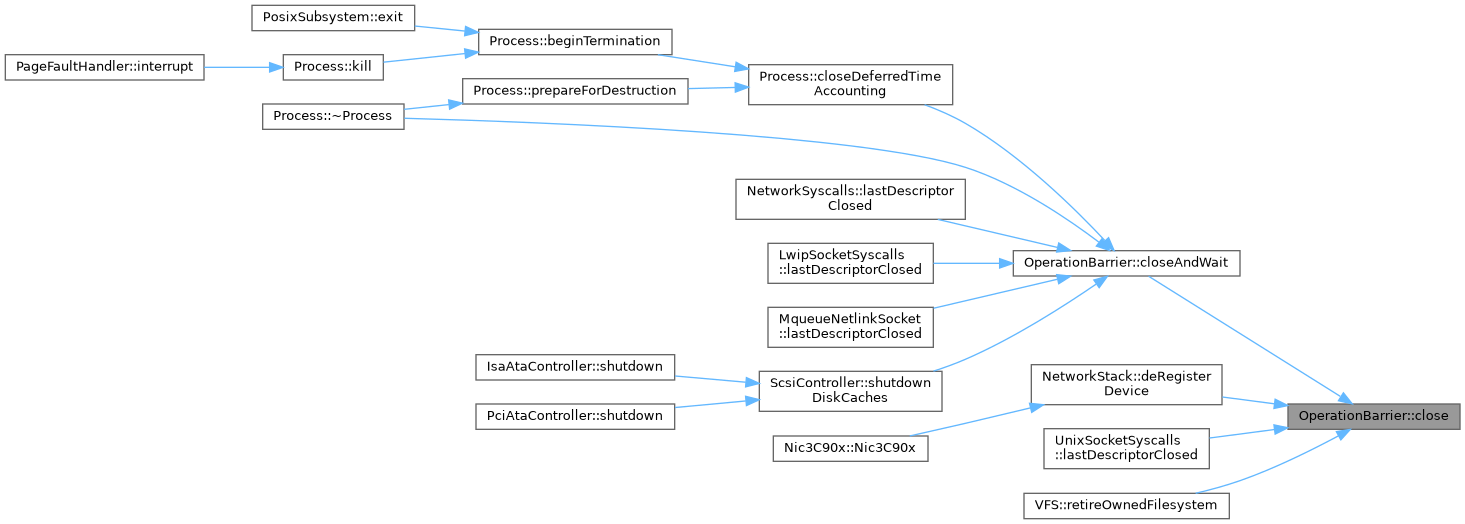

Here is the caller graph for this function:

closeAndWait()

void OperationBarrier::closeAndWait

(

)

Atomically closes admission and waits for admitted work.

Definition at line 127 of file OperationBarrier.cc.

References close(), and wait().

Referenced by Process::closeDeferredTimeAccounting(), NetworkSyscalls::lastDescriptorClosed(), LwipSocketSyscalls::lastDescriptorClosed(), MqueueNetlinkSocket::lastDescriptorClosed(), ScsiController::shutdownDiskCaches(), Filesystem::~Filesystem(), and Process::~Process().

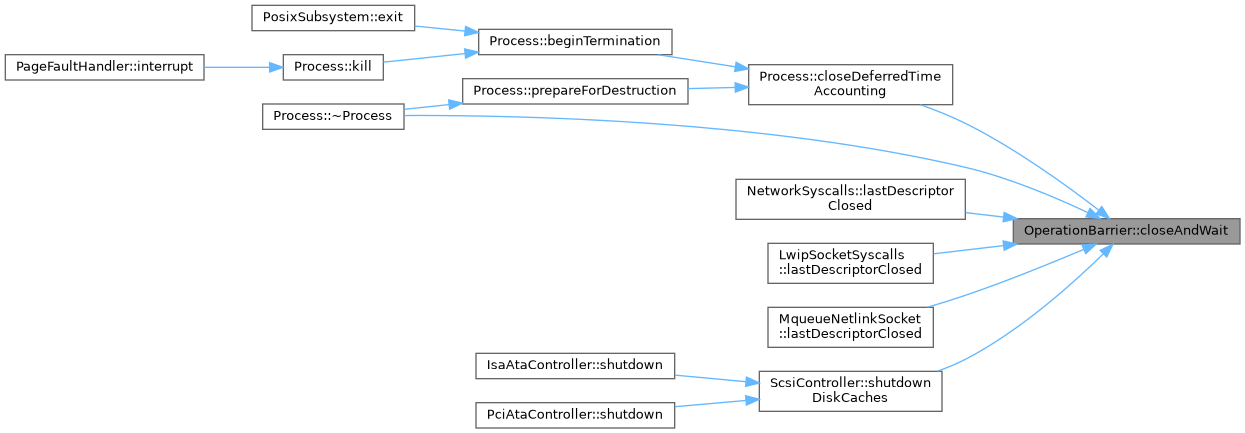

Here is the caller graph for this function:

isClosedAndDrained()

bool OperationBarrier::isClosedAndDrained

(

)

Definition at line 136 of file OperationBarrier.cc.

isOpen()

bool OperationBarrier::isOpen

(

)

Definition at line 132 of file OperationBarrier.cc.

leave()

void OperationBarrier::leave

(

)

Completes one successfully admitted operation.

Definition at line 77 of file OperationBarrier.cc.

References panic().

Referenced by Uhci::cancelInterruptInAndDrain(), and Ohci::retireEDStorage().

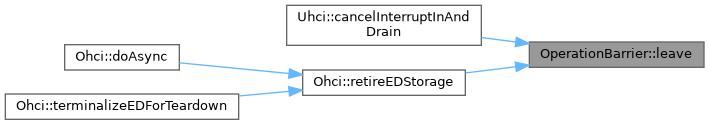

Here is the caller graph for this function:

tryAcquire()

bool OperationBarrier::tryAcquire

(

Lease &

lease

)

Attempts one scope-bound admission without blocking.

The scalar/out shape is stable across the native hosted kernel and Pedigree module compilers.

Definition at line 67 of file OperationBarrier.cc.

References tryEnter().

Referenced by NetworkStack::acquireDevice(), NetworkStack::acquireDevice(), Xhci::addInterruptInHandler(), Ehci::addInterruptInHandler(), Uhci::addInterruptInHandler(), Ehci::addTransferToTransaction(), Ohci::addTransferToTransaction(), Uhci::addTransferToTransaction(), Xhci::addTransferToTransaction(), Ehci::cancelAsyncAndDrain(), Ohci::cancelAsyncAndDrain(), Uhci::cancelAsyncAndDrain(), Xhci::cancelAsyncAndDrain(), Xhci::cancelInterruptInAndDrain(), Ehci::cancelInterruptInAndDrain(), Uhci::cancelInterruptInAndDrain(), VmwareGraphics::VmwareFramebuffer::copy(), Xhci::createTransaction(), Ehci::createTransaction(), Ohci::createTransaction(), Uhci::createTransaction(), Ehci::doAsync(), Ohci::doAsync(), Xhci::doAsync(), UsbPnP::doProbe(), Process::drainDeferredTimeAccounting(), VmwareGraphics::VmwareFramebuffer::hwRedraw(), Ohci::irq(), Uhci::irq(), Cache::lookupStable(), LwipSocketSyscalls::netconnCallback(), Cache::prepareDiscardFrom(), LwipSocketSyscalls::queryReady(), LwipSocketSyscalls::readinessGenerations(), Dm9601::send(), PartitionService::serve(), Cache::syncAll(), and Uhci::timer().

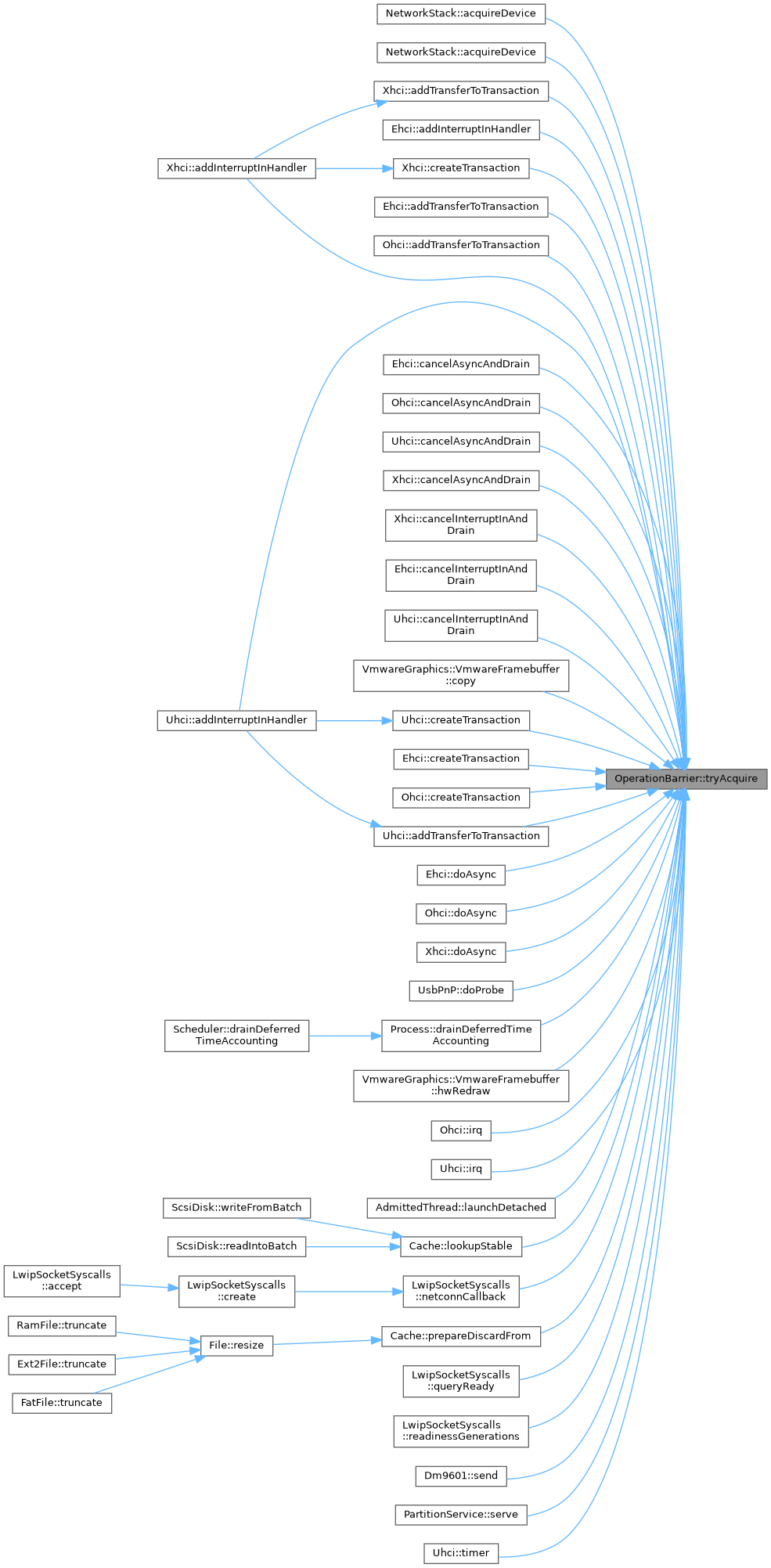

Here is the caller graph for this function:

tryCloseIfIdle()

bool OperationBarrier::tryCloseIfIdle

(

)

Closes only when idle; a busy result leaves admission unchanged.

Definition at line 100 of file OperationBarrier.cc.

tryEnter()

bool OperationBarrier::tryEnter

(

)

Attempts to admit one operation without blocking.

Definition at line 53 of file OperationBarrier.cc.

References panic().

Referenced by Uhci::cancelAsyncAndDrain(), Ohci::doAsync(), Uhci::irq(), and tryAcquire().

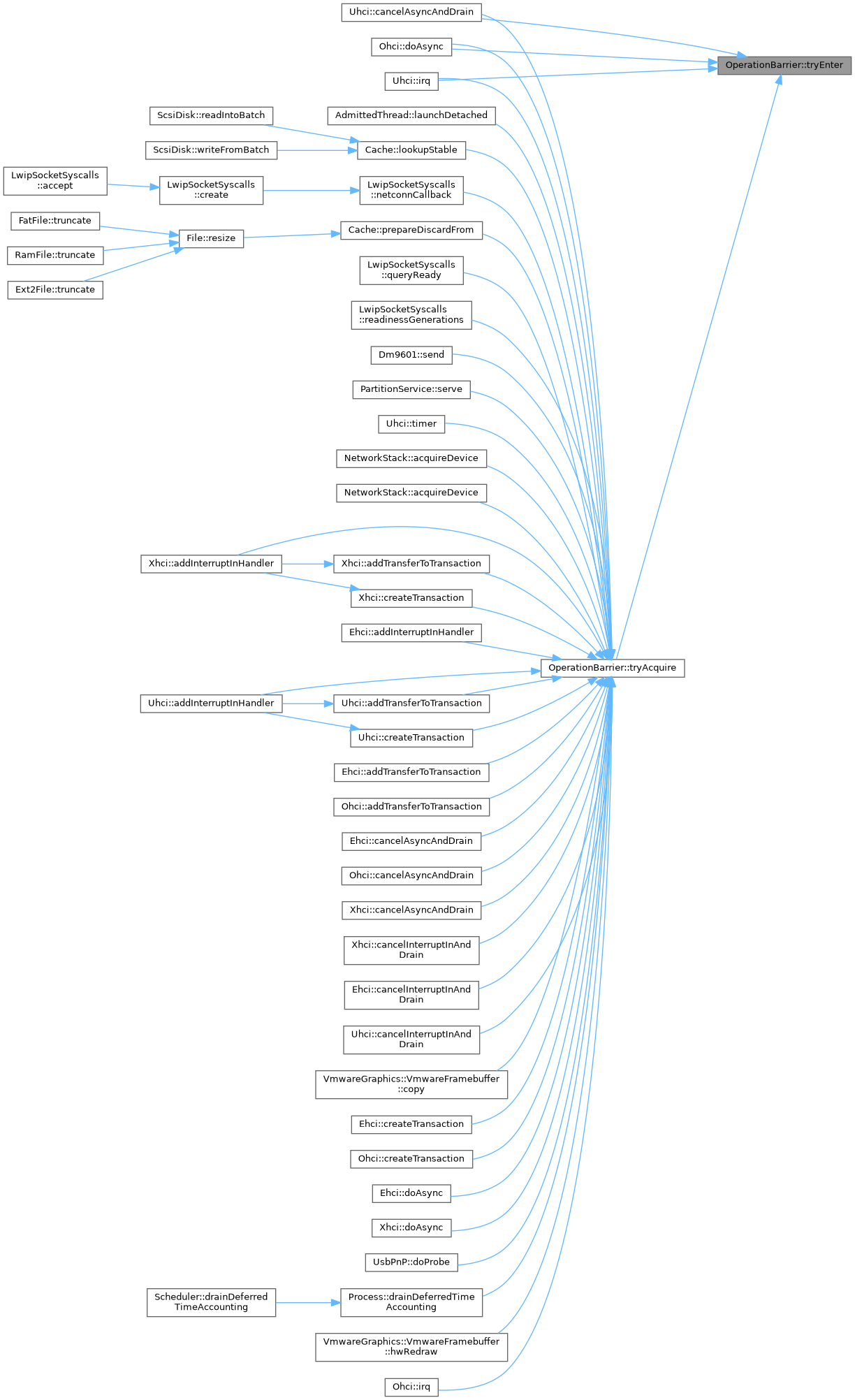

Here is the caller graph for this function:

wait()

void OperationBarrier::wait

(

)

Waits for admitted work after close() has been called.

Definition at line 108 of file OperationBarrier.cc.

References panic().

Referenced by ServiceManager::addService(), closeAndWait(), NetworkStack::deRegisterDevice(), VFS::removeDiskFilesystem(), and ServiceManager::removeService().

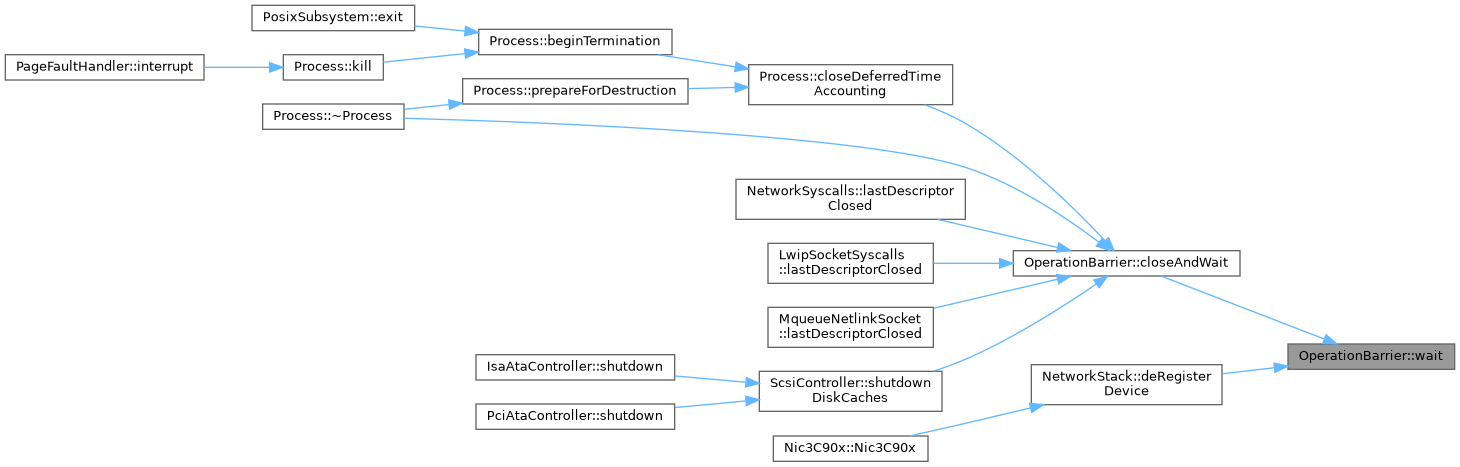

Here is the caller graph for this function:

Member Data Documentation

Closed

constexpr size_t OperationBarrier::Closed = size_t{1} << (sizeof(size_t) * 8 - 1)

staticconstexprprivate

Definition at line 85 of file OperationBarrier.h.

CountMask

constexpr size_t OperationBarrier::CountMask = Closed - 1

staticconstexprprivate

Definition at line 86 of file OperationBarrier.h.

m_State

size_t OperationBarrier::m_State

private

Definition at line 90 of file OperationBarrier.h.

m_Waiters

WaitQueue OperationBarrier::m_Waiters

private

Definition at line 89 of file OperationBarrier.h.

---

The documentation for this class was generated from the following files:

• OperationBarrier.h
• OperationBarrier.cc
