PicControllerStateGate Class Reference

#include <PicIrqState.h>

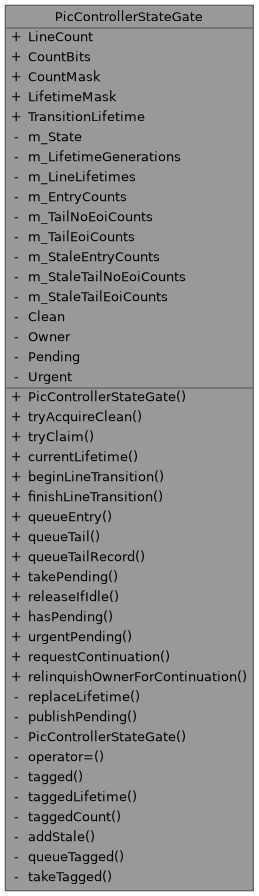

Collaboration diagram for PicControllerStateGate:

Classes
struct	PendingActions

Public Member Functions
bool	tryAcquireClean ()
bool	tryClaim ()
size_t	currentLifetime (size_t irq) const
void	beginLineTransition (size_t irq)
size_t	finishLineTransition (size_t irq)
bool	queueEntry (size_t irq, size_t lifetime)
bool	queueTail (size_t irq, size_t lifetime, bool owesEoi)
bool	queueTailRecord (size_t irq)
bool	takePending (PendingActions &actions)
bool	releaseIfIdle ()
bool	hasPending () const
bool	urgentPending () const
void	requestContinuation ()
bool	relinquishOwnerForContinuation ()

Static Public Attributes
static constexpr size_t	LineCount = PicIrqState::LineCount
static constexpr size_t	CountBits = 12
static constexpr size_t	CountMask = (static_cast<size_t>(1) << CountBits) - 1
static constexpr size_t	LifetimeMask = static_cast<size_t>(~static_cast<size_t>(0)) >> CountBits
static constexpr size_t	TransitionLifetime = LifetimeMask

Private Member Functions
void	replaceLifetime (size_t irq, size_t lifetime)
void	publishPending (bool urgent)
	PicControllerStateGate (const PicControllerStateGate &)=delete
PicControllerStateGate &	operator= (const PicControllerStateGate &)=delete

Static Private Member Functions
static size_t	tagged (size_t lifetime, size_t count)
static size_t	taggedLifetime (size_t value)
static size_t	taggedCount (size_t value)
static void	addStale (size_t &counter, size_t count)
static void	queueTagged (size_t &currentCounter, size_t &staleCounter, size_t lifetime)
static void	takeTagged (size_t &currentCounter, size_t &staleCounter, size_t lifetime, size_t &current, size_t &stale)

Private Attributes
size_t	m_State
size_t	m_LifetimeGenerations [LineCount]
size_t	m_LineLifetimes [LineCount]
size_t	m_EntryCounts [LineCount]
size_t	m_TailNoEoiCounts [LineCount]
size_t	m_TailEoiCounts [LineCount]
size_t	m_StaleEntryCounts [LineCount]
size_t	m_StaleTailNoEoiCounts [LineCount]
size_t	m_StaleTailEoiCounts [LineCount]

Static Private Attributes
static constexpr size_t	Clean = 0
static constexpr size_t	Owner = 1U << 0
static constexpr size_t	Pending = 1U << 1
static constexpr size_t	Urgent = 1U << 2

Detailed Description

Lock-free ownership handoff for access to the shared 8259 controllers.

Producers first account their deferred action, then publish Pending before attempting to become Owner. The current owner can therefore clear Pending and retain ownership in one compare-and-swap, while release can only succeed from an exactly idle Owner state.

Definition at line 505 of file PicIrqState.h.

Constructor & Destructor Documentation

PicControllerStateGate()

PicControllerStateGate::PicControllerStateGate ( )

inline

Definition at line 551 of file PicIrqState.h.

Member Function Documentation

addStale()

static void PicControllerStateGate::addStale ( size_t &  counter, size_t  count  )

inlinestaticprivate

Definition at line 707 of file PicIrqState.h.

beginLineTransition()

void PicControllerStateGate::beginLineTransition ( size_t  irq )

inline

Prevents in-flight old work from qualifying against a changing line.

Definition at line 589 of file PicIrqState.h.

currentLifetime()

size_t PicControllerStateGate::currentLifetime ( size_t  irq ) const

inline

Definition at line 583 of file PicIrqState.h.

finishLineTransition()

size_t PicControllerStateGate::finishLineTransition ( size_t  irq )

inline

Publishes a fresh handler-set lifetime after a line transition.

Definition at line 595 of file PicIrqState.h.

hasPending()

bool PicControllerStateGate::hasPending ( ) const

inline

Definition at line 669 of file PicIrqState.h.

publishPending()

void PicControllerStateGate::publishPending ( bool  urgent )

inlineprivate

Definition at line 766 of file PicIrqState.h.

queueEntry()

bool PicControllerStateGate::queueEntry ( size_t  irq, size_t  lifetime  )

inline

Queues controller-entry work and elects an owner if one is needed.

Definition at line 608 of file PicIrqState.h.

References tryClaim().

queueTagged()

static void PicControllerStateGate::queueTagged ( size_t &  currentCounter, size_t &  staleCounter, size_t  lifetime  )

inlinestaticprivate

Definition at line 713 of file PicIrqState.h.

queueTail()

bool PicControllerStateGate::queueTail ( size_t  irq, size_t  lifetime, bool  owesEoi  )

inline

Queues controller-tail work, preserving its EOI obligation.

Definition at line 616 of file PicIrqState.h.

References tryClaim().

queueTailRecord()

bool PicControllerStateGate::queueTailRecord ( size_t  irq )

inline

Announces a complete tail record published in separate fixed storage.

Definition at line 628 of file PicIrqState.h.

References tryClaim().

releaseIfIdle()

bool PicControllerStateGate::releaseIfIdle ( )

inline

Releases ownership only if no producer has published pending work.

Definition at line 663 of file PicIrqState.h.

relinquishOwnerForContinuation()

bool PicControllerStateGate::relinquishOwnerForContinuation ( )

inline

Hands only non-urgent pending work to a guaranteed continuation.

Definition at line 683 of file PicIrqState.h.

replaceLifetime()

void PicControllerStateGate::replaceLifetime ( size_t  irq, size_t  lifetime  )

inlineprivate

Definition at line 746 of file PicIrqState.h.

requestContinuation()

void PicControllerStateGate::requestContinuation ( )

inline

Keeps ownership discoverable while a thread-context continuation wakes.

Definition at line 678 of file PicIrqState.h.

tagged()

static size_t PicControllerStateGate::tagged ( size_t  lifetime, size_t  count  )

inlinestaticprivate

Definition at line 695 of file PicIrqState.h.

taggedCount()

static size_t PicControllerStateGate::taggedCount ( size_t  value )

inlinestaticprivate

Definition at line 703 of file PicIrqState.h.

taggedLifetime()

static size_t PicControllerStateGate::taggedLifetime ( size_t  value )

inlinestaticprivate

Definition at line 699 of file PicIrqState.h.

takePending()

bool PicControllerStateGate::takePending ( PendingActions &  actions )

inline

Atomically claims the published batch while retaining ownership.

Definition at line 635 of file PicIrqState.h.

takeTagged()

static void PicControllerStateGate::takeTagged ( size_t &  currentCounter, size_t &  staleCounter, size_t  lifetime, size_t &  current, size_t &  stale  )

inlinestaticprivate

Definition at line 733 of file PicIrqState.h.

tryAcquireClean()

bool PicControllerStateGate::tryAcquireClean ( )

inline

Acquires ownership only when no work is already pending.

Definition at line 565 of file PicIrqState.h.

tryClaim()

bool PicControllerStateGate::tryClaim ( )

inline

Claims an unowned clean or pending gate in one attempt.

Definition at line 572 of file PicIrqState.h.

Referenced by queueEntry(), queueTail(), and queueTailRecord().

Here is the caller graph for this function:

urgentPending()

bool PicControllerStateGate::urgentPending ( ) const

inline

Definition at line 673 of file PicIrqState.h.

Member Data Documentation

Clean

constexpr size_t PicControllerStateGate::Clean = 0

staticconstexprprivate

Definition at line 690 of file PicIrqState.h.

CountBits

constexpr size_t PicControllerStateGate::CountBits = 12

staticconstexpr

Definition at line 508 of file PicIrqState.h.

CountMask

constexpr size_t PicControllerStateGate::CountMask = (static_cast<size_t>(1) << CountBits) - 1

staticconstexpr

Definition at line 509 of file PicIrqState.h.

LifetimeMask

constexpr size_t PicControllerStateGate::LifetimeMask = static_cast<size_t>(~static_cast<size_t>(0)) >> CountBits

staticconstexpr

Definition at line 510 of file PicIrqState.h.

LineCount

constexpr size_t PicControllerStateGate::LineCount = PicIrqState::LineCount

staticconstexpr

Definition at line 507 of file PicIrqState.h.

m_EntryCounts

size_t PicControllerStateGate::m_EntryCounts[LineCount]

private

Definition at line 773 of file PicIrqState.h.

m_LifetimeGenerations

size_t PicControllerStateGate::m_LifetimeGenerations[LineCount]

private

Definition at line 771 of file PicIrqState.h.

m_LineLifetimes

size_t PicControllerStateGate::m_LineLifetimes[LineCount]

private

Definition at line 772 of file PicIrqState.h.

m_StaleEntryCounts

size_t PicControllerStateGate::m_StaleEntryCounts[LineCount]

private

Definition at line 776 of file PicIrqState.h.

m_StaleTailEoiCounts

size_t PicControllerStateGate::m_StaleTailEoiCounts[LineCount]

private

Definition at line 778 of file PicIrqState.h.

m_StaleTailNoEoiCounts

size_t PicControllerStateGate::m_StaleTailNoEoiCounts[LineCount]

private

Definition at line 777 of file PicIrqState.h.

m_State

size_t PicControllerStateGate::m_State

private

Definition at line 770 of file PicIrqState.h.

m_TailEoiCounts

size_t PicControllerStateGate::m_TailEoiCounts[LineCount]

private

Definition at line 775 of file PicIrqState.h.

m_TailNoEoiCounts

size_t PicControllerStateGate::m_TailNoEoiCounts[LineCount]

private

Definition at line 774 of file PicIrqState.h.

Owner

constexpr size_t PicControllerStateGate::Owner = 1U << 0

staticconstexprprivate

Definition at line 691 of file PicIrqState.h.

Pending

constexpr size_t PicControllerStateGate::Pending = 1U << 1

staticconstexprprivate

Definition at line 692 of file PicIrqState.h.

TransitionLifetime

constexpr size_t PicControllerStateGate::TransitionLifetime = LifetimeMask

staticconstexpr

Definition at line 511 of file PicIrqState.h.

Urgent

constexpr size_t PicControllerStateGate::Urgent = 1U << 2

staticconstexprprivate

Definition at line 693 of file PicIrqState.h.

---

The documentation for this class was generated from the following file:

• PicIrqState.h
