RtcAlarmQueue Class Reference

#include <RtcAlarmQueue.h>

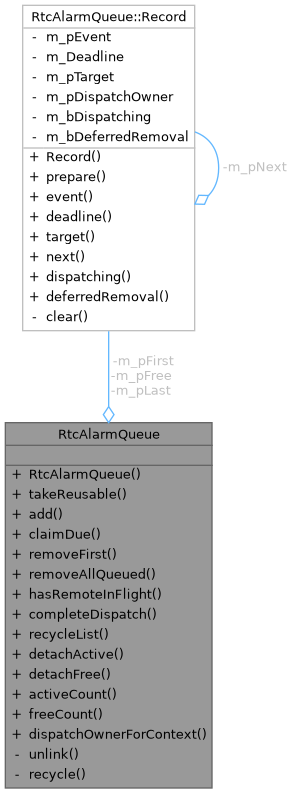

Collaboration diagram for RtcAlarmQueue:

Classes
class	Record
struct	Removal

Public Types
enum class	RemovalDisposition { NotFound , Removed , SelfDeferred , RemoteInFlight }

Public Member Functions
Record *	takeReusable ()
void	add (Record *record)
Record *	claimDue (uint64_t now, void *owner)
Removal	removeFirst (void *event, void *owner)
Record *	removeAllQueued (void *event, void *owner, bool &remoteInFlight, bool &selfDeferred)
bool	hasRemoteInFlight (void *event, void *owner) const
void	completeDispatch (Record *record)
void	recycleList (Record *records)
Record *	detachActive ()
Record *	detachFree ()
size_t	activeCount () const
size_t	freeCount () const

Static Public Member Functions
template<typename Context >
static void *	dispatchOwnerForContext (Context &context)

Private Member Functions
void	unlink (Record *previous, Record *record)
void	recycle (Record *record)

Private Attributes
Record *	m_pFirst
Record *	m_pLast
Record *	m_pFree

Detailed Description

Allocation-free ownership state for RTC alarms.

The caller serialises every operation. Claimed records remain visible until completeDispatch(), so a remote remover can distinguish a committed delivery from an alarm which is still safe to cancel. A same-context remover cannot drain its own stack and is therefore recorded as deferred.

Definition at line 23 of file RtcAlarmQueue.h.

Member Enumeration Documentation

RemovalDisposition

enum class RtcAlarmQueue::RemovalDisposition

strong

Definition at line 98 of file RtcAlarmQueue.h.

Constructor & Destructor Documentation

RtcAlarmQueue()

RtcAlarmQueue::RtcAlarmQueue ( )

inline

Definition at line 111 of file RtcAlarmQueue.h.

Member Function Documentation

activeCount()

size_t RtcAlarmQueue::activeCount ( ) const

inline

Definition at line 253 of file RtcAlarmQueue.h.

add()

void RtcAlarmQueue::add ( Record *  record )

inline

Definition at line 122 of file RtcAlarmQueue.h.

claimDue()

Record * RtcAlarmQueue::claimDue ( uint64_t  now, void *  owner  )

inline

Definition at line 136 of file RtcAlarmQueue.h.

completeDispatch()

void RtcAlarmQueue::completeDispatch ( Record *  record )

inline

Definition at line 217 of file RtcAlarmQueue.h.

detachActive()

Record * RtcAlarmQueue::detachActive ( )

inline

Definition at line 240 of file RtcAlarmQueue.h.

detachFree()

Record * RtcAlarmQueue::detachFree ( )

inline

Definition at line 247 of file RtcAlarmQueue.h.

dispatchOwnerForContext()

template<typename Context >

static void * RtcAlarmQueue::dispatchOwnerForContext ( Context &  context )

inlinestatic

Distinguish preemptible workers which happen to run on the same CPU.

Definition at line 27 of file RtcAlarmQueue.h.

freeCount()

size_t RtcAlarmQueue::freeCount ( ) const

inline

Definition at line 261 of file RtcAlarmQueue.h.

hasRemoteInFlight()

bool RtcAlarmQueue::hasRemoteInFlight ( void *  event, void *  owner  ) const

inline

Definition at line 207 of file RtcAlarmQueue.h.

recycle()

void RtcAlarmQueue::recycle ( Record *  record )

inlineprivate

Definition at line 282 of file RtcAlarmQueue.h.

recycleList()

void RtcAlarmQueue::recycleList ( Record *  records )

inline

Definition at line 231 of file RtcAlarmQueue.h.

removeAllQueued()

Record * RtcAlarmQueue::removeAllQueued ( void *  event, void *  owner, bool &  remoteInFlight, bool &  selfDeferred  )

inline

Definition at line 170 of file RtcAlarmQueue.h.

removeFirst()

Removal RtcAlarmQueue::removeFirst ( void *  event, void *  owner  )

inline

Definition at line 148 of file RtcAlarmQueue.h.

takeReusable()

Record * RtcAlarmQueue::takeReusable ( )

inline

Definition at line 113 of file RtcAlarmQueue.h.

unlink()

void RtcAlarmQueue::unlink ( Record *  previous, Record *  record  )

inlineprivate

Definition at line 270 of file RtcAlarmQueue.h.

Member Data Documentation

m_pFirst

Record* RtcAlarmQueue::m_pFirst

private

Definition at line 288 of file RtcAlarmQueue.h.

m_pFree

Record* RtcAlarmQueue::m_pFree

private

Definition at line 290 of file RtcAlarmQueue.h.

m_pLast

Record* RtcAlarmQueue::m_pLast

private

Definition at line 289 of file RtcAlarmQueue.h.

---

The documentation for this class was generated from the following file:

• RtcAlarmQueue.h
