#include <SchedulerTimerHandlerSlot.h>

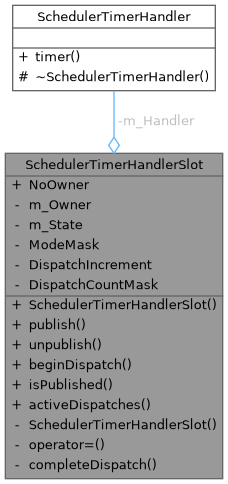

Collaboration diagram for SchedulerTimerHandlerSlot:

Classes
class	DispatchGuard

Public Member Functions
bool	publish (size_t owner, SchedulerTimerHandler *handler)

bool	unpublish (size_t owner, SchedulerTimerHandler *handler)

bool	beginDispatch (size_t owner, DispatchGuard &guard)

bool	isPublished (size_t owner, SchedulerTimerHandler *handler) const

size_t	activeDispatches () const

Static Public Attributes
static constexpr size_t	NoOwner = ~static_cast<size_t>(0)

Private Types
enum	State : size_t { Empty , Publishing , Published , Removing }

Private Member Functions
	SchedulerTimerHandlerSlot (const SchedulerTimerHandlerSlot &)=delete

SchedulerTimerHandlerSlot &	operator= (const SchedulerTimerHandlerSlot &)=delete

void	completeDispatch ()

Private Attributes
SchedulerTimerHandler *	m_Handler

size_t	m_Owner

size_t	m_State

Static Private Attributes
static constexpr size_t	ModeMask = 3

static constexpr size_t	DispatchIncrement = ModeMask + 1

static constexpr size_t	DispatchCountMask = ~ModeMask

Detailed Description

Lock-free, processor-owned publication for a hard scheduler-timer callback.

A scheduler timer invokes only the handler owned by the processor which received the tick. A callback may context-switch away with its interrupt frame still suspended, so admission is counted rather than exclusive. Removal succeeds only when it can close an idle publication; it never waits on a callback which needs this same processor to run again.

Definition at line 29 of file SchedulerTimerHandlerSlot.h.

Member Enumeration Documentation

◆ State

enum SchedulerTimerHandlerSlot::State : size_t

private

Definition at line 180 of file SchedulerTimerHandlerSlot.h.

Constructor & Destructor Documentation

◆ SchedulerTimerHandlerSlot()

SchedulerTimerHandlerSlot::SchedulerTimerHandlerSlot ( )

inline

Definition at line 71 of file SchedulerTimerHandlerSlot.h.

Member Function Documentation

◆ activeDispatches()

size_t SchedulerTimerHandlerSlot::activeDispatches ( ) const

inline

Lock-free diagnostic count of admitted, not-yet-returned callbacks.

Definition at line 166 of file SchedulerTimerHandlerSlot.h.

◆ beginDispatch()

bool SchedulerTimerHandlerSlot::beginDispatch	(	size_t	owner,
		DispatchGuard &	guard
	)

inline

Admit one callback and bind its lifetime to the supplied guard.

Definition at line 120 of file SchedulerTimerHandlerSlot.h.

Referenced by LocalApicTimerHandlerSlots::beginDispatch().

Here is the caller graph for this function:

◆ completeDispatch()

void SchedulerTimerHandlerSlot::completeDispatch ( )

inlineprivate

Definition at line 196 of file SchedulerTimerHandlerSlot.h.

◆ isPublished()

bool SchedulerTimerHandlerSlot::isPublished	(	size_t	owner,
		SchedulerTimerHandler *	handler
	)		const

inline

Test/diagnostic predicate which never exposes a callback pointer.

Definition at line 156 of file SchedulerTimerHandlerSlot.h.

Referenced by LocalApicTimerHandlerSlots::isPublished().

Here is the caller graph for this function:

◆ publish()

bool SchedulerTimerHandlerSlot::publish	(	size_t	owner,
		SchedulerTimerHandler *	handler
	)

inline

Publish only when the slot has no owner, including no duplicate owner.

Definition at line 74 of file SchedulerTimerHandlerSlot.h.

Referenced by LocalApicTimerHandlerSlots::registerHandler(), HostedSchedulerTimer::registerHandler(), and Pit::registerHandler().

Here is the caller graph for this function:

◆ unpublish()

bool SchedulerTimerHandlerSlot::unpublish	(	size_t	owner,
		SchedulerTimerHandler *	handler
	)

inline

Unpublish only when handler belongs to the calling processor.

A true return is a callback-lifetime barrier: this processor cannot concurrently execute its timer hard frame, and future frames reject the closing slot before loading the callback pointer.

Definition at line 97 of file SchedulerTimerHandlerSlot.h.

Referenced by LocalApicTimerHandlerSlots::removeHandler(), HostedSchedulerTimer::removeHandler(), and Pit::removeHandler().

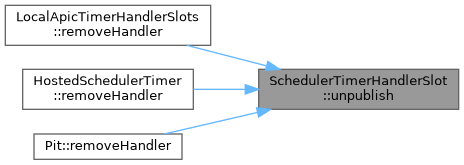

Here is the caller graph for this function:
