UsbDevice Class Reference

Inheritance diagram for UsbDevice:

Collaboration diagram for UsbDevice:

Classes
struct	ConfigDescriptor
struct	DeviceDescriptor
struct	DeviceQualifier
struct	Endpoint
struct	Interface
struct	Setup
struct	UnknownDescriptor

Public Types
enum	UsbState {   Connected = 0 , Addressed , HasDescriptors , Configured ,   HasInterface , HasDriver }
	Possible states for an USB device. More...

Public Member Functions
	UsbDevice (UsbHub *pHub, uint8_t nPort, UsbSpeed speed)
	Default constructor.
	UsbDevice (UsbDevice *pDev)
	Copy constructor.
virtual	~UsbDevice ()
	Destructor.
void	initialise (uint8_t nAddress)
	Initialises the device at the given address.
virtual void	initialiseDriver ()
	Implemented by the driver class, initialises driver-specific stuff.
virtual void	getUsbDeviceName (String &str)
uint8_t	getAddress ()
	Returns the current address of the device.
uint8_t	getPort ()
	Returns the number of the port on which the device is connected.
UsbHub *	getHub () const
UsbSpeed	getSpeed ()
	Returns the speed at which the device operates.
UsbState	getUsbState ()
	Returns the current state of the device.
DeviceDescriptor *	getDescriptor ()
	Returns the device descriptor of the device.
ConfigDescriptor *	getConfiguration ()
	Returns the configuration in use.
Interface *	getInterface ()
	Returns the interface in use.
void	useConfiguration (uint8_t nConfig)
	Switches to the given configuration.
void	useInterface (uint8_t nInterface)
	Switches to the given interface.
UsbDeviceContainer *	getContainer () const
	Gets our Device container, for replacing parents on hubs etc.
virtual bool	hasSubtree () const
	Do we expose our own Device tree?
virtual Device *	getDevice ()
virtual void	prepareForDriverRetirement ()
virtual void	quiesceForRetirement ()
virtual void	prepareForDisconnection ()

Public Attributes
struct UsbDevice::Setup	PACKED
struct UsbDevice::DeviceQualifier	PACKED

Protected Member Functions
ssize_t	doSync (Endpoint *pEndpoint, UsbPid pid, uintptr_t pBuffer, size_t nBytes, size_t timeout)
ssize_t	syncIn (Endpoint *pEndpoint, uintptr_t pBuffer, size_t nBytes, size_t timeout=5000)
ssize_t	syncOut (Endpoint *pEndpoint, uintptr_t pBuffer, size_t nBytes, size_t timeout=5000)
MUST_USE_RESULT bool	addInterruptInHandler (Endpoint *pEndpoint, uintptr_t pBuffer, uint16_t nBytes, void(*pCallback)(uintptr_t, ssize_t), UsbInterruptInHandle &handle, uintptr_t pParam=0)
bool	controlRequest (uint8_t nRequestType, uint8_t nRequest, uint16_t nValue, uint16_t nIndex, uint16_t nLength=0, uintptr_t pBuffer=0, uint32_t timeout=5000)
	Performs an USB control request.
ssize_t	controlRequestResult (uint8_t nRequestType, uint8_t nRequest, uint16_t nValue, uint16_t nIndex, uint16_t nLength=0, uintptr_t pBuffer=0, uint32_t timeout=5000)
	Returns data bytes transferred, or a negative UsbError.
uint16_t	getStatus ()
	Gets device's current status.
bool	clearEndpointHalt (Endpoint *pEndpoint)
	Clears a halt on the given endpoint.
void *	getDescriptor (uint8_t nDescriptorType, uint8_t nDescriptorIndex, uint16_t nBytes, uint8_t requestType=0)
	Gets a descriptor from the device.
uint8_t	getDescriptorLength (uint8_t nDescriptorType, uint8_t nDescriptorIndex, uint8_t requestType=0)
	Gets a descriptor's length from the device.
String	getString (uint8_t nString)
	Gets a string.

Protected Attributes
uint8_t	m_nAddress
	The current address of the device.
uint16_t	m_ControlPacketSize
uint8_t	m_nPort
	The number of the port on which the device is connected.
uint8_t	m_nRootPort
	Root-controller connection which owns this device generation.
size_t	m_nRootPortGeneration
UsbSpeed	m_Speed
	The speed at which the device operates.
UsbState	m_UsbState
	The current state of the device.
DeviceDescriptor *	m_pDescriptor
	Device descriptor for this device.
ConfigDescriptor *	m_pConfiguration
	Configuration in use.
Interface *	m_pInterface
	Interface in use.
UsbHub *	m_pHub
	Parent USB hub.
UsbDeviceContainer *	m_pContainer
	Our current container.

Private Member Functions
	UsbDevice (const UsbDevice &d)
const UsbDevice &	operator= (const UsbDevice &d)

Friends
class	UsbDeviceContainer
class	UsbPnP

Detailed Description

Definition at line 44 of file UsbDevice.h.

Member Enumeration Documentation

UsbState

enum UsbDevice::UsbState

Possible states for an USB device.

Definition at line 170 of file UsbDevice.h.

Constructor & Destructor Documentation

UsbDevice() [1/2]

UsbDevice::UsbDevice	(	UsbHub *	pHub,
		uint8_t	nPort,
		UsbSpeed	speed
	)

Default constructor.

Definition at line 39 of file UsbDevice.cc.

References m_nRootPort, and UsbHub::rootConnectionForChild().

UsbDevice() [2/2]

UsbDevice::UsbDevice

(

UsbDevice *

pDev

)

Copy constructor.

Definition at line 61 of file UsbDevice.cc.

References m_pDescriptor.

~UsbDevice()

UsbDevice::~UsbDevice ( )

virtual

Destructor.

Definition at line 79 of file UsbDevice.cc.

References m_pDescriptor.

Member Function Documentation

addInterruptInHandler()

bool UsbDevice::addInterruptInHandler ( Endpoint *  pEndpoint, uintptr_t  pBuffer, uint16_t  nBytes, void(*)(uintptr_t, ssize_t)  pCallback, UsbInterruptInHandle &  handle, uintptr_t  pParam = 0  )

protected

Definition at line 449 of file UsbDevice.cc.

clearEndpointHalt()

bool UsbDevice::clearEndpointHalt ( Endpoint *  pEndpoint )

protected

Clears a halt on the given endpoint.

Definition at line 573 of file UsbDevice.cc.

References controlRequest(), m_nAddress, m_nPort, m_nRootPort, m_pHub, and m_Speed.

controlRequest()

bool UsbDevice::controlRequest ( uint8_t  nRequestType, uint8_t  nRequest, uint16_t  nValue, uint16_t  nIndex, uint16_t  nLength = 0, uintptr_t  pBuffer = 0, uint32_t  timeout = 5000  )

protected

Performs an USB control request.

Definition at line 558 of file UsbDevice.cc.

References controlRequestResult().

Referenced by clearEndpointHalt(), UsbHubDevice::executeRequest(), getDescriptor(), getDescriptorLength(), UsbHubDevice::getPortStatus(), getStatus(), initialise(), FtdiSerialDevice::initialiseDriver(), UsbHumanInterfaceDevice::initialiseDriver(), Dm9601::readMemory(), Dm9601::readRegister(), useConfiguration(), useInterface(), Dm9601::writeMemory(), Dm9601::writeMemory(), Dm9601::writeRegister(), and Dm9601::writeRegister().

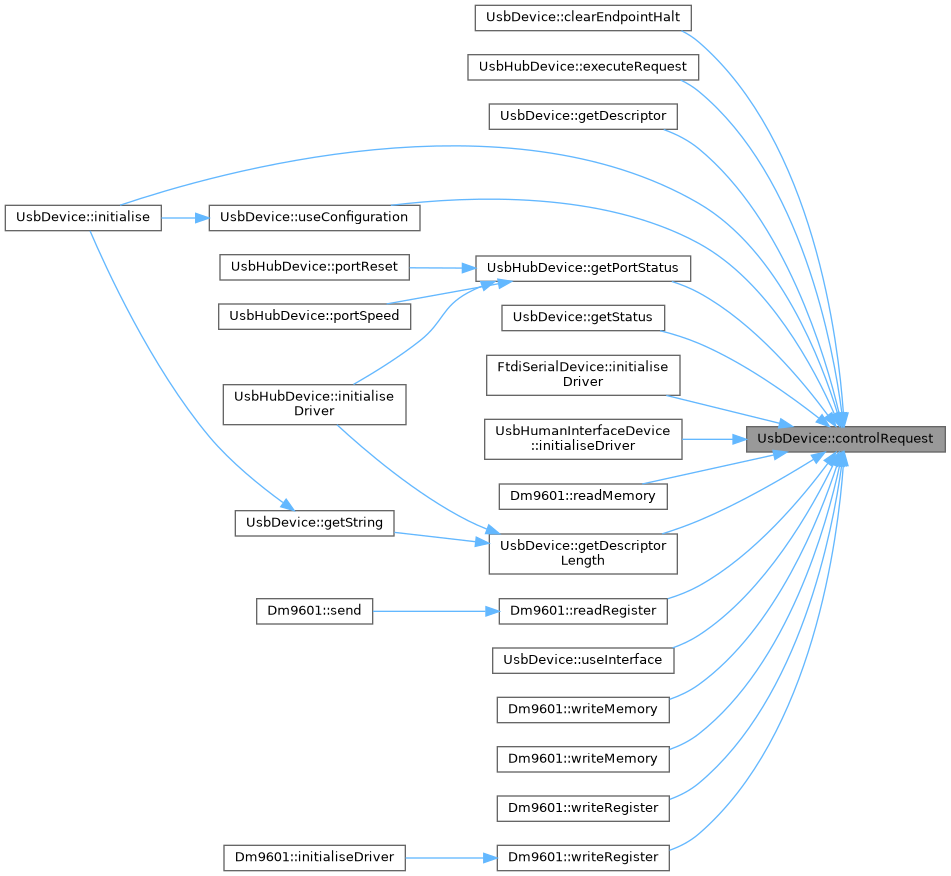

Here is the caller graph for this function:

controlRequestResult()

ssize_t UsbDevice::controlRequestResult ( uint8_t  nRequestType, uint8_t  nRequest, uint16_t  nValue, uint16_t  nIndex, uint16_t  nLength = 0, uintptr_t  pBuffer = 0, uint32_t  timeout = 5000  )

protected

Returns data bytes transferred, or a negative UsbError.

Definition at line 487 of file UsbDevice.cc.

References UsbHub::addTransferToTransaction(), UsbHub::createTransaction(), UsbHub::doSync(), m_nAddress, m_nPort, m_nRootPort, m_pHub, and m_Speed.

Referenced by controlRequest(), and UsbMassStorageDevice::initialiseDriver().

Here is the caller graph for this function:

doSync()

ssize_t UsbDevice::doSync ( UsbDevice::Endpoint *  pEndpoint, UsbPid  pid, uintptr_t  pBuffer, size_t  nBytes, size_t  timeout  )

protected

Definition at line 378 of file UsbDevice.cc.

getAddress()

uint8_t UsbDevice::getAddress ( )

inline

Returns the current address of the device.

Definition at line 192 of file UsbDevice.h.

getConfiguration()

ConfigDescriptor * UsbDevice::getConfiguration ( )

inline

Returns the configuration in use.

Definition at line 221 of file UsbDevice.h.

getContainer()

UsbDeviceContainer * UsbDevice::getContainer ( ) const

inline

Gets our Device container, for replacing parents on hubs etc.

Definition at line 237 of file UsbDevice.h.

getDescriptor() [1/2]

DeviceDescriptor * UsbDevice::getDescriptor ( )

inline

Returns the device descriptor of the device.

Definition at line 216 of file UsbDevice.h.

Referenced by getString(), initialise(), UsbHumanInterfaceDevice::initialiseDriver(), and UsbHubDevice::initialiseDriver().

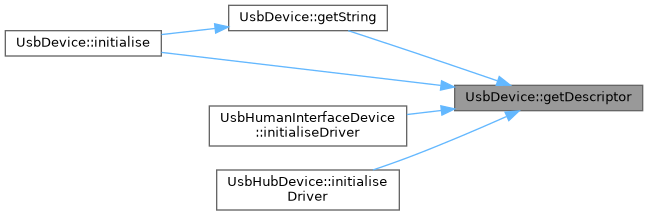

Here is the caller graph for this function:

getDescriptor() [2/2]

void * UsbDevice::getDescriptor ( uint8_t  nDescriptorType, uint8_t  nDescriptorIndex, uint16_t  nBytes, uint8_t  requestType = 0  )

protected

Gets a descriptor from the device.

Todo:

Proper language ID handling!

Definition at line 622 of file UsbDevice.cc.

References controlRequest(), and m_pInterface.

getDescriptorLength()

uint8_t UsbDevice::getDescriptorLength ( uint8_t  nDescriptorType, uint8_t  nDescriptorIndex, uint8_t  requestType = 0  )

protected

Gets a descriptor's length from the device.

Todo:

Proper language ID handling

Definition at line 643 of file UsbDevice.cc.

References controlRequest(), and m_pInterface.

Referenced by getString(), and UsbHubDevice::initialiseDriver().

Here is the caller graph for this function:

getDevice()

virtual Device * UsbDevice::getDevice ( )

inlinevirtual

Get a usable Device for this particular UsbDevice, if it has a subtree.

Returns

NULL if this operation is not supported.

Reimplemented in UsbMassStorageDevice, and UsbHubDevice.

Definition at line 248 of file UsbDevice.h.

Referenced by UsbDeviceContainer::replaceUsbDevice().

Here is the caller graph for this function:

getHub()

UsbHub * UsbDevice::getHub ( ) const

inline

Definition at line 201 of file UsbDevice.h.

getInterface()

Interface * UsbDevice::getInterface ( )

inline

Returns the interface in use.

Definition at line 226 of file UsbDevice.h.

Referenced by UsbPnP::doProbe().

Here is the caller graph for this function:

getPort()

uint8_t UsbDevice::getPort ( )

inline

Returns the number of the port on which the device is connected.

Definition at line 197 of file UsbDevice.h.

getSpeed()

UsbSpeed UsbDevice::getSpeed ( )

inline

Returns the speed at which the device operates.

Definition at line 206 of file UsbDevice.h.

getStatus()

uint16_t UsbDevice::getStatus ( )

protected

Gets device's current status.

Definition at line 565 of file UsbDevice.cc.

References controlRequest().

getString()

String UsbDevice::getString ( uint8_t  nString )

protected

Gets a string.

Todo:

UTF-8 support of some kind

Definition at line 662 of file UsbDevice.cc.

References getDescriptor(), and getDescriptorLength().

Referenced by initialise().

Here is the caller graph for this function:

getUsbDeviceName()

virtual void UsbDevice::getUsbDeviceName ( String &  str )

inlinevirtual

Definition at line 187 of file UsbDevice.h.

getUsbState()

UsbState UsbDevice::getUsbState ( )

inline

Returns the current state of the device.

Definition at line 211 of file UsbDevice.h.

Referenced by UsbPnP::doProbe().

Here is the caller graph for this function:

hasSubtree()

virtual bool UsbDevice::hasSubtree ( ) const

inlinevirtual

Do we expose our own Device tree?

Reimplemented in UsbMassStorageDevice, and UsbHubDevice.

Definition at line 242 of file UsbDevice.h.

Referenced by UsbDeviceContainer::replaceUsbDevice().

Here is the caller graph for this function:

initialise()

void UsbDevice::initialise

(

uint8_t

nAddress

)

Initialises the device at the given address.

Todo:

support more configurations (how?)

Definition at line 239 of file UsbDevice.cc.

References controlRequest(), Dec, EMIT_IF, getDescriptor(), getString(), Hex, m_nAddress, m_nPort, m_nRootPort, m_pDescriptor, m_pHub, m_Speed, m_UsbState, and useConfiguration().

initialiseDriver()

virtual void UsbDevice::initialiseDriver ( )

inlinevirtual

Implemented by the driver class, initialises driver-specific stuff.

Reimplemented in Dm9601, FtdiSerialDevice, UsbHumanInterfaceDevice, UsbHubDevice, and UsbMassStorageDevice.

Definition at line 185 of file UsbDevice.h.

Referenced by UsbPnP::doProbe().

Here is the caller graph for this function:

prepareForDisconnection()

virtual void UsbDevice::prepareForDisconnection ( )

inlinevirtual

Prepares a driver after its physical device has disappeared.

Reimplemented in UsbHubDevice, and UsbMassStorageDevice.

Definition at line 259 of file UsbDevice.h.

prepareForDriverRetirement()

virtual void UsbDevice::prepareForDriverRetirement ( )

inlinevirtual

Quiesces driver-specific ownership before replacing this binding.

Reimplemented in UsbHubDevice.

Definition at line 253 of file UsbDevice.h.

quiesceForRetirement()

virtual void UsbDevice::quiesceForRetirement ( )

inlinevirtual

Stops producers which can add or replace devices in this subtree.

Reimplemented in UsbHubDevice.

Definition at line 256 of file UsbDevice.h.

syncIn()

ssize_t UsbDevice::syncIn ( Endpoint *  pEndpoint, uintptr_t  pBuffer, size_t  nBytes, size_t  timeout = 5000  )

protected

Definition at line 441 of file UsbDevice.cc.

syncOut()

ssize_t UsbDevice::syncOut ( Endpoint *  pEndpoint, uintptr_t  pBuffer, size_t  nBytes, size_t  timeout = 5000  )

protected

Definition at line 445 of file UsbDevice.cc.

useConfiguration()

void UsbDevice::useConfiguration

(

uint8_t

nConfig

)

Switches to the given configuration.

Definition at line 590 of file UsbDevice.cc.

References controlRequest(), m_pConfiguration, m_pDescriptor, and m_UsbState.

Referenced by initialise().

Here is the caller graph for this function:

useInterface()

void UsbDevice::useInterface

(

uint8_t

nInterface

)

Switches to the given interface.

Definition at line 599 of file UsbDevice.cc.

References controlRequest(), m_pConfiguration, m_pInterface, and m_UsbState.

Friends And Related Symbol Documentation

UsbDeviceContainer

friend class UsbDeviceContainer

friend

Definition at line 45 of file UsbDevice.h.

UsbPnP

friend class UsbPnP

friend

Definition at line 46 of file UsbDevice.h.

Member Data Documentation

m_ControlPacketSize

uint16_t UsbDevice::m_ControlPacketSize

protected

Definition at line 298 of file UsbDevice.h.

m_nAddress

uint8_t UsbDevice::m_nAddress

protected

The current address of the device.

Definition at line 297 of file UsbDevice.h.

Referenced by UsbHubDevice::addInterruptInHandler(), clearEndpointHalt(), controlRequestResult(), UsbHubDevice::createTransaction(), initialise(), UsbHumanInterfaceDevice::initialiseDriver(), and UsbHubDevice::initialiseDriver().

m_nPort

uint8_t UsbDevice::m_nPort

protected

The number of the port on which the device is connected.

Definition at line 301 of file UsbDevice.h.

Referenced by UsbHubDevice::addInterruptInHandler(), clearEndpointHalt(), controlRequestResult(), UsbHubDevice::createTransaction(), and initialise().

m_nRootPort

uint8_t UsbDevice::m_nRootPort

protected

Root-controller connection which owns this device generation.

Definition at line 304 of file UsbDevice.h.

Referenced by clearEndpointHalt(), controlRequestResult(), initialise(), and UsbDevice().

m_nRootPortGeneration

size_t UsbDevice::m_nRootPortGeneration

protected

Definition at line 305 of file UsbDevice.h.

m_pConfiguration

ConfigDescriptor* UsbDevice::m_pConfiguration

protected

Configuration in use.

Definition at line 317 of file UsbDevice.h.

Referenced by useConfiguration(), and useInterface().

m_pContainer

UsbDeviceContainer* UsbDevice::m_pContainer

protected

Our current container.

Definition at line 326 of file UsbDevice.h.

Referenced by UsbDeviceContainer::replaceUsbDevice().

m_pDescriptor

DeviceDescriptor* UsbDevice::m_pDescriptor

protected

Device descriptor for this device.

Definition at line 314 of file UsbDevice.h.

Referenced by initialise(), UsbHumanInterfaceDevice::initialiseDriver(), UsbDevice(), useConfiguration(), and ~UsbDevice().

m_pHub

UsbHub* UsbDevice::m_pHub

protected

Parent USB hub.

Definition at line 323 of file UsbDevice.h.

Referenced by UsbHubDevice::addInterruptInHandler(), UsbHubDevice::addTransferToTransaction(), UsbHubDevice::cancelAsyncAndDrain(), clearEndpointHalt(), controlRequestResult(), UsbHubDevice::createTransaction(), UsbHubDevice::doAsync(), and initialise().

m_pInterface

Interface* UsbDevice::m_pInterface

protected

Interface in use.

Definition at line 320 of file UsbDevice.h.

Referenced by getDescriptor(), getDescriptorLength(), Dm9601::initialiseDriver(), FtdiSerialDevice::initialiseDriver(), UsbHumanInterfaceDevice::initialiseDriver(), UsbHubDevice::initialiseDriver(), UsbMassStorageDevice::initialiseDriver(), and useInterface().

m_Speed

UsbSpeed UsbDevice::m_Speed

protected

The speed at which the device operates.

Definition at line 308 of file UsbDevice.h.

Referenced by UsbHubDevice::addInterruptInHandler(), clearEndpointHalt(), controlRequestResult(), UsbHubDevice::createTransaction(), and initialise().

m_UsbState

UsbState UsbDevice::m_UsbState

protected

The current state of the device.

Definition at line 311 of file UsbDevice.h.

Referenced by initialise(), Dm9601::initialiseDriver(), FtdiSerialDevice::initialiseDriver(), UsbHumanInterfaceDevice::initialiseDriver(), UsbHubDevice::initialiseDriver(), UsbMassStorageDevice::initialiseDriver(), useConfiguration(), and useInterface().

---

The documentation for this class was generated from the following files:

• UsbDevice.h
• UsbDevice.cc
