mem.h File Reference

#include "lwip/opt.h"

Include dependency graph for mem.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	MEM_SIZE_F   U16_F

Typedefs
typedef u16_t	mem_size_t

Functions
void	mem_init (void)
void *	mem_trim (void *mem, mem_size_t size)
void *	mem_malloc (mem_size_t size)
void *	mem_calloc (mem_size_t count, mem_size_t size)
void	mem_free (void *mem)

Detailed Description

Heap API

Definition in file mem.h.

Function Documentation

void* mem_calloc	(	mem_size_t	count,
		mem_size_t	size
	)

Contiguously allocates enough space for count objects that are size bytes of memory each and returns a pointer to the allocated memory.

The allocated memory is filled with bytes of value zero.

Parameters

count	number of objects to allocate
size	size of the objects to allocate

Returns

pointer to allocated memory / NULL pointer if there is an error

Definition at line 784 of file mem.c.

References mem_malloc().

Referenced by mem_malloc().

Here is the caller graph for this function:

void mem_free

(

void *

rmem

)

Put a struct mem back on the heap

Parameters

rmem	is the data portion of a struct mem as returned by a previous call to mem_malloc()

Definition at line 438 of file mem.c.

References LWIP_DBG_LEVEL_SERIOUS, LWIP_DBG_LEVEL_SEVERE, LWIP_DBG_TRACE, LWIP_DEBUGF, MEM_DEBUG, mem::next, SYS_ARCH_DECL_PROTECT, and mem::used.

Referenced by mem_free_callback(), memp_malloc(), pbuf_free(), and slipif_init().

Here is the caller graph for this function:

void mem_init

(

void

)

Zero the heap and initialize start, end and lowest-free

Definition at line 401 of file mem.c.

References ERR_OK, LWIP_MEM_ALIGN, mem::next, mem::prev, sys_mutex_new(), and mem::used.

Referenced by lwip_init().

Here is the caller graph for this function:

void* mem_malloc

(

mem_size_t

size

)

Allocate a block of memory with a minimum of 'size' bytes.

Parameters

size	is the minimum size of the requested block in bytes.

Returns

pointer to allocated memory or NULL if no free memory was found.

Note that the returned value will always be aligned (as defined by MEM_ALIGNMENT).

Definition at line 622 of file mem.c.

References LWIP_DBG_LEVEL_SERIOUS, LWIP_DEBUGF, LWIP_MEM_ALIGN_SIZE, mem_calloc(), MEM_DEBUG, mem::next, mem::prev, sys_mutex_lock(), sys_mutex_unlock(), and mem::used.

Referenced by mem_calloc(), memp_init(), pbuf_alloc(), and slipif_init().

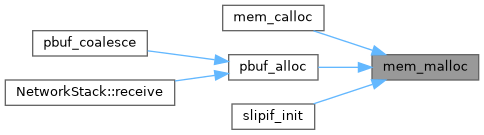

Here is the caller graph for this function:

void* mem_trim	(	void *	rmem,
		mem_size_t	newsize
	)

Shrink memory returned by mem_malloc().

Parameters

rmem	pointer to memory allocated by mem_malloc the is to be shrinked
newsize	required size after shrinking (needs to be smaller than or equal to the previous size)

Returns

for compatibility reasons: is always == rmem, at the moment or NULL if newsize is > old size, in which case rmem is NOT touched or freed!

Definition at line 497 of file mem.c.

References LWIP_DBG_LEVEL_SEVERE, LWIP_DEBUGF, LWIP_MEM_ALIGN_SIZE, MEM_DEBUG, mem::next, mem::prev, SYS_ARCH_DECL_PROTECT, and mem::used.

Referenced by pbuf_realloc().

Here is the caller graph for this function:
