memp.h File Reference

#include "lwip/priv/memp_std.h"
#include "lwip/priv/memp_priv.h"
#include "lwip/stats.h"

Include dependency graph for memp.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	LWIP_MEMPOOL(name, num, size, desc)
#define	LWIP_MEMPOOL(name, num, size, desc)   MEMP_##name,
#define	LWIP_MEMPOOL_PROTOTYPE(name)   extern const struct memp_desc memp_ ## name
#define	LWIP_MEMPOOL_DECLARE(name, num, size, desc)
#define	LWIP_MEMPOOL_INIT(name)   memp_init_pool(&memp_ ## name)
#define	LWIP_MEMPOOL_ALLOC(name)   memp_malloc_pool(&memp_ ## name)
#define	LWIP_MEMPOOL_FREE(name, x)   memp_free_pool(&memp_ ## name, (x))

Enumerations
enum	memp_t { MEMP_MAX }

Functions
void	memp_init (void)
void *	memp_malloc (memp_t type)
void	memp_free (memp_t type, void *mem)

Variables
const struct memp_desc *const	memp_pools [MEMP_MAX]

Detailed Description

Memory pool API

Definition in file memp.h.

Enumeration Type Documentation

enum memp_t

Create the list of all memory pools managed by memp. MEMP_MAX represents a NULL pool at the end

Definition at line 69 of file memp.h.

Function Documentation

void memp_free	(	memp_t	type,
		void *	mem
	)

Put an element back into its pool.

Parameters

type	the pool where to put mem
mem	the memp element to free

Definition at line 488 of file memp.c.

References memp_desc::tab.

Referenced by pbuf_free(), tcpip_callback_with_block(), tcpip_callbackmsg_delete(), and tcpip_inpkt().

Here is the caller graph for this function:

void memp_init

(

void

)

Initializes lwIP built-in pools. Related functions: memp_malloc, memp_free

Carves out memp_memory into linked lists for each pool-type.

Definition at line 290 of file memp.c.

References LWIP_DBG_LEVEL_SERIOUS, LWIP_DEBUGF, mem_malloc(), MEMP_DEBUG, memp_init_pool(), memp_desc::size, SYS_ARCH_DECL_PROTECT, and memp_desc::tab.

Referenced by lwip_init().

Here is the caller graph for this function:

void* memp_malloc

(

memp_t

type

)

Get an element from a specific pool.

Parameters

type	the pool to get an element from

Returns

a pointer to the allocated memory or a NULL pointer on error

Definition at line 404 of file memp.c.

References LWIP_UNUSED_ARG, mem_free(), SYS_ARCH_DECL_PROTECT, and memp_desc::tab.

Referenced by pbuf_alloc(), tcpip_callback_with_block(), tcpip_callbackmsg_new(), and tcpip_inpkt().

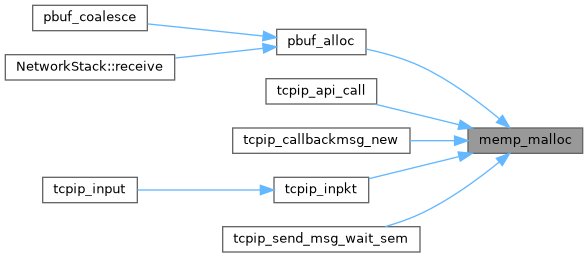

Here is the caller graph for this function:
