#include <Debugger.h>

Inheritance diagram for Debugger:

Collaboration diagram for Debugger:

Public Member Functions
void	initialise ()

void	start (InterruptState &state, LargeStaticString &description)

virtual void	interrupt (size_t interruptNumber, InterruptState &state)

Static Public Member Functions
static Debugger &	instance ()

Public Attributes
InterruptState *	m_pTempState

Private Member Functions
	Debugger ()

	Debugger (const Debugger &)

Debugger &	operator= (const Debugger &)

Private Attributes
int	m_nIoType

Static Private Attributes
static Debugger	m_Instance

Additional Inherited Members
Protected Member Functions inherited from InterruptHandler
virtual	~InterruptHandler ()

Detailed Description

Implements the main kernel debugger. This class interfaces with the machine abstraction to provide trap and breakpoint services. It exposes a set of commands, which are accessed by the user through a command-line interface defined by a concretion of the abstract class DebuggerIO. The kernel can also write entries to the (debug) system log by calling operator<< directly.

Definition at line 42 of file Debugger.h.

Constructor & Destructor Documentation

Debugger::Debugger ( )

private

Default constructor - does nothing.

Definition at line 99 of file Debugger.cc.

Referenced by instance().

Here is the caller graph for this function:

Member Function Documentation

void Debugger::initialise ( )

Initialise the debugger - register interrupt handlers etc.

Todo:: Figure out a way of getting similar functionality

on ARM

Definition at line 107 of file Debugger.cc.

References InterruptManager::getBreakpointInterruptNumber(), and InterruptManager::instance().

Referenced by instance().

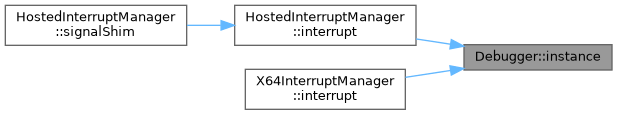

Here is the caller graph for this function:

static Debugger& Debugger::instance ( )

inlinestatic

Get the instance of the Debugger

Definition at line 48 of file Debugger.h.

References Debugger(), initialise(), interrupt(), m_Instance, and start().

Referenced by HostedInterruptManager::interrupt(), X64InterruptManager::interrupt(), MIPS32InterruptManager::interrupt(), PPC32InterruptManager::interrupt(), ARM926EInterruptManager::interrupt(), MIPS32TlbManager::interrupt(), X86InterruptManager::interrupt(), OpenPic::interrupt(), and ARMV7InterruptManager::syscall().

Here is the caller graph for this function:

void Debugger::interrupt	(	size_t	interruptNumber,
		InterruptState &	state
	)

virtual

Called when the handler is registered with the interrupt manager and the interrupt occurred

Parameters

interruptNumber	the interrupt number
state	reference to the state before the interrupt

Implements InterruptHandler.

Definition at line 455 of file Debugger.cc.

References InterruptManager::instance(), Processor::setSingleStep(), and start().

Referenced by instance().

Here is the caller graph for this function:

void Debugger::start	(	InterruptState &	state,
		LargeStaticString &	description
	)

Causes the debugger to take control.

Todo:: OZMFGBARBIE, this needs major cleanup. Look at the state of it!! :O

Definition at line 121 of file Debugger.cc.

References DebuggerCommand::autocomplete(), DebuggerIO::drawHorizontalLine(), DebuggerIO::drawString(), DebuggerIO::enableCli(), ServiceManager::enumerateOperations(), TraceCommand::execTrace(), DebuggerCommand::execute(), TraceCommand::execute(), Flush, VirtualAddressSpace::getKernelAddressSpace(), Machine::getKeyboard(), ServiceManager::getService(), DebuggerCommand::getString(), DebuggerIO::getWidth(), Processor::halt(), Processor::information(), Log::instance(), panic(), ServiceFeatures::probe, ServiceFeatures::provides(), DebuggerIO::readCli(), Service::serve(), DebuggerIO::setCliUpperLimit(), Keyboard::setDebugState(), ThreadsCommand::setPointers(), Display::setScreenMode(), and DebuggerIO::writeCli().

Referenced by instance(), HostedInterruptManager::interrupt(), X64InterruptManager::interrupt(), interrupt(), ARM926EInterruptManager::interrupt(), PPC32InterruptManager::interrupt(), MIPS32InterruptManager::interrupt(), MIPS32TlbManager::interrupt(), X86InterruptManager::interrupt(), OpenPic::interrupt(), and ARMV7InterruptManager::syscall().

Here is the caller graph for this function:

Member Data Documentation

Debugger Debugger::m_Instance

staticprivate

The Debugger instance (singleton class)

Definition at line 88 of file Debugger.h.

Referenced by instance().

int Debugger::m_nIoType

private

The current DebuggerIO type.

Definition at line 83 of file Debugger.h.

The documentation for this class was generated from the following files:
