#include <Machine.h>

Inheritance diagram for Machine:

Collaboration diagram for Machine:

Public Types
enum class	ShutdownType { Restart , Halt , PowerOff }

enum class	ShutdownPhase { NotStarted , Requested , Userspace , Syscalls , Filesystems , Modules , Firmware , Destructors , Input , Caches , Timers , Devices , Processors , ProcessorCleanup , FinalAction }

Public Member Functions
virtual bool	supportsPowerOff () const

virtual bool	prepareShutdown (ShutdownType type)

virtual const char *	finalShutdown (ShutdownType type)

void	displayShutdownMessage (const char *message)

virtual void	initialise ()=0

virtual void	initialise2 ()
	Called after debugger startup.

virtual void	initialise3 ()
	Called after processor startup - for thread creation etc.

virtual void	deinitialise ()

bool	isInitialised ()

virtual void	initialiseDeviceTree ()

virtual Serial *	getSerial (size_t n)=0

virtual size_t	getNumSerial ()=0

virtual Vga *	getVga (size_t n)=0

virtual size_t	getNumVga ()=0

virtual IrqManager *	getIrqManager ()=0

virtual SchedulerTimer *	getSchedulerTimer ()=0

virtual Timer *	getTimer ()=0

virtual Keyboard *	getKeyboard ()=0

virtual void	setKeyboard (Keyboard *kb)=0

virtual MUST_USE_RESULT bool	quiesceAllOtherProcessors ()

virtual MUST_USE_RESULT bool	resumeAllOtherProcessors ()

virtual MUST_USE_RESULT bool	stopAllOtherProcessors ()

Static Public Member Functions
static void	setShutdownPhase (ShutdownPhase phase, const char *detail=nullptr)

static void	setShutdownDetail (const char *detail)

static const char *	shutdownPhaseName ()

static Machine &	instance ()

Protected Attributes
bool	m_bInitialised

Private Member Functions
	Machine (const Machine &)

Machine &	operator= (const Machine &)

Friends
void	system_reset ()

Detailed Description

This is an abstraction on a machine, or board. It provides functions to retrieve Timers, Serial controllers, VGA controllers, Ethernet controllers etc, without having to know the exact implementation required or memory map. It also provides a "probe" function, which will attempt to detect if a machine is present.

Definition at line 41 of file include/pedigree/kernel/machine/Machine.h.

Member Enumeration Documentation

◆ ShutdownPhase

enum class Machine::ShutdownPhase

strong

Definition at line 46 of file include/pedigree/kernel/machine/Machine.h.

◆ ShutdownType

enum class Machine::ShutdownType

strong

Definition at line 45 of file include/pedigree/kernel/machine/Machine.h.

Constructor & Destructor Documentation

◆ Machine()

Machine::Machine ( )

inlineprotected

Definition at line 167 of file include/pedigree/kernel/machine/Machine.h.

◆ ~Machine()

Machine::~Machine ( )

protectedvirtual

Definition at line 27 of file Machine.cc.

Member Function Documentation

◆ deinitialise()

virtual void Machine::deinitialise ( )

inlinevirtual

Stops platform services while interrupts and the scheduler are alive. Implementations may synchronously drain callbacks and join workers.

Reimplemented in HostedMachine, Pc, and VirtMachine.

Definition at line 98 of file include/pedigree/kernel/machine/Machine.h.

Referenced by HostedMachine::deinitialise(), and VirtMachine::deinitialise().

Here is the caller graph for this function:

◆ displayShutdownMessage()

void Machine::displayShutdownMessage ( const char * message )

Writes through retained console providers without invoking log callbacks.

Definition at line 100 of file Machine.cc.

References Vga::getNumCols(), Vga::getNumRows(), getNumSerial(), getNumVga(), getSerial(), getVga(), Vga::moveCursor(), and Vga::setLargestTextMode().

Referenced by panic(), and setShutdownDetail().

Here is the caller graph for this function:

◆ finalShutdown()

const char * Machine::finalShutdown ( ShutdownType type )

virtual

Runs after all workers, devices and other processors have stopped. If it returns, provides a retained diagnostic string, or nullptr for halt.

Reimplemented in Pc, and VirtMachine.

Definition at line 93 of file Machine.cc.

References ProcessorBase::reset().

Referenced by ProcessorBase::reset().

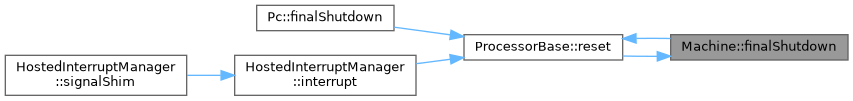

Here is the caller graph for this function:

◆ getKeyboard()

virtual Keyboard * Machine::getKeyboard ( )

pure virtual

Returns the keyboard device.

Implemented in HostedMachine, Pc, and VirtMachine.

Referenced by Debugger::start().

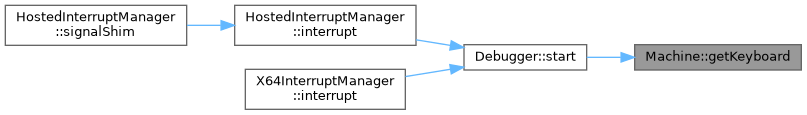

Here is the caller graph for this function:

◆ getNumSerial()

virtual size_t Machine::getNumSerial ( )

pure virtual

Returns the number of Serial device.

Implemented in HostedMachine, Pc, and VirtMachine.

Referenced by displayShutdownMessage().

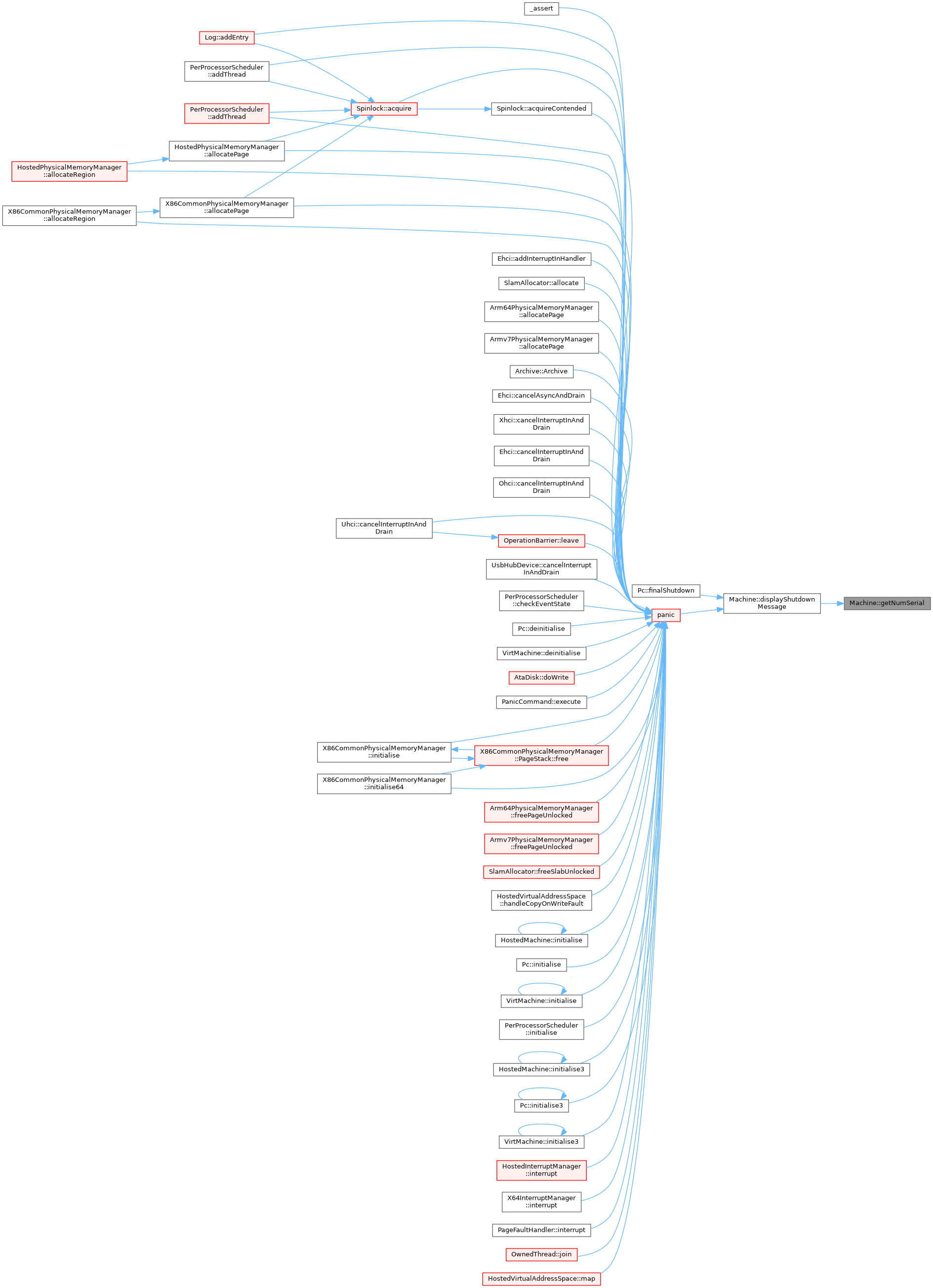

Here is the caller graph for this function:

◆ getNumVga()

virtual size_t Machine::getNumVga ( )

pure virtual

Returns the number of VGA devices.

Implemented in HostedMachine, Pc, and VirtMachine.

Referenced by displayShutdownMessage(), panic(), and Debugger::start().

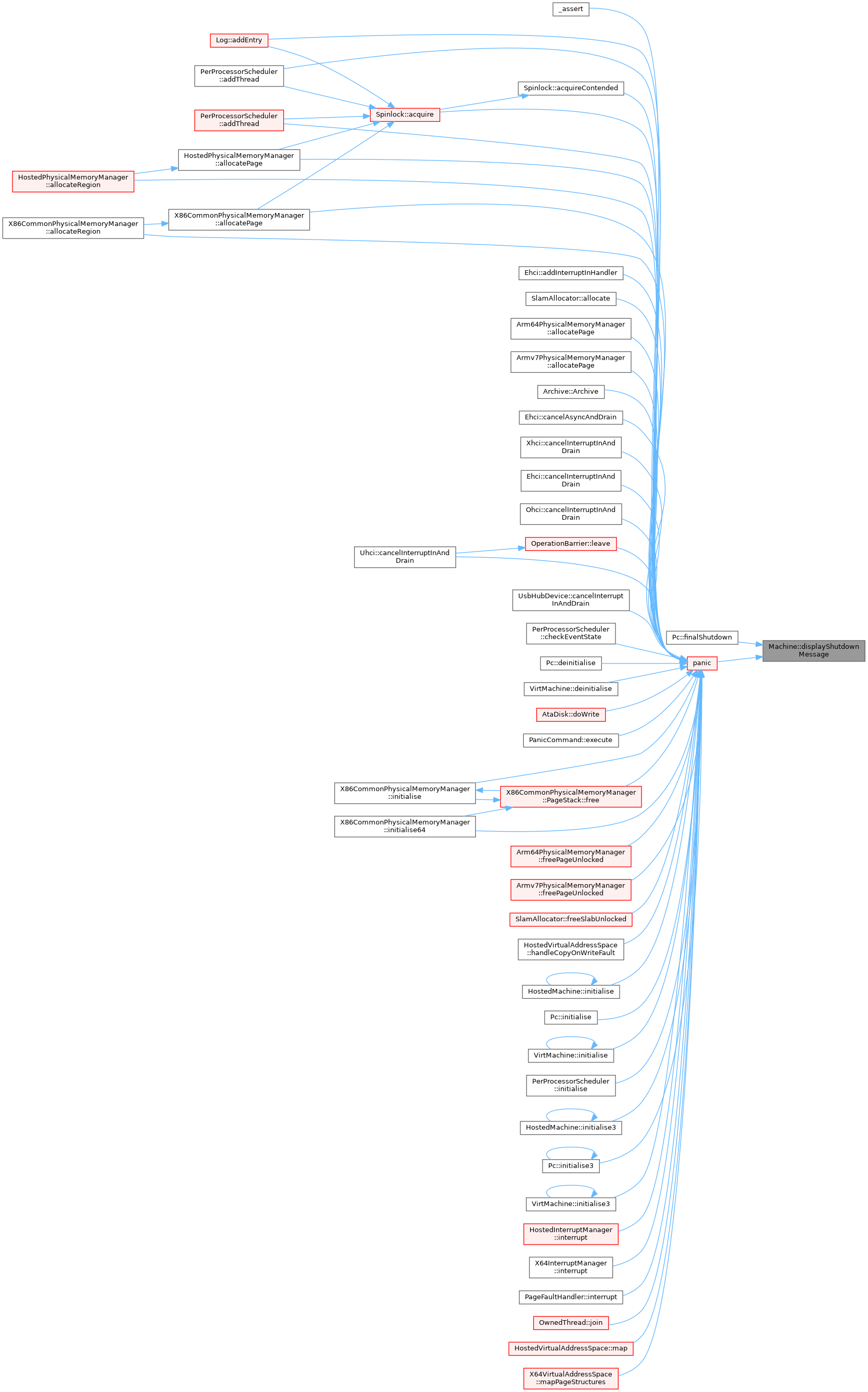

Here is the caller graph for this function:

◆ getSchedulerTimer()

virtual SchedulerTimer * Machine::getSchedulerTimer ( )

pure virtual

Returns the SchedulerTimer device.

Implemented in HostedMachine, Pc, and VirtMachine.

Referenced by PerProcessorScheduler::initialise(), and Rtc::initialise3().

Here is the caller graph for this function:

◆ getSerial()

virtual Serial * Machine::getSerial ( size_t n )

pure virtual

Returns the n'th Serial device.

Implemented in HostedMachine, Pc, and VirtMachine.

Referenced by _assert(), Log::addEntry(), displayShutdownMessage(), SlamCommand::execute(), panic(), Rtc::processElapsedTime(), HostedTimer::processTimerBatch(), and Debugger::start().

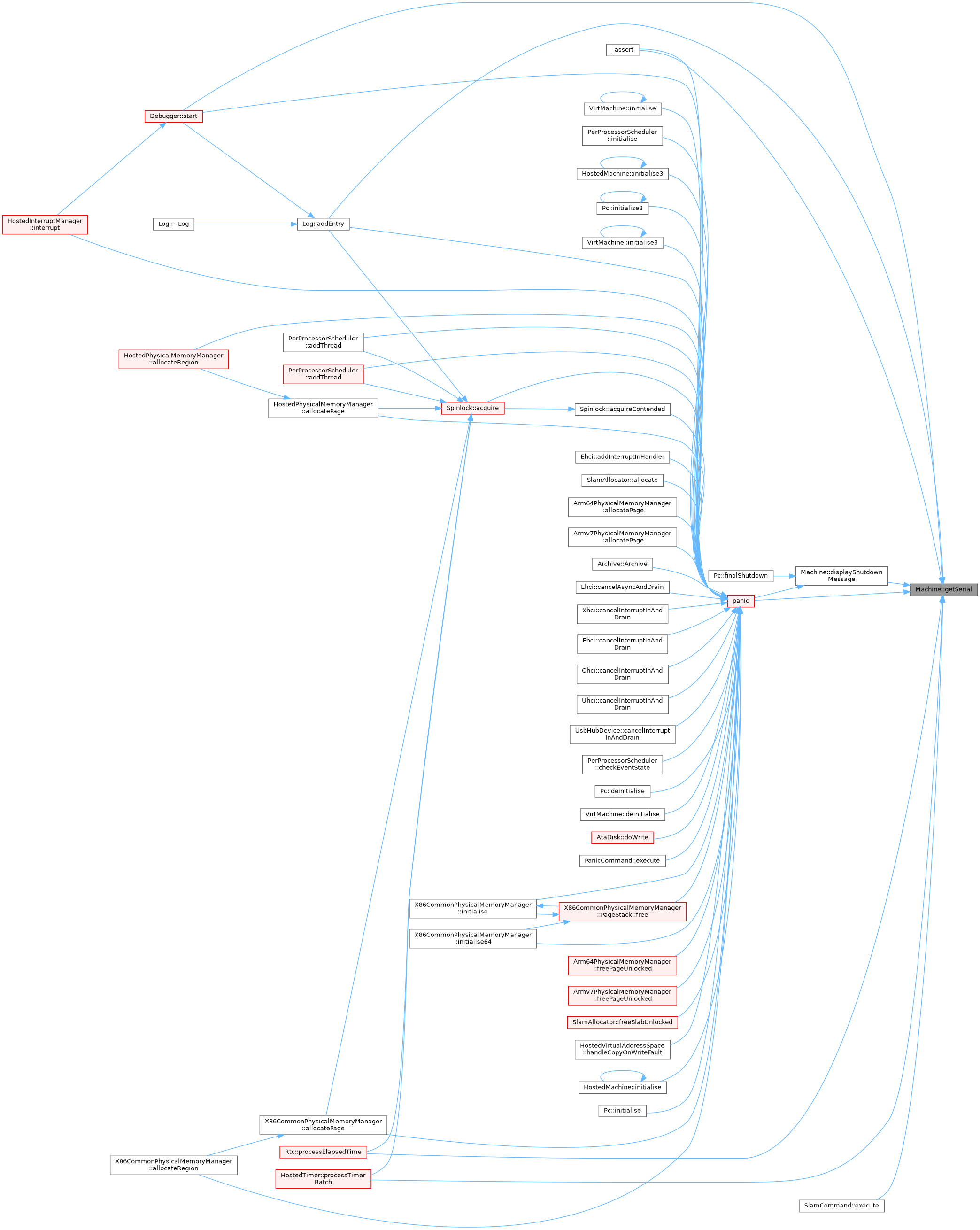

Here is the caller graph for this function:

◆ getTimer()

virtual Timer * Machine::getTimer ( )

pure virtual

Returns the n'th Timer device.

Implemented in HostedMachine, Pc, and VirtMachine.

Referenced by CacheManager::initialise(), IntervalTimer::IntervalTimer(), HidInputManager::keyDown(), RequestQueue::resume(), Uhci::timer(), and PerProcessorScheduler::timer().

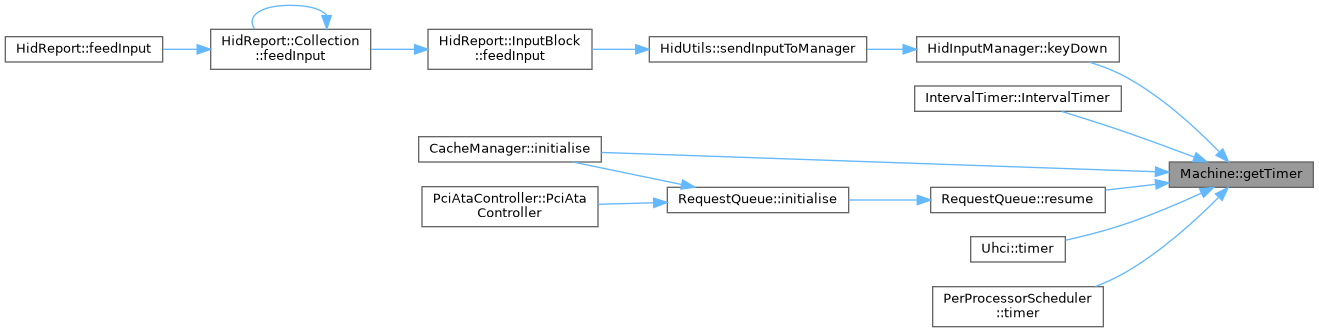

Here is the caller graph for this function:

◆ getVga()

virtual Vga * Machine::getVga ( size_t n )

pure virtual

Returns the n'th VGA device.

Implemented in HostedMachine, Pc, and VirtMachine.

Referenced by FramebufferFile::command(), displayShutdownMessage(), BootIO::initialise(), TextIO::initialise(), and panic().

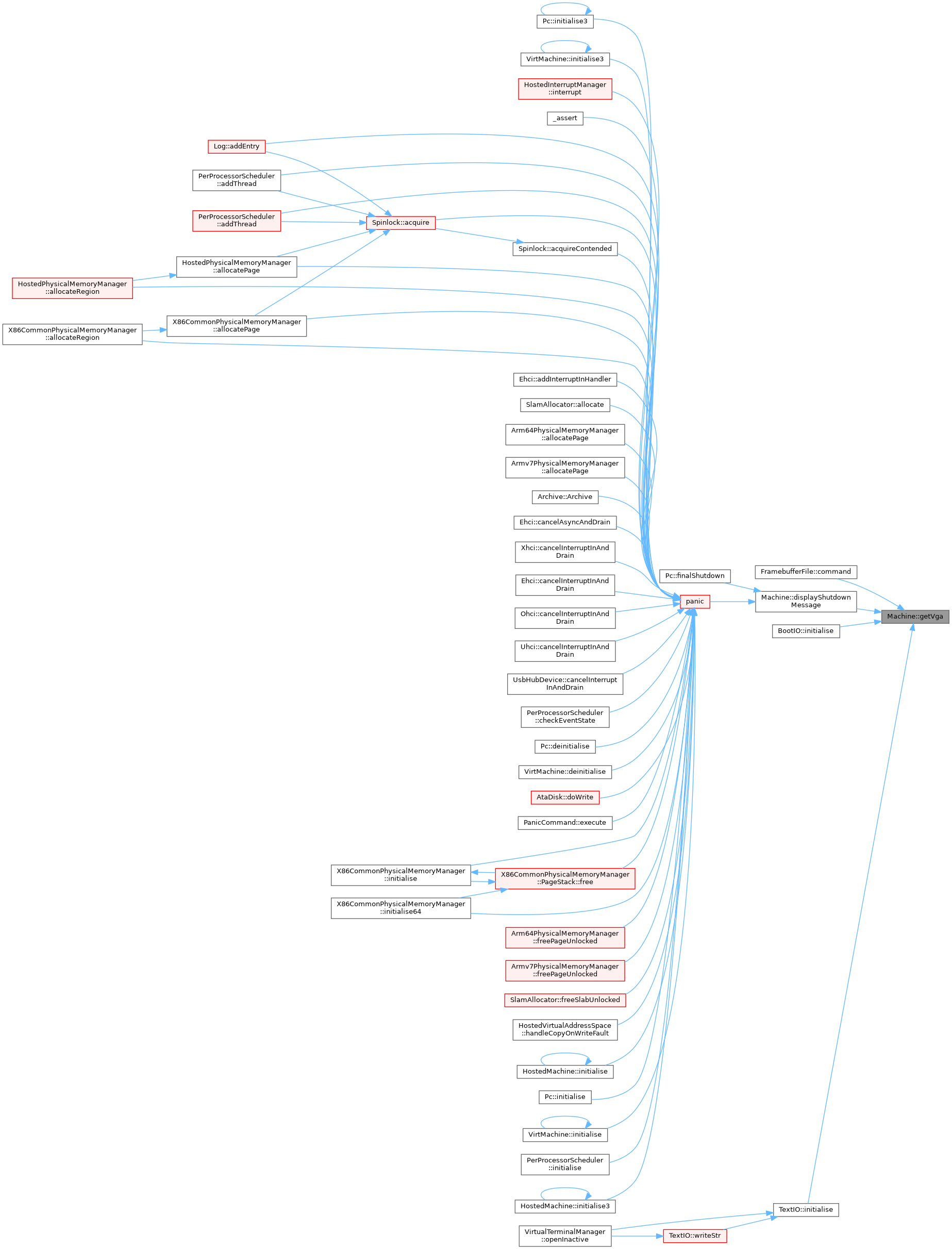

Here is the caller graph for this function:

◆ initialise()

virtual void Machine::initialise ( )

pure virtual

Initialises the machine.

Implemented in HostedMachine, Pc, and VirtMachine.

◆ initialise2()

virtual void Machine::initialise2 ( )

inlinevirtual

Called after debugger startup.

Definition at line 91 of file include/pedigree/kernel/machine/Machine.h.

◆ initialise3()

virtual void Machine::initialise3 ( )

inlinevirtual

Called after processor startup - for thread creation etc.

Reimplemented in HostedMachine, Pc, and VirtMachine.

Definition at line 93 of file include/pedigree/kernel/machine/Machine.h.

◆ initialiseDeviceTree()

virtual void Machine::initialiseDeviceTree ( )

inlinevirtual

Initialises the machine's base device tree, if one exists, to prefill the tree with those devices that are not otherwise able to be detected via some sort of bus support.

Reimplemented in HostedMachine, Pc, and VirtMachine.

Definition at line 110 of file include/pedigree/kernel/machine/Machine.h.

◆ instance()

Machine & Machine::instance ( )

static

Definition at line 32 of file hosted/Machine.cc.

◆ isInitialised()

bool Machine::isInitialised ( )

inline

Definition at line 101 of file include/pedigree/kernel/machine/Machine.h.

◆ prepareShutdown()

virtual bool Machine::prepareShutdown ( ShutdownType type )

inlinevirtual

Prepares firmware and drains its workers while scheduling is available.

Reimplemented in Pc.

Definition at line 76 of file include/pedigree/kernel/machine/Machine.h.

◆ quiesceAllOtherProcessors()

bool Machine::quiesceAllOtherProcessors ( )

virtual

Temporarily pauses every other processor for an interactive debugger.

Reimplemented in HostedMachine.

Definition at line 149 of file Machine.cc.

References EMIT_IF.

Referenced by Debugger::start().

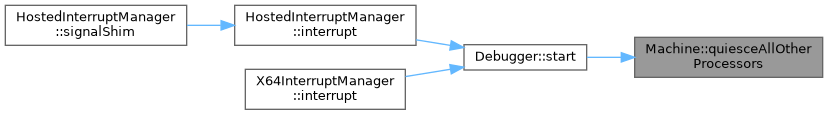

Here is the caller graph for this function:

◆ resumeAllOtherProcessors()

bool Machine::resumeAllOtherProcessors ( )

virtual

Resumes processors paused by quiesceAllOtherProcessors().

Reimplemented in HostedMachine.

Definition at line 156 of file Machine.cc.

References EMIT_IF.

◆ setKeyboard()

virtual void Machine::setKeyboard ( Keyboard * kb )

pure virtual

Sets the keyboard device.

Implemented in HostedMachine, Pc, and VirtMachine.

◆ setShutdownDetail()

void Machine::setShutdownDetail ( const char * detail )

static

Updates progress only when a shutdown has already been requested.

Definition at line 38 of file Machine.cc.

References displayShutdownMessage().

Referenced by Ehci::cancelInterruptInAndDrain(), and setShutdownPhase().

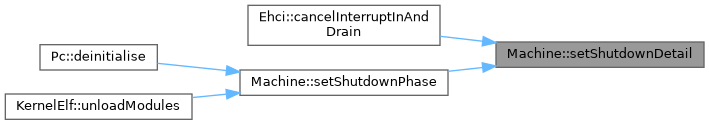

Here is the caller graph for this function:

◆ setShutdownPhase()

void Machine::setShutdownPhase	(	ShutdownPhase	phase,
		const char *	detail = `nullptr`
	)

static

Publishes progress directly to the retained console and serial output.

Definition at line 33 of file Machine.cc.

References setShutdownDetail().

Referenced by Pc::deinitialise(), and KernelElf::unloadModules().

Here is the caller graph for this function:

◆ shutdownPhaseName()

const char * Machine::shutdownPhaseName ( )

static

Definition at line 54 of file Machine.cc.

◆ stopAllOtherProcessors()

bool Machine::stopAllOtherProcessors ( )

virtual

Permanently stops all other cores for panic or terminal shutdown.

Returns: true if every other processor reached its terminal halt path.

Reimplemented in HostedMachine.

Definition at line 163 of file Machine.cc.

References EMIT_IF.

Referenced by panic().

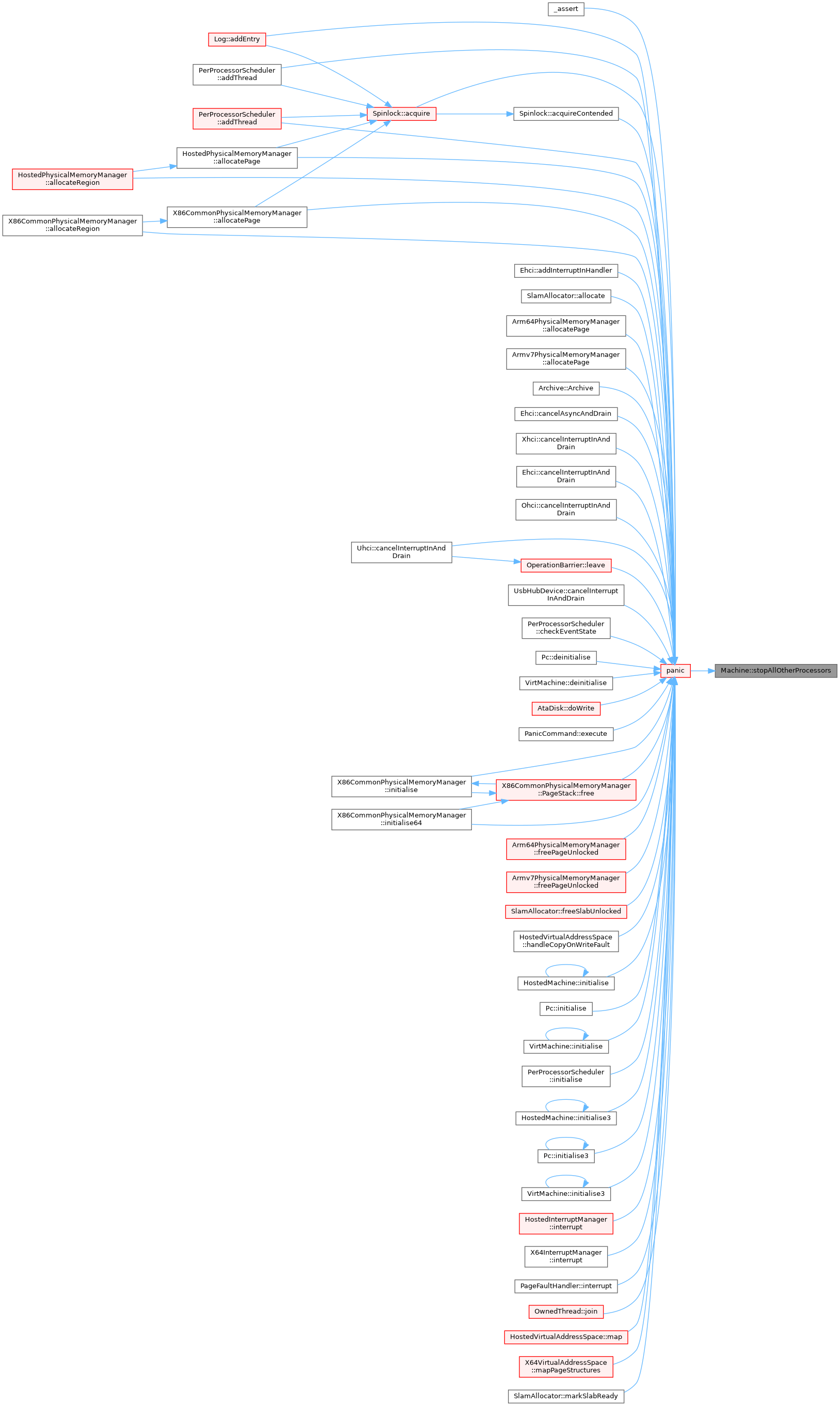

Here is the caller graph for this function:

◆ supportsPowerOff()

virtual bool Machine::supportsPowerOff ( ) const

inlinevirtual

Definition at line 72 of file include/pedigree/kernel/machine/Machine.h.

Friends And Related Symbol Documentation

◆ system_reset

void system_reset ( )

friend

Definition at line 655 of file system/kernel/core/main.cc.

Member Data Documentation

◆ m_bInitialised

bool Machine::m_bInitialised

protected

Definition at line 170 of file include/pedigree/kernel/machine/Machine.h.
