LocalApicTimerHandlerSlots Class Reference

#include <LocalApicTimerHandlerSlots.h>

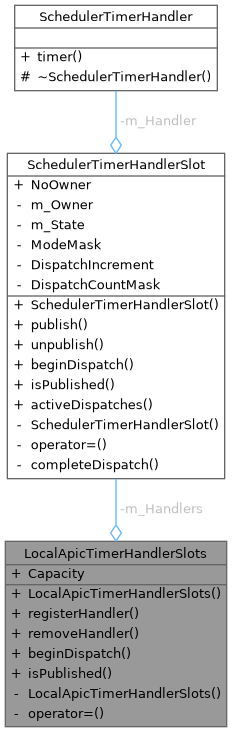

Collaboration diagram for LocalApicTimerHandlerSlots:

Public Member Functions
bool	registerHandler (ProcessorId processor, SchedulerTimerHandler *handler)
bool	removeHandler (ProcessorId processor, SchedulerTimerHandler *handler)
bool	beginDispatch (ProcessorId processor, SchedulerTimerHandlerSlot::DispatchGuard &guard)
bool	isPublished (ProcessorId processor, SchedulerTimerHandler *handler) const

Static Public Attributes
static constexpr size_t	Capacity = 256

Private Member Functions
	LocalApicTimerHandlerSlots (const LocalApicTimerHandlerSlots &)=delete
LocalApicTimerHandlerSlots &	operator= (const LocalApicTimerHandlerSlots &)=delete

Private Attributes
SchedulerTimerHandlerSlot	m_Handlers [Capacity]

Detailed Description

Fixed handler publication slots for the 8-bit xAPIC processor envelope.

Definition at line 16 of file LocalApicTimerHandlerSlots.h.

Constructor & Destructor Documentation

LocalApicTimerHandlerSlots()

LocalApicTimerHandlerSlots::LocalApicTimerHandlerSlots ( )

inline

Definition at line 20 of file LocalApicTimerHandlerSlots.h.

Member Function Documentation

beginDispatch()

bool LocalApicTimerHandlerSlots::beginDispatch ( ProcessorId  processor, SchedulerTimerHandlerSlot::DispatchGuard &  guard  )

inline

Admit one callback on this physical APIC processor and bind its lifetime to the caller's guard. No raw handler pointer escapes the slot.

Definition at line 45 of file LocalApicTimerHandlerSlots.h.

References SchedulerTimerHandlerSlot::beginDispatch().

isPublished()

bool LocalApicTimerHandlerSlots::isPublished ( ProcessorId  processor, SchedulerTimerHandler *  handler  ) const

inline

Test/diagnostic predicate which never permits callback dispatch.

Definition at line 52 of file LocalApicTimerHandlerSlots.h.

References SchedulerTimerHandlerSlot::isPublished().

registerHandler()

bool LocalApicTimerHandlerSlots::registerHandler ( ProcessorId  processor, SchedulerTimerHandler *  handler  )

inline

Publish a handler only when the processor slot is currently empty.

Definition at line 23 of file LocalApicTimerHandlerSlots.h.

References SchedulerTimerHandlerSlot::publish().

removeHandler()

bool LocalApicTimerHandlerSlots::removeHandler ( ProcessorId  processor, SchedulerTimerHandler *  handler  )

inline

Unpublish only the exact handler currently owned by this processor. A different processor is rejected before it can close this slot.

Definition at line 34 of file LocalApicTimerHandlerSlots.h.

References SchedulerTimerHandlerSlot::unpublish().

Member Data Documentation

Capacity

constexpr size_t LocalApicTimerHandlerSlots::Capacity = 256

staticconstexpr

Definition at line 18 of file LocalApicTimerHandlerSlots.h.

m_Handlers

SchedulerTimerHandlerSlot LocalApicTimerHandlerSlots::m_Handlers[Capacity]

private

Definition at line 60 of file LocalApicTimerHandlerSlots.h.

---

The documentation for this class was generated from the following file:

• LocalApicTimerHandlerSlots.h
