Memory mapped I/O range. More...

#include <MemoryMappedIo.h>

Inheritance diagram for MemoryMappedIo:

Collaboration diagram for MemoryMappedIo:

Public Member Functions
	MemoryMappedIo (const char *pName, uintptr_t offset=0, uintptr_t padding=1)

virtual	~MemoryMappedIo ()

virtual size_t	size () const

virtual uint8_t	read8 (size_t offset=0)

virtual uint16_t	read16 (size_t offset=0)

virtual uint32_t	read32 (size_t offset=0)

virtual uint64_t	read64 (size_t offset=0)

virtual void	write8 (uint8_t value, size_t offset=0)

virtual void	write16 (uint16_t value, size_t offset=0)

virtual void	write32 (uint32_t value, size_t offset=0)

virtual void	write64 (uint64_t value, size_t offset=0)

virtual	operator bool () const

Public Member Functions inherited from IoBase
virtual	~IoBase ()

uint64_t	read64LowFirst (size_t offset=0)

uint64_t	read64HighFirst (size_t offset=0)

void	write64LowFirst (uint64_t value, size_t offset=0)

void	write64HighFirst (uint64_t value, size_t offset=0)

Public Member Functions inherited from MemoryRegion
	MemoryRegion (const char *pName)

virtual	~MemoryRegion ()

void	free ()

void *	virtualAddress () const

physical_uintptr_t	physicalAddress () const

size_t	size () const

const char *	name () const

	operator bool () const

bool	physicalBoundsCheck (physical_uintptr_t address)

template<typename T >
T *	convertPhysicalPointer (physical_uintptr_t address)

void	setNonRamMemory (bool b)

bool	getNonRamMemory ()

void	setForced (bool b)

bool	getForced ()

void	setAnonymous (bool b)

bool	getAnonymous () const

Private Member Functions
	MemoryMappedIo (const MemoryMappedIo &)

MemoryMappedIo &	operator= (const MemoryMappedIo &)

Private Attributes
uintptr_t	m_Offset

size_t	m_Padding

Additional Inherited Members
Protected Member Functions inherited from IoBase
	IoBase ()

Detailed Description

Memory mapped I/O range.

The MemoryMappedIo handles special MemoryRegions for I/O to hardware devices

Definition at line 32 of file MemoryMappedIo.h.

Constructor & Destructor Documentation

◆ MemoryMappedIo() [1/2]

MemoryMappedIo::MemoryMappedIo	(	const char *	pName,
		uintptr_t	offset = `0`,
		uintptr_t	padding = `1`
	)

Definition at line 24 of file MemoryMappedIo.cc.

◆ ~MemoryMappedIo()

MemoryMappedIo::~MemoryMappedIo ( )

virtual

The destructor frees the allocated ressources

Definition at line 27 of file MemoryMappedIo.cc.

◆ MemoryMappedIo() [2/2]

MemoryMappedIo::MemoryMappedIo ( const MemoryMappedIo & )

private

The copy-constructor

Note: NOT implemented

Member Function Documentation

◆ operator bool()

MemoryMappedIo::operator bool ( ) const

virtual

Check whether this class is usable

Returns: true, if the class holds a ressource that is correctly allocated and usable

Implements IoBase.

Definition at line 113 of file MemoryMappedIo.cc.

◆ operator=()

MemoryMappedIo & MemoryMappedIo::operator= ( const MemoryMappedIo & )

private

The assignment operator

Note: NOT implemented

◆ read16()

uint16_t MemoryMappedIo::read16 ( size_t offset = 0 )

virtual

Read two byte (16bit) from the I/O Port or the memory-mapped I/O region

Parameters

[in] offset offset from the I/O base port or the I/O base memory address

Returns: the two byte (16bit) that have been read

Implements IoBase.

Definition at line 43 of file MemoryMappedIo.cc.

References ProcessorBase::halt(), m_Offset, m_Padding, size(), and MemoryRegion::virtualAddress().

◆ read32()

uint32_t MemoryMappedIo::read32 ( size_t offset = 0 )

virtual

Read four byte (32bit) from the I/O Port or the memory-mapped I/O region

Parameters

[in] offset offset from the I/O base port or the I/O base memory address

Returns: the four byte (32bit) that have been read

Implements IoBase.

Definition at line 53 of file MemoryMappedIo.cc.

References ProcessorBase::halt(), m_Offset, m_Padding, size(), and MemoryRegion::virtualAddress().

◆ read64()

uint64_t MemoryMappedIo::read64 ( size_t offset = 0 )

virtual

Read eight byte (64bit) from the I/O Port or the memory-mapped I/O region.

Parameters

[in] offset offset from the I/O base port or the I/O base memory address

Returns: the eight byte (64bit) that have been read

Implements IoBase.

Definition at line 63 of file MemoryMappedIo.cc.

References ProcessorBase::halt(), m_Offset, m_Padding, size(), and MemoryRegion::virtualAddress().

◆ read8()

uint8_t MemoryMappedIo::read8 ( size_t offset = 0 )

virtual

Read a byte (8bit) from the I/O Port or the memory-mapped I/O region

Parameters

[in] offset offset from the I/O base port or the I/O base memory address

Returns: the byte (8bit) that have been read

Implements IoBase.

Definition at line 33 of file MemoryMappedIo.cc.

References ProcessorBase::halt(), m_Offset, m_Padding, size(), and MemoryRegion::virtualAddress().

◆ size()

size_t MemoryMappedIo::size ( ) const

virtual

Get the size of the I/O region in bytes

Implements IoBase.

Definition at line 29 of file MemoryMappedIo.cc.

References MemoryRegion::size().

Referenced by read16(), read32(), read64(), read8(), write16(), write32(), write64(), and write8().

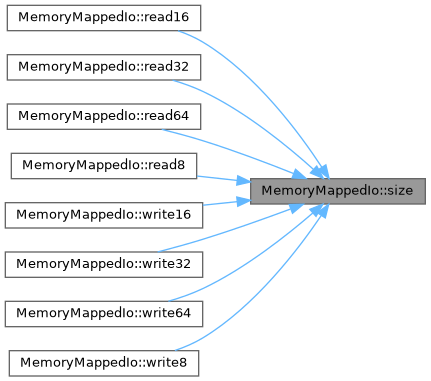

Here is the caller graph for this function:

◆ write16()

void MemoryMappedIo::write16	(	uint16_t	value,
		size_t	offset = `0`
	)

virtual

Write two byte (16bit) to the I/O port or the memory-mapped I/O region

Parameters

[in]	value	the value that should be written
[in]	offset	offset from the I/O base port or the I/O base memory address

Implements IoBase.

Definition at line 83 of file MemoryMappedIo.cc.

References ProcessorBase::halt(), m_Offset, m_Padding, size(), and MemoryRegion::virtualAddress().

◆ write32()

void MemoryMappedIo::write32	(	uint32_t	value,
		size_t	offset = `0`
	)

virtual

Write four byte (32bit) to the I/O port or the memory-mapped I/O region

Parameters

[in]	value	the value that should be written
[in]	offset	offset from the I/O base port or the I/O base memory address

Implements IoBase.

Definition at line 93 of file MemoryMappedIo.cc.

References ProcessorBase::halt(), m_Offset, m_Padding, size(), and MemoryRegion::virtualAddress().

◆ write64()

void MemoryMappedIo::write64	(	uint64_t	value,
		size_t	offset = `0`
	)

virtual

Write eight byte (64bit) to the I/O Port or the memory-mapped I/O region.

Parameters

[in]	value	the value that should be written
[in]	offset	offset from the I/O base port or the I/O base memory address

Implements IoBase.

Definition at line 103 of file MemoryMappedIo.cc.

References ProcessorBase::halt(), m_Offset, m_Padding, size(), and MemoryRegion::virtualAddress().

◆ write8()

void MemoryMappedIo::write8	(	uint8_t	value,
		size_t	offset = `0`
	)

virtual

Write a byte (8bit) to the I/O port or the memory-mapped I/O region

Parameters

[in]	value	the value that should be written
[in]	offset	offset from the I/O base port or the I/O base memory address

Implements IoBase.

Definition at line 73 of file MemoryMappedIo.cc.

References ProcessorBase::halt(), m_Offset, m_Padding, size(), and MemoryRegion::virtualAddress().

Member Data Documentation

◆ m_Offset

uintptr_t MemoryMappedIo::m_Offset

private

MemoryRegion only supports allocation on a page boundary. This variable adds an offset onto each access to make up for this (if required)

Definition at line 67 of file MemoryMappedIo.h.

Referenced by read16(), read32(), read64(), read8(), write16(), write32(), write64(), and write8().

◆ m_Padding

size_t MemoryMappedIo::m_Padding

private

It is possible that registers may not follow one another directly in memory, instead being padded to some boundary.

Definition at line 71 of file MemoryMappedIo.h.

Referenced by read16(), read32(), read64(), read8(), write16(), write32(), write64(), and write8().

The documentation for this class was generated from the following files:
