Special memory entity in the kernel's virtual address space. More...

#include <MemoryRegion.h>

Inheritance diagram for MemoryRegion:

Collaboration diagram for MemoryRegion:

Public Member Functions
	MemoryRegion (const char *pName)

virtual	~MemoryRegion ()

void	free ()

void *	virtualAddress () const

physical_uintptr_t	physicalAddress () const

size_t	size () const

const char *	name () const

	operator bool () const

bool	physicalBoundsCheck (physical_uintptr_t address)

template<typename T >
T *	convertPhysicalPointer (physical_uintptr_t address)

void	setNonRamMemory (bool b)

bool	getNonRamMemory ()

void	setForced (bool b)

bool	getForced ()

void	setAnonymous (bool b)

bool	getAnonymous () const

Private Member Functions
	MemoryRegion (const MemoryRegion &)

MemoryRegion &	operator= (const MemoryRegion &)

Private Attributes
void *	m_VirtualAddress

physical_uintptr_t	m_PhysicalAddress

size_t	m_Size

const char *	m_pName

bool	m_bNonRamMemory

bool	m_bForced

bool	m_bPageBacked

bool	m_bAnonymous

Friends
class	X86CommonPhysicalMemoryManager

class	HostedPhysicalMemoryManager

class	Arm64PhysicalMemoryManager

class	Armv7PhysicalMemoryManager

Detailed Description

Special memory entity in the kernel's virtual address space.

A MemoryRegion is a special memory entity that is mapped continuously in the virtual address space, but might not be continuous in the physical address space. These entities are allocated and freed via the PhysicalMemoryManager. A MemoryRegion is mapped into the kernel's virtual address space and as such accessible from kernel-mode within every process's virtual address space.

Definition at line 35 of file MemoryRegion.h.

Constructor & Destructor Documentation

◆ MemoryRegion() [1/2]

MemoryRegion::MemoryRegion ( const char * pName )

The default constructor does nothing

Definition at line 23 of file MemoryRegion.cc.

◆ ~MemoryRegion()

MemoryRegion::~MemoryRegion ( )

virtual

The destructor unregisters itself from the PMM.

Definition at line 33 of file MemoryRegion.cc.

References PhysicalMemoryManager::instance(), and PhysicalMemoryManager::unmapRegion().

◆ MemoryRegion() [2/2]

MemoryRegion::MemoryRegion ( const MemoryRegion & )

private

The copy-constructor

Note: Not implemented

Member Function Documentation

◆ convertPhysicalPointer()

template<typename T >

T * MemoryRegion::convertPhysicalPointer ( physical_uintptr_t address )

Definition at line 105 of file MemoryRegion.h.

◆ free()

void MemoryRegion::free ( )

Definition at line 37 of file MemoryRegion.cc.

◆ getAnonymous()

bool MemoryRegion::getAnonymous ( ) const

Definition at line 87 of file MemoryRegion.cc.

◆ getForced()

bool MemoryRegion::getForced ( )

Definition at line 79 of file MemoryRegion.cc.

◆ getNonRamMemory()

bool MemoryRegion::getNonRamMemory ( )

Definition at line 71 of file MemoryRegion.cc.

◆ name()

const char * MemoryRegion::name ( ) const

Get the name of the memory-region

Returns: pointer to the name of the memory-region

Definition at line 53 of file MemoryRegion.cc.

References m_pName.

Referenced by MemoryPool::initialise().

Here is the caller graph for this function:

◆ operator bool()

MemoryRegion::operator bool ( ) const

Definition at line 57 of file MemoryRegion.cc.

◆ operator=()

MemoryRegion & MemoryRegion::operator= ( const MemoryRegion & )

private

The copy-constructor

Note: Not implemented

◆ physicalAddress()

physical_uintptr_t MemoryRegion::physicalAddress ( ) const

Get the physical address of the beginning of the MemoryRegion

Returns: pointer to the beginning of the MemoryRegion (in the physical address space)

Definition at line 45 of file MemoryRegion.cc.

References m_PhysicalAddress.

Referenced by BusMasterIde::initialise(), Nic3C90x::Nic3C90x(), HostedPhysicalMemoryManager::unmapRegion(), and X86CommonPhysicalMemoryManager::unmapRegion().

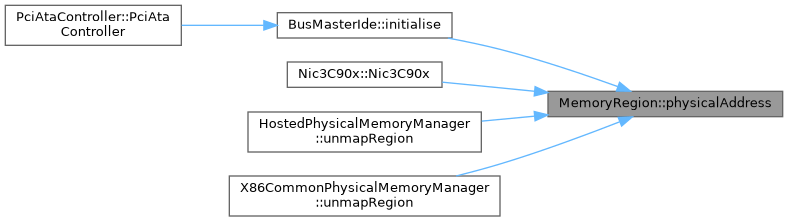

Here is the caller graph for this function:

◆ physicalBoundsCheck()

bool MemoryRegion::physicalBoundsCheck ( physical_uintptr_t address )

Definition at line 61 of file MemoryRegion.cc.

◆ setAnonymous()

void MemoryRegion::setAnonymous ( bool b )

Definition at line 83 of file MemoryRegion.cc.

◆ setForced()

void MemoryRegion::setForced ( bool b )

Definition at line 75 of file MemoryRegion.cc.

◆ setNonRamMemory()

void MemoryRegion::setNonRamMemory ( bool b )

Definition at line 67 of file MemoryRegion.cc.

◆ size()

size_t MemoryRegion::size ( ) const

Get the size of the MemoryRegion

Returns: size of the MemoryRegion in bytes

Definition at line 49 of file MemoryRegion.cc.

References m_Size.

Referenced by BusMasterIde::add(), MemoryPool::allocateDoer(), MemoryPool::free(), MemoryPool::initialise(), MemoryMappedIo::size(), MemoryPool::trim(), HostedPhysicalMemoryManager::unmapRegion(), and X86CommonPhysicalMemoryManager::unmapRegion().

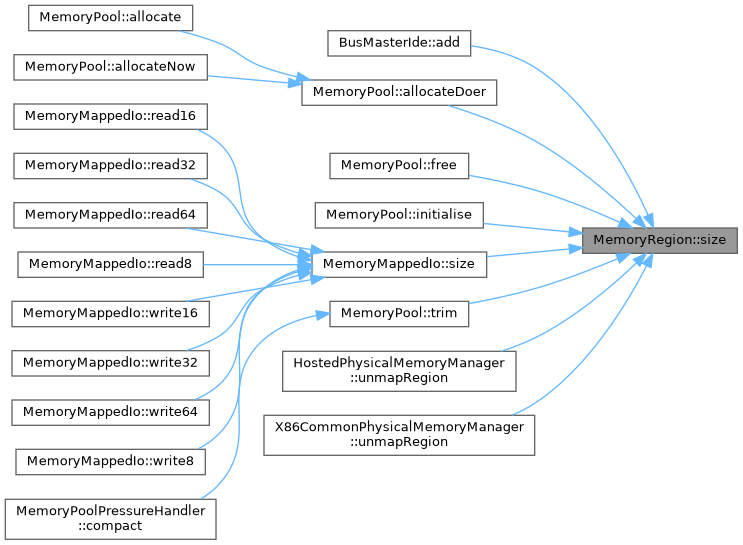

Here is the caller graph for this function:

◆ virtualAddress()

void * MemoryRegion::virtualAddress ( ) const

Get the address of the beginning of the MemoryRegion in the virtual address space

Returns: pointer to the beginning of the MemoryRegion (in the virtual address space)

Definition at line 41 of file MemoryRegion.cc.

References m_VirtualAddress.

Referenced by MemoryPool::allocateDoer(), Archive::Archive(), MemoryPool::free(), VirtioGpu::getFramebuffer(), VirtioGpu::GpuFramebuffer::getPhysicalPage(), HostedPhysicalMemoryManager::initialisationDone(), BusMasterIde::initialise(), Nic3C90x::Nic3C90x(), MemoryMappedIo::read16(), MemoryMappedIo::read32(), MemoryMappedIo::read64(), MemoryMappedIo::read8(), Xhci::releaseDeviceAddress(), Framebuffer::swCreateBuffer(), MemoryPool::trim(), HostedPhysicalMemoryManager::unmapRegion(), X86CommonPhysicalMemoryManager::unmapRegion(), MemoryMappedIo::write16(), MemoryMappedIo::write32(), MemoryMappedIo::write64(), and MemoryMappedIo::write8().

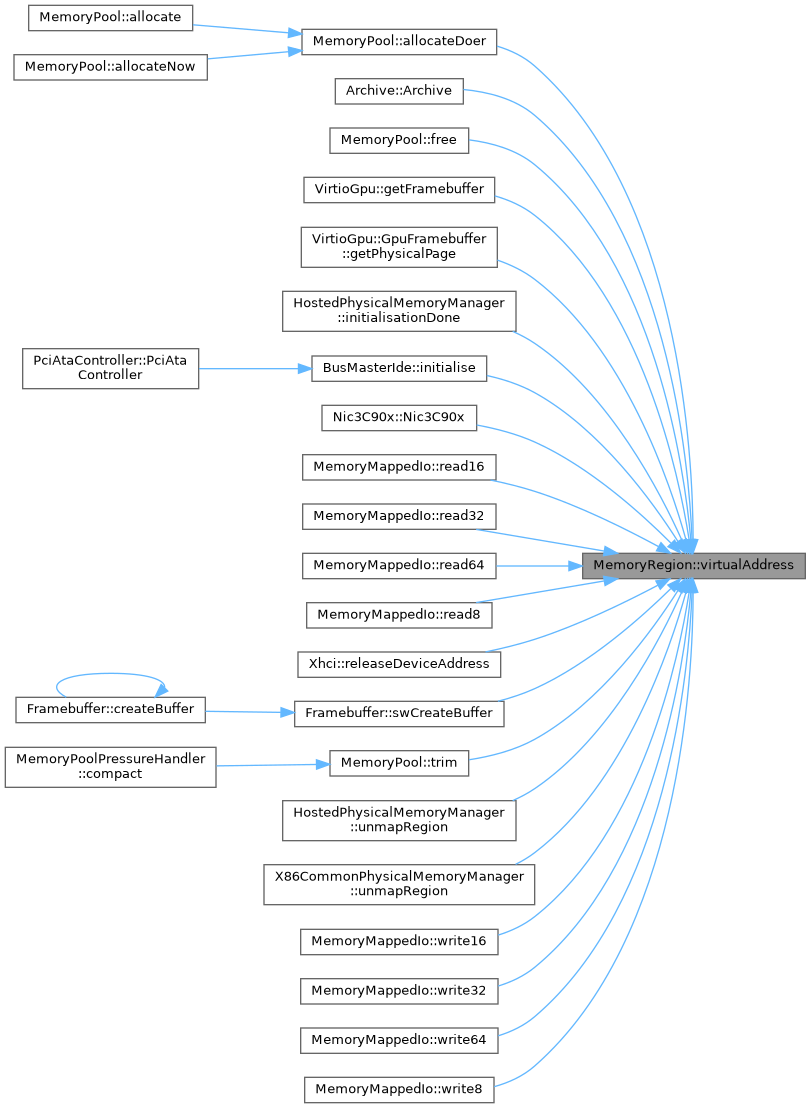

Here is the caller graph for this function:

Friends And Related Symbol Documentation

◆ Arm64PhysicalMemoryManager

friend class Arm64PhysicalMemoryManager

friend

Definition at line 40 of file MemoryRegion.h.

◆ Armv7PhysicalMemoryManager

friend class Armv7PhysicalMemoryManager

friend

Definition at line 41 of file MemoryRegion.h.

◆ HostedPhysicalMemoryManager

friend class HostedPhysicalMemoryManager

friend

As does HostedPhysicalMemoryManager.

Definition at line 39 of file MemoryRegion.h.

◆ X86CommonPhysicalMemoryManager

friend class X86CommonPhysicalMemoryManager

friend

X86CommonPhysicalMemoryManager needs access to MemoryRegion's members

Definition at line 37 of file MemoryRegion.h.

Member Data Documentation

◆ m_bAnonymous

bool MemoryRegion::m_bAnonymous

private

Definition at line 99 of file MemoryRegion.h.

◆ m_bForced

bool MemoryRegion::m_bForced

private

Definition at line 99 of file MemoryRegion.h.

◆ m_bNonRamMemory

bool MemoryRegion::m_bNonRamMemory

private

Definition at line 99 of file MemoryRegion.h.

◆ m_bPageBacked

bool MemoryRegion::m_bPageBacked

private

Definition at line 99 of file MemoryRegion.h.

◆ m_PhysicalAddress

physical_uintptr_t MemoryRegion::m_PhysicalAddress

private

Pointer to the beginning of the memory region in the physical address space, if the region is physically continuous, otherwise 0.

Definition at line 93 of file MemoryRegion.h.

Referenced by HostedPhysicalMemoryManager::allocateRegion(), X86CommonPhysicalMemoryManager::allocateRegion(), Arm64PhysicalMemoryManager::allocateRegion(), Armv7PhysicalMemoryManager::allocateRegion(), and physicalAddress().

◆ m_pName

const char* MemoryRegion::m_pName

private

User-visible name of the memory-region

Definition at line 97 of file MemoryRegion.h.

Referenced by name().

◆ m_Size

size_t MemoryRegion::m_Size

private

The size of the memory-region in bytes

Definition at line 95 of file MemoryRegion.h.

Referenced by HostedPhysicalMemoryManager::allocateRegion(), X86CommonPhysicalMemoryManager::allocateRegion(), Arm64PhysicalMemoryManager::allocateRegion(), Armv7PhysicalMemoryManager::allocateRegion(), size(), Arm64PhysicalMemoryManager::unmapRegion(), and Armv7PhysicalMemoryManager::unmapRegion().

◆ m_VirtualAddress

void* MemoryRegion::m_VirtualAddress

private

Pointer to the beginning of the memory region in the virtual address space.

Definition at line 90 of file MemoryRegion.h.

Referenced by HostedPhysicalMemoryManager::allocateRegion(), X86CommonPhysicalMemoryManager::allocateRegion(), Arm64PhysicalMemoryManager::allocateRegion(), Armv7PhysicalMemoryManager::allocateRegion(), Arm64PhysicalMemoryManager::unmapRegion(), Armv7PhysicalMemoryManager::unmapRegion(), and virtualAddress().

The documentation for this class was generated from the following files:
