#include <RelayEvent.h>

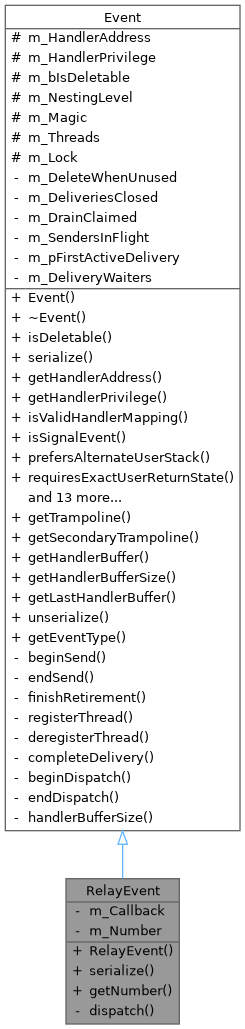

Inheritance diagram for RelayEvent:

Collaboration diagram for RelayEvent:

Public Types
using	Callback = void()(Thread )

Public Types inherited from Event
enum class	HandlerPrivilege { Kernel , User }

enum class	UserReturnDelivery { NotApplicable , Delivered , Failed }

Public Member Functions
	RelayEvent (Callback callback, size_t number)

size_t	serialize (uint8_t *buffer) override

size_t	getNumber () override

Public Member Functions inherited from Event
	Event (uintptr_t handlerAddress, bool isDeletable, size_t specificNestingLevel=~0UL, HandlerPrivilege handlerPrivilege=HandlerPrivilege::Kernel)

virtual bool	isDeletable ()

uintptr_t	getHandlerAddress ()

HandlerPrivilege	getHandlerPrivilege () const

bool	isValidHandlerMapping (size_t mappingFlags) const

virtual bool	isSignalEvent () const

virtual bool	prefersAlternateUserStack () const

virtual bool	requiresExactUserReturnState () const

virtual UserReturnDelivery	deliverAtUserReturn (InterruptState &)

virtual UserReturnDelivery	deliverAtUserReturn (SyscallState &)

virtual bool	isDeliverableWhileProcessSuspended () const

virtual Event *	cloneForDelivery ()

size_t	getSpecificNestingLevel ()

	Event (const Event &other)

Event &	operator= (const Event &other)

size_t	pendingCount ()

bool	tryAcquireRegistration (SendLease &registration)

virtual void	waitForDeliveries ()

void	retire ()

void	beginRetirement (Retirement &retirement)

Static Private Member Functions
static void	dispatch (size_t buffer)

Private Attributes
Callback	m_Callback

size_t	m_Number

Additional Inherited Members
Static Public Member Functions inherited from Event
static uintptr_t	getTrampoline ()

static uintptr_t	getSecondaryTrampoline ()

static uintptr_t	getHandlerBuffer ()

static size_t	getHandlerBufferSize ()

static uintptr_t	getLastHandlerBuffer ()

static bool	unserialize (uint8_t *pBuffer, Event &event)

static size_t	getEventType (uint8_t *pBuffer)

Protected Attributes inherited from Event
uintptr_t	m_HandlerAddress

HandlerPrivilege	m_HandlerPrivilege

bool	m_bIsDeletable

size_t	m_NestingLevel

uint64_t	m_Magic

List< Thread * >	m_Threads

Spinlock	m_Lock

Detailed Description

A stable Event that resolves work through a callback when it is delivered.

The callback value is serialized before the Event delivery lease is released, so the handler never dereferences the RelayEvent object.

Definition at line 21 of file RelayEvent.h.

Member Typedef Documentation

◆ Callback

using RelayEvent::Callback = void (*)(Thread*)

Definition at line 23 of file RelayEvent.h.

Constructor & Destructor Documentation

◆ RelayEvent()

RelayEvent::RelayEvent	(	Callback	callback,
		size_t	number
	)

Definition at line 14 of file RelayEvent.cc.

Member Function Documentation

◆ dispatch()

void RelayEvent::dispatch ( size_t buffer )

staticprivate

Definition at line 28 of file RelayEvent.cc.

◆ getNumber()

size_t RelayEvent::getNumber ( )

overridevirtual

Returns the event number / ID.

Implements Event.

Definition at line 24 of file RelayEvent.cc.

◆ serialize()

size_t RelayEvent::serialize ( uint8_t * pBuffer )

overridevirtual

Given a buffer EVENT_LIMIT bytes long, take the variables present in this object and convert them to a binary form.

It can be assumed that this function will only be called when the Event is about to be dispatched, and so the inhibited mask of the current Thread is available to be changed to what the event handler requires. This change will be undone when the handler completes.

Parameters

pBuffer The buffer to serialize to.

Returns: The number of bytes serialized.

Implements Event.

Definition at line 19 of file RelayEvent.cc.

Member Data Documentation

◆ m_Callback

Callback RelayEvent::m_Callback

private

Definition at line 33 of file RelayEvent.h.

◆ m_Number

size_t RelayEvent::m_Number

private

Definition at line 34 of file RelayEvent.h.

The documentation for this class was generated from the following files:
