SchedulerTimer Class Reference

#include <SchedulerTimer.h>

Inheritance diagram for SchedulerTimer:

Collaboration diagram for SchedulerTimer:

Public Member Functions
virtual bool	registerHandler (SchedulerTimerHandler *handler)=0
virtual uint64_t	nominalQuantumNs () const =0
virtual bool	supportsOneShot () const
virtual bool	armDeadline (uint64_t)
virtual void	disarm ()
virtual bool	removeHandler (SchedulerTimerHandler *handler)=0

Protected Member Functions
	SchedulerTimer ()
virtual	~SchedulerTimer ()

Static Protected Member Functions
static bool	canRemoveHandlerInCurrentContext ()

Private Member Functions
	SchedulerTimer (const SchedulerTimer &)
SchedulerTimer &	operator= (const SchedulerTimer &)

Detailed Description

Timer for scheduling

Definition at line 30 of file include/pedigree/kernel/machine/SchedulerTimer.h.

Constructor & Destructor Documentation

SchedulerTimer() [1/2]

SchedulerTimer::SchedulerTimer ( )

protecteddefault

The default constructor

~SchedulerTimer()

SchedulerTimer::~SchedulerTimer ( )

protectedvirtualdefault

The destructor

SchedulerTimer() [2/2]

SchedulerTimer::SchedulerTimer ( const SchedulerTimer &  )

private

The copy-constructor

Note

NOT implemented

Member Function Documentation

armDeadline()

virtual bool SchedulerTimer::armDeadline ( uint64_t  )

inlinevirtual

Program an absolute monotonic deadline on the calling processor.

Definition at line 43 of file include/pedigree/kernel/machine/SchedulerTimer.h.

canRemoveHandlerInCurrentContext()

bool SchedulerTimer::canRemoveHandlerInCurrentContext ( )

staticprotected

Whether current execution can provide the same-CPU drain guarantee.

Definition at line 75 of file SchedulerTimer.cc.

References ProcessorBase::executionContext(), and ProcessorBase::information().

Referenced by HostedSchedulerTimer::removeHandler(), Pit::removeHandler(), and VirtSchedulerTimer::removeHandler().

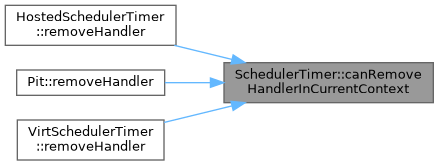

Here is the caller graph for this function:

disarm()

virtual void SchedulerTimer::disarm ( )

inlinevirtual

Stop timer interrupts on the calling processor.

Definition at line 47 of file include/pedigree/kernel/machine/SchedulerTimer.h.

operator=()

SchedulerTimer & SchedulerTimer::operator= ( const SchedulerTimer &  )

private

The assignment operator

Note

NOT implemented

registerHandler()

virtual bool SchedulerTimer::registerHandler ( SchedulerTimerHandler *  handler )

pure virtual

Publish the sole hard scheduler-tick owner for the calling processor. Registration, dispatch, and removal are processor-local operations.

Implemented in HostedSchedulerTimer, Pit, and VirtSchedulerTimer.

Referenced by PerProcessorScheduler::initialise().

Here is the caller graph for this function:

removeHandler()

virtual bool SchedulerTimer::removeHandler ( SchedulerTimerHandler *  handler )

pure virtual

Remove the calling processor's exact current owner.

A successful return is a callback-lifetime barrier: the processor's timer hard frame cannot overlap ordinary removal, and later frames no longer admit the callback. Cross-processor removal is rejected and returns false; callers must arrange teardown on the registered CPU in IRQ-enabled ordinary thread context. The callback's scoped dispatch admission rejects self-removal; hard and synthetic interrupt contexts are rejected before unpublication.

Implemented in HostedSchedulerTimer, Pit, and VirtSchedulerTimer.

supportsOneShot()

virtual bool SchedulerTimer::supportsOneShot ( ) const

inlinevirtual

Whether this timer can replace periodic ticks with CPU-local deadlines.

Definition at line 39 of file include/pedigree/kernel/machine/SchedulerTimer.h.

Referenced by PerProcessorScheduler::initialise(), and Rtc::initialise3().

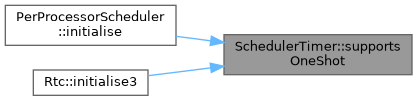

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• include/pedigree/kernel/machine/SchedulerTimer.h
• SchedulerTimer.cc
