#include <Timer.h>

Inheritance diagram for Timer:

Collaboration diagram for Timer:

Public Member Functions
virtual size_t	getYear ()=0

virtual uint8_t	getMonth ()=0

virtual uint8_t	getDayOfMonth ()=0

virtual uint8_t	getDayOfWeek ()=0

virtual uint8_t	getHour ()=0

virtual uint8_t	getMinute ()=0

virtual uint8_t	getSecond ()=0

virtual uint64_t	getNanosecond ()=0

virtual uint64_t	getTickCount ()=0

virtual uint64_t	getTickCountNano ()

virtual uint64_t	getTickCountNanoFast ()

virtual Time::CpuTimeSample	sampleCpuTime ()

virtual Time::Timestamp	getUnixTimestamp ()

virtual bool	registerHandler (TimerHandler *handler)=0

virtual bool	unregisterHandler (TimerHandler *handler)=0

virtual bool	armHandler (TimerHandler *, uint64_t)

virtual bool	supportsDeadlines () const

virtual void	deadlineInterrupt ()

virtual void	addAlarm (class Event *pEvent, size_t alarmSecs, size_t alarmUsecs=0)=0

virtual void	removeAlarm (class Event *pEvent)=0

virtual size_t	removeAlarm (class Event *pEvent, bool bRetZero)=0

virtual void	synchronise (bool tohw=false)
	Synchronises the timer with the hardware. Useful for updating the fields returned by get*, especially if IRQs are not enabled.

Protected Member Functions
	Timer ()

virtual	~Timer ()

Private Member Functions
	Timer (const Timer &)

Timer &	operator= (const Timer &)

Detailed Description

Timer for the time-keeping

Definition at line 32 of file include/pedigree/kernel/machine/Timer.h.

Constructor & Destructor Documentation

◆ Timer() [1/2]

Timer::Timer ( )

inlineprotected

The default constructor

Definition at line 125 of file include/pedigree/kernel/machine/Timer.h.

◆ ~Timer()

virtual Timer::~Timer ( )

inlineprotectedvirtual

The destructor

Definition at line 127 of file include/pedigree/kernel/machine/Timer.h.

◆ Timer() [2/2]

Timer::Timer ( const Timer & )

private

The copy-constructor

Note: NOT implemented

Member Function Documentation

◆ addAlarm()

virtual void Timer::addAlarm	(	class Event *	pEvent,
		size_t	alarmSecs,
		size_t	alarmUsecs = `0`
	)

pure virtual

Dispatches the Event pEvent to the current thread in alarmSecs time.

Parameters

pEvent	Event to dispatch.
alarmSecs	Number of seconds to wait.

Implemented in HostedTimer, Rtc, and VirtTimer.

◆ armHandler()

virtual bool Timer::armHandler	(	TimerHandler *	,
		uint64_t
	)

inlinevirtual

Arms a registered handler for one callback at an absolute monotonic nanosecond deadline. A zero deadline disarms it. The handler may rearm itself from its callback.

Reimplemented in Rtc.

Definition at line 86 of file include/pedigree/kernel/machine/Timer.h.

Referenced by CacheManager::initialise(), RequestQueue::resume(), Uhci::timer(), Ib700Watchdog::timer(), CacheManager::timer(), and RequestQueue::RequestQueueOverrunChecker::timer().

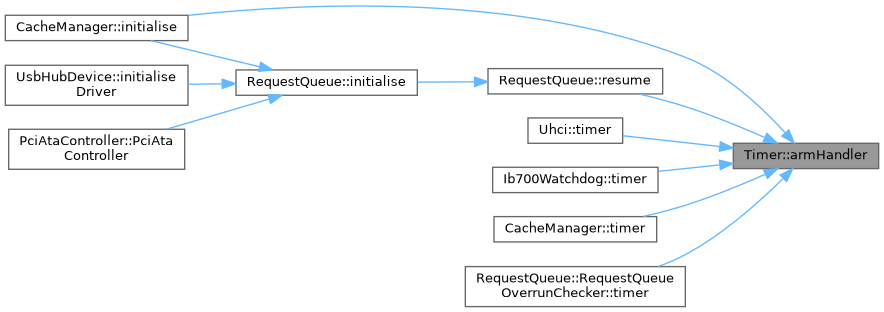

Here is the caller graph for this function:

◆ deadlineInterrupt()

virtual void Timer::deadlineInterrupt ( )

inlinevirtual

Notifies the timekeeper of a clockevent from hard interrupt context.

Reimplemented in Rtc.

Definition at line 96 of file include/pedigree/kernel/machine/Timer.h.

Referenced by PerProcessorScheduler::timer().

Here is the caller graph for this function:

◆ getDayOfMonth()

virtual uint8_t Timer::getDayOfMonth ( )

pure virtual

Get the current day of month

Returns: the current day of month

Implemented in HostedTimer, Rtc, and VirtTimer.

Referenced by getUnixTimestamp().

Here is the caller graph for this function:

◆ getDayOfWeek()

virtual uint8_t Timer::getDayOfWeek ( )

pure virtual

Get the current day of week

Returns: the current day of week

Implemented in HostedTimer, Rtc, and VirtTimer.

◆ getHour()

virtual uint8_t Timer::getHour ( )

pure virtual

Get the current hour

Returns: the current hour

Implemented in HostedTimer, Rtc, and VirtTimer.

Referenced by getUnixTimestamp().

Here is the caller graph for this function:

◆ getMinute()

virtual uint8_t Timer::getMinute ( )

pure virtual

Get the current minute

Returns: the current minute

Implemented in HostedTimer, Rtc, and VirtTimer.

Referenced by getUnixTimestamp().

Here is the caller graph for this function:

◆ getMonth()

virtual uint8_t Timer::getMonth ( )

pure virtual

Get the current month

Returns: the current month

Implemented in HostedTimer, Rtc, and VirtTimer.

Referenced by getUnixTimestamp().

Here is the caller graph for this function:

◆ getNanosecond()

virtual uint64_t Timer::getNanosecond ( )

pure virtual

Get the current nanosecond

Returns: the current nanosecond

Implemented in HostedTimer, Rtc, and VirtTimer.

◆ getSecond()

virtual uint8_t Timer::getSecond ( )

pure virtual

Get the current second

Returns: the current second

Implemented in HostedTimer, Rtc, and VirtTimer.

Referenced by getUnixTimestamp().

Here is the caller graph for this function:

◆ getTickCount()

virtual uint64_t Timer::getTickCount ( )

pure virtual

Get the Tick count (time elapsed since system bootup)

Returns: the tick count in milliseconds

Implemented in HostedTimer, Rtc, and VirtTimer.

Referenced by getTickCountNano(), and Log::LogEntry::operator<<().

Here is the caller graph for this function:

◆ getTickCountNano()

virtual uint64_t Timer::getTickCountNano ( )

inlinevirtual

Get the Tick count (time elapsed since system bootup) in nanosconds.

Returns: the tick count in nanoseconds

Reimplemented in HostedTimer, Rtc, and VirtTimer.

Definition at line 64 of file include/pedigree/kernel/machine/Timer.h.

References getTickCount().

Referenced by getTickCountNanoFast().

Here is the caller graph for this function:

◆ getTickCountNanoFast()

virtual uint64_t Timer::getTickCountNanoFast ( )

inlinevirtual

Get the tick count while the caller already owns the IRQ-disabled window.

Reimplemented in Rtc, and VirtTimer.

Definition at line 68 of file include/pedigree/kernel/machine/Timer.h.

References getTickCountNano().

Referenced by sampleCpuTime().

Here is the caller graph for this function:

◆ getUnixTimestamp()

Time::Timestamp Timer::getUnixTimestamp ( )

virtual

Get the time in UNIX timestamp form (seconds since Jan 1st, 1970).

Reimplemented in Rtc, and VirtTimer.

Definition at line 29 of file Timer.cc.

References getDayOfMonth(), getHour(), getMinute(), getMonth(), getSecond(), and getYear().

Referenced by Rtc::getUnixTimestamp().

Here is the caller graph for this function:

◆ getYear()

virtual size_t Timer::getYear ( )

pure virtual

Get the current year

Returns: the current year

Implemented in HostedTimer, Rtc, and VirtTimer.

Referenced by getUnixTimestamp().

Here is the caller graph for this function:

◆ operator=()

Timer & Timer::operator= ( const Timer & )

private

The assignment operator

Note: NOT implemented

◆ removeAlarm() [1/2]

virtual void Timer::removeAlarm ( class Event * pEvent )

pure virtual

Removes the event pEvent from the alarm queue. Once this returns, the timer will not begin another delivery of this event.

Parameters

pEvent Event to remove alarm for.

Implemented in HostedTimer, Rtc, and VirtTimer.

◆ removeAlarm() [2/2]

virtual size_t Timer::removeAlarm	(	class Event *	pEvent,
		bool	bRetZero
	)

pure virtual

Removes the event pEvent from the alarm queue. Once this returns, the timer will not begin another delivery of this event.

Parameters

pEvent	Event to remove alarm for.
bRetZero	If true, returns zero rather the time until firing

Returns: The number of seconds before the event would have fired, or zero if bRetZero is true.

Implemented in HostedTimer, Rtc, and VirtTimer.

◆ sampleCpuTime()

Time::CpuTimeSample Timer::sampleCpuTime ( )

virtual

Samples nanoseconds and CPU identity while the caller keeps interrupts disabled.

Reimplemented in Rtc.

Definition at line 24 of file Timer.cc.

References getTickCountNanoFast(), and ProcessorBase::index().

◆ supportsDeadlines()

virtual bool Timer::supportsDeadlines ( ) const

inlinevirtual

Whether absolute handler deadlines are available on this timer.

Reimplemented in Rtc.

Definition at line 91 of file include/pedigree/kernel/machine/Timer.h.

Referenced by CacheManager::initialise(), RequestQueue::resume(), Uhci::timer(), Ib700Watchdog::timer(), HidInputManager::timer(), CacheManager::timer(), and RequestQueue::RequestQueueOverrunChecker::timer().

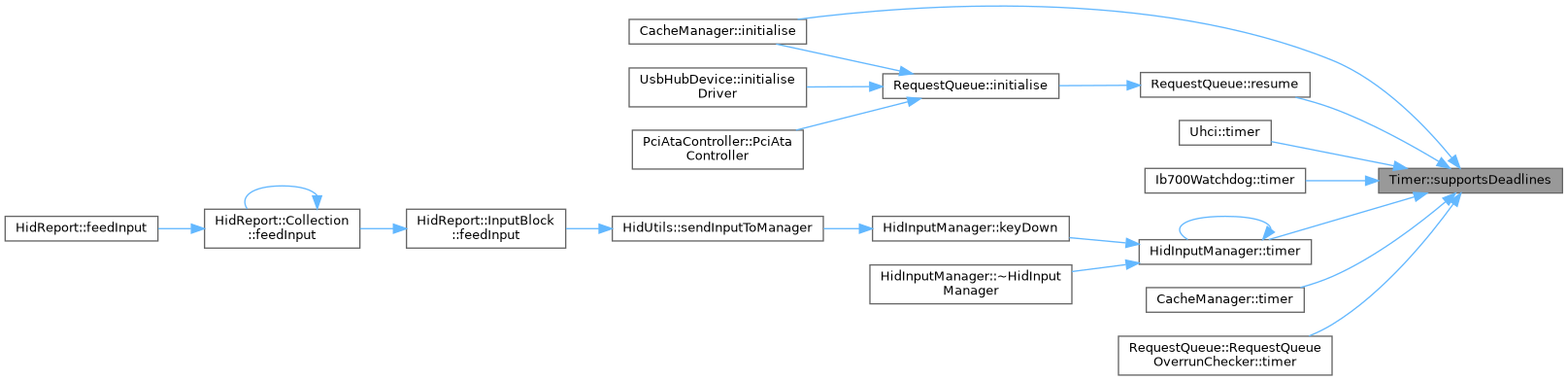

Here is the caller graph for this function:

◆ synchronise()

virtual void Timer::synchronise ( bool tohw = false )

inlinevirtual

Synchronises the timer with the hardware. Useful for updating the fields returned by get*, especially if IRQs are not enabled.

Parameters

tohw	If true, syncs back to the hardware, instead of from it.

Reimplemented in HostedTimer, Rtc, and VirtTimer.

Definition at line 121 of file include/pedigree/kernel/machine/Timer.h.
