TimerHandlerRegistry Class Reference

#include <TimerHandlerRegistry.h>

Collaboration diagram for TimerHandlerRegistry:

Classes
struct	ActiveDispatch
struct	DispatchCleanup
struct	HandlerSlot

Public Member Functions
bool	registerHandler (TimerHandler *handler)
bool	unregisterHandler (TimerHandler *handler)
bool	dispatch (uint64_t delta, TimerHandler *onlyHandler=nullptr)
void	reset ()

Private Types
enum class	SlotMode : size_t {   Empty = 0 , Enabled , Draining , Deferred ,   Retiring }

Private Member Functions
bool	retireSlot (HandlerSlot &slot, size_t expectedPublication, TimerHandler *expectedHandler)
ActiveDispatch *	publishDispatch (HandlerSlot &slot, void *owner, void *token)
bool	unpublishDispatch (void *token, HandlerSlot &slot, size_t admittedPublication, bool required)
bool	hasActiveDispatch (HandlerSlot &slot) const
bool	findCurrentDispatch (void *owner, HandlerSlot *target, bool &callbackContext) const

Static Private Member Functions
static size_t	makePublication (size_t generation, SlotMode mode, bool selfRemoval=false, bool synchronousDrain=false)
static size_t	generationOf (size_t publication)
static SlotMode	modeOf (size_t publication)
static bool	selfRemovalOf (size_t publication)
static bool	synchronousDrainOf (size_t publication)
static void	abandonDispatch (void *context)
static void *	currentDispatchOwner ()

Private Attributes
HandlerSlot	m_Handlers [MaxHandlerSlots]
ActiveDispatch	m_ActiveDispatches [MaxActiveDispatches]
WaitQueue	m_DispatchWaiters
Spinlock	m_HandlerLock

Static Private Attributes
static constexpr size_t	MaxHandlerSlots = 32
static constexpr size_t	MaxActiveDispatches = 64
static constexpr size_t	ModeBits = 3
static constexpr size_t	ModeMask = (1 << ModeBits) - 1
static constexpr size_t	SelfRemovalBit = 1 << ModeBits
static constexpr size_t	SynchronousDrainBit = 1 << (ModeBits + 1)
static constexpr size_t	GenerationShift = ModeBits + 2

Detailed Description

Allocation-free timer callback registry with synchronous removal.

Dispatch pins atomically published slots without taking the writer lock. Removal closes admission before draining callbacks which committed a pin.

Definition at line 26 of file TimerHandlerRegistry.h.

Member Enumeration Documentation

SlotMode

enum class TimerHandlerRegistry::SlotMode : size_t

strongprivate

Definition at line 69 of file TimerHandlerRegistry.h.

Constructor & Destructor Documentation

TimerHandlerRegistry()

TimerHandlerRegistry::TimerHandlerRegistry

(

)

Definition at line 18 of file TimerHandlerRegistry.cc.

Member Function Documentation

abandonDispatch()

void TimerHandlerRegistry::abandonDispatch ( void *  context )

staticprivate

Definition at line 187 of file TimerHandlerRegistry.cc.

currentDispatchOwner()

void * TimerHandlerRegistry::currentDispatchOwner ( )

staticprivate

Definition at line 237 of file TimerHandlerRegistry.cc.

dispatch()

bool TimerHandlerRegistry::dispatch	(	uint64_t	delta,
		TimerHandler *	onlyHandler = nullptr
	)

Calls each handler admitted by the current publication.

Definition at line 468 of file TimerHandlerRegistry.cc.

References ProcessorBase::information(), and TimerHandler::timer().

Referenced by Rtc::processElapsedTime(), and HostedTimer::processTimerBatch().

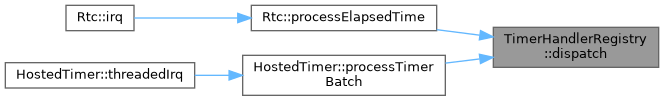

Here is the caller graph for this function:

findCurrentDispatch()

bool TimerHandlerRegistry::findCurrentDispatch ( void *  owner, HandlerSlot *  target, bool &  callbackContext  ) const

private

Definition at line 210 of file TimerHandlerRegistry.cc.

generationOf()

size_t TimerHandlerRegistry::generationOf ( size_t  publication )

staticprivate

Definition at line 39 of file TimerHandlerRegistry.cc.

hasActiveDispatch()

bool TimerHandlerRegistry::hasActiveDispatch ( HandlerSlot &  slot ) const

private

Definition at line 192 of file TimerHandlerRegistry.cc.

makePublication()

size_t TimerHandlerRegistry::makePublication ( size_t  generation, SlotMode  mode, bool  selfRemoval = false, bool  synchronousDrain = false  )

staticprivate

Definition at line 33 of file TimerHandlerRegistry.cc.

modeOf()

TimerHandlerRegistry::SlotMode TimerHandlerRegistry::modeOf ( size_t  publication )

staticprivate

Definition at line 43 of file TimerHandlerRegistry.cc.

publishDispatch()

TimerHandlerRegistry::ActiveDispatch * TimerHandlerRegistry::publishDispatch ( HandlerSlot &  slot, void *  owner, void *  token  )

private

Definition at line 72 of file TimerHandlerRegistry.cc.

registerHandler()

bool TimerHandlerRegistry::registerHandler

(

TimerHandler *

handler

)

Definition at line 243 of file TimerHandlerRegistry.cc.

reset()

void TimerHandlerRegistry::reset

(

)

Clears quiescent registry state during timer lifecycle transitions.

Definition at line 540 of file TimerHandlerRegistry.cc.

Referenced by HostedTimer::initialise1(), Rtc::initialise1(), HostedTimer::uninitialise(), and Rtc::uninitialise().

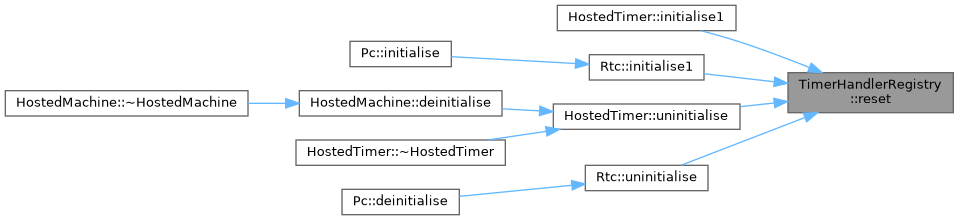

Here is the caller graph for this function:

retireSlot()

bool TimerHandlerRegistry::retireSlot ( HandlerSlot &  slot, size_t  expectedPublication, TimerHandler *  expectedHandler  )

private

Definition at line 55 of file TimerHandlerRegistry.cc.

selfRemovalOf()

bool TimerHandlerRegistry::selfRemovalOf ( size_t  publication )

staticprivate

Definition at line 47 of file TimerHandlerRegistry.cc.

synchronousDrainOf()

bool TimerHandlerRegistry::synchronousDrainOf ( size_t  publication )

staticprivate

Definition at line 51 of file TimerHandlerRegistry.cc.

unpublishDispatch()

bool TimerHandlerRegistry::unpublishDispatch ( void *  token, HandlerSlot &  slot, size_t  admittedPublication, bool  required  )

private

Definition at line 104 of file TimerHandlerRegistry.cc.

unregisterHandler()

bool TimerHandlerRegistry::unregisterHandler

(

TimerHandler *

handler

)

Stops future callbacks and drains callbacks already in progress.

Self-removal is deferred until the callback returns and reports false, preserving Timer's synchronous boolean contract. Other atomic callers report false instead of waiting for an in-flight callback. A synchronous caller must not retain a resource which the active handler needs to finish.

Definition at line 297 of file TimerHandlerRegistry.cc.

References Spinlock::acquire(), ProcessorBase::getInterrupts(), ProcessorBase::information(), ProcessorBase::pause(), and Spinlock::release().

Member Data Documentation

GenerationShift

constexpr size_t TimerHandlerRegistry::GenerationShift = ModeBits + 2

staticconstexprprivate

Definition at line 81 of file TimerHandlerRegistry.h.

m_ActiveDispatches

ActiveDispatch TimerHandlerRegistry::m_ActiveDispatches[MaxActiveDispatches]

private

Definition at line 133 of file TimerHandlerRegistry.h.

m_DispatchWaiters

WaitQueue TimerHandlerRegistry::m_DispatchWaiters

private

Definition at line 134 of file TimerHandlerRegistry.h.

m_HandlerLock

Spinlock TimerHandlerRegistry::m_HandlerLock

private

Definition at line 135 of file TimerHandlerRegistry.h.

m_Handlers

HandlerSlot TimerHandlerRegistry::m_Handlers[MaxHandlerSlots]

private

Definition at line 132 of file TimerHandlerRegistry.h.

MaxActiveDispatches

constexpr size_t TimerHandlerRegistry::MaxActiveDispatches = 64

staticconstexprprivate

Definition at line 67 of file TimerHandlerRegistry.h.

MaxHandlerSlots

constexpr size_t TimerHandlerRegistry::MaxHandlerSlots = 32

staticconstexprprivate

Definition at line 66 of file TimerHandlerRegistry.h.

ModeBits

constexpr size_t TimerHandlerRegistry::ModeBits = 3

staticconstexprprivate

Definition at line 77 of file TimerHandlerRegistry.h.

ModeMask

constexpr size_t TimerHandlerRegistry::ModeMask = (1 << ModeBits) - 1

staticconstexprprivate

Definition at line 78 of file TimerHandlerRegistry.h.

SelfRemovalBit

constexpr size_t TimerHandlerRegistry::SelfRemovalBit = 1 << ModeBits

staticconstexprprivate

Definition at line 79 of file TimerHandlerRegistry.h.

SynchronousDrainBit

constexpr size_t TimerHandlerRegistry::SynchronousDrainBit = 1 << (ModeBits + 1)

staticconstexprprivate

Definition at line 80 of file TimerHandlerRegistry.h.

---

The documentation for this class was generated from the following files:

• TimerHandlerRegistry.h
• TimerHandlerRegistry.cc
