#include "lwip/opt.h"
#include "lwip/priv/tcpip_priv.h"
#include "lwip/sys.h"
#include "lwip/memp.h"
#include "lwip/mem.h"
#include "lwip/init.h"
#include "lwip/ip.h"
#include "lwip/pbuf.h"
#include "lwip/etharp.h"
#include "netif/ethernet.h"

Include dependency graph for tcpip.c:

Macros
#define	TCPIP_MSG_VAR_REF(name) API_VAR_REF(name)

#define	TCPIP_MSG_VAR_DECLARE(name) API_VAR_DECLARE(struct tcpip_msg, name)

#define	TCPIP_MSG_VAR_ALLOC(name) API_VAR_ALLOC(struct tcpip_msg, MEMP_TCPIP_MSG_API, name, ERR_MEM)

#define	TCPIP_MSG_VAR_FREE(name) API_VAR_FREE(MEMP_TCPIP_MSG_API, name)

#define	TCPIP_MBOX_FETCH(mbox, msg) sys_mbox_fetch(mbox, msg)

Functions
err_t	tcpip_inpkt (struct pbuf p, struct netif inp, netif_input_fn input_fn)

err_t	tcpip_input (struct pbuf p, struct netif inp)

err_t	tcpip_callback_with_block (tcpip_callback_fn function, void *ctx, u8_t block)

err_t	tcpip_send_msg_wait_sem (tcpip_callback_fn fn, void apimsg, sys_sem_t sem)

err_t	tcpip_api_call (tcpip_api_call_fn fn, struct tcpip_api_call_data *call)

struct tcpip_callback_msg *	tcpip_callbackmsg_new (tcpip_callback_fn function, void *ctx)

void	tcpip_callbackmsg_delete (struct tcpip_callback_msg *msg)

err_t	tcpip_trycallback (struct tcpip_callback_msg *msg)

void	tcpip_init (tcpip_init_done_fn initfunc, void *arg)

err_t	pbuf_free_callback (struct pbuf *p)

err_t	mem_free_callback (void *m)

Detailed Description

Sequential API Main thread module

Definition in file tcpip.c.

Function Documentation

err_t mem_free_callback ( void * m )

A simple wrapper function that allows you to free heap memory from interrupt context.

Parameters

m	the heap memory to free

Returns: ERR_OK if callback could be enqueued, an err_t if not

Definition at line 532 of file tcpip.c.

References mem_free(), and tcpip_callback_with_block().

err_t pbuf_free_callback ( struct pbuf * p )

A simple wrapper function that allows you to free a pbuf from interrupt context.

Parameters

p	The pbuf (chain) to be dereferenced.

Returns: ERR_OK if callback could be enqueued, an err_t if not

Definition at line 519 of file tcpip.c.

References tcpip_callback_with_block().

err_t tcpip_api_call	(	tcpip_api_call_fn	fn,
		struct tcpip_api_call_data *	call
	)

Synchronously calls function in TCPIP thread and waits for its completion. It is recommended to use LWIP_TCPIP_CORE_LOCKING (preferred) or LWIP_NETCONN_SEM_PER_THREAD. If not, a semaphore is created and destroyed on every call which is usually an expensive/slow operation.

Parameters

fn	Function to call
call	Call parameters

Returns: Return value from tcpip_api_call_fn

Definition at line 384 of file tcpip.c.

References ERR_OK, sys_arch_sem_wait(), sys_mbox_post(), sys_mbox_valid_val, sys_sem_free(), and sys_sem_new().

err_t tcpip_callback_with_block	(	tcpip_callback_fn	function,
		void *	ctx,
		u8_t	block
	)

Call a specific function in the thread context of tcpip_thread for easy access synchronization. A function called in that way may access lwIP core code without fearing concurrent access.

Parameters

function	the function to call
ctx	parameter passed to f
block	1 to block until the request is posted, 0 to non-blocking mode

Returns: ERR_OK if the function was called, another err_t if not

Definition at line 253 of file tcpip.c.

References ERR_MEM, ERR_OK, memp_free(), memp_malloc(), sys_mbox_post(), sys_mbox_trypost(), and sys_mbox_valid_val.

Referenced by mem_free_callback(), netif_set_link_down(), and pbuf_free_callback().

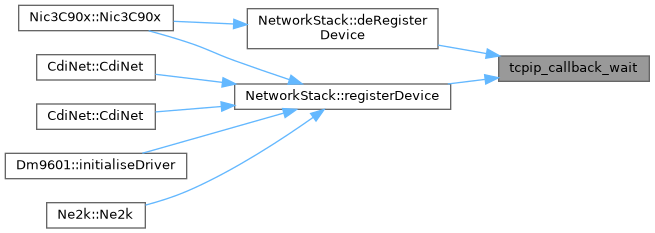

Here is the caller graph for this function:

void tcpip_callbackmsg_delete ( struct tcpip_callback_msg * msg )

Free a callback message allocated by tcpip_callbackmsg_new().

Parameters

msg	the message to free

Definition at line 452 of file tcpip.c.

References memp_free().

struct tcpip_callback_msg* tcpip_callbackmsg_new	(	tcpip_callback_fn	function,
		void *	ctx
	)

Allocate a structure for a static callback message and initialize it. This is intended to be used to send "static" messages from interrupt context.

Parameters

function	the function to call
ctx	parameter passed to function

Returns: a struct pointer to pass to tcpip_trycallback().

Definition at line 434 of file tcpip.c.

References memp_malloc().

void tcpip_init	(	tcpip_init_done_fn	initfunc,
		void *	arg
	)

Initialize this module:

initialize all sub modules
start the tcpip_thread

Parameters

initfunc	a function to call when tcpip_thread is running and finished initializing
arg	argument to pass to initfunc

Definition at line 481 of file tcpip.c.

References ERR_OK, lwip_init(), pbuf_free(), sys_mbox_new(), sys_mutex_new(), sys_thread_new(), TCPIP_MBOX_SIZE, TCPIP_THREAD_NAME, TCPIP_THREAD_PRIO, and TCPIP_THREAD_STACKSIZE.

err_t tcpip_inpkt	(	struct pbuf *	p,
		struct netif *	inp,
		netif_input_fn	input_fn
	)

Pass a received packet to tcpip_thread for input processing

Parameters

p	the received packet
inp	the network interface on which the packet was received
input_fn	input function to call

Definition at line 188 of file tcpip.c.

References ERR_MEM, ERR_OK, LWIP_DEBUGF, memp_free(), memp_malloc(), sys_mbox_trypost(), sys_mbox_valid_val, and TCPIP_DEBUG.

Referenced by tcpip_input().

Here is the caller graph for this function:

err_t tcpip_input	(	struct pbuf *	p,
		struct netif *	inp
	)

Pass a received packet to tcpip_thread for input processing with ethernet_input or ip_input. Don't call directly, pass to netif_add() and call netif->input().

Parameters

p	the received packet, p->payload pointing to the Ethernet header or to an IP header (if inp doesn't have NETIF_FLAG_ETHARP or NETIF_FLAG_ETHERNET flags)
inp	the network interface on which the packet was received

Definition at line 231 of file tcpip.c.

References netif::flags, NETIF_FLAG_ETHARP, NETIF_FLAG_ETHERNET, and tcpip_inpkt().

Referenced by NetworkStack::registerDevice().

Here is the caller graph for this function:

err_t tcpip_send_msg_wait_sem	(	tcpip_callback_fn	fn,
		void *	apimsg,
		sys_sem_t *	sem
	)

Sends a message to TCPIP thread to call a function. Caller thread blocks on on a provided semaphore, which ist NOT automatically signalled by TCPIP thread, this has to be done by the user. It is recommended to use LWIP_TCPIP_CORE_LOCKING since this is the way with least runtime overhead.

Parameters

fn	function to be called from TCPIP thread
apimsg	argument to API function
sem	semaphore to wait on

Returns: ERR_OK if the function was called, another err_t if not

Definition at line 348 of file tcpip.c.

References ERR_OK, LWIP_UNUSED_ARG, sys_arch_sem_wait(), sys_mbox_post(), sys_mbox_valid_val, and sys_sem_valid().

err_t tcpip_trycallback ( struct tcpip_callback_msg * msg )

Try to post a callback-message to the tcpip_thread mbox This is intended to be used to send "static" messages from interrupt context.

Parameters

msg	pointer to the message to post

Returns: sys_mbox_trypost() return code

Definition at line 465 of file tcpip.c.

References sys_mbox_trypost(), and sys_mbox_valid_val.
