Include dependency graph for tcpip.h:
This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Macros | |
| #define | LOCK_TCPIP_CORE() |
| #define | UNLOCK_TCPIP_CORE() |
| #define | tcpip_callback(f, ctx) tcpip_callback_with_block(f, ctx, 1) |
Typedefs | |
| typedef void(* | tcpip_init_done_fn) (void *arg) |
| typedef void(* | tcpip_callback_fn) (void *ctx) |
Functions | |
| void | tcpip_init (tcpip_init_done_fn tcpip_init_done, void *arg) |
| err_t | tcpip_shutdown (void) |
| err_t | tcpip_inpkt (struct pbuf *p, struct netif *inp, netif_input_fn input_fn) |
| err_t | tcpip_input (struct pbuf *p, struct netif *inp) |
| err_t | tcpip_callback_with_block (tcpip_callback_fn function, void *ctx, u8_t block) |
| err_t | tcpip_callback_wait (tcpip_callback_fn function, void *ctx) |
| struct tcpip_callback_msg * | tcpip_callbackmsg_new (tcpip_callback_fn function, void *ctx) |
| void | tcpip_callbackmsg_delete (struct tcpip_callback_msg *msg) |
| err_t | tcpip_trycallback (struct tcpip_callback_msg *msg) |
| err_t | pbuf_free_callback (struct pbuf *p) |
| err_t | mem_free_callback (void *m) |
Detailed Description
Functions to sync with TCPIP thread
Definition in file tcpip.h.
Macro Definition Documentation
◆ LOCK_TCPIP_CORE
◆ tcpip_callback
| #define tcpip_callback | ( | f, | |
| ctx | |||
| ) | tcpip_callback_with_block(f, ctx, 1) |
◆ UNLOCK_TCPIP_CORE
Typedef Documentation
◆ tcpip_callback_fn
| typedef void(* tcpip_callback_fn) (void *ctx) |
Function prototype for functions passed to tcpip_callback()
◆ tcpip_init_done_fn
| typedef void(* tcpip_init_done_fn) (void *arg) |
Function Documentation
◆ mem_free_callback()
| err_t mem_free_callback | ( | void * | m | ) |
A simple wrapper function that allows you to free heap memory from interrupt context.
- Parameters
-
m the heap memory to free
- Returns
- ERR_OK if callback could be enqueued, an err_t if not
Definition at line 790 of file tcpip.c.
References mem_free().
◆ pbuf_free_callback()
◆ tcpip_callback_wait()
| err_t tcpip_callback_wait | ( | tcpip_callback_fn | function, |
| void * | ctx | ||
| ) |
Runs a callback in tcpip_thread and retires it before returning.
Definition at line 365 of file tcpip.c.
References ERR_ARG, ERR_CLSD, ERR_OK, sys_arch_sem_wait(), sys_sem_free(), sys_sem_new(), and sys_thread_is_current().
Referenced by NetworkStack::deRegisterDevice(), and NetworkStack::registerDevice().

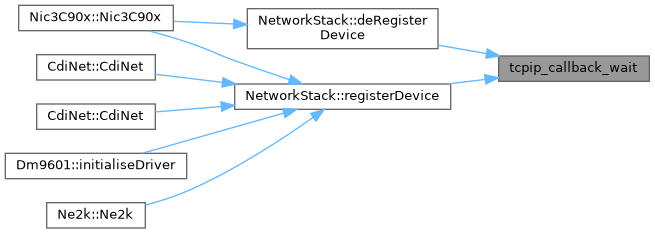

Here is the caller graph for this function:
◆ tcpip_callback_with_block()
| err_t tcpip_callback_with_block | ( | tcpip_callback_fn | function, |
| void * | ctx, | ||
| u8_t | block | ||
| ) |
◆ tcpip_callbackmsg_delete()
| void tcpip_callbackmsg_delete | ( | struct tcpip_callback_msg * | msg | ) |
Free a callback message allocated by tcpip_callbackmsg_new().
- Parameters
-
msg the message to free
Definition at line 612 of file tcpip.c.
References memp_free().
◆ tcpip_callbackmsg_new()
| struct tcpip_callback_msg * tcpip_callbackmsg_new | ( | tcpip_callback_fn | function, |
| void * | ctx | ||
| ) |
Allocate a structure for a static callback message and initialize it. This is intended to be used to send "static" messages from interrupt context.
- Parameters
-
function the function to call ctx parameter passed to function
- Returns
- a struct pointer to pass to tcpip_trycallback().
Definition at line 594 of file tcpip.c.
References memp_malloc().
◆ tcpip_init()
| void tcpip_init | ( | tcpip_init_done_fn | initfunc, |
| void * | arg | ||
| ) |
Initialize this module:
- initialize all sub modules
- start the tcpip_thread
- Parameters
-
initfunc a function to call when tcpip_thread is running and finished initializing arg argument to pass to initfunc
Definition at line 648 of file tcpip.c.
References ERR_OK, lwip_init(), sys_mbox_new(), sys_mutex_new(), sys_thread_new(), TCPIP_MBOX_SIZE, TCPIP_THREAD_NAME, TCPIP_THREAD_PRIO, and TCPIP_THREAD_STACKSIZE.
◆ tcpip_inpkt()
| err_t tcpip_inpkt | ( | struct pbuf * | p, |
| struct netif * | inp, | ||
| netif_input_fn | input_fn | ||
| ) |
Pass a received packet to tcpip_thread for input processing
- Parameters
-
p the received packet inp the network interface on which the packet was received input_fn input function to call
Definition at line 236 of file tcpip.c.
References ERR_CLSD, ERR_MEM, ERR_OK, LWIP_DEBUGF, memp_free(), memp_malloc(), sys_mbox_trypost(), sys_mbox_valid_val, and TCPIP_DEBUG.
Referenced by tcpip_input().
Here is the caller graph for this function:
◆ tcpip_input()
Pass a received packet to tcpip_thread for input processing with ethernet_input or ip_input. Don't call directly, pass to netif_add() and call netif->input().
- Parameters
-
p the received packet, p->payload pointing to the Ethernet header or to an IP header (if inp doesn't have NETIF_FLAG_ETHARP or NETIF_FLAG_ETHERNET flags) inp the network interface on which the packet was received
Definition at line 286 of file tcpip.c.
References netif::flags, NETIF_FLAG_ETHARP, NETIF_FLAG_ETHERNET, and tcpip_inpkt().
◆ tcpip_shutdown()
| err_t tcpip_shutdown | ( | void | ) |
Stop and join tcpip_thread after all users have retired.
ERR_INPROGRESS means initialization or another shutdown owns the lifecycle; callers may retry. ERR_USE rejects shutdown from tcpip_thread itself.
Definition at line 680 of file tcpip.c.
References ERR_CLSD, ERR_IF, ERR_INPROGRESS, ERR_OK, ERR_USE, sys_mbox_free(), sys_mbox_post_and_close(), sys_mbox_set_invalid_val, sys_mbox_valid_val, sys_msleep(), sys_mutex_free(), sys_mutex_set_invalid(), sys_mutex_valid(), sys_thread_is_current(), and sys_thread_join().
◆ tcpip_trycallback()
| err_t tcpip_trycallback | ( | struct tcpip_callback_msg * | msg | ) |
Try to post a callback-message to the tcpip_thread mbox This is intended to be used to send "static" messages from interrupt context.
- Parameters
-
msg pointer to the message to post
- Returns
- sys_mbox_trypost() return code
Definition at line 625 of file tcpip.c.
References ERR_CLSD, sys_mbox_trypost(), and sys_mbox_valid_val.
