HidInputManager Class Reference

#include <HidInputManager.h>

Inheritance diagram for HidInputManager:

Collaboration diagram for HidInputManager:

Classes
struct	KeyState

Public Member Functions
	HidInputManager ()
	Default constructor.
virtual	~HidInputManager ()
	Default destructor.
void	keyDown (uint8_t keyCode, const void *source=nullptr)
	Called when a key transitions to the "down" state.
void	keyUp (uint8_t keyCode, const void *source=nullptr)
	Called when a key transitions to the "up" state.
void	updateKeys ()
	Apply modifier or keymap changes to all keys in down state.
void	timer (uint64_t delta)

Static Public Member Functions
static HidInputManager &	instance ()
	Singleton design.

Private Member Functions
void	armNextRepeatLocked ()
void	updateKeysLocked ()

Private Attributes
Tree< uint8_t, KeyState * >	m_KeyStates
	Current key states (for periodic callbacks while a key is down)
Spinlock	m_KeyLock
Timer *	m_pTimer
uint64_t	m_NextArmed

Static Private Attributes
static HidInputManager	m_Instance
	Static instance.

Detailed Description

Global manager for all input from HID devices.

Definition at line 36 of file HidInputManager.h.

Constructor & Destructor Documentation

HidInputManager()

HidInputManager::HidInputManager

(

)

Default constructor.

Definition at line 32 of file HidInputManager.cc.

~HidInputManager()

HidInputManager::~HidInputManager ( )

virtual

Default destructor.

Definition at line 34 of file HidInputManager.cc.

References m_KeyLock, m_pTimer, and timer().

Member Function Documentation

armNextRepeatLocked()

void HidInputManager::armNextRepeatLocked ( )

private

Definition at line 145 of file HidInputManager.cc.

instance()

static HidInputManager & HidInputManager::instance ( )

inlinestatic

Singleton design.

Definition at line 45 of file HidInputManager.h.

Referenced by HidUtils::sendInputToManager(), KeymapManager::useCompiledKeymap(), and KeymapManager::useKeymap().

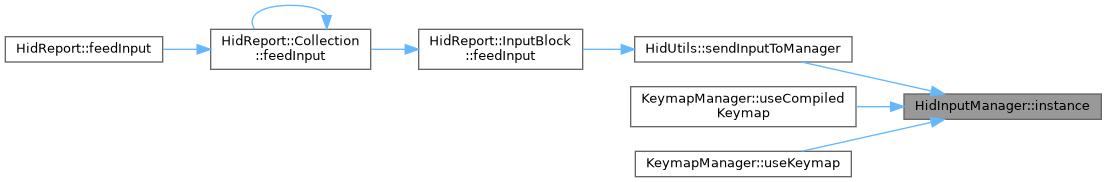

Here is the caller graph for this function:

keyDown()

void HidInputManager::keyDown	(	uint8_t	keyCode,
		const void *	source = nullptr
	)

Called when a key transitions to the "down" state.

Definition at line 46 of file HidInputManager.cc.

References Machine::getTimer(), KeymapManager::handleHidModifier(), InputManager::instance(), KeymapManager::instance(), HidInputManager::KeyState::key, InputManager::keyPressed(), m_KeyLock, m_KeyStates, m_pTimer, HidInputManager::KeyState::nextRepeat, Vector< T >::pushBack(), InputManager::rawKeyUpdate(), KeymapManager::resolveHidKeycode(), HidInputManager::KeyState::sources, and timer().

Referenced by HidUtils::sendInputToManager().

Here is the caller graph for this function:

keyUp()

void HidInputManager::keyUp	(	uint8_t	keyCode,
		const void *	source = nullptr
	)

Called when a key transitions to the "up" state.

Definition at line 92 of file HidInputManager.cc.

References Vector< T >::count(), Vector< T >::erase(), InputManager::instance(), KeymapManager::instance(), m_KeyLock, m_KeyStates, InputManager::rawKeyUpdate(), and HidInputManager::KeyState::sources.

Referenced by HidUtils::sendInputToManager().

Here is the caller graph for this function:

timer()

void HidInputManager::timer ( uint64_t  delta )

virtual

Timer callback to handle repeating key press states when a key is held in the down state.

Implements TimerHandler.

Definition at line 118 of file HidInputManager.cc.

References InputManager::instance(), HidInputManager::KeyState::key, InputManager::keyPressed(), m_KeyLock, m_KeyStates, m_pTimer, HidInputManager::KeyState::nextRepeat, Timer::supportsDeadlines(), and timer().

Referenced by keyDown(), timer(), and ~HidInputManager().

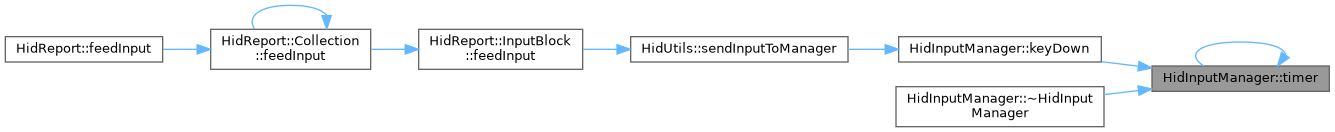

Here is the caller graph for this function:

updateKeys()

void HidInputManager::updateKeys

(

)

Apply modifier or keymap changes to all keys in down state.

Definition at line 166 of file HidInputManager.cc.

References m_KeyLock.

Referenced by KeymapManager::useCompiledKeymap(), and KeymapManager::useKeymap().

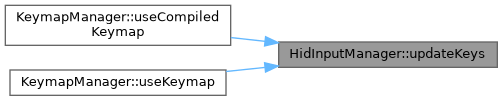

Here is the caller graph for this function:

updateKeysLocked()

void HidInputManager::updateKeysLocked ( )

private

Definition at line 171 of file HidInputManager.cc.

Member Data Documentation

m_Instance

HidInputManager HidInputManager::m_Instance

staticprivate

Static instance.

Definition at line 64 of file HidInputManager.h.

m_KeyLock

Spinlock HidInputManager::m_KeyLock

private

Spinlock for work on keys.

Note

Using a Spinlock here because a lot of our work will happen in the middle of an IRQ where it's potentially dangerous to reschedule (which may happen with a Mutex or Semaphore).

Definition at line 89 of file HidInputManager.h.

Referenced by keyDown(), keyUp(), timer(), updateKeys(), and ~HidInputManager().

m_KeyStates

Tree<uint8_t, KeyState*> HidInputManager::m_KeyStates

private

Current key states (for periodic callbacks while a key is down)

Definition at line 83 of file HidInputManager.h.

Referenced by keyDown(), keyUp(), and timer().

m_NextArmed

uint64_t HidInputManager::m_NextArmed

private

Definition at line 93 of file HidInputManager.h.

m_pTimer

Timer* HidInputManager::m_pTimer

private

Non-null only while key-repeat callbacks are admitted.

Definition at line 92 of file HidInputManager.h.

Referenced by keyDown(), timer(), and ~HidInputManager().

---

The documentation for this class was generated from the following files:

• HidInputManager.h
• HidInputManager.cc
