Inheritance diagram for HostedSchedulerTimer:

Collaboration diagram for HostedSchedulerTimer:

Public Member Functions
virtual bool	registerHandler (SchedulerTimerHandler *handler)

uint64_t	nominalQuantumNs () const override

virtual bool	removeHandler (SchedulerTimerHandler *handler)

bool	initialise () INITIALISATION_ONLY

void	uninitialise ()

Public Member Functions inherited from SchedulerTimer
virtual bool	supportsOneShot () const

virtual bool	armDeadline (uint64_t)

virtual void	disarm ()

Static Public Member Functions
static HostedSchedulerTimer &	instance ()

Protected Member Functions
	HostedSchedulerTimer () INITIALISATION_ONLY

virtual	~HostedSchedulerTimer ()

Protected Member Functions inherited from SchedulerTimer
	SchedulerTimer ()

virtual	~SchedulerTimer ()

Private Member Functions
	HostedSchedulerTimer (const HostedSchedulerTimer &)

HostedSchedulerTimer &	operator= (const HostedSchedulerTimer &)

virtual void	schedulerIrq (irq_id_t number, InterruptState &state)

Private Attributes
irq_id_t	m_IrqId

HostedTickSource	m_TickSource

SchedulerTimerHandlerSlot	m_Handler

bool	m_bInitialized

Static Private Attributes
static HostedSchedulerTimer	m_Instance

Additional Inherited Members
Static Protected Member Functions inherited from SchedulerTimer
static bool	canRemoveHandlerInCurrentContext ()

Detailed Description

Definition at line 36 of file kernel/machine/hosted/SchedulerTimer.h.

Constructor & Destructor Documentation

◆ HostedSchedulerTimer() [1/2]

HostedSchedulerTimer::HostedSchedulerTimer ( )

protected

The default constructor

Definition at line 134 of file hosted/SchedulerTimer.cc.

◆ ~HostedSchedulerTimer()

HostedSchedulerTimer::~HostedSchedulerTimer ( )

protectedvirtual

The destructor

Definition at line 68 of file hosted/SchedulerTimer.cc.

References uninitialise().

◆ HostedSchedulerTimer() [2/2]

HostedSchedulerTimer::HostedSchedulerTimer ( const HostedSchedulerTimer & )

private

The copy-constructor

Note: NOT implemented

Member Function Documentation

◆ initialise()

bool HostedSchedulerTimer::initialise ( )

Initialises the class

Returns: true, if successful, false otherwise

Definition at line 80 of file hosted/SchedulerTimer.cc.

References IrqManager::registerSchedulerIrqHandler(), and IrqManager::unregisterSchedulerIrqHandler().

◆ instance()

static HostedSchedulerTimer & HostedSchedulerTimer::instance ( )

inlinestatic

Get the HostedSchedulerTimer class instance

Definition at line 39 of file kernel/machine/hosted/SchedulerTimer.h.

References m_Instance.

Referenced by HostedMachine::deinitialise(), HostedMachine::getSchedulerTimer(), and HostedMachine::initialise().

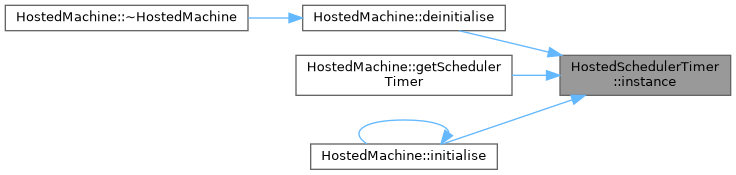

Here is the caller graph for this function:

◆ nominalQuantumNs()

uint64_t HostedSchedulerTimer::nominalQuantumNs ( ) const

overridevirtual

Implements SchedulerTimer.

Definition at line 34 of file hosted/SchedulerTimer.cc.

◆ operator=()

HostedSchedulerTimer & HostedSchedulerTimer::operator= ( const HostedSchedulerTimer & )

private

The assignment operator

Note: NOT implemented

◆ registerHandler()

bool HostedSchedulerTimer::registerHandler ( SchedulerTimerHandler * handler )

virtual

Publish the sole hard scheduler-tick owner for the calling processor. Registration, dispatch, and removal are processor-local operations.

Implements SchedulerTimer.

Definition at line 72 of file hosted/SchedulerTimer.cc.

References ProcessorBase::id(), m_Handler, and SchedulerTimerHandlerSlot::publish().

◆ removeHandler()

bool HostedSchedulerTimer::removeHandler ( SchedulerTimerHandler * handler )

virtual

Remove the calling processor's exact current owner.

A successful return is a callback-lifetime barrier: the processor's timer hard frame cannot overlap ordinary removal, and later frames no longer admit the callback. Cross-processor removal is rejected and returns false; callers must arrange teardown on the registered CPU in IRQ-enabled ordinary thread context. The callback's scoped dispatch admission rejects self-removal; hard and synthetic interrupt contexts are rejected before unpublication.

Implements SchedulerTimer.

Definition at line 76 of file hosted/SchedulerTimer.cc.

References SchedulerTimer::canRemoveHandlerInCurrentContext(), ProcessorBase::id(), m_Handler, and SchedulerTimerHandlerSlot::unpublish().
