#include <Subsystem.h>

Inheritance diagram for Subsystem:

Collaboration diagram for Subsystem:

Public Types
enum class	UserReturnResult { Continue , Terminal }

enum class	UserReturnEventResult { Deliver , Consumed , Terminal }

enum	SubsystemType { Posix = 0 , Native = 1 , None = 255 }

enum	KillReason { Interrupted = 0 , Terminated = 1 , Unknown = 255 }

enum class	ExitCause { Normal , Signal }

enum	ExceptionType { InvalidOpcode = 0 , PageFault = 1 , GeneralProtectionFault = 2 , DivideByZero = 3 , FpuError = 4 , SpecialFpuError = 5 , TerminalInput = 6 , TerminalOutput = 7 , Continue = 8 , Stop = 9 , Interrupt = 10 , Quit = 11 , Child = 12 , Pipe = 13 , FileMappingFault = 14 , Other = 255 }

Public Member Functions
virtual bool	filesystemConstrained () const

virtual uint64_t	filesystemAccess (const FilesystemPathRef *, size_t) const

virtual bool	filesystemReparent (const FilesystemPathRef , size_t, const FilesystemPathRef , size_t) const

virtual UserReturnResult	userReturnCheckpoint (Thread &, UserReturnFrame &)

virtual UserReturnEventResult	userReturnEvent (Thread &, Event &, UserReturnFrame &)

	Subsystem ()

	Subsystem (const Subsystem &s)

	Subsystem (SubsystemType type)

virtual	~Subsystem ()

virtual void	acquire ()
	Acquire full mutual exclusion for all Subsystem resources.

virtual void	release ()

virtual void	exit (int code, ExitCause cause=ExitCause::Normal)=0

virtual bool	kill (KillReason killReason, Thread *pThread=0)=0

virtual void	threadException (Thread pThread, ExceptionType eType, InterruptState pState=nullptr, uintptr_t faultAddress=0, uintptr_t errorCode=0)

virtual bool	resolveUserPageFault (Thread &, InterruptState &, uintptr_t, uintptr_t)

SubsystemType	getType ()

virtual void	setProcess (Process *p)

virtual bool	invoke (const char *name, Vector< String > &argv, Vector< String > &env)=0

virtual bool	invoke (const char *name, Vector< String > &argv, Vector< String > &env, SyscallState &state)=0

virtual bool	invoke (File *originalFile, const String &originalName, Vector< String > &argv, Vector< String > &env)=0

virtual bool	invoke (File *originalFile, const String &originalName, Vector< String > &argv, Vector< String > &env, SyscallState &state)=0

Protected Member Functions
virtual void	prepareThreadsForExec (Thread *owner)

virtual void	preserveProcessSignalsForThreadExit (Thread *thread)

virtual void	threadExiting (Thread *pThread)

virtual void	threadRemoved (Thread *pThread)

Protected Attributes
SubsystemType	m_Type

Process *	m_pProcess

Private Member Functions
const Subsystem &	operator= (const Subsystem &)

Friends
class	Process

Detailed Description

The abstract base class for a generic application subsystem. This provides a well-defined interface to the kernel that allows global behaviour to have correct results on different applications. This also allows the kernel to keep subsystem-specific code to a minimum.

Basically, when inheriting from this class, you are creating a layer between your subsystem and the kernel.

Definition at line 45 of file Subsystem.h.

Member Enumeration Documentation

◆ ExceptionType

enum Subsystem::ExceptionType

Type of exception. This is passed to the subsystem when a Thread throws an exception, which allows subsystem-specific behaviour to be performed.

Definition at line 81 of file Subsystem.h.

◆ ExitCause

enum class Subsystem::ExitCause

strong

How a process reached its terminal state.

Definition at line 75 of file Subsystem.h.

◆ KillReason

enum Subsystem::KillReason

Reason for kill()

Definition at line 72 of file Subsystem.h.

◆ SubsystemType

enum Subsystem::SubsystemType

Defines the different types of subsystems

Definition at line 69 of file Subsystem.h.

◆ UserReturnEventResult

enum class Subsystem::UserReturnEventResult

strong

Definition at line 60 of file Subsystem.h.

◆ UserReturnResult

enum class Subsystem::UserReturnResult

strong

Definition at line 59 of file Subsystem.h.

Constructor & Destructor Documentation

◆ Subsystem() [1/3]

Subsystem::Subsystem ( )

inline

Default constructor

Definition at line 101 of file Subsystem.h.

◆ Subsystem() [2/3]

Subsystem::Subsystem ( const Subsystem & s )

inline

Copy constructor

Definition at line 104 of file Subsystem.h.

◆ Subsystem() [3/3]

Subsystem::Subsystem ( SubsystemType type )

inline

Parameterised constructor

Definition at line 107 of file Subsystem.h.

◆ ~Subsystem()

Subsystem::~Subsystem ( )

virtualdefault

Default destructor

Member Function Documentation

◆ acquire()

void Subsystem::acquire ( )

virtual

Acquire full mutual exclusion for all Subsystem resources.

It is sometimes necessary to perform an operation that would require the entire Subsystem to be owned by a specific thread. For example, Subsystem termination often requires all other threads to exit the Subsystem's critical sections before it can complete.

This call allows that thread to acquire that mutual exclusion.

Reimplemented in PosixSubsystem.

Definition at line 25 of file Subsystem.cc.

Referenced by Process::~Process().

Here is the caller graph for this function:

◆ exit()

virtual void Subsystem::exit	(	int	code,
		ExitCause	cause = `ExitCause::Normal`
	)

pure virtual

Need to exit this process.

Implemented in PosixSubsystem.

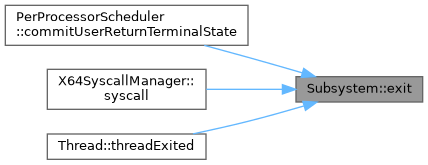

Referenced by PerProcessorScheduler::commitUserReturnTerminalState(), X64SyscallManager::syscall(), and Thread::threadExited().

Here is the caller graph for this function:

◆ filesystemAccess()

virtual uint64_t Subsystem::filesystemAccess	(	const FilesystemPathRef *	,
		size_t
	)		const

inlinevirtual

Definition at line 52 of file Subsystem.h.

◆ filesystemConstrained()

virtual bool Subsystem::filesystemConstrained ( ) const

inlinevirtual

Definition at line 49 of file Subsystem.h.

◆ filesystemReparent()

virtual bool Subsystem::filesystemReparent	(	const FilesystemPathRef *	,
		size_t	,
		const FilesystemPathRef *	,
		size_t
	)		const

inlinevirtual

Definition at line 55 of file Subsystem.h.

◆ getType()

SubsystemType Subsystem::getType ( )

inline

Gets the type of this subsystem

Definition at line 151 of file Subsystem.h.

◆ invoke() [1/4]

virtual bool Subsystem::invoke	(	const char *	name,
		Vector< String > &	argv,
		Vector< String > &	env
	)

pure virtual

Invokes the given command (thread mechanism).

Implemented in PosixSubsystem.

◆ invoke() [2/4]

virtual bool Subsystem::invoke	(	const char *	name,
		Vector< String > &	argv,
		Vector< String > &	env,
		SyscallState &	state
	)

pure virtual

Invokes the given command (SyscallState mechanism).

Implemented in PosixSubsystem.

◆ invoke() [3/4]

virtual bool Subsystem::invoke	(	File *	originalFile,
		const String &	originalName,
		Vector< String > &	argv,
		Vector< String > &	env
	)

pure virtual

Invokes the given file (thread mechanism).

Implemented in PosixSubsystem.

◆ invoke() [4/4]

virtual bool Subsystem::invoke	(	File *	originalFile,
		const String &	originalName,
		Vector< String > &	argv,
		Vector< String > &	env,
		SyscallState &	state
	)

pure virtual

Invokes the given file (SyscallState mechanism).

Implemented in PosixSubsystem.

◆ kill()

virtual bool Subsystem::kill	(	KillReason	killReason,
		Thread *	pThread = `0`
	)

pure virtual

A thread (or process, depending on implementation) needs to be killed! This must block until the thread/process ceases to exist.

Implemented in PosixSubsystem.

Referenced by Process::beginTermination(), and MemoryPressureProcessKiller::compact().

Here is the caller graph for this function:

◆ prepareThreadsForExec()

virtual void Subsystem::prepareThreadsForExec ( Thread * owner )

inlineprotectedvirtual

Preserves process state after exec admission closes and before peers exit.

Reimplemented in PosixSubsystem.

Definition at line 180 of file Subsystem.h.

◆ preserveProcessSignalsForThreadExit()

virtual void Subsystem::preserveProcessSignalsForThreadExit ( Thread * thread )

inlineprotectedvirtual

Preserves process-owned pending work before an exiting thread drains it.

Reimplemented in PosixSubsystem.

Definition at line 183 of file Subsystem.h.

Referenced by Process::transferExecProcessSignals().

Here is the caller graph for this function:

◆ release()

void Subsystem::release ( )

virtual

Release mutual exclusion acquired via acquire().

Reimplemented in PosixSubsystem.

Definition at line 29 of file Subsystem.cc.

◆ resolveUserPageFault()

virtual bool Subsystem::resolveUserPageFault	(	Thread &	,
		InterruptState &	,
		uintptr_t	,
		uintptr_t
	)

inlinevirtual

Retry a userspace page fault after raw interrupt scopes have retired.

Reimplemented in PosixSubsystem.

Definition at line 146 of file Subsystem.h.

Referenced by PerProcessorScheduler::serviceDeferredSubsystemException().

Here is the caller graph for this function:

◆ setProcess()

virtual void Subsystem::setProcess ( Process * p )

inlinevirtual

Sets the process that this subsystem is linked to.

Reimplemented in PosixSubsystem.

Definition at line 156 of file Subsystem.h.

Referenced by PosixSubsystem::setProcess().

Here is the caller graph for this function:

◆ threadException()

void Subsystem::threadException	(	Thread *	pThread,
		ExceptionType	eType,
		InterruptState *	pState = `nullptr`,
		uintptr_t	faultAddress = `0`,
		uintptr_t	errorCode = `0`
	)

virtual

A thread has thrown an exception.

The interrupt state is borrowed for this call only. Architecture-neutral and synthetic exceptions may omit the optional machine context.

Reimplemented in PosixSubsystem.

Definition at line 33 of file Subsystem.cc.

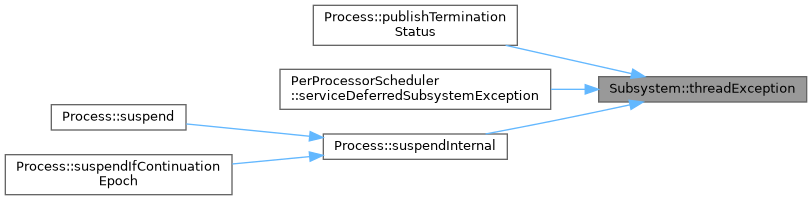

Referenced by Process::publishTerminationStatus(), PerProcessorScheduler::serviceDeferredSubsystemException(), and Process::suspendInternal().

Here is the caller graph for this function:

◆ threadExiting()

virtual void Subsystem::threadExiting ( Thread * pThread )

inlineprotectedvirtual

Notifies the subsystem immediately before a thread announces exit.

Reimplemented in PosixSubsystem.

Definition at line 186 of file Subsystem.h.

Referenced by Process::threadExiting().

Here is the caller graph for this function:

◆ threadRemoved()

virtual void Subsystem::threadRemoved ( Thread * pThread )

inlineprotectedvirtual

Notifies the subsystem that the given thread has been removed.

Reimplemented in PosixSubsystem.

Definition at line 189 of file Subsystem.h.

Referenced by Process::removeThread().

Here is the caller graph for this function:

◆ userReturnCheckpoint()

virtual UserReturnResult Subsystem::userReturnCheckpoint	(	Thread &	,
		UserReturnFrame &
	)

inlinevirtual

Definition at line 61 of file Subsystem.h.

◆ userReturnEvent()

virtual UserReturnEventResult Subsystem::userReturnEvent	(	Thread &	,
		Event &	,
		UserReturnFrame &
	)

inlinevirtual

Definition at line 64 of file Subsystem.h.

Friends And Related Symbol Documentation

◆ Process

friend class Process

friend

Definition at line 46 of file Subsystem.h.

Member Data Documentation

◆ m_pProcess

Process* Subsystem::m_pProcess

protected

Definition at line 193 of file Subsystem.h.

◆ m_Type

SubsystemType Subsystem::m_Type

protected

Definition at line 191 of file Subsystem.h.

The documentation for this class was generated from the following files:
