#include <PosixSubsystem.h>

Inheritance diagram for PosixSubsystem:

Collaboration diagram for PosixSubsystem:

Classes
struct	ExecutableImage

struct	FdEntry

class	PosixSyncObject

class	PosixThread

struct	PosixThreadKey

struct	SignalDisposition

struct	SignalHandler

struct	UserImageToken

Public Types
enum class	DescriptorDuplicationResult { Success , BadSource , TargetBusy }

enum	Abi { PosixAbi = 0 , LinuxAbi = 1 }

enum	UserStringResult { UserStringSuccess , UserStringBadAddress , UserStringTooLong }

enum class	SignalDeliveryResult { Unavailable , Ignored , Rejected , Queued , Full }

Public Types inherited from Subsystem
enum class	UserReturnResult { Continue , Terminal }

enum class	UserReturnEventResult { Deliver , Consumed , Terminal }

enum	SubsystemType { Posix = 0 , Native = 1 , None = 255 }

enum	KillReason { Interrupted = 0 , Terminated = 1 , Unknown = 255 }

enum class	ExitCause { Normal , Signal }

enum	ExceptionType { InvalidOpcode = 0 , PageFault = 1 , GeneralProtectionFault = 2 , DivideByZero = 3 , FpuError = 4 , SpecialFpuError = 5 , TerminalInput = 6 , TerminalOutput = 7 , Continue = 8 , Stop = 9 , Interrupt = 10 , Quit = 11 , Child = 12 , Pipe = 13 , FileMappingFault = 14 , Other = 255 }

Public Member Functions
	PosixSubsystem ()

	PosixSubsystem (PosixSubsystem &s, bool clearSignalHandlers=false)

	PosixSubsystem (SubsystemType type)

SharedPointer< PosixNamespaceContext >	namespaceContext () const

bool	executablePath (String &result) const

bool	executablePath (FilesystemPathRef &result) const

bool	commandLine (Vector< String > &result) const

PosixTraceContext &	traceContext ()

bool	tracePolicyAllowed () const

UserReturnResult	userReturnCheckpoint (Thread &, UserReturnFrame &) override

UserReturnEventResult	userReturnEvent (Thread &, Event &, UserReturnFrame &) override

bool	traceException (Thread &, int &signal, InterruptState &, ExceptionType, uintptr_t, uintptr_t)

TraceStatus	prepareTraceSignal (Thread &, int signal, int32_t pid, uint32_t uid, bool inheritReservation, UniquePointer< SignalEvent > &)

bool	publishTraceSignal (Thread &, UniquePointer< SignalEvent > &, SignalEvent *source)

virtual	~PosixSubsystem ()

virtual void	acquire ()
	Acquire full mutual exclusion for all Subsystem resources.

virtual void	release ()

virtual bool	kill (KillReason killReason, Thread *pThread)

virtual void	threadException (Thread pThread, ExceptionType eType, InterruptState pState=nullptr, uintptr_t faultAddress=0, uintptr_t errorCode=0)

bool	resolveUserPageFault (Thread &thread, InterruptState &state, uintptr_t faultAddress, uintptr_t errorCode) override

virtual void	sendSignal (Thread *pThread, int signal, bool yield=true, bool processDirected=false)

void	setSignalHandler (size_t sig, SignalHandler *handler)

bool	admitLegacyUserSignals ()

bool	affinityPolicyAllowed () const

void	recordAffinityPolicyUse ()

void	resetSignalHandlersForExec (Thread thread, SignalHandler const handlers[SignalDispositionCount])

bool	getSignalDisposition (size_t sig, SignalDisposition &disposition, bool beginDelivery=false)

SignalDeliveryResult	queueSignalDelivery (Thread target, size_t sig, uint32_t flags=nullptr, int32_t signalCode=0, bool processDirected=false, uint64_t signalValue=0, const SharedPointer< SignalEventState > &state=SharedPointer< SignalEventState >())

void	setProcess (Process *process) override

bool	snapshotUserImage (UserImageToken &token) const

bool	matchesUserImage (const UserImageToken &token) const

void	invalidateUserImage ()

bool	publishUserImage (VirtualAddressSpace &space)

SharedPointer< PendingSignalContext >	pendingSignalContext ()

Mutex &	pendingSignalLock ()

ConditionVariable &	pendingSignalChanged ()

void	retireDescriptor (FileDescriptor *descriptor)

AdvisoryOwner &	advisoryOwner ()

PosixMemoryLockAccount &	memoryLockAccount ()

SignalHandler *	getSignalHandler (size_t sig)

void	exit (int code, ExitCause cause=ExitCause::Normal) NORETURN

bool	copyDescriptors (PosixSubsystem *pSubsystem)

size_t	getFd (size_t minimum=0)

void	allocateFd (size_t fdNum)

void	freeFd (size_t fdNum)

void	freeMultipleFds (bool bOnlyCloExec=false, size_t iFirst=0, size_t iLast=-1)

bool	acquireFileDescriptor (size_t fd, DescriptorLease &descriptor)

bool	acquireNextFileDescriptor (size_t minimum, size_t &fd, DescriptorLease &descriptor)

bool	descriptorMatchesOpenDescription (size_t fd, const FileDescriptor::OpenFileDescriptionLease &expected)

bool	closeFileDescriptor (size_t fd, const DescriptorLease &descriptor)

void	addFileDescriptor (size_t fd, FileDescriptor *pFd)

DescriptorDuplicationResult	duplicateFileDescriptor (size_t source, size_t target, bool closeOnExec)

size_t	installFileDescriptor (FileDescriptor *descriptor, DescriptorLease &lease, size_t minimum=0)

PosixSyncObject *	getSyncObject (size_t n)

void	insertSyncObject (size_t n, PosixSyncObject *sem)

void	removeSyncObject (size_t n)

PosixThread *	getThread (size_t n)

void	insertThread (size_t n, PosixThread *thread)

void	removeThread (size_t n)

Semaphore *	getThreadWaiter (void *n)

void *	insertThreadWaiter (Semaphore *waiter)

void	removeThreadWaiter (void *n)

bool	checkAccess (const DescriptorLease &pFileDescriptor, bool bRead, bool bWrite, bool bExecute) const

uint64_t	filesystemAccess (const FilesystemPathRef *ancestry, size_t count) const override

bool	filesystemConstrained () const override

bool	filesystemReparent (const FilesystemPathRef source, size_t sourceCount, const FilesystemPathRef destination, size_t destinationCount) const override

virtual bool	invoke (const char *name, Vector< String > &argv, Vector< String > &env)

virtual bool	invoke (const char *name, Vector< String > &argv, Vector< String > &env, SyscallState &state)

virtual bool	invoke (File *originalFile, const String &originalName, Vector< String > &argv, Vector< String > &env)

virtual bool	invoke (File *originalFile, const String &originalName, Vector< String > &argv, Vector< String > &env, SyscallState &state)

bool	invoke (File *originalFile, const String &originalName, Vector< String > &argv, Vector< String > &env, SyscallState &state, bool descriptorPathInaccessible)

bool	invoke (const FilesystemPathRef &originalPath, const String &originalName, Vector< String > &argv, Vector< String > &env, SyscallState &state, bool descriptorPathInaccessible=false)

File *	findFileRetained (const String &path, ResolvedPath &result, const FilesystemPathRef &workingDir=FilesystemPathRef(), bool followFinal=false)

File *	followFile (ResolvedPath &selected)

Abi	getAbi () const

void	setAbi (Abi which)

Public Member Functions inherited from Subsystem
	Subsystem ()

	Subsystem (const Subsystem &s)

	Subsystem (SubsystemType type)

virtual	~Subsystem ()

SubsystemType	getType ()

Static Public Member Functions
static bool	checkAddress (uintptr_t addr, size_t extent, size_t flags)

static bool	checkedUserBufferSize (size_t count, size_t elementSize, size_t &extent)

static bool	checkUserAddressRange (uintptr_t addr, size_t count, size_t elementSize, size_t *extent=nullptr)

static bool	checkUserBuffer (uintptr_t addr, size_t count, size_t elementSize, size_t flags, size_t *extent=nullptr)

static bool	copyFromUser (void destination, const void source, size_t count, size_t elementSize=1)

static bool	copyToUser (void destination, const void source, size_t count, size_t elementSize=1)

static size_t	readCachedFile (File &file, uint64_t offset, void *destination, size_t count)

static UserStringResult	copyUserString (const char *userString, String &copy, size_t maxLength)

Static Public Attributes
static const size_t	SafeRegion = 0x0

static const size_t	SafeRead = 0x1

static const size_t	SafeWrite = 0x2

static const size_t	SafeExecute = 0x4

static constexpr size_t	LinuxPrivateSignalFirst = 32

static constexpr size_t	MaximumSupportedSignal = 64

static constexpr size_t	SignalDispositionCount = MaximumSupportedSignal + 1

static constexpr size_t	MaximumExecArgumentBytes = 131072

Private Types
enum class	CallbackSchedulingDomain { Unrestricted , LegacySignals , Affinity }

Private Member Functions
void	acquireFdLock ()

void	publishFdEntry (size_t fd)

void	publishFdEntries ()

virtual void	prepareThreadsForExec (Thread *owner)

virtual void	preserveProcessSignalsForThreadExit (Thread *thread)

virtual void	threadExiting (Thread *pThread)

void	clearChildTid (Thread *thread)

virtual void	threadRemoved (Thread *pThread)

bool	prepareExecutable (File *pFile, ExecutableImage &image, bool isInterpreter)

bool	loadElf (const ExecutableImage &image, uintptr_t &loadBias)

bool	invoke (const char name, Vector< String > &argv, Vector< String > &env, SyscallState state)

bool	invoke (File originalFile, const String &originalName, Vector< String > &argv, Vector< String > &env, SyscallState state, bool descriptorPathInaccessible=false, const FilesystemPathRef &originalPath=FilesystemPathRef())

bool	parseShebang (File *pFile, String &interpreter, String &optionalArgument, bool &hasOptionalArgument)

Private Attributes
PosixTraceContext	m_TraceContext

Tree< size_t, SignalHandler * >	m_SignalHandlers

UnlikelyLock	m_SignalHandlersLock

CallbackSchedulingDomain	m_CallbackSchedulingDomain = CallbackSchedulingDomain::Unrestricted

SharedPointer< PendingSignalContext >	m_PendingSignals {new PendingSignalContext}

AdvisoryOwner	m_AdvisoryOwner

PosixMemoryLockAccount	m_MemoryLockAccount

SharedPointer< PosixNamespaceContext >	m_Namespaces

VirtualAddressSpace *	m_UserImageSpace = nullptr

uint64_t	m_UserImageGeneration = 0

bool	m_UserImageActive = false

Tree< size_t, SharedPointer< FileDescriptor > >	m_FdMap

RcuPointer< FdEntry >	m_FdEntries [FdBuckets]

size_t	m_NextFd

Mutex	m_FdLock

ExtensibleBitmap	m_FdBitmap

size_t	m_LastFd

int	m_FreeCount

Tree< size_t, PosixSyncObject * >	m_SyncObjects

Tree< size_t, PosixThread * >	m_Threads

Tree< void , Semaphore >	m_ThreadWaiters

size_t	m_NextThreadWaiter

Mutex	m_ImageMetadataLock

FilesystemPathRef	m_ExecutablePath

Vector< String >	m_CommandLine

Abi	m_Abi

bool	m_bAcquired

Thread *	m_pAcquiredThread

Spinlock	m_Lock

Static Private Attributes
static constexpr size_t	FdBuckets = 16

Additional Inherited Members
Protected Attributes inherited from Subsystem
SubsystemType	m_Type

Process *	m_pProcess

Detailed Description

Defines the compatibility layer for the POSIX Subsystem

Definition at line 178 of file PosixSubsystem.h.

Member Enumeration Documentation

◆ Abi

enum PosixSubsystem::Abi

ABI mode.

Definition at line 197 of file PosixSubsystem.h.

◆ CallbackSchedulingDomain

enum class PosixSubsystem::CallbackSchedulingDomain

strongprivate

Definition at line 802 of file PosixSubsystem.h.

◆ DescriptorDuplicationResult

enum class PosixSubsystem::DescriptorDuplicationResult

strong

Definition at line 180 of file PosixSubsystem.h.

◆ SignalDeliveryResult

enum class PosixSubsystem::SignalDeliveryResult

strong

Definition at line 425 of file PosixSubsystem.h.

◆ UserStringResult

enum PosixSubsystem::UserStringResult

Definition at line 339 of file PosixSubsystem.h.

Constructor & Destructor Documentation

◆ PosixSubsystem() [1/3]

PosixSubsystem::PosixSubsystem ( )

inline

Default constructor

Definition at line 203 of file PosixSubsystem.h.

◆ PosixSubsystem() [2/3]

PosixSubsystem::PosixSubsystem	(	PosixSubsystem &	s,
		bool	clearSignalHandlers = `false`
	)

Copy constructor

Definition at line 256 of file PosixSubsystem.cc.

References UnlikelyLock::acquire(), Tree< K, E >::begin(), Tree< K, E >::end(), UnlikelyLock::enter(), Tree< K, E >::insert(), UnlikelyLock::leave(), m_SignalHandlersLock, m_ThreadWaiters, PosixSubsystem::SignalHandler::pEvent, UnlikelyLock::release(), PosixSubsystem::SignalHandler::sig, and PosixSubsystem::SignalHandler::type.

◆ PosixSubsystem() [3/3]

PosixSubsystem::PosixSubsystem ( SubsystemType type )

inline

Parameterised constructor

Definition at line 230 of file PosixSubsystem.h.

◆ ~PosixSubsystem()

PosixSubsystem::~PosixSubsystem ( )

virtual

Default destructor

Todo:: Call the destructor (need a way to call into userspace and return back here)

Definition at line 400 of file PosixSubsystem.cc.

References acquire(), Spinlock::acquire(), MemoryMapManager::acquireLock(), Tree< K, E >::begin(), Tree< K, E >::clear(), Tree< K, E >::end(), freeMultipleFds(), Process::getAddressSpace(), Process::getNumThreads(), ProcessorBase::information(), MemoryMapManager::instance(), m_FreeCount, m_SyncObjects, PosixSubsystem::PosixThread::m_ThreadData, m_Threads, m_ThreadWaiters, m_TraceContext, release(), Spinlock::release(), MemoryMapManager::releaseLock(), Process::releaseVforkAddressSpace(), ProcessorBase::switchAddressSpace(), and MemoryMapManager::unmapAllUnlocked().

Member Function Documentation

◆ acquire()

void PosixSubsystem::acquire ( )

virtual

Acquire full mutual exclusion for all Subsystem resources.

It is sometimes necessary to perform an operation that would require the entire Subsystem to be owned by a specific thread. For example, Subsystem termination often requires all other threads to exit the Subsystem's critical sections before it can complete.

This call allows that thread to acquire that mutual exclusion.

Reimplemented from Subsystem.

Definition at line 540 of file PosixSubsystem.cc.

References UnlikelyLock::acquire(), Spinlock::acquire(), ProcessorBase::information(), m_bAcquired, m_Lock, m_pAcquiredThread, m_SignalHandlersLock, and Spinlock::release().

Referenced by ~PosixSubsystem().

Here is the caller graph for this function:

◆ acquireFdLock()

void PosixSubsystem::acquireFdLock ( )

private

Definition at line 534 of file PosixSubsystem.cc.

◆ acquireFileDescriptor()

bool PosixSubsystem::acquireFileDescriptor	(	size_t	fd,
		DescriptorLease &	descriptor
	)

Pins the descriptor currently published at fd.

Callers cannot obtain a borrowed table pointer: a successful lookup retains the descriptor until the returned handle leaves scope, even if another thread closes or replaces the descriptor in the meantime.

Definition at line 1752 of file PosixSubsystem.cc.

◆ acquireNextFileDescriptor()

bool PosixSubsystem::acquireNextFileDescriptor	(	size_t	minimum,
		size_t &	fd,
		DescriptorLease &	descriptor
	)

Retain the lowest published descriptor at or after minimum.

Definition at line 1833 of file PosixSubsystem.cc.

References Tree< K, E >::begin(), Tree< K, E >::end(), m_FdLock, m_FdMap, and Semaphore::release().

◆ addFileDescriptor()

void PosixSubsystem::addFileDescriptor	(	size_t	fd,
		FileDescriptor *	pFd
	)

Inserts a file descriptor

Definition at line 1909 of file PosixSubsystem.cc.

References SharedPointer< T >::get(), Tree< K, E >::insert(), m_FdBitmap, m_FdLock, m_FdMap, m_NextFd, Semaphore::release(), SharedPointer< T >::reset(), ExtensibleBitmap::set(), and Tree< K, E >::take().

◆ admitLegacyUserSignals()

bool PosixSubsystem::admitLegacyUserSignals ( )

Definition at line 1190 of file PosixSubsystem.cc.

◆ advisoryOwner()

AdvisoryOwner & PosixSubsystem::advisoryOwner ( )

inline

Definition at line 481 of file PosixSubsystem.h.

◆ affinityPolicyAllowed()

bool PosixSubsystem::affinityPolicyAllowed ( ) const

inline

Definition at line 433 of file PosixSubsystem.h.

◆ allocateFd()

void PosixSubsystem::allocateFd ( size_t fdNum )

Sets the given file descriptor as "in use".

Definition at line 1588 of file PosixSubsystem.cc.

References m_FdBitmap, m_FdLock, m_NextFd, Semaphore::release(), and ExtensibleBitmap::set().

◆ checkAccess()

bool PosixSubsystem::checkAccess	(	const DescriptorLease &	pFileDescriptor,
		bool	bRead,
		bool	bWrite,
		bool	bExecute
	)		const

Definition at line 2129 of file PosixSubsystem.cc.

◆ checkAddress()

bool PosixSubsystem::checkAddress	(	uintptr_t	addr,
		size_t	extent,
		size_t	flags
	)

static

Check whether a given region of memory is safe for the given operations.

This is important to do as we can get pointers from anywhere in the POSIX subsystem, and making sure they are sane and safe is crucial.

Todo:: This has a security flaw in that between the check and the use of the actual pointer, the pointer can become invalid due to other threads being active in the process. It may be worth having a Process-wide UnlikelyLock which has the mmap family of functions, sbrk, etc... as writers, and all other syscalls as readers. This would ensure a multithreaded application is not able to crash the kernel.

Definition at line 574 of file PosixSubsystem.cc.

References VirtualAddressSpace::CopyOnWrite, Dec, VirtualAddressSpace::Execute, VirtualAddressSpace::getMapping(), PhysicalMemoryManager::getPageSize(), Hex, ProcessorBase::information(), MemoryMapManager::instance(), VirtualAddressSpace::isMapped(), VirtualAddressSpace::KernelMode, VirtualAddressSpace::NoAccess, VirtualAddressSpace::Write, and VirtualAddressSpace::WriteProtected.

Referenced by checkUserBuffer().

Here is the caller graph for this function:

◆ checkedUserBufferSize()

bool PosixSubsystem::checkedUserBufferSize	(	size_t	count,
		size_t	elementSize,
		size_t &	extent
	)

static

Calculate the byte extent of a userspace array without wrapping.

Zero-sized arrays have a zero byte extent. This makes them safe to pass through the copy helpers without special-casing a null userspace pointer.

Definition at line 686 of file PosixSubsystem.cc.

Referenced by checkUserAddressRange(), checkUserBuffer(), copyFromUser(), and copyToUser().

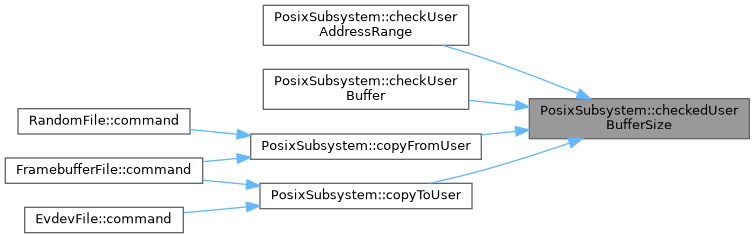

Here is the caller graph for this function:

◆ checkUserAddressRange()

bool PosixSubsystem::checkUserAddressRange	(	uintptr_t	addr,
		size_t	count,
		size_t	elementSize,
		size_t *	extent = `nullptr`
	)

static

Validate only the arithmetic and architectural userspace bounds of an array. Mapping residency and permissions are deliberately left to the eventual user copy.

Definition at line 700 of file PosixSubsystem.cc.

References checkedUserBufferSize().

◆ checkUserBuffer()

bool PosixSubsystem::checkUserBuffer	(	uintptr_t	addr,
		size_t	count,
		size_t	elementSize,
		size_t	flags,
		size_t *	extent = `nullptr`
	)

static

Validate a userspace array after checking its size calculation.

Definition at line 721 of file PosixSubsystem.cc.

References checkAddress(), and checkedUserBufferSize().

◆ clearChildTid()

void PosixSubsystem::clearChildTid ( Thread * thread )

private

Definition at line 2088 of file PosixSubsystem.cc.

◆ closeFileDescriptor()

bool PosixSubsystem::closeFileDescriptor	(	size_t	fd,
		const DescriptorLease &	descriptor
	)

Unpublishes fd only if it still names the generation in descriptor.

This is the close counterpart to acquireFileDescriptor: a concurrent close and reuse of the numeric fd must not allow an older close path to remove the replacement descriptor.

Definition at line 1871 of file PosixSubsystem.cc.

References ExtensibleBitmap::clear(), SharedPointer< T >::get(), Tree< K, E >::lookup(), m_FdBitmap, m_FdLock, m_FdMap, m_LastFd, Semaphore::release(), SharedPointer< T >::reset(), and Tree< K, E >::take().

◆ commandLine()

bool PosixSubsystem::commandLine ( Vector< String > & result ) const

Definition at line 361 of file PosixSubsystem.cc.

◆ copyDescriptors()

bool PosixSubsystem::copyDescriptors ( PosixSubsystem * pSubsystem )

Copies file descriptors from another subsystem

Definition at line 1630 of file PosixSubsystem.cc.

References Tree< K, E >::begin(), Vector< T >::clear(), Tree< K, E >::end(), freeMultipleFds(), Tree< K, E >::insert(), m_FdBitmap, m_FdLock, m_FdMap, m_NextFd, Vector< T >::pushBack(), Semaphore::release(), ExtensibleBitmap::set(), and Tree< K, E >::take().

◆ copyFromUser()

bool PosixSubsystem::copyFromUser	(	void *	destination,
		const void *	source,
		size_t	count,
		size_t	elementSize = `1`
	)

static

Snapshot a userspace array into kernel-owned memory.

Mapping teardown is excluded for the duration of validation and copying, so callers can safely release all userspace references before blocking.

Definition at line 738 of file PosixSubsystem.cc.

References checkedUserBufferSize(), and MemoryMapManager::instance().

Referenced by FramebufferFile::command(), and RandomFile::command().

Here is the caller graph for this function:

◆ copyToUser()

bool PosixSubsystem::copyToUser	(	void *	destination,
		const void *	source,
		size_t	count,
		size_t	elementSize = `1`
	)

static

Copy a kernel-owned array to userspace under the mapping lifecycle gate.

Definition at line 760 of file PosixSubsystem.cc.

References checkedUserBufferSize(), and MemoryMapManager::instance().

Referenced by FramebufferFile::command(), and EvdevFile::command().

Here is the caller graph for this function:

◆ copyUserString()

PosixSubsystem::UserStringResult PosixSubsystem::copyUserString	(	const char *	userString,
		String &	copy,
		size_t	maxLength
	)

static

Copy a NUL-terminated user string without reading past a mapped range.

Definition at line 796 of file PosixSubsystem.cc.

References PhysicalMemoryManager::getPageSize(), and MemoryMapManager::instance().

◆ descriptorMatchesOpenDescription()

bool PosixSubsystem::descriptorMatchesOpenDescription	(	size_t	fd,
		const FileDescriptor::OpenFileDescriptionLease &	expected
	)

Compare publication identity without taking an OFD lock or retaining references.

Definition at line 1856 of file PosixSubsystem.cc.

References SharedPointer< T >::get(), Tree< K, E >::lookupRef(), m_FdLock, m_FdMap, and Semaphore::release().

◆ duplicateFileDescriptor()

PosixSubsystem::DescriptorDuplicationResult PosixSubsystem::duplicateFileDescriptor	(	size_t	source,
		size_t	target,
		bool	closeOnExec
	)

Atomically replaces target with a duplicate of source.

The source lookup, anonymous-target owner publication, and table swap share one descriptor-table critical section. A concurrent final close therefore cannot close socket/eventfd admission between lookup and duplication, and target is never observable as an unallocated descriptor.

Definition at line 1937 of file PosixSubsystem.cc.

References SharedPointer< T >::get(), Tree< K, E >::insert(), Tree< K, E >::lookup(), m_FdBitmap, m_FdLock, m_FdMap, m_NextFd, Semaphore::release(), SharedPointer< T >::reset(), ExtensibleBitmap::set(), Tree< K, E >::take(), and ExtensibleBitmap::test().

◆ executablePath() [1/2]

bool PosixSubsystem::executablePath ( FilesystemPathRef & result ) const

Definition at line 355 of file PosixSubsystem.cc.

◆ executablePath() [2/2]

bool PosixSubsystem::executablePath ( String & result ) const

Definition at line 344 of file PosixSubsystem.cc.

◆ exit()

void PosixSubsystem::exit	(	int	code,
		ExitCause	cause = `ExitCause::Normal`
	)

virtual

Need to exit this process.

Implements Subsystem.

Definition at line 859 of file PosixSubsystem.cc.

References Process::beginTermination(), Thread::Continue, Dec, Process::finishTermination(), freeMultipleFds(), Process::getAddressSpace(), Process::getId(), ProcessorBase::getInterrupts(), Thread::getParent(), ProcessorBase::inDeviceHardIrq(), ProcessorBase::information(), MemoryMapManager::instance(), m_TraceContext, Thread::notifySubsystemExit(), Process::quiesceTermination(), Process::releaseVforkAddressSpace(), Process::setExitStatus(), Thread::setUnwindState(), Thread::unexpectedExit(), and MemoryMapManager::unmapAll().

◆ filesystemAccess()

uint64_t PosixSubsystem::filesystemAccess	(	const FilesystemPathRef *	ancestry,
		size_t	count
	)		const

overridevirtual

Reimplemented from Subsystem.

Definition at line 138 of file landlock.cc.

◆ filesystemConstrained()

bool PosixSubsystem::filesystemConstrained ( ) const

overridevirtual

Reimplemented from Subsystem.

Definition at line 134 of file landlock.cc.

◆ filesystemReparent()

bool PosixSubsystem::filesystemReparent	(	const FilesystemPathRef *	source,
		size_t	sourceCount,
		const FilesystemPathRef *	destination,
		size_t	destinationCount
	)		const

overridevirtual

Reimplemented from Subsystem.

Definition at line 156 of file landlock.cc.

◆ findFileRetained()

File * PosixSubsystem::findFileRetained	(	const String &	path,
		ResolvedPath &	result,
		const FilesystemPathRef &	workingDir = `FilesystemPathRef()`,
		bool	followFinal = `false`
	)

Definition at line 2376 of file PosixSubsystem.cc.

◆ followFile()

File * PosixSubsystem::followFile ( ResolvedPath & selected )

Definition at line 2394 of file PosixSubsystem.cc.

◆ freeFd()

void PosixSubsystem::freeFd ( size_t fdNum )

Sets the given file descriptor as "available" and deletes the FileDescriptor linked to it.

Definition at line 1601 of file PosixSubsystem.cc.

References ExtensibleBitmap::clear(), SharedPointer< T >::get(), m_FdBitmap, m_FdLock, m_FdMap, m_LastFd, Semaphore::release(), SharedPointer< T >::reset(), and Tree< K, E >::take().

◆ freeMultipleFds()

void PosixSubsystem::freeMultipleFds	(	bool	bOnlyCloExec = `false`,
		size_t	iFirst = `0`,
		size_t	iLast = `-1`
	)

Frees a range of descriptors (or only those marked FD_CLOEXEC)

Definition at line 1684 of file PosixSubsystem.cc.

References List< T, nodePoolSize >::begin(), Tree< K, E >::begin(), Vector< T >::clear(), ExtensibleBitmap::clear(), Vector< T >::count(), List< T, nodePoolSize >::end(), Tree< K, E >::end(), m_FdBitmap, m_FdLock, m_FdMap, m_LastFd, List< T, nodePoolSize >::pushBack(), Vector< T >::pushBack(), Semaphore::release(), and Tree< K, E >::take().

Referenced by copyDescriptors(), exit(), invoke(), and ~PosixSubsystem().

Here is the caller graph for this function:

◆ getAbi()

Abi PosixSubsystem::getAbi ( ) const

inline

Retrieves the currently-active ABI for the subsystem.

Definition at line 755 of file PosixSubsystem.h.

Referenced by threadException().

Here is the caller graph for this function:

◆ getFd()

size_t PosixSubsystem::getFd ( size_t minimum = 0 )

Returns the first available file descriptor at or above minimum.

Note: POSIX requires open()/accept()/etc to be safe during a signal handler, which requires us to not allow signals during these file descriptor calls. They cannot re-enter as they take process-specific locks.

Definition at line 1557 of file PosixSubsystem.cc.

References m_FdBitmap, m_FdLock, m_LastFd, m_NextFd, Semaphore::release(), ExtensibleBitmap::set(), and ExtensibleBitmap::test().

◆ getSignalDisposition()

bool PosixSubsystem::getSignalDisposition	(	size_t	sig,
		SignalDisposition &	disposition,
		bool	beginDelivery = `false`
	)

Copies a disposition and, at delivery, atomically consumes SA_RESETHAND.

Definition at line 1298 of file PosixSubsystem.cc.

References UnlikelyLock::acquire(), UnlikelyLock::enter(), PosixSubsystem::SignalHandler::flags, Event::getHandlerAddress(), UnlikelyLock::leave(), m_SignalHandlersLock, PosixSubsystem::SignalHandler::pEvent, UnlikelyLock::release(), PosixSubsystem::SignalHandler::restorer, Event::retire(), PosixSubsystem::SignalHandler::sigMask, and PosixSubsystem::SignalHandler::type.

Referenced by threadException().

Here is the caller graph for this function:

◆ getSignalHandler()

SignalHandler * PosixSubsystem::getSignalHandler ( size_t sig )

inline

Gets a signal handler

Definition at line 490 of file PosixSubsystem.h.

◆ getSyncObject()

PosixSyncObject * PosixSubsystem::getSyncObject ( size_t n )

inline

Gets a synchronisation object given a descriptor

Definition at line 584 of file PosixSubsystem.h.

◆ getThread()

PosixThread * PosixSubsystem::getThread ( size_t n )

inline

Gets a thread given a descriptor

Definition at line 681 of file PosixSubsystem.h.

◆ getThreadWaiter()

Semaphore * PosixSubsystem::getThreadWaiter ( void * n )

inline

Gets a thread waiter object given a descriptor

Definition at line 700 of file PosixSubsystem.h.

◆ insertSyncObject()

void PosixSubsystem::insertSyncObject	(	size_t	n,
		PosixSyncObject *	sem
	)

inline

Inserts a synchronisation object given a descriptor

Definition at line 589 of file PosixSubsystem.h.

◆ insertThread()

void PosixSubsystem::insertThread	(	size_t	n,
		PosixThread *	thread
	)

inline

Inserts a thread given a descriptor and a Thread

Todo:: It might be safe to delete the pointer... We'll see.

Definition at line 686 of file PosixSubsystem.h.

◆ insertThreadWaiter()

void * PosixSubsystem::insertThreadWaiter ( Semaphore * waiter )

inline

Inserts a thread waiter object, returns a descriptor

Definition at line 705 of file PosixSubsystem.h.

◆ installFileDescriptor()

size_t PosixSubsystem::installFileDescriptor	(	FileDescriptor *	descriptor,
		DescriptorLease &	lease,
		size_t	minimum = `0`
	)

Allocates and publishes a descriptor while returning a pin for that exact table generation. This lets multi-descriptor operations roll back safely if a later userspace copyout fails.

Definition at line 1993 of file PosixSubsystem.cc.

References FileDescriptor::fd, Tree< K, E >::insert(), m_FdBitmap, m_FdLock, m_FdMap, m_LastFd, m_NextFd, Semaphore::release(), ExtensibleBitmap::set(), and ExtensibleBitmap::test().

◆ invalidateUserImage()

void PosixSubsystem::invalidateUserImage ( )

Definition at line 383 of file PosixSubsystem.cc.

◆ invoke() [1/8]

bool PosixSubsystem::invoke	(	const char *	name,
		Vector< String > &	argv,
		Vector< String > &	env
	)

virtual

Invokes the given command (thread mechanism).

Implements Subsystem.

Definition at line 2427 of file PosixSubsystem.cc.

References invoke().

Referenced by invoke(), invoke(), invoke(), and invoke().

Here is the caller graph for this function:

◆ invoke() [2/8]

bool PosixSubsystem::invoke	(	const char *	name,
		Vector< String > &	argv,
		Vector< String > &	env,
		SyscallState &	state
	)

virtual

Invokes the given command (SyscallState mechanism).

Implements Subsystem.

Definition at line 2431 of file PosixSubsystem.cc.

References invoke().

◆ invoke() [3/8]

bool PosixSubsystem::invoke	(	const char *	name,
		Vector< String > &	argv,
		Vector< String > &	env,
		SyscallState *	state
	)

private

Definition at line 2523 of file PosixSubsystem.cc.

◆ invoke() [4/8]

bool PosixSubsystem::invoke	(	const FilesystemPathRef &	originalPath,
		const String &	originalName,
		Vector< String > &	argv,
		Vector< String > &	env,
		SyscallState &	state,
		bool	descriptorPathInaccessible = `false`
	)

Definition at line 2556 of file PosixSubsystem.cc.

◆ invoke() [5/8]

bool PosixSubsystem::invoke	(	File *	originalFile,
		const String &	originalName,
		Vector< String > &	argv,
		Vector< String > &	env
	)

virtual

Invokes the given file (thread mechanism).

Implements Subsystem.

Definition at line 2540 of file PosixSubsystem.cc.

References invoke().

◆ invoke() [6/8]

bool PosixSubsystem::invoke	(	File *	originalFile,
		const String &	originalName,
		Vector< String > &	argv,
		Vector< String > &	env,
		SyscallState &	state
	)

virtual

Invokes the given file (SyscallState mechanism).

Implements Subsystem.

Definition at line 2545 of file PosixSubsystem.cc.

References invoke().

◆ invoke() [7/8]

bool PosixSubsystem::invoke	(	File *	originalFile,
		const String &	originalName,
		Vector< String > &	argv,
		Vector< String > &	env,
		SyscallState &	state,
		bool	descriptorPathInaccessible
	)

Definition at line 2550 of file PosixSubsystem.cc.

◆ invoke() [8/8]

bool PosixSubsystem::invoke	(	File *	originalFile,
		const String &	originalName,
		Vector< String > &	argv,
		Vector< String > &	env,
		SyscallState *	state,
		bool	descriptorPathInaccessible = `false`,
		const FilesystemPathRef &	originalPath = `FilesystemPathRef()`
	)

private

Invokes the given command - actual implementation.

Definition at line 2563 of file PosixSubsystem.cc.

References Thread::adoptInitialUserStackForExec(), VFS::checkAccess(), Vector< T >::count(), Thread::deferSignalExit(), Process::description(), Thread::discardUserStackMetadataForExec(), VirtualAddressSpace::Execute, freeMultipleFds(), Process::getAddressSpace(), Process::getId(), File::getName(), PhysicalMemoryManager::getPageSize(), Thread::getParent(), Thread::getUnwindState(), Process::getUserId(), Process::getUserspaceId(), ProcessorBase::information(), MemoryMapManager::instance(), SyscallManager::instance(), loadElf(), m_TraceContext, MemoryMapManager::mapAnon(), parseShebang(), Vector< T >::popFront(), prepareExecutable(), Vector< T >::pushFront(), File::read(), Process::releaseVforkAddressSpace(), Thread::resetTlsBase(), VirtualAddressSpace::revertToKernelAddressSpace(), Thread::setClearChildTid(), ProcessorBase::setInterrupts(), Thread::startDetached(), Thread::state(), Thread::TerminateThread, and MemoryMapManager::unmapAll().

◆ kill()

bool PosixSubsystem::kill	(	KillReason	killReason,
		Thread *	pThread
	)

virtual

A thread needs to be killed!

Implements Subsystem.

Definition at line 951 of file PosixSubsystem.cc.

References Process::getId(), Thread::getParent(), ProcessorBase::information(), Scheduler::instance(), queueSignalDelivery(), ProcessorBase::setInterrupts(), and Scheduler::yield().

◆ loadElf()

bool PosixSubsystem::loadElf	(	const ExecutableImage &	image,
		uintptr_t &	loadBias
	)

private

Load a validated ELF's PT_LOAD sections into the address space.

Definition at line 2241 of file PosixSubsystem.cc.

References File::getName(), PhysicalMemoryManager::getPageSize(), Process::getParent(), Hex, ProcessorBase::information(), MemoryMapManager::instance(), and Elf::validateExecutableProgramHeaders().

Referenced by invoke().

Here is the caller graph for this function:

◆ matchesUserImage()

bool PosixSubsystem::matchesUserImage ( const UserImageToken & token ) const

Definition at line 377 of file PosixSubsystem.cc.

◆ memoryLockAccount()

PosixMemoryLockAccount & PosixSubsystem::memoryLockAccount ( )

inline

Definition at line 485 of file PosixSubsystem.h.

◆ namespaceContext()

SharedPointer< PosixNamespaceContext > PosixSubsystem::namespaceContext ( ) const

inline

Definition at line 253 of file PosixSubsystem.h.

◆ parseShebang()

bool PosixSubsystem::parseShebang	(	File *	pFile,
		String &	interpreter,
		String &	optionalArgument,
		bool &	hasOptionalArgument
	)

private

Parse a bounded shebang line, if present.

Definition at line 2436 of file PosixSubsystem.cc.

References File::getFullPath(), and File::read().

Referenced by invoke().

Here is the caller graph for this function:

◆ pendingSignalChanged()

ConditionVariable & PosixSubsystem::pendingSignalChanged ( )

inline

Definition at line 475 of file PosixSubsystem.h.

◆ pendingSignalContext()

SharedPointer< PendingSignalContext > PosixSubsystem::pendingSignalContext ( )

inline

Definition at line 469 of file PosixSubsystem.h.

◆ pendingSignalLock()

Mutex & PosixSubsystem::pendingSignalLock ( )

inline

Definition at line 472 of file PosixSubsystem.h.

◆ prepareExecutable()

bool PosixSubsystem::prepareExecutable	(	File *	pFile,
		ExecutableImage &	image,
		bool	isInterpreter
	)

private

Validate and retain the bounded metadata needed to load an executable.

Definition at line 2134 of file PosixSubsystem.cc.

References File::acquireMappingUse(), VirtualAddressSpace::getUserReservedStart(), VirtualAddressSpace::getUserStart(), ProcessorBase::information(), File::read(), Elf::validateExecutableHeader(), Elf::validateExecutableInterpreter(), and Elf::validateExecutableProgramHeaders().

Referenced by invoke().

Here is the caller graph for this function:

◆ prepareThreadsForExec()

void PosixSubsystem::prepareThreadsForExec ( Thread * owner )

privatevirtual

Preserves process state after exec admission closes and before peers exit.

Reimplemented from Subsystem.

Definition at line 2027 of file PosixSubsystem.cc.

References Process::acquireThread(), Process::getNumThreads(), m_SignalHandlersLock, and Thread::transferProcessSignalsTo().

◆ prepareTraceSignal()

TraceStatus PosixSubsystem::prepareTraceSignal	(	Thread &	thread,
		int	signal,
		int32_t	pid,
		uint32_t	uid,
		bool	inheritReservation,
		UniquePointer< SignalEvent > &	result
	)

Definition at line 45 of file trace-signals.cc.

◆ preserveProcessSignalsForThreadExit()

void PosixSubsystem::preserveProcessSignalsForThreadExit ( Thread * thread )

privatevirtual

Preserves process-owned pending work before an exiting thread drains it.

Reimplemented from Subsystem.

Definition at line 2041 of file PosixSubsystem.cc.

References Process::acquireProcessSignalThread(), m_SignalHandlersLock, and Thread::transferProcessSignalsTo().

◆ publishFdEntries()

void PosixSubsystem::publishFdEntries ( )

private

Definition at line 1797 of file PosixSubsystem.cc.

◆ publishFdEntry()

void PosixSubsystem::publishFdEntry ( size_t fd )

private

Definition at line 1765 of file PosixSubsystem.cc.

◆ publishTraceSignal()

bool PosixSubsystem::publishTraceSignal	(	Thread &	thread,
		UniquePointer< SignalEvent > &	prepared,
		SignalEvent *	source
	)

Definition at line 76 of file trace-signals.cc.

◆ publishUserImage()

bool PosixSubsystem::publishUserImage ( VirtualAddressSpace & space )

Definition at line 389 of file PosixSubsystem.cc.

◆ queueSignalDelivery()

PosixSubsystem::SignalDeliveryResult PosixSubsystem::queueSignalDelivery	(	Thread *	target,
		size_t	sig,
		uint32_t *	flags = `nullptr`,
		int32_t	signalCode = `0`,
		bool	processDirected = `false`,
		uint64_t	signalValue = `0`,
		const SharedPointer< SignalEventState > &	state = `SharedPointer<SignalEventState>()`
	)

Resolves and queues a signal atomically with disposition replacement.

Definition at line 1344 of file PosixSubsystem.cc.

References UnlikelyLock::acquire(), Process::acquireProcessSignalThread(), Process::acquireThread(), SignalEvent::cloneForDelivery(), Thread::Continue, Thread::cullSignalEvent(), PosixSubsystem::SignalHandler::flags, SharedPointer< T >::get(), Process::getExitStatus(), Process::getNumThreads(), Process::getParent(), Thread::getParent(), Thread::getSignalMask(), Thread::getUnwindState(), Process::getUserId(), Process::getUserspaceId(), Process::getUserTime(), Thread::hasSignalEvent(), ProcessorBase::information(), LinuxPrivateSignalFirst, m_SignalHandlersLock, m_TraceContext, PosixSubsystem::SignalHandler::pEvent, UnlikelyLock::release(), Process::resume(), Thread::sendEvent(), SignalEvent::setSignalOrigin(), and PosixSubsystem::SignalHandler::type.

Referenced by kill(), and sendSignal().

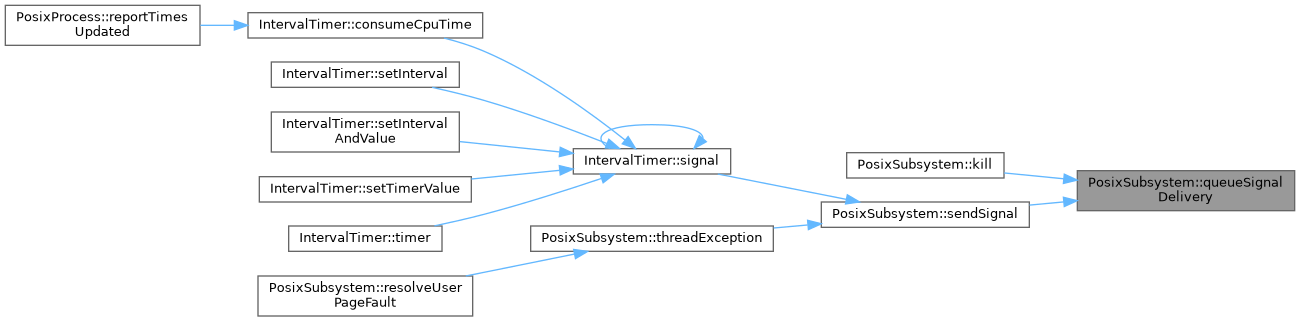

Here is the caller graph for this function:

◆ readCachedFile()

size_t PosixSubsystem::readCachedFile	(	File &	file,
		uint64_t	offset,
		void *	destination,
		size_t	count
	)

static

Copies a resident file prefix directly into an anonymous user buffer. Zero requests the ordinary read/copy fallback, including for file mappings which might alias the source. No backend read runs under the mapping gate.

Definition at line 782 of file PosixSubsystem.cc.

References MemoryMapManager::instance(), File::readCached(), File::supportsRegularFileOperations(), and MemoryMapManager::writableAnonymousRange().

◆ recordAffinityPolicyUse()

void PosixSubsystem::recordAffinityPolicyUse ( )

inline

Definition at line 436 of file PosixSubsystem.h.

◆ release()

void PosixSubsystem::release ( )

virtual

Release mutual exclusion acquired via acquire().

Reimplemented from Subsystem.

Definition at line 562 of file PosixSubsystem.cc.

References Spinlock::acquire(), m_bAcquired, m_FdLock, m_Lock, m_pAcquiredThread, m_SignalHandlersLock, Spinlock::release(), UnlikelyLock::release(), and Semaphore::release().

Referenced by ~PosixSubsystem().

Here is the caller graph for this function:

◆ removeSyncObject()

void PosixSubsystem::removeSyncObject ( size_t n )

inline

Removes a semaphore given a descriptor

Definition at line 600 of file PosixSubsystem.h.

◆ removeThread()

void PosixSubsystem::removeThread ( size_t n )

inline

Removes a thread given a descriptor

Todo:: It might be safe to delete the pointer... We'll see.

Definition at line 695 of file PosixSubsystem.h.

◆ removeThreadWaiter()

void PosixSubsystem::removeThreadWaiter ( void * n )

inline

Removes a thread waiter object given a descriptor

Definition at line 715 of file PosixSubsystem.h.

◆ resetSignalHandlersForExec()

void PosixSubsystem::resetSignalHandlersForExec	(	Thread *	thread,
		SignalHandler *const	handlers[SignalDispositionCount]
	)

Installs a complete exec-time disposition table and rebinds pending deliveries to it. Takes ownership of every entry in handlers.

Definition at line 1257 of file PosixSubsystem.cc.

References UnlikelyLock::acquire(), Process::getNumThreads(), Thread::getParent(), m_SignalHandlersLock, PosixSubsystem::SignalHandler::pEvent, UnlikelyLock::release(), and PosixSubsystem::SignalHandler::sig.

◆ resolveUserPageFault()

bool PosixSubsystem::resolveUserPageFault	(	Thread &	,
		InterruptState &	,
		uintptr_t	,
		uintptr_t
	)

overridevirtual

Retry a userspace page fault after raw interrupt scopes have retired.

Reimplemented from Subsystem.

Definition at line 987 of file PosixSubsystem.cc.

References Process::getAddressSpace(), ProcessorBase::getInterrupts(), Thread::getParent(), ProcessorBase::information(), MemoryMapManager::instance(), and threadException().

◆ retireDescriptor()

void PosixSubsystem::retireDescriptor ( FileDescriptor * descriptor )

Definition at line 2054 of file PosixSubsystem.cc.

◆ sendSignal()

void PosixSubsystem::sendSignal	(	Thread *	pThread,
		int	signal,
		bool	yield = `true`,
		bool	processDirected = `false`
	)

virtual

Send a POSIX signal to a thread or its process.

Definition at line 1156 of file PosixSubsystem.cc.

References PerProcessorScheduler::checkEventState(), Dec, Process::getId(), Thread::getId(), Thread::getParent(), Thread::getScheduler(), ProcessorBase::information(), Scheduler::instance(), queueSignalDelivery(), and Scheduler::yield().

Referenced by IntervalTimer::signal(), and threadException().

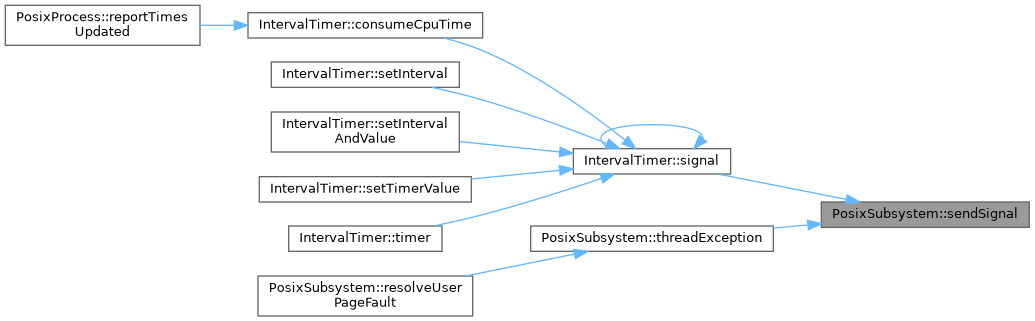

Here is the caller graph for this function:

◆ setAbi()

void PosixSubsystem::setAbi ( Abi which )

inline

Switch the ABI of the subsystem to the specified choice.

Definition at line 760 of file PosixSubsystem.h.

◆ setProcess()

void PosixSubsystem::setProcess ( Process * p )

overridevirtual

Sets the process that this subsystem is linked to.

Reimplemented from Subsystem.

Definition at line 329 of file PosixSubsystem.cc.

References Process::getAddressSpace(), MemoryMapManager::instance(), m_TraceContext, and Subsystem::setProcess().

◆ setSignalHandler()

void PosixSubsystem::setSignalHandler	(	size_t	sig,
		SignalHandler *	handler
	)

Sets a signal handler

Definition at line 1202 of file PosixSubsystem.cc.

References UnlikelyLock::acquire(), Process::acquireThread(), Thread::cullSignalEvent(), Dec, Process::getNumThreads(), m_SignalHandlersLock, PosixSubsystem::SignalHandler::pEvent, UnlikelyLock::release(), PosixSubsystem::SignalHandler::sig, and PosixSubsystem::SignalHandler::type.

◆ snapshotUserImage()

bool PosixSubsystem::snapshotUserImage ( UserImageToken & token ) const

Definition at line 367 of file PosixSubsystem.cc.

◆ threadException()

void PosixSubsystem::threadException	(	Thread *	pThread,
		ExceptionType	eType,
		InterruptState *	pState = `nullptr`,
		uintptr_t	faultAddress = `0`,
		uintptr_t	errorCode = `0`
	)

virtual

A thread has thrown an exception!

Reimplemented from Subsystem.

Definition at line 1011 of file PosixSubsystem.cc.

References Dec, Thread::deferSignalExit(), EMIT_IF, getAbi(), Process::getId(), Thread::getId(), Thread::getParent(), getSignalDisposition(), Thread::getTlsBase(), Hex, ProcessorBase::id(), and sendSignal().

Referenced by resolveUserPageFault().

Here is the caller graph for this function:

◆ threadExiting()

void PosixSubsystem::threadExiting ( Thread * pThread )

privatevirtual

Notifies the subsystem immediately before a thread announces exit.

Reimplemented from Subsystem.

Definition at line 2069 of file PosixSubsystem.cc.

References Thread::getParent(), Process::getUserspaceId(), and m_TraceContext.

◆ threadRemoved()

void PosixSubsystem::threadRemoved ( Thread * pThread )

privatevirtual

Notifies the subsystem that the given thread has been removed.

Reimplemented from Subsystem.

Definition at line 2114 of file PosixSubsystem.cc.

References Completion::complete(), and m_Threads.

◆ traceContext()

PosixTraceContext & PosixSubsystem::traceContext ( )

inline

Definition at line 261 of file PosixSubsystem.h.

◆ traceException()

bool PosixSubsystem::traceException	(	Thread &	thread,
		int &	signal,
		InterruptState &	state,
		ExceptionType	exception,
		uintptr_t	address,
		uintptr_t	errorCode
	)

Definition at line 180 of file trace-signals.cc.

◆ tracePolicyAllowed()

bool PosixSubsystem::tracePolicyAllowed ( ) const

inline

Definition at line 264 of file PosixSubsystem.h.

◆ userReturnCheckpoint()

Subsystem::UserReturnResult PosixSubsystem::userReturnCheckpoint	(	Thread &	thread,
		UserReturnFrame &	frame
	)

overridevirtual

Reimplemented from Subsystem.

Definition at line 156 of file trace-signals.cc.

◆ userReturnEvent()

Subsystem::UserReturnEventResult PosixSubsystem::userReturnEvent	(	Thread &	thread,
		Event &	event,
		UserReturnFrame &	frame
	)

overridevirtual

Reimplemented from Subsystem.

Definition at line 103 of file trace-signals.cc.

Member Data Documentation

◆ FdBuckets

constexpr size_t PosixSubsystem::FdBuckets = 16

staticconstexprprivate

Definition at line 767 of file PosixSubsystem.h.

◆ LinuxPrivateSignalFirst

constexpr size_t PosixSubsystem::LinuxPrivateSignalFirst = 32

staticconstexpr

Bundled musl reserves these signals for its timer, cancellation, and synchronous-call machinery. Public realtime signals occupy 35..64.

Definition at line 192 of file PosixSubsystem.h.

Referenced by queueSignalDelivery().

◆ m_Abi

Abi PosixSubsystem::m_Abi

private

ABI for the subsystem This affects syscall parameters and the behaviors of some syscalls.

Definition at line 859 of file PosixSubsystem.h.

◆ m_AdvisoryOwner

AdvisoryOwner PosixSubsystem::m_AdvisoryOwner

private

Definition at line 805 of file PosixSubsystem.h.

◆ m_bAcquired

bool PosixSubsystem::m_bAcquired

private

Are we acquired?

Definition at line 864 of file PosixSubsystem.h.

Referenced by acquire(), and release().

◆ m_CallbackSchedulingDomain

CallbackSchedulingDomain PosixSubsystem::m_CallbackSchedulingDomain = CallbackSchedulingDomain::Unrestricted

private

Definition at line 803 of file PosixSubsystem.h.

◆ m_CommandLine

Vector<String> PosixSubsystem::m_CommandLine

private

Definition at line 853 of file PosixSubsystem.h.

◆ m_ExecutablePath

FilesystemPathRef PosixSubsystem::m_ExecutablePath

private

Definition at line 852 of file PosixSubsystem.h.

◆ m_FdBitmap

ExtensibleBitmap PosixSubsystem::m_FdBitmap

private

File descriptors used by this process

Definition at line 831 of file PosixSubsystem.h.

Referenced by addFileDescriptor(), allocateFd(), closeFileDescriptor(), copyDescriptors(), duplicateFileDescriptor(), freeFd(), freeMultipleFds(), getFd(), and installFileDescriptor().

◆ m_FdEntries

RcuPointer<FdEntry> PosixSubsystem::m_FdEntries[FdBuckets]

private

Definition at line 818 of file PosixSubsystem.h.

◆ m_FdLock

Mutex PosixSubsystem::m_FdLock

private

Serializes descriptor mutation, enumeration, and allocation metadata. Ordinary lookup retains a lease through m_FdEntries under RCU.

Definition at line 827 of file PosixSubsystem.h.

Referenced by acquireNextFileDescriptor(), addFileDescriptor(), allocateFd(), closeFileDescriptor(), copyDescriptors(), descriptorMatchesOpenDescription(), duplicateFileDescriptor(), freeFd(), freeMultipleFds(), getFd(), installFileDescriptor(), and release().

◆ m_FdMap

Tree<size_t, SharedPointer<FileDescriptor> > PosixSubsystem::m_FdMap

private

The file descriptor map. Maps number to pointers, the type of which is decided by the subsystem.

Definition at line 817 of file PosixSubsystem.h.

Referenced by acquireNextFileDescriptor(), addFileDescriptor(), closeFileDescriptor(), copyDescriptors(), descriptorMatchesOpenDescription(), duplicateFileDescriptor(), freeFd(), freeMultipleFds(), and installFileDescriptor().

◆ m_FreeCount

int PosixSubsystem::m_FreeCount

private

Number of times freed

Definition at line 839 of file PosixSubsystem.h.

Referenced by ~PosixSubsystem().

◆ m_ImageMetadataLock

Mutex PosixSubsystem::m_ImageMetadataLock

mutableprivate

Definition at line 851 of file PosixSubsystem.h.

◆ m_LastFd

size_t PosixSubsystem::m_LastFd

private

Last known unallocated descriptor

Definition at line 835 of file PosixSubsystem.h.

Referenced by closeFileDescriptor(), freeFd(), freeMultipleFds(), getFd(), and installFileDescriptor().

◆ m_Lock

Spinlock PosixSubsystem::m_Lock

private

Safety spinlock for mutual exclusion in acquire().

Definition at line 874 of file PosixSubsystem.h.

Referenced by acquire(), and release().

◆ m_MemoryLockAccount

PosixMemoryLockAccount PosixSubsystem::m_MemoryLockAccount

private

Definition at line 806 of file PosixSubsystem.h.

◆ m_Namespaces

SharedPointer<PosixNamespaceContext> PosixSubsystem::m_Namespaces

private

Initial value:

{

SharedPointer<PosixNamespaceContext>::tryAllocate()}

SharedPointer::tryAllocate

static SharedPointer< T > tryAllocate(Args...)

Definition SharedPointer.h:272

Definition at line 807 of file PosixSubsystem.h.

◆ m_NextFd

size_t PosixSubsystem::m_NextFd

private

The next available file descriptor.

Definition at line 822 of file PosixSubsystem.h.

Referenced by addFileDescriptor(), allocateFd(), copyDescriptors(), duplicateFileDescriptor(), getFd(), and installFileDescriptor().

◆ m_NextThreadWaiter

size_t PosixSubsystem::m_NextThreadWaiter

private

Definition at line 850 of file PosixSubsystem.h.

◆ m_pAcquiredThread

Thread* PosixSubsystem::m_pAcquiredThread

private

Which thread acquired?

Definition at line 869 of file PosixSubsystem.h.

Referenced by acquire(), and release().

◆ m_PendingSignals

SharedPointer<PendingSignalContext> PosixSubsystem::m_PendingSignals {new PendingSignalContext}

private

Definition at line 804 of file PosixSubsystem.h.

◆ m_SignalHandlers

Tree<size_t, SignalHandler*> PosixSubsystem::m_SignalHandlers

private

Definition at line 798 of file PosixSubsystem.h.

◆ m_SignalHandlersLock

UnlikelyLock PosixSubsystem::m_SignalHandlersLock

private

A lock for access to the signal handlers tree

Definition at line 801 of file PosixSubsystem.h.

Referenced by acquire(), getSignalDisposition(), PosixSubsystem(), prepareThreadsForExec(), preserveProcessSignalsForThreadExit(), queueSignalDelivery(), release(), resetSignalHandlersForExec(), and setSignalHandler().

◆ m_SyncObjects

Tree<size_t, PosixSyncObject*> PosixSubsystem::m_SyncObjects

private

Links some file descriptors to PosixSyncObjects.

Definition at line 841 of file PosixSubsystem.h.

Referenced by ~PosixSubsystem().

◆ m_Threads

Tree<size_t, PosixThread*> PosixSubsystem::m_Threads

private

Links some thread handles to Threads.

Definition at line 845 of file PosixSubsystem.h.

Referenced by threadRemoved(), and ~PosixSubsystem().

◆ m_ThreadWaiters

Tree<void*, Semaphore*> PosixSubsystem::m_ThreadWaiters

private

Links waiter objects to Semaphores.

Definition at line 849 of file PosixSubsystem.h.

Referenced by PosixSubsystem(), and ~PosixSubsystem().

◆ m_TraceContext

PosixTraceContext PosixSubsystem::m_TraceContext

private

Signal handlers

Definition at line 797 of file PosixSubsystem.h.

Referenced by exit(), invoke(), queueSignalDelivery(), setProcess(), threadExiting(), and ~PosixSubsystem().

◆ m_UserImageActive

bool PosixSubsystem::m_UserImageActive = false

private

Definition at line 811 of file PosixSubsystem.h.

◆ m_UserImageGeneration

uint64_t PosixSubsystem::m_UserImageGeneration = 0

private

Definition at line 810 of file PosixSubsystem.h.

◆ m_UserImageSpace

VirtualAddressSpace* PosixSubsystem::m_UserImageSpace = nullptr

private

Definition at line 809 of file PosixSubsystem.h.

◆ MaximumExecArgumentBytes

constexpr size_t PosixSubsystem::MaximumExecArgumentBytes = 131072

staticconstexpr

Definition at line 307 of file PosixSubsystem.h.

◆ MaximumSupportedSignal

constexpr size_t PosixSubsystem::MaximumSupportedSignal = 64

staticconstexpr

Definition at line 193 of file PosixSubsystem.h.

◆ SafeExecute

const size_t PosixSubsystem::SafeExecute = 0x4

static

Definition at line 186 of file PosixSubsystem.h.

◆ SafeRead

const size_t PosixSubsystem::SafeRead = 0x1

static

Definition at line 184 of file PosixSubsystem.h.

◆ SafeRegion

const size_t PosixSubsystem::SafeRegion = 0x0

static

Sanitise flags.

Definition at line 183 of file PosixSubsystem.h.

◆ SafeWrite

const size_t PosixSubsystem::SafeWrite = 0x2

static

Definition at line 185 of file PosixSubsystem.h.

◆ SignalDispositionCount

constexpr size_t PosixSubsystem::SignalDispositionCount = MaximumSupportedSignal + 1

staticconstexpr

Definition at line 194 of file PosixSubsystem.h.

The documentation for this class was generated from the following files:

Classes

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Private Types

Private Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ Abi

◆ CallbackSchedulingDomain

◆ DescriptorDuplicationResult

◆ SignalDeliveryResult

◆ UserStringResult

Constructor & Destructor Documentation

◆ PosixSubsystem() [1/3]

◆ PosixSubsystem() [2/3]

◆ PosixSubsystem() [3/3]

◆ ~PosixSubsystem()

Member Function Documentation

◆ acquire()

◆ acquireFdLock()

◆ acquireFileDescriptor()

◆ acquireNextFileDescriptor()

◆ addFileDescriptor()

◆ admitLegacyUserSignals()

◆ advisoryOwner()

◆ affinityPolicyAllowed()

◆ allocateFd()

◆ checkAccess()

◆ checkAddress()

◆ checkedUserBufferSize()

◆ checkUserAddressRange()

◆ checkUserBuffer()

◆ clearChildTid()

◆ closeFileDescriptor()

◆ commandLine()

◆ copyDescriptors()

◆ copyFromUser()

◆ copyToUser()

◆ copyUserString()

◆ descriptorMatchesOpenDescription()

◆ duplicateFileDescriptor()

◆ executablePath() [1/2]

◆ executablePath() [2/2]

◆ exit()

◆ filesystemAccess()

◆ filesystemConstrained()

◆ filesystemReparent()

◆ findFileRetained()

◆ followFile()

◆ freeFd()

◆ freeMultipleFds()

◆ getAbi()

◆ getFd()

◆ getSignalDisposition()

◆ getSignalHandler()

◆ getSyncObject()

◆ getThread()

◆ getThreadWaiter()

◆ insertSyncObject()

◆ insertThread()

◆ insertThreadWaiter()

◆ installFileDescriptor()

◆ invalidateUserImage()

◆ invoke() [1/8]

◆ invoke() [2/8]

◆ invoke() [3/8]

◆ invoke() [4/8]

◆ invoke() [5/8]

◆ invoke() [6/8]

◆ invoke() [7/8]

◆ invoke() [8/8]

◆ kill()

◆ loadElf()

◆ matchesUserImage()

◆ memoryLockAccount()
