Process Class Reference

#include <Process.h>

Inheritance diagram for Process:

Collaboration diagram for Process:

Classes
struct	ProcessMetadata

Public Types
enum	ProcessType { Stock, Posix }
enum	ProcessState {   Active, Suspended, Terminating, Terminated,   Reaped }

Public Member Functions
	Process ()
	Process (Process *pParent, bool bCopyOnWrite=true)
virtual	~Process ()
size_t	addThread (Thread *pThread)
void	removeThread (Thread *pThread)
size_t	getNumThreads ()
Thread *	getThread (size_t n)
size_t	getId ()
LargeStaticString &	description ()
VirtualAddressSpace *	getAddressSpace ()
void	setExitStatus (int code)
int	getExitStatus ()
void	reap ()
void	kill () NORETURN
void	suspend ()
void	resume ()
Process *	getParent ()
File *	getCwd ()
void	setCwd (File *f)
File *	getCtty ()
void	setCtty (File *f)
MemoryAllocator &	getSpaceAllocator ()
MemoryAllocator &	getDynamicSpaceAllocator ()
User *	getUser () const
void	setUser (User *pUser)
User *	getEffectiveUser () const
void	setEffectiveUser (User *pUser)
Group *	getGroup () const
void	setGroup (Group *pGroup)
Group *	getEffectiveGroup () const
void	setEffectiveGroup (Group *pGroup)
virtual int64_t	getUserId () const
virtual int64_t	getGroupId () const
virtual int64_t	getEffectiveUserId () const
virtual int64_t	getEffectiveGroupId () const
virtual void	getSupplementalGroupIds (Vector< int64_t > &vec) const
void	setLinker (DynamicLinker *pDl)
DynamicLinker *	getLinker ()
void	setSubsystem (Subsystem *pSubsystem)
Subsystem *	getSubsystem ()
virtual ProcessType	getType ()
void	addWaiter (Semaphore *pWaiter)
void	removeWaiter (Semaphore *pWaiter)
size_t	waiterCount () const
bool	hasSuspended ()
bool	hasResumed ()
ProcessState	getState () const
void	markTerminating ()
void	trackHeap (ssize_t nBytes)
void	trackPages (ssize_t nVirtual, ssize_t nPhysical, ssize_t nShared)
void	resetCounts ()
void	recordTime (bool bUserspace)
void	trackTime (bool bUserspace)
Time::Timestamp	getUserTime () const
Time::Timestamp	getKernelTime () const
Time::Timestamp	getStartTime () const
ssize_t	getHeapUsage () const
ssize_t	getVirtualPageCount () const
ssize_t	getPhysicalPageCount () const
ssize_t	getSharedPageCount () const
void	setRootFile (File *pFile)
File *	getRootFile () const
bool	hasSharedAddressSpace () const

Static Public Member Functions
static Process *	getInit ()
static void	setInit (Process *pProcess)

Public Attributes
Semaphore	m_DeadThreads

Private Member Functions
	Process (const Process &)
Process &	operator= (const Process &)
virtual void	reportTimesUpdated (Time::Timestamp user, Time::Timestamp system)
virtual void	processTerminated ()
void	notifyWaiters ()

Private Attributes
Vector< Thread * >	m_Threads
Atomic< size_t >	m_NextTid
size_t	m_Id
LargeStaticString	str
Process *	m_pParent
VirtualAddressSpace *	m_pAddressSpace
int	m_ExitStatus
File *	m_Cwd
File *	m_Ctty
MemoryAllocator	m_SpaceAllocator
MemoryAllocator	m_DynamicSpaceAllocator
User *	m_pUser
Group *	m_pGroup
User *	m_pEffectiveUser
Group *	m_pEffectiveGroup
DynamicLinker *	m_pDynamicLinker
Subsystem *	m_pSubsystem
List< Semaphore * >	m_Waiters
bool	m_bUnreportedSuspend
bool	m_bUnreportedResume
ProcessState	m_State
Thread::Status	m_BeforeSuspendState
Spinlock	m_Lock
struct Process::ProcessMetadata	m_Metadata
Time::Timestamp	m_LastKernelEntry
Time::Timestamp	m_LastUserspaceEntry
File *	m_pRootFile
bool	m_bSharedAddressSpace

Static Private Attributes
static Process *	m_pInitProcess = 0

Friends
class	Thread

Detailed Description

An abstraction of a Process - a container for one or more threads all running in the same address space.

Definition at line 50 of file Process.h.

Member Enumeration Documentation

enum Process::ProcessState

Processes have their own state, aside from the state of their threads. These states are very general and don't reflect the current scheduling state of the process as a whole in intricate detail.

Definition at line 72 of file Process.h.

enum Process::ProcessType

Subsystems may inherit Process to provide custom functionality. However, they need to know whether a Process pointer is subsystem-specific. This enumeration is designed to allow functions using Process objects in subsystems with inherited Process objects to be able to figure out what type the Process is without depending on any external accounting.

Definition at line 61 of file Process.h.

Constructor & Destructor Documentation

Process::Process

(

)

Default constructor.

Definition at line 49 of file Process.cc.

References Scheduler::addProcess(), RangeList< T, Reversed >::free(), getAddressSpace(), getDynamicSpaceAllocator(), getSpaceAllocator(), Scheduler::instance(), m_Id, and Process::ProcessMetadata::startTime.

Process::Process	(	Process *	pParent,
		bool	bCopyOnWrite = true
	)

Constructor for creating a new Process. Creates a new Process as a UNIX fork() would, from the given parent process. This constructor does not create any threads.

Parameters

pParent	The parent process.
bCopyOnWrite	Whether to mark the address space copy-on-write (default) or to share it read/write with the new child.

Definition at line 78 of file Process.cc.

References Scheduler::addProcess(), VirtualAddressSpace::clone(), Scheduler::instance(), m_bSharedAddressSpace, m_Id, m_pAddressSpace, m_pParent, and str.

Process::~Process ( )

virtual

Destructor.

Definition at line 109 of file Process.cc.

References Subsystem::acquire(), Vector< T >::begin(), Thread::detached(), Vector< T >::end(), Processor::getInterrupts(), Processor::information(), Scheduler::instance(), m_Lock, m_pAddressSpace, m_pSubsystem, m_State, m_Threads, Scheduler::removeProcess(), VirtualAddressSpace::revertToKernelAddressSpace(), Processor::setInterrupts(), Thread::setStatus(), Thread::shutdown(), str, and Processor::switchAddressSpace().

Member Function Documentation

size_t Process::addThread

(

Thread *

pThread

)

Adds a thread to this process.

Returns

The thread ID to be assigned to the new Thread.

Definition at line 189 of file Process.cc.

References m_Lock, m_NextTid, m_Threads, and Vector< T >::pushBack().

Referenced by Thread::Thread().

Here is the caller graph for this function:

LargeStaticString& Process::description ( )

inline

Returns the description string of this process.

Definition at line 114 of file Process.h.

Referenced by ThreadsCommand::execute(), PosixSubsystem::invoke(), and Rtc::irq().

Here is the caller graph for this function:

VirtualAddressSpace* Process::getAddressSpace ( )

inline

Returns our address space

Definition at line 120 of file Process.h.

Referenced by PerProcessorScheduler::addThread(), Thread::cleanStateLevel(), MemoryMapManager::clone(), Thread::getTlsBase(), PosixSubsystem::invoke(), PerProcessorScheduler::killCurrentThread(), X64VirtualAddressSpace::mapUnlocked(), Process(), PerProcessorScheduler::schedule(), X86VirtualAddressSpace::X86VirtualAddressSpace(), PosixSubsystem::~PosixSubsystem(), and Thread::~Thread().

Here is the caller graph for this function:

File* Process::getCtty ( )

inline

Returns the current controlling terminal.

Definition at line 167 of file Process.h.

File* Process::getCwd ( )

inline

Returns the current working directory.

Definition at line 156 of file Process.h.

Referenced by PosixSubsystem::findFile().

Here is the caller graph for this function:

MemoryAllocator& Process::getDynamicSpaceAllocator ( )

inline

Returns the memory space allocator for dynamic address space.

Definition at line 183 of file Process.h.

Referenced by Elf::allocate(), Thread::getTlsBase(), PosixSubsystem::invoke(), Process(), MemoryMapManager::sanitiseAddress(), and Thread::~Thread().

Here is the caller graph for this function:

Group* Process::getEffectiveGroup ( ) const

inline

Gets the current effective group.

Definition at line 222 of file Process.h.

References Subsystem::setProcess().

Referenced by getUserId().

Here is the caller graph for this function:

User* Process::getEffectiveUser ( ) const

inline

Gets the effective user.

Definition at line 200 of file Process.h.

Referenced by getUserId().

Here is the caller graph for this function:

int Process::getExitStatus ( )

inline

Gets the exit status of the process.

Definition at line 131 of file Process.h.

Referenced by PosixSubsystem::exit(), and WaitCleanup::terminated().

Here is the caller graph for this function:

Group* Process::getGroup ( ) const

inline

Gets the current group.

Definition at line 211 of file Process.h.

Referenced by ProcFs::addProcess(), and getUserId().

Here is the caller graph for this function:

ssize_t Process::getHeapUsage ( ) const

inline

Get process usage.

Definition at line 372 of file Process.h.

Referenced by Rtc::irq().

Here is the caller graph for this function:

size_t Process::getId ( )

inline

Returns the process ID.

Definition at line 108 of file Process.h.

References Thread::m_Id.

Referenced by ProcFs::addProcess(), MemoryPressureProcessKiller::compact(), ThreadsCommand::execute(), AllocationCommand::execute(), PosixSubsystem::exit(), Thread::getTlsBase(), X64InterruptManager::interrupt(), Rtc::irq(), kill(), PosixSubsystem::kill(), ProcFs::removeProcess(), PosixSubsystem::sendSignal(), Thread::setStatus(), X86CommonProcessorInformation::setTlsSelector(), PosixSyscallManager::syscall(), X64SyscallManager::syscall(), WaitCleanup::terminated(), PosixSubsystem::threadException(), and UnixSocket::writeBytewise().

Here is the caller graph for this function:

Process * Process::getInit ( )

static

Get the init process (first userspace process, parent of all userspace processes).

Definition at line 394 of file Process.cc.

References m_pInitProcess.

Referenced by kill().

Here is the caller graph for this function:

size_t Process::getNumThreads

(

)

Returns the number of threads in this process.

Definition at line 219 of file Process.cc.

References Vector< T >::count(), m_Lock, and m_Threads.

Referenced by ThreadsCommand::execute(), and PosixSubsystem::invoke().

Here is the caller graph for this function:

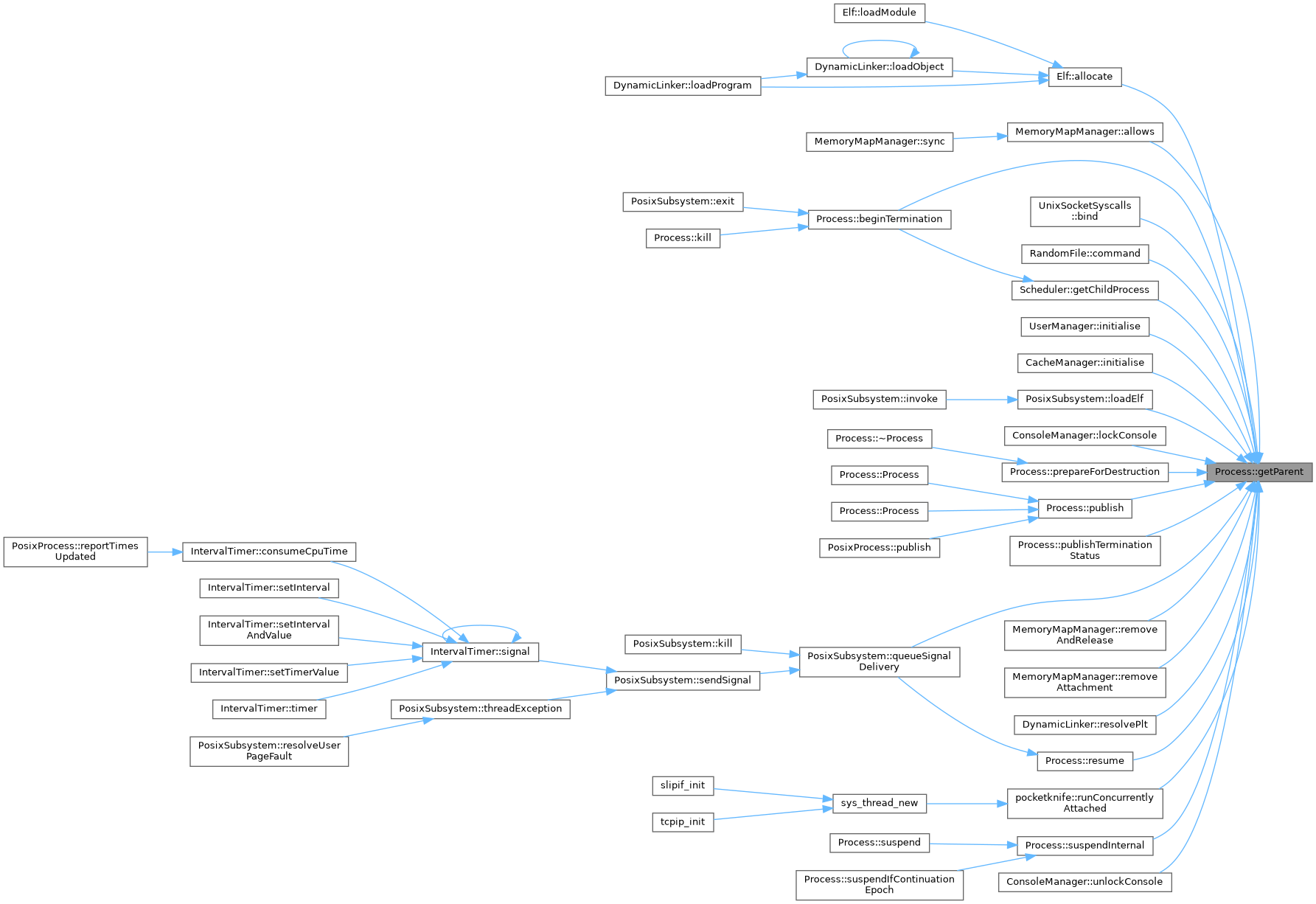

Process* Process::getParent ( )

inline

Returns the parent process.

Definition at line 150 of file Process.h.

References Thread::m_pParent.

Referenced by PosixSubsystem::exit(), and WaitCleanup::terminated().

Here is the caller graph for this function:

File* Process::getRootFile ( ) const

inline

Get this process' root.

Definition at line 396 of file Process.h.

Referenced by Filesystem::getTrueRoot().

Here is the caller graph for this function:

MemoryAllocator& Process::getSpaceAllocator ( )

inline

Returns the memory space allocator for primary address space.

Definition at line 178 of file Process.h.

Referenced by Elf::allocate(), Thread::getTlsBase(), PosixSubsystem::invoke(), Process(), MemoryMapManager::sanitiseAddress(), and Thread::~Thread().

Here is the caller graph for this function:

Thread * Process::getThread

(

size_t

n

)

Returns the n'th thread in this process.

Definition at line 225 of file Process.cc.

References Vector< T >::count(), Dec, FATAL, Hex, m_Lock, m_Threads, and Spinlock::release().

Referenced by MemoryPressureProcessKiller::compact(), ThreadsCommand::execute(), PosixSubsystem::exit(), PosixSubsystem::invoke(), kill(), VirtualTerminalManager::setTerminalMode(), IntervalTimer::signal(), suspend(), and WaitCleanup::terminated().

Here is the caller graph for this function:

virtual ProcessType Process::getType ( )

inlinevirtual

Gets the type of the Process (subsystems may override)

Reimplemented in PosixProcess.

Definition at line 259 of file Process.h.

Referenced by PosixSubsystem::exit(), PosixSubsystem::invoke(), PosixSubsystem::kill(), PosixProcess::PosixProcess(), and WaitCleanup::terminated().

Here is the caller graph for this function:

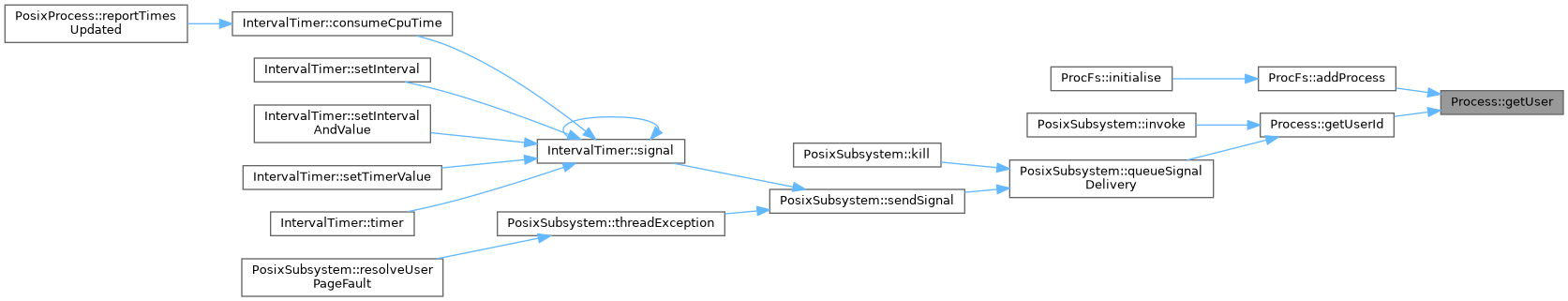

User* Process::getUser ( ) const

inline

Gets the current user.

Definition at line 189 of file Process.h.

Referenced by ProcFs::addProcess(), and getUserId().

Here is the caller graph for this function:

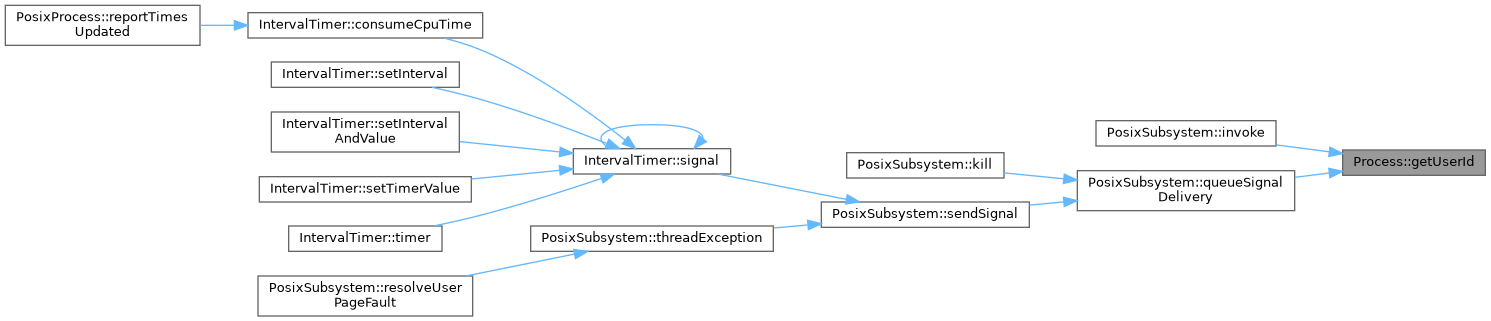

int64_t Process::getUserId ( ) const

virtual

Direct, overrideable ways to get IDs (redirects to User/Group interface by default)

Reimplemented in PosixProcess.

Definition at line 320 of file Process.cc.

References List< T, nodePoolSize >::begin(), List< T, nodePoolSize >::count(), List< T, nodePoolSize >::end(), List< T, nodePoolSize >::erase(), getEffectiveGroup(), getEffectiveUser(), getGroup(), Group::getId(), User::getId(), getUser(), m_Waiters, and List< T, nodePoolSize >::pushBack().

Referenced by VFS::checkAccess(), PosixSubsystem::invoke(), PosixProcess::PosixProcess(), WaitCleanup::terminated(), and UnixSocket::writeBytewise().

Here is the caller graph for this function:

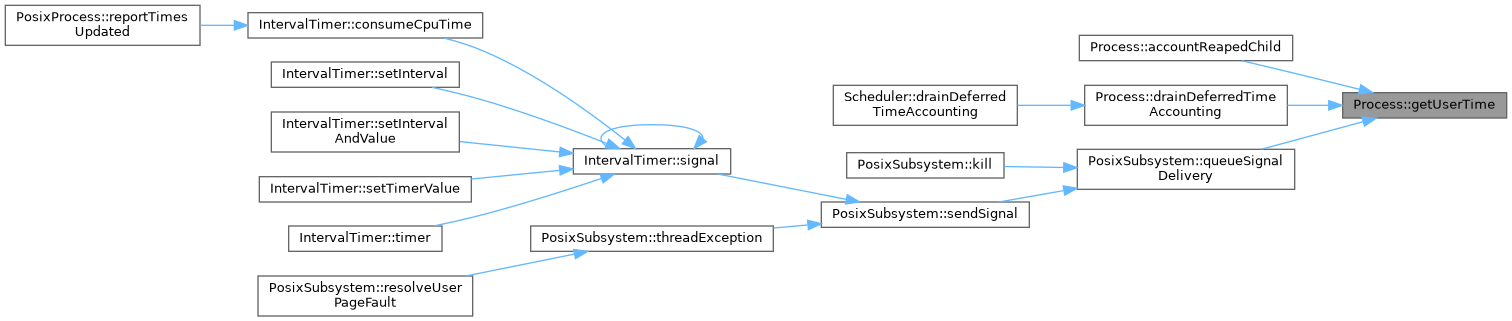

Time::Timestamp Process::getUserTime ( ) const

inline

Gets timestamps.

Definition at line 358 of file Process.h.

Referenced by WaitCleanup::terminated().

Here is the caller graph for this function:

bool Process::hasSharedAddressSpace ( ) const

inline

Get whether this process has a shared address space with its parent. Copy-on-write (i.e. not shared) is the default for processes.

Definition at line 405 of file Process.h.

References Thread::operator=().

void Process::kill

(

)

Kills the process.

Definition at line 239 of file Process.cc.

References Spinlock::acquire(), FATAL, getId(), getInit(), Scheduler::getNumProcesses(), Scheduler::getProcess(), Thread::getStatus(), getThread(), Processor::information(), Scheduler::instance(), m_Id, m_Lock, m_pParent, m_State, NOTICE, and processTerminated().

Referenced by PosixSubsystem::exit(), and Subsystem::Subsystem().

Here is the caller graph for this function:

void Process::notifyWaiters ( )

private

Releases all locks in m_Waiters once.

Definition at line 385 of file Process.cc.

References List< T, nodePoolSize >::begin(), List< T, nodePoolSize >::end(), and m_Waiters.

Referenced by resume(), Thread::setStatus(), and suspend().

Here is the caller graph for this function:

virtual void Process::processTerminated ( )

inlineprivatevirtual

Called when the process is terminated to allow for subclass cleanup.

Reimplemented in PosixProcess.

Definition at line 430 of file Process.h.

Referenced by kill().

Here is the caller graph for this function:

void Process::reap ( )

inline

Marks the process as reaped.

Definition at line 137 of file Process.h.

References NORETURN.

Referenced by WaitCleanup::terminated().

Here is the caller graph for this function:

void Process::recordTime ( bool  bUserspace )

inline

Record the current time in the relevant field for this process.

Use to set the point in time from which the next difference will be taken.

Definition at line 317 of file Process.h.

Referenced by PerProcessorScheduler::addThread(), PerProcessorScheduler::checkEventState(), PosixSubsystem::invoke(), and PerProcessorScheduler::schedule().

Here is the caller graph for this function:

void Process::removeThread

(

Thread *

pThread

)

Removes a thread from this process.

Definition at line 198 of file Process.cc.

References Vector< T >::begin(), Vector< T >::end(), Vector< T >::erase(), m_Lock, m_pSubsystem, m_State, m_Threads, and Subsystem::threadRemoved().

Referenced by Thread::~Thread().

Here is the caller graph for this function:

virtual void Process::reportTimesUpdated ( Time::Timestamp  user, Time::Timestamp  system  )

inlineprivatevirtual

Called when process times are updated.

Reimplemented in PosixProcess.

Definition at line 425 of file Process.h.

void Process::resume

(

)

Resumes the process from suspend.

Definition at line 311 of file Process.cc.

References Processor::information(), m_bUnreportedResume, m_ExitStatus, m_State, and notifyWaiters().

void Process::setCtty ( File *  f )

inline

Sets the controlling terminal.

Definition at line 172 of file Process.h.

Referenced by WaitCleanup::terminated().

Here is the caller graph for this function:

void Process::setCwd ( File *  f )

inline

Sets the current working directory.

Definition at line 161 of file Process.h.

void Process::setEffectiveUser ( User *  pUser )

inline

Sets the effective user.

Definition at line 205 of file Process.h.

Referenced by User::login().

Here is the caller graph for this function:

void Process::setExitStatus ( int  code )

inline

Sets the exit status of the process.

Definition at line 126 of file Process.h.

Referenced by PosixSubsystem::exit().

Here is the caller graph for this function:

void Process::setGroup ( Group *  pGroup )

inline

Sets the current group.

Definition at line 216 of file Process.h.

Referenced by UserManager::initialise(), and User::login().

Here is the caller graph for this function:

void Process::setInit ( Process *  pProcess )

static

Set the init process.

Definition at line 399 of file Process.cc.

References m_pInitProcess.

void Process::setRootFile ( File *  pFile )

inline

Set this process' root.

Definition at line 390 of file Process.h.

void Process::setUser ( User *  pUser )

inline

Sets the current user.

Definition at line 194 of file Process.h.

Referenced by UserManager::initialise(), and User::login().

Here is the caller graph for this function:

void Process::suspend

(

)

Suspends the process.

Definition at line 297 of file Process.cc.

References getThread(), Processor::information(), m_BeforeSuspendState, m_bUnreportedSuspend, m_ExitStatus, m_pParent, m_State, m_Threads, notifyWaiters(), and Subsystem::threadException().

void Process::trackTime ( bool  bUserspace )

inline

Counts the time spent since the last recordTime(), and then updates the relevant time field to the current time.

Use when scheduling.

Definition at line 336 of file Process.h.

Referenced by PerProcessorScheduler::addThread(), PerProcessorScheduler::checkEventState(), and PerProcessorScheduler::schedule().

Here is the caller graph for this function:

Member Data Documentation

Thread::Status Process::m_BeforeSuspendState

private

State we were in before suspend. Ensures if we were sleeping before, we still will be after a resume.

Definition at line 509 of file Process.h.

Referenced by suspend().

bool Process::m_bSharedAddressSpace

private

Is our address space shared with the parent?

Definition at line 555 of file Process.h.

Referenced by Process().

bool Process::m_bUnreportedResume

private

Whether we have resumed but not reported it.

Definition at line 500 of file Process.h.

Referenced by resume().

bool Process::m_bUnreportedSuspend

private

Whether we have suspended but not reported it.

Definition at line 497 of file Process.h.

Referenced by suspend().

File* Process::m_Ctty

private

Current controlling terminal.

Definition at line 469 of file Process.h.

File* Process::m_Cwd

private

Current working directory.

Definition at line 465 of file Process.h.

MemoryAllocator Process::m_DynamicSpaceAllocator

private

Memory allocator for dynamic address space, if any.

Definition at line 477 of file Process.h.

int Process::m_ExitStatus

private

Process exit status.

Definition at line 461 of file Process.h.

Referenced by resume(), and suspend().

size_t Process::m_Id

private

Our Process ID.

Definition at line 445 of file Process.h.

Referenced by kill(), and Process().

Time::Timestamp Process::m_LastKernelEntry

private

Last time we entered the kernel.

Definition at line 546 of file Process.h.

Time::Timestamp Process::m_LastUserspaceEntry

private

Last time we entered userspace.

Definition at line 549 of file Process.h.

Spinlock Process::m_Lock

private

Concurrency lock for complex Process data structures.

Definition at line 512 of file Process.h.

Referenced by addThread(), Cache::empty(), Cache::evict(), CacheManager::executeRequest(), Cache::exists(), TextIO::flip(), getNumThreads(), getThread(), TextIO::initialise(), Cache::insert(), kill(), Cache::lookup(), Cache::markEditing(), Cache::markNoLongerEditing(), Cache::pin(), Cache::release(), removeThread(), Cache::sync(), Cache::triggerChecksum(), Cache::trim(), TextIO::writeStr(), ~Process(), and Thread::~Thread().

Atomic<size_t> Process::m_NextTid

private

The next available thread ID.

Definition at line 441 of file Process.h.

Referenced by addThread().

VirtualAddressSpace* Process::m_pAddressSpace

private

Our virtual address space.

Definition at line 457 of file Process.h.

Referenced by Process(), and ~Process().

DynamicLinker* Process::m_pDynamicLinker

private

The Process' dynamic linker.

Definition at line 488 of file Process.h.

Group* Process::m_pEffectiveGroup

private

Effective group.

Definition at line 485 of file Process.h.

User* Process::m_pEffectiveUser

private

Effective user.

Definition at line 483 of file Process.h.

Group* Process::m_pGroup

private

Current group.

Definition at line 481 of file Process.h.

Process * Process::m_pInitProcess = 0

staticprivate

Init process (terminated processes' children will reparent to this).

Definition at line 558 of file Process.h.

Referenced by getInit(), and setInit().

Process* Process::m_pParent

private

Our parent process.

Definition at line 453 of file Process.h.

Referenced by kill(), Process(), and suspend().

File* Process::m_pRootFile

private

Root directory for this process. NULL == system-wide default.

Definition at line 552 of file Process.h.

Subsystem* Process::m_pSubsystem

private

The subsystem for this process

Definition at line 491 of file Process.h.

Referenced by removeThread(), and ~Process().

User* Process::m_pUser

private

Current user.

Definition at line 479 of file Process.h.

MemoryAllocator Process::m_SpaceAllocator

private

Memory allocator for primary address space.

Definition at line 473 of file Process.h.

ProcessState Process::m_State

private

Our current state.

Definition at line 503 of file Process.h.

Referenced by kill(), removeThread(), resume(), suspend(), and ~Process().

Vector<Thread *> Process::m_Threads

private

Our list of threads.

Definition at line 437 of file Process.h.

Referenced by addThread(), getNumThreads(), getThread(), removeThread(), suspend(), and ~Process().

List<Semaphore *> Process::m_Waiters

private

Semaphores to release whenever we are killed, suspended, or resumed.

Definition at line 494 of file Process.h.

Referenced by getUserId(), and notifyWaiters().

LargeStaticString Process::str

private

Our description string.

Definition at line 449 of file Process.h.

Referenced by Process(), and ~Process().

---

The documentation for this class was generated from the following files:

• Process.h
• Process.cc
