Inheritance diagram for HostedTimer:

Collaboration diagram for HostedTimer:

Classes
class	Alarm

Public Member Functions
virtual bool	registerHandler (TimerHandler *handler)

virtual bool	unregisterHandler (TimerHandler *handler)

virtual void	addAlarm (class Event *pEvent, size_t alarmSecs, size_t alarmUsecs=0)

virtual void	removeAlarm (class Event *pEvent)

virtual size_t	removeAlarm (class Event *pEvent, bool bRetZero)

virtual size_t	getYear ()

virtual uint8_t	getMonth ()

virtual uint8_t	getDayOfMonth ()

virtual uint8_t	getDayOfWeek ()

virtual uint8_t	getHour ()

virtual uint8_t	getMinute ()

virtual uint8_t	getSecond ()

virtual uint64_t	getNanosecond ()

virtual uint64_t	getTickCount ()

virtual uint64_t	getTickCountNano ()

bool	initialise1 () INITIALISATION_ONLY

bool	initialise3 ()

virtual void	synchronise (bool tohw=false)

void	uninitialise ()

Public Member Functions inherited from Timer
virtual uint64_t	getTickCountNanoFast ()

virtual Time::CpuTimeSample	sampleCpuTime ()

virtual Time::Timestamp	getUnixTimestamp ()

virtual bool	armHandler (TimerHandler *, uint64_t)

virtual bool	supportsDeadlines () const

virtual void	deadlineInterrupt ()

Static Public Member Functions
static HostedTimer &	instance ()

Protected Member Functions
	HostedTimer () INITIALISATION_ONLY

virtual	~HostedTimer ()

Protected Member Functions inherited from Timer
	Timer ()

virtual	~Timer ()

Private Member Functions
	HostedTimer (const HostedTimer &)

HostedTimer &	operator= (const HostedTimer &)

HardStageDisposition	hardIrq (irq_id_t number, InterruptState &state, size_t &work) override

void	threadedIrq (size_t work) override

bool	quiesceIrqSources () override

void	rearmIrqSources (size_t work) override

void	processTimerBatch (uint64_t delta)

Private Member Functions inherited from SplitIrqHandler
	SplitIrqHandler (const String &name)

bool	initialiseSplitIrq ()

irq_id_t	registerIsaSplitIrq (IrqManager &manager, uint8_t irq, const IrqPolicy &policy)

irq_id_t	registerPciSplitIrq (IrqManager &manager, Device &device, const IrqPolicy &policy)

bool	shutdownSplitIrq ()

Private Attributes
size_t	m_Year

uint8_t	m_Month

uint8_t	m_DayOfMonth

uint8_t	m_DayOfWeek

uint8_t	m_Hour

uint8_t	m_Minute

uint8_t	m_Second

uint64_t	m_Nanosecond

HostedTickSource	m_TickSource

irq_id_t	m_IrqId

IrqEventCounter	m_PendingExpirations

TimerHandlerRegistry	m_HandlerRegistry

List< Alarm * >	m_Alarms

Spinlock	m_AlarmLock

bool	m_bInitialized = false

bool	m_bPrepared = false

Static Private Attributes
static HostedTimer	m_Instance

Additional Inherited Members
Private Types inherited from SplitIrqHandler
enum class	HardStageDisposition : size_t { NotHandled , Handled , Deferred }

Detailed Description

Definition at line 38 of file kernel/machine/hosted/Timer.h.

Constructor & Destructor Documentation

◆ HostedTimer() [1/2]

HostedTimer::HostedTimer ( )

protected

The default constructor

Definition at line 317 of file hosted/Timer.cc.

◆ ~HostedTimer()

HostedTimer::~HostedTimer ( )

protectedvirtual

The destructor

Definition at line 65 of file hosted/Timer.cc.

References uninitialise().

◆ HostedTimer() [2/2]

HostedTimer::HostedTimer ( const HostedTimer & )

private

The copy-constructor

Note: NOT implemented

Member Function Documentation

◆ addAlarm()

void HostedTimer::addAlarm	(	class Event *	pEvent,
		size_t	alarmSecs,
		size_t	alarmUsecs = `0`
	)

virtual

Dispatches the Event pEvent to the current thread in alarmSecs time.

Parameters

pEvent	Event to dispatch.
alarmSecs	Number of seconds to wait.

Implements Timer.

Definition at line 69 of file hosted/Timer.cc.

References getTickCountNano(), ProcessorBase::information(), m_AlarmLock, and m_Alarms.

◆ getDayOfMonth()

uint8_t HostedTimer::getDayOfMonth ( )

virtual

Get the current day of month

Returns: the current day of month

Implements Timer.

Definition at line 180 of file hosted/Timer.cc.

References m_DayOfMonth.

◆ getDayOfWeek()

uint8_t HostedTimer::getDayOfWeek ( )

virtual

Get the current day of week

Returns: the current day of week

Implements Timer.

Definition at line 184 of file hosted/Timer.cc.

References m_DayOfWeek.

◆ getHour()

uint8_t HostedTimer::getHour ( )

virtual

Get the current hour

Returns: the current hour

Implements Timer.

Definition at line 188 of file hosted/Timer.cc.

References m_Hour.

◆ getMinute()

uint8_t HostedTimer::getMinute ( )

virtual

Get the current minute

Returns: the current minute

Implements Timer.

Definition at line 192 of file hosted/Timer.cc.

References m_Minute.

◆ getMonth()

uint8_t HostedTimer::getMonth ( )

virtual

Get the current month

Returns: the current month

Implements Timer.

Definition at line 176 of file hosted/Timer.cc.

References m_Month.

◆ getNanosecond()

uint64_t HostedTimer::getNanosecond ( )

virtual

Get the current nanosecond

Returns: the current nanosecond

Implements Timer.

Definition at line 200 of file hosted/Timer.cc.

References m_Nanosecond.

◆ getSecond()

uint8_t HostedTimer::getSecond ( )

virtual

Get the current second

Returns: the current second

Implements Timer.

Definition at line 196 of file hosted/Timer.cc.

References m_Second.

◆ getTickCount()

uint64_t HostedTimer::getTickCount ( )

virtual

Get the Tick count (time elapsed since system bootup)

Returns: the tick count in milliseconds

Implements Timer.

Definition at line 204 of file hosted/Timer.cc.

References getTickCountNano().

◆ getTickCountNano()

uint64_t HostedTimer::getTickCountNano ( )

virtual

Get the Tick count (time elapsed since system bootup) in nanosconds.

Returns: the tick count in nanoseconds

Reimplemented from Timer.

Definition at line 208 of file hosted/Timer.cc.

Referenced by addAlarm(), getTickCount(), processTimerBatch(), and removeAlarm().

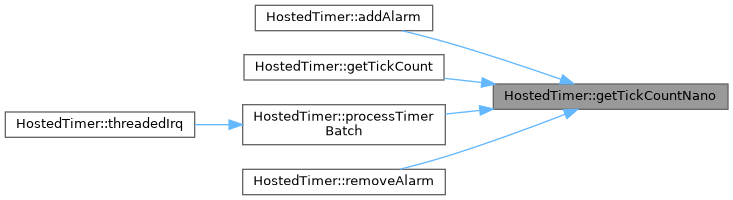

Here is the caller graph for this function:

◆ getYear()

size_t HostedTimer::getYear ( )

virtual

Get the current year

Returns: the current year

Implements Timer.

Definition at line 172 of file hosted/Timer.cc.

References m_Year.

◆ hardIrq()

SplitIrqHandler::HardStageDisposition HostedTimer::hardIrq	(	irq_id_t	number,
		InterruptState &	state,
		size_t &	work
	)

overrideprivatevirtual

Runs in hard IRQ context and must be bounded and nonblocking.

Implements SplitIrqHandler.

Definition at line 334 of file hosted/Timer.cc.

References m_PendingExpirations, m_TickSource, and IrqEventCounter::recordFromInterrupt().

◆ initialise1()

bool HostedTimer::initialise1 ( )

Prepares the unarmed POSIX timer

Returns: true, if successfull, false otherwise

Definition at line 214 of file hosted/Timer.cc.

References m_bInitialized, m_bPrepared, m_HandlerRegistry, m_TickSource, TimerHandlerRegistry::reset(), and synchronise().

◆ initialise3()

bool HostedTimer::initialise3 ( )

Starts the timer bottom half before enabling periodic delivery.

Definition at line 229 of file hosted/Timer.cc.

References SplitIrqHandler::initialiseSplitIrq(), m_bInitialized, m_bPrepared, m_IrqId, m_PendingExpirations, m_TickSource, SplitIrqHandler::registerIsaSplitIrq(), and SplitIrqHandler::shutdownSplitIrq().

◆ instance()

static HostedTimer & HostedTimer::instance ( )

inlinestatic

Definition at line 40 of file kernel/machine/hosted/Timer.h.

◆ operator=()

HostedTimer & HostedTimer::operator= ( const HostedTimer & )

private

The assignment operator

Note: NOT implemented

◆ processTimerBatch()

void HostedTimer::processTimerBatch ( uint64_t delta )

private

Applies one captured expiration batch in ordinary thread context.

Definition at line 391 of file hosted/Timer.cc.

References Spinlock::acquire(), TimerHandlerRegistry::dispatch(), TargetInfo::getPageSize(), Machine::getSerial(), getTickCountNano(), m_AlarmLock, m_Alarms, m_HandlerRegistry, m_Nanosecond, Spinlock::release(), Thread::sendEvent(), synchronise(), IrqManager::tick(), and UNLIKELY.

Referenced by threadedIrq().

Here is the caller graph for this function:

◆ quiesceIrqSources()

bool HostedTimer::quiesceIrqSources ( )

overrideprivatevirtual

Prevents new device interrupts before registry admission is closed. This runs in thread context and must be idempotent across failed retries.

Implements SplitIrqHandler.

Definition at line 382 of file hosted/Timer.cc.

References m_TickSource.

◆ rearmIrqSources()

void HostedTimer::rearmIrqSources ( size_t work )

overrideprivatevirtual

Rearms drained device sources unless shutdown has begun.

This runs in thread context with interrupts disabled and is serialised against quiesceIrqSources(). It must be bounded and nonblocking.

Implements SplitIrqHandler.

Definition at line 386 of file hosted/Timer.cc.

◆ registerHandler()

bool HostedTimer::registerHandler ( TimerHandler * handler )

virtual

Implements Timer.

Definition at line 122 of file hosted/Timer.cc.

◆ removeAlarm() [1/2]

void HostedTimer::removeAlarm ( class Event * pEvent )

virtual

Removes the event pEvent from the alarm queue. Once this returns, the timer will not begin another delivery of this event.

Parameters

pEvent Event to remove alarm for.

Implements Timer.

Definition at line 78 of file hosted/Timer.cc.

References m_AlarmLock, and m_Alarms.

◆ removeAlarm() [2/2]

size_t HostedTimer::removeAlarm	(	class Event *	pEvent,
		bool	bRetZero
	)

virtual

Removes the event pEvent from the alarm queue. Once this returns, the timer will not begin another delivery of this event.

Parameters

pEvent	Event to remove alarm for.
bRetZero	If true, returns zero rather the time until firing

Returns: The number of seconds before the event would have fired, or zero if bRetZero is true.

Implements Timer.

Definition at line 90 of file hosted/Timer.cc.

References getTickCountNano(), m_AlarmLock, and m_Alarms.

◆ synchronise()

void HostedTimer::synchronise ( bool tohw = false )

virtual

Synchronise the time/date with the hardware

Reimplemented from Timer.

Definition at line 268 of file hosted/Timer.cc.

References m_DayOfMonth, m_DayOfWeek, m_Hour, m_Minute, m_Month, m_Nanosecond, m_Second, and m_Year.

Referenced by initialise1(), processTimerBatch(), and uninitialise().

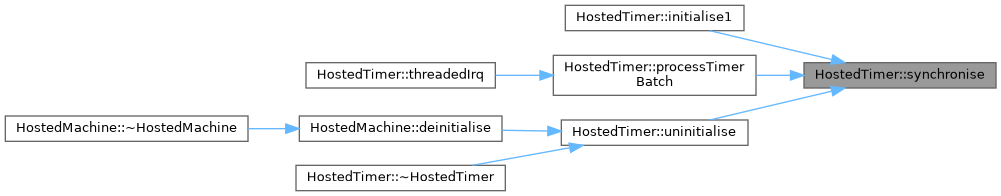

Here is the caller graph for this function:

◆ threadedIrq()

void HostedTimer::threadedIrq ( size_t work )

overrideprivatevirtual

Runs in ordinary thread context and may use blocking APIs. The owned worker normally calls it; teardown may call it synchronously after the worker is joined to drain a rejected publication. It must not re-enable an interrupt source.

Implements SplitIrqHandler.

Definition at line 363 of file hosted/Timer.cc.

References m_PendingExpirations, processTimerBatch(), and IrqEventCounter::takeAll().
