Abstracts the system's framebuffer offering. More...

#include <Framebuffer.h>

Inheritance diagram for Framebuffer:

Collaboration diagram for Framebuffer:

Public Member Functions
virtual void *	getFramebuffer ()

virtual bool	getPixelFormat (Display::PixelFormat *pPf)

virtual bool	getCurrentScreenMode (Display::ScreenMode &sm)

virtual bool	getScreenModes (List< Display::ScreenMode * > &sms)

virtual bool	setScreenMode (Display::ScreenMode sm)

size_t	getWidth () const

size_t	getHeight () const

Graphics::PixelFormat	getFormat () const

bool	getActive () const

void	setActive (bool b)

void	setPalette (uint32_t *palette, size_t nEntries)

uint32_t *	getPalette () const

virtual void *	getRawBuffer () const

virtual Graphics::Buffer *	createBuffer (const void srcData, Graphics::PixelFormat srcFormat, size_t width, size_t height, uint32_t pPalette=0)

virtual void	destroyBuffer (Graphics::Buffer *pBuffer)

void	redraw (size_t x=~0UL, size_t y=~0UL, size_t w=~0UL, size_t h=~0UL, bool bChild=false)

virtual void	blit (Graphics::Buffer *pBuffer, size_t srcx, size_t srcy, size_t destx, size_t desty, size_t width, size_t height, bool bLowestCall=true)

virtual void	draw (void *pBuffer, size_t srcx, size_t srcy, size_t destx, size_t desty, size_t width, size_t height, Graphics::PixelFormat format=Graphics::Bits32_Argb, bool bLowestCall=true)

virtual void	rect (size_t x, size_t y, size_t width, size_t height, uint32_t colour, Graphics::PixelFormat format=Graphics::Bits32_Argb, bool bLowestCall=true)

virtual void	copy (size_t srcx, size_t srcy, size_t destx, size_t desty, size_t w, size_t h, bool bLowestCall=true)

virtual void	line (size_t x1, size_t y1, size_t x2, size_t y2, uint32_t colour, Graphics::PixelFormat format=Graphics::Bits32_Argb, bool bLowestCall=true)

void	setPixel (size_t x, size_t y, uint32_t colour, Graphics::PixelFormat format=Graphics::Bits32_Argb, bool bLowestCall=true)

void	setXPos (size_t x)

void	setYPos (size_t y)

void	setWidth (size_t w)

void	setHeight (size_t h)

void	setFormat (Graphics::PixelFormat pf)

void	setBytesPerPixel (size_t b)

uint32_t	getBytesPerPixel () const

void	setBytesPerLine (size_t b)

uint32_t	getBytesPerLine () const

void	setParent (Framebuffer *p)

Framebuffer *	getParent () const

virtual void	setFramebuffer (uintptr_t p)

bool	initialise ()

void	storeMode ()

void	restoreMode ()

int	enterMode (size_t desiredW, size_t desiredH, size_t desiredBpp)

void *	getFramebuffer () const

void	flush (size_t x, size_t y, size_t w, size_t h)

cairo_format_t	getFormat () const

size_t	getWidth () const

size_t	getHeight () const

Public Member Functions inherited from Display
	Display (Device *p)

virtual Type	getType ()

virtual void	getName (String &str)

virtual void	dump (String &str)

virtual rgb_t *	newBuffer ()

virtual void	setCurrentBuffer (rgb_t *pBuffer)

virtual void	updateBuffer (rgb_t *pBuffer, size_t x1=~0UL, size_t y1=~0UL, size_t x2=~0UL, size_t y2=~0UL)

virtual void	killBuffer (rgb_t *pBuffer)

virtual void	bitBlit (rgb_t *pBuffer, size_t fromX, size_t fromY, size_t toX, size_t toY, size_t width, size_t height)

virtual void	fillRectangle (rgb_t *pBuffer, size_t x, size_t y, size_t width, size_t height, rgb_t colour)

virtual bool	getPixelFormat (PixelFormat &pf)

virtual bool	setScreenMode (size_t modeId)

virtual bool	setScreenMode (size_t nWidth, size_t nHeight, size_t nBpp)

Public Member Functions inherited from Device
	Device (Device *p)

Device *	getParent () const

void	setParent (Device *p)

virtual String	getSpecificType ()

virtual void	setSpecificType (String str)

void	setPciPosition (uint32_t bus, uint32_t device, uint32_t func)

void	setPciIdentifiers (uint8_t classCode, uint8_t subclassCode, uint16_t vendorId, uint16_t deviceId, uint8_t progIf)

void	setPciConfigHeader (const PciBus::ConfigSpace &space)

PciBus::ConfigSpace	getPciConfigHeader () const

uint8_t	getPciClassCode ()

uint8_t	getPciSubclassCode ()

uint16_t	getPciVendorId ()

uint16_t	getPciDeviceId ()

uint8_t	getPciProgInterface ()

uint32_t	getPciBusPosition ()

uint32_t	getPciDevicePosition ()

uint32_t	getPciFunctionNumber ()

virtual Vector< Address * > &	addresses ()

virtual uintptr_t	getInterruptNumber ()

virtual void	setInterruptNumber (uintptr_t n)

void	addChild (Device *pDevice)

Device *	getChild (size_t n)

size_t	getNumChildren ()

void	removeChild (size_t n)

void	removeChild (Device *d)

void	replaceChild (Device src, Device dest)

Public Attributes
size_t	m_XPos
	X position on our parent's framebuffer. More...

size_t	m_YPos
	Y position on our parent's framebuffer.

size_t	m_nWidth
	Width of the framebuffer in pixels.

size_t	m_nHeight
	Height of the framebuffer in pixels.

Graphics::PixelFormat	m_PixelFormat
	Framebuffer pixel format.

size_t	m_nBytesPerPixel
	Bytes per pixel in this framebuffer.

size_t	m_nBytesPerLine
	Bytes per line in this framebuffer.

Framebuffer *	m_pParent
	Parent of this framebuffer.

Public Attributes inherited from Display
struct Display::rgb_t	PACKED

Protected Member Functions
Graphics::Buffer	bufferFromSelf ()

virtual void	draw (Graphics::Buffer *pBuffer, size_t srcx, size_t srcy, size_t destx, size_t desty, size_t width, size_t height, bool bLowestCall=true)

void	swBlit (Graphics::Buffer *pBuffer, size_t srcx, size_t srcy, size_t destx, size_t desty, size_t width, size_t height)

void	swRect (size_t x, size_t y, size_t width, size_t height, uint32_t colour, Graphics::PixelFormat format)

void	swCopy (size_t srcx, size_t srcy, size_t destx, size_t desty, size_t w, size_t h)

void	swLine (size_t x1, size_t y1, size_t x2, size_t y2, uint32_t colour, Graphics::PixelFormat format)

void	swDraw (void *pBuffer, size_t srcx, size_t srcy, size_t destx, size_t desty, size_t width, size_t height, Graphics::PixelFormat format=Graphics::Bits32_Argb, bool bLowestCall=true)

void	swDraw (Graphics::Buffer *pBuffer, size_t srcx, size_t srcy, size_t destx, size_t desty, size_t width, size_t height, bool bLowestCall=true)

Graphics::Buffer *	swCreateBuffer (const void srcData, Graphics::PixelFormat srcFormat, size_t width, size_t height, uint32_t pPalette)

void	swDestroyBuffer (Graphics::Buffer *pBuffer)

virtual void	hwRedraw (size_t x=~0UL, size_t y=~0UL, size_t w=~0UL, size_t h=~0UL)
	Inherited by drivers that provide a hardware redraw function.

Protected Member Functions inherited from Device
	NOT_COPYABLE_OR_ASSIGNABLE (Device)

Protected Attributes
uintptr_t	m_FramebufferBase

uint32_t *	m_Palette
	Current graphics palette - an array of 256 32-bit RGBA entries.

bool	m_bActive
	Whether this framebuffer is active or not.

Protected Attributes inherited from Device
Vector< Address * >	m_Addresses

Vector< Device * >	m_Children

Device *	m_pParent

uintptr_t	m_InterruptNumber

String	m_SpecificType

PciBus::ConfigSpace	m_ConfigHeader

uint8_t	m_ClassCode

uint8_t	m_SubclassCode

uint16_t	m_VendorId

uint16_t	m_DeviceId

uint8_t	m_ProgInterface

uint32_t	m_PciBusPos

uint32_t	m_PciDevicePos

uint32_t	m_PciFunctionNum

Private Member Functions
void	swSetPixel (size_t x, size_t y, uint32_t colour, Graphics::PixelFormat format=Graphics::Bits32_Argb)

Private Attributes
Display::ScreenMode	m_Mode

void *	m_pFramebuffer

size_t	m_FramebufferSize

cairo_format_t	m_Format

size_t	m_Width

size_t	m_Height

int	m_Fb

bool	m_bStoredMode

pedigree_fb_mode	m_StoredMode

Additional Inherited Members
Public Types inherited from Device
enum	Type { Generic, Root, Disk, Bus, Display, Network, Sound, Console, Mouse, Controller, UsbController, UsbGeneric, UsbContainer }

typedef Device (	Callback) (Device *)

Static Public Member Functions inherited from Device
static void	foreach (Callback callback, Device *root=0)

template<class F , class... Args>
static void	foreach (pedigree_std::Callable< F > &callback, Device *root, Args...args)

static void	addToRoot (Device *device)

static void	searchByVendorId (uint16_t vendorId, void(callback)(Device ), Device *root=0)

static void	searchByVendorIdAndDeviceId (uint16_t vendorId, uint16_t deviceId, void(callback)(Device ), Device *root=0)

static void	searchByClass (uint16_t classCode, void(callback)(Device ), Device *root=0)

static void	searchByClassAndSubclass (uint16_t classCode, uint16_t subclassCode, void(callback)(Device ), Device *root=0)

static void	searchByClassSubclassAndProgInterface (uint16_t classCode, uint16_t subclassCode, uint8_t progInterface, void(callback)(Device ), Device *root=0)

Static Protected Member Functions inherited from Device
static Device &	root ()

Static Protected Attributes inherited from Device
static Device	m_Root

static Mutex	m_TreeLock

Detailed Description

Abstracts the system's framebuffer offering.

This class is a wrapper around the standard PPC Vga driver, to provide access to it as a device tree node.

This class provides a generic interface for interfacing with a framebuffer. Each display driver specialises this class to define the "base address" of the framebuffer in its own way (eg, allocate memory, or use a DMA region). There are a variety of default software-only operations, which are used by default if the main operational methods are not overridden.

This is needed to abstract out the Pedigree-specific framebuffer parts so the window manager can be run under SDL on Linux for rapid development.

Definition at line 29 of file modules/drivers/ppc/framebuffer/Framebuffer.h.

Member Function Documentation

void Framebuffer::blit	(	Graphics::Buffer *	pBuffer,
		size_t	srcx,
		size_t	srcy,
		size_t	destx,
		size_t	desty,
		size_t	width,
		size_t	height,
		bool	bLowestCall = `true`
	)

virtual

Blits a given buffer to the screen. See createBuffer.

Parameters

bLowestCall whether this is the lowest level call for the chain or a call being passed up from a child somewhere in the chain.

Definition at line 156 of file Framebuffer.cc.

void Framebuffer::copy	(	size_t	srcx,
		size_t	srcy,
		size_t	destx,
		size_t	desty,
		size_t	w,
		size_t	h,
		bool	bLowestCall = `true`
	)

virtual

Copies a rectangle already on the framebuffer to a new location

Reimplemented in VmwareGraphics::VmwareFramebuffer.

Definition at line 190 of file Framebuffer.cc.

Graphics::Buffer * Framebuffer::createBuffer	(	const void *	srcData,
		Graphics::PixelFormat	srcFormat,
		size_t	width,
		size_t	height,
		uint32_t *	pPalette = `0`
	)

virtual

Creates a new buffer to be used for blits from the given raw pixel data. Performs automatic conversion of the pixel format to the pixel format of the current display mode. Do not modify any of the members of the buffer structure, or attempt to inject your own pixels into the buffer. Once a buffer is created, it is only used for blitting to the screen and cannot be modified. It is expected that the buffer has been packed to its bit depth, and does not have any padding on each scanline at all. Do not delete the returned buffer yourself, pass it to destroyBuffer which performs a proper cleanup of all resources related to the buffer. The buffer should be padded to finish on a DWORD boundary. This is not padding per scanline but rather padding per buffer.

Definition at line 94 of file Framebuffer.cc.

Referenced by StreamingScreenLogger::callback().

Here is the caller graph for this function:

void Framebuffer::destroyBuffer ( Graphics::Buffer * pBuffer )

virtual

Destroys a created buffer. Frees its memory in both the system RAM and any references still in VRAM.

Definition at line 104 of file Framebuffer.cc.

Referenced by StreamingScreenLogger::callback().

Here is the caller graph for this function:

void Framebuffer::draw	(	void *	pBuffer,
		size_t	srcx,
		size_t	srcy,
		size_t	destx,
		size_t	desty,
		size_t	width,
		size_t	height,
		Graphics::PixelFormat	format = `Graphics::Bits32_Argb`,
		bool	bLowestCall = `true`
	)

virtual

Draws given raw pixel data to the screen. Used for framebuffer chains and applications which need to render constantly changing pixel buffers.

Definition at line 168 of file Framebuffer.cc.

Referenced by StreamingScreenLogger::callback().

Here is the caller graph for this function:

void Framebuffer::draw	(	Graphics::Buffer *	pBuffer,
		size_t	srcx,
		size_t	srcy,
		size_t	destx,
		size_t	desty,
		size_t	width,
		size_t	height,
		bool	bLowestCall = `true`
	)

protectedvirtual

Special implementation of draw() where a Graphics::Buffer is already available. For use in redraw, and similar.

Definition at line 297 of file Framebuffer.cc.

int Framebuffer::enterMode	(	size_t	desiredW,
		size_t	desiredH,
		size_t	desiredBpp
	)

Create framebuffer, enter desired mode.

Note: Mode set logic will try and find a mode in a lower colour depth if the desired one cannot be set.

Definition at line 98 of file fb.cc.

void Framebuffer::flush	(	size_t	x,
		size_t	y,
		size_t	w,
		size_t	h
	)

Flush framebuffer in the given region.

Definition at line 186 of file fb.cc.

Referenced by getFramebuffer().

Here is the caller graph for this function:

virtual bool Framebuffer::getCurrentScreenMode ( Display::ScreenMode & sm )

virtual

Returns the current screen mode.

Returns: True if operation succeeded, false otherwise.

Reimplemented from Display.

cairo_format_t Framebuffer::getFormat ( ) const

inline

Get framebuffer colour format.

Definition at line 65 of file pedigree_fb.h.

virtual void* Framebuffer::getFramebuffer ( )

virtual

Returns a pointer to a linear framebuffer. Returns 0 if none available.

Warning: Not intended to be used - use the buffer functions instead.

Reimplemented from Display.

Referenced by VbeDisplay::fillRectangle(), and VbeDisplay::newBuffer().

Here is the caller graph for this function:

void* Framebuffer::getFramebuffer ( ) const

inline

Retrieve base address of the framebuffer.

Definition at line 56 of file pedigree_fb.h.

References flush().

void * Framebuffer::getRawBuffer ( ) const

virtual

Gets a raw pointer to the framebuffer itself. There is no way to know if this pointer points to an MMIO region or real RAM, so it cannot be guaranteed to be safe.

Definition at line 87 of file Framebuffer.cc.

virtual bool Framebuffer::getScreenModes ( List< Display::ScreenMode * > & sms )

virtual

Fills the given List with all of the available screen modes.

Returns: True if operation succeeded, false otherwise.

Reimplemented from Display.

size_t Framebuffer::getWidth ( ) const

inline

Get framebuffer dimensions.

Definition at line 71 of file pedigree_fb.h.

bool Framebuffer::initialise ( )

General system-specific initialisation.

Definition at line 56 of file fb.cc.

References File::open().

void Framebuffer::line	(	size_t	x1,
		size_t	y1,
		size_t	x2,
		size_t	y2,
		uint32_t	colour,
		Graphics::PixelFormat	format = `Graphics::Bits32_Argb`,
		bool	bLowestCall = `true`
	)

virtual

Draws a line one pixel wide between two points on the screen

Definition at line 202 of file Framebuffer.cc.

void Framebuffer::rect	(	size_t	x,
		size_t	y,
		size_t	width,
		size_t	height,
		uint32_t	colour,
		Graphics::PixelFormat	format = `Graphics::Bits32_Argb`,
		bool	bLowestCall = `true`
	)

virtual

Draws a single rectangle to the screen with the given colour.

Definition at line 179 of file Framebuffer.cc.

Referenced by StreamingScreenLogger::callback().

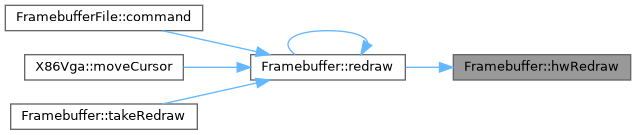

Here is the caller graph for this function:

void Framebuffer::redraw	(	size_t	x = `~0UL`,
		size_t	y = `~0UL`,
		size_t	w = `~0UL`,
		size_t	h = `~0UL`,
		bool	bChild = `false`
	)

Performs an update of a region of this framebuffer. This function can be used by drivers to request an area of the framebuffer be redrawn, but is useless for non-hardware-accelerated devices.

Parameters

x	leftmost x co-ordinate of the redraw area, ~0 for "invalid"
y	topmost y co-ordinate of the redraw area, ~0 for "invalid"
w	width of the redraw area, ~0 for "invalid"
h	height of the redraw area, ~0 for "invalid"
bChild	non-zero if a child began the redraw, zero otherwise

Note: Because every redraw ends up redrawing a large region of the "root" framebuffer, it's not necessary to do framebuffer copies at any point. The only reason a framebuffer copy is done in this function is in the one case where a parent needs to override a child's framebuffer.

Note: If none of the above makes sense, you need to read the Pedigree graphics design doc: http://pedigree-project.org/issues/114

Todo:: nChildren parameter - this is not necessary if no children!

Definition at line 112 of file Framebuffer.cc.

References ERROR.

Referenced by StreamingScreenLogger::callback(), and FramebufferFile::command().

Here is the caller graph for this function:

void Framebuffer::restoreMode ( )

Restore saved mode.

Definition at line 85 of file fb.cc.

void Framebuffer::setPalette	(	uint32_t *	palette,
		size_t	nEntries
	)

Sets the palette used for palette-based colour formats. Takes an array of pixels in Bits32_Argb format.

Definition at line 71 of file Framebuffer.cc.

References Dec, Hex, and NOTICE.

void Framebuffer::setPixel	(	size_t	x,
		size_t	y,
		uint32_t	colour,
		Graphics::PixelFormat	format = `Graphics::Bits32_Argb`,
		bool	bLowestCall = `true`
	)

Sets an individual pixel on the framebuffer. Not inheritable.

Definition at line 214 of file Framebuffer.cc.

References Graphics::Buffer::base, Graphics::Buffer::bufferId, Graphics::Buffer::bytesPerPixel, Graphics::Buffer::format, Graphics::Buffer::height, Graphics::Buffer::pBacking, and Graphics::Buffer::width.

virtual bool Framebuffer::setScreenMode ( Display::ScreenMode sm )

virtual

Sets the current screen mode.

Returns: True if operation succeeded, false otherwise.

Reimplemented from Display.

Referenced by VbeDisplay::setScreenMode().

Here is the caller graph for this function:

void Framebuffer::storeMode ( )

Store current mode (before switching).

Definition at line 70 of file fb.cc.

void Framebuffer::swBlit	(	Graphics::Buffer *	pBuffer,
		size_t	srcx,
		size_t	srcy,
		size_t	destx,
		size_t	desty,
		size_t	width,
		size_t	height
	)

protected

Todo:: This code is broken for the case where srcx/srcy are not zero. :(

Definition at line 436 of file Framebuffer.cc.

References Graphics::Buffer::base, Graphics::Buffer::bytesPerPixel, Graphics::Buffer::height, UNLIKELY, and Graphics::Buffer::width.

void Framebuffer::swCopy	(	size_t	srcx,
		size_t	srcy,
		size_t	destx,
		size_t	desty,
		size_t	w,
		size_t	h
	)

protected

Todo:: consider source bytes per line?

Definition at line 646 of file Framebuffer.cc.

References UNLIKELY.

Graphics::Buffer * Framebuffer::swCreateBuffer	(	const void *	srcData,
		Graphics::PixelFormat	srcFormat,
		size_t	width,
		size_t	height,
		uint32_t *	pPalette
	)

protected

Todo:: 8-bit

Definition at line 304 of file Framebuffer.cc.

References PhysicalMemoryManager::allocateRegion(), Graphics::Buffer::base, Graphics::Buffer::bufferId, Graphics::Buffer::bytesPerPixel, Graphics::Buffer::format, Graphics::Buffer::height, PhysicalMemoryManager::instance(), Graphics::Buffer::pBacking, UNLIKELY, MemoryRegion::virtualAddress(), Graphics::Buffer::width, and VirtualAddressSpace::Write.

void Framebuffer::swRect	(	size_t	x,
		size_t	y,
		size_t	width,
		size_t	height,
		uint32_t	colour,
		Graphics::PixelFormat	format
	)

protected

Todo:: Handle 24-bit properly

Todo:: Handle 24-bit properly

Definition at line 502 of file Framebuffer.cc.

References UNLIKELY.

void Framebuffer::swSetPixel	(	size_t	x,
		size_t	y,
		uint32_t	colour,
		Graphics::PixelFormat	format = `Graphics::Bits32_Argb`
	)

private

Sets an individual pixel on the framebuffer. Not inheritable.

Todo:: 8-bit

Definition at line 804 of file Framebuffer.cc.

References UNLIKELY.

Member Data Documentation

Display::ScreenMode Framebuffer::m_Mode

private

Copy constructor is private. Current mode.

Definition at line 50 of file modules/drivers/ppc/framebuffer/Framebuffer.h.

size_t Framebuffer::m_XPos

X position on our parent's framebuffer.

Class friendship isn't inheritable, so these have to be public for graphics drivers to use. They shouldn't be touched by anything that isn't a graphics driver.

Definition at line 144 of file system/include/pedigree/kernel/machine/Framebuffer.h.

The documentation for this class was generated from the following files:

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

Member Data Documentation
