PhysicalMemoryManager Class Reference

#include <PhysicalMemoryManager.h>

Inheritance diagram for PhysicalMemoryManager:

Collaboration diagram for PhysicalMemoryManager:

Classes
struct	MemoryRegionInfo

Public Member Functions
virtual physical_uintptr_t	allocatePage (size_t pageConstraints=0)=0
virtual void	freePage (physical_uintptr_t page)=0
virtual void	pin (physical_uintptr_t page)=0
virtual bool	allocateRegion (MemoryRegion &Region, size_t cPages, size_t pageConstraints, size_t Flags, physical_uintptr_t start=-1)=0
void	allocateMemoryRegionList (Vector< MemoryRegionInfo * > &MemoryRegions)
void	freeMemoryRegionList (Vector< MemoryRegionInfo * > &MemoryRegions)
virtual size_t	freePageCount () const

Static Public Member Functions
static PhysicalMemoryManager &	instance ()
static size_t	getPageSize () PURE

Static Public Attributes
static const size_t	continuous = 1 << 0
static const size_t	nonRamMemory = 1 << 1
static const size_t	force = 1 << 2
static const size_t	virtualOnly = 1 << 3
static const size_t	below1MB = 1 << 4
static const size_t	below16MB = 1 << 5
static const size_t	below4GB = 1 << 6
static const size_t	below64GB = 1 << 7
static const size_t	addressConstraints
static const size_t	anonymous = 1 << 8

Protected Member Functions
	PhysicalMemoryManager ()
virtual	~PhysicalMemoryManager ()

Protected Attributes
Vector< MemoryRegion * >	m_MemoryRegions

Private Member Functions
	PhysicalMemoryManager (const PhysicalMemoryManager &)
PhysicalMemoryManager &	operator= (const PhysicalMemoryManager &)
virtual void	freePageUnlocked (physical_uintptr_t page)=0
virtual void	unmapRegion (MemoryRegion *pRegion)=0

Friends
class	CacheManager
class	Cache
class	MemoryRegion

Detailed Description

The PhysicalMemoryManager manages the physical address space. That means it provides functions to allocate and free pages.

Definition at line 34 of file include/pedigree/kernel/processor/PhysicalMemoryManager.h.

Constructor & Destructor Documentation

PhysicalMemoryManager::PhysicalMemoryManager ( )

protected

The constructor

Definition at line 24 of file PhysicalMemoryManager.cc.

PhysicalMemoryManager::~PhysicalMemoryManager ( )

protectedvirtual

The destructor

Definition at line 28 of file PhysicalMemoryManager.cc.

PhysicalMemoryManager::PhysicalMemoryManager ( const PhysicalMemoryManager &  )

private

The copy-constructor

Note

Not implemented (singleton)

Member Function Documentation

void PhysicalMemoryManager::allocateMemoryRegionList

(

Vector< MemoryRegionInfo * > &

MemoryRegions

)

Copy the memory region list

Parameters

[in,out]

MemoryRegions

container for the copy of the memory regions

Definition at line 38 of file PhysicalMemoryManager.cc.

References Vector< T >::count(), m_MemoryRegions, physicalAddress(), and Vector< T >::pushBack().

Referenced by IoCommand::execute().

Here is the caller graph for this function:

virtual physical_uintptr_t PhysicalMemoryManager::allocatePage ( size_t  pageConstraints = 0 )

pure virtual

Allocate a single page with optional constraints.

Returns

physical address of the page or 0 if no page available.

Implemented in X86CommonPhysicalMemoryManager.

Referenced by Elf::allocate(), ArmV7VirtualAddressSpace::allocateStack(), PerProcessorScheduler::checkEventState(), PPC32VirtualAddressSpace::clone(), X64VirtualAddressSpace::conditionalTableEntryAllocation(), HostedVirtualAddressSpace::doAllocateStack(), X64VirtualAddressSpace::doAllocateStack(), ArmV7VirtualAddressSpace::doMap(), VirtualAddressSpace::expandHeap(), MIPS32VirtualAddressSpace::generateNullChunk(), Thread::getTlsBase(), DynamicLinker::initPlt(), Elf::loadModule(), Cache::map(), X86VirtualAddressSpace::mapCrossSpace(), DynamicLinker::trap(), AnonymousMemoryMap::trap(), MemoryMappedFile::trap(), X64VirtualAddressSpace::X64VirtualAddressSpace(), and X86VirtualAddressSpace::X86VirtualAddressSpace().

Here is the caller graph for this function:

virtual bool PhysicalMemoryManager::allocateRegion ( MemoryRegion &  Region, size_t  cPages, size_t  pageConstraints, size_t  Flags, physical_uintptr_t  start = -1  )

pure virtual

Allocate a memory-region with specific constraints the pages need to fullfill.

Parameters

[in]	Region	reference to the MemoryRegion object
[in]	cPages	the number of pages to allocate for the MemoryRegion object
[in]	pageConstraints	the constraints the pages have to fullfill
[in]	Flags	flags from the VirtualAddressSpace class namespace
[in]	start	the physical address of the beginning of the region (optional)

Returns

true, if a valid MemoryRegion object is created, false otherwise

Implemented in X86CommonPhysicalMemoryManager, HostedPhysicalMemoryManager, PpcCommonPhysicalMemoryManager, ArmV7PhysicalMemoryManager, and MipsCommonPhysicalMemoryManager.

Referenced by PPCVga::initialise(), MemoryPool::initialise(), BusMasterIde::initialise(), KernelElf::initialise(), Device::Address::map(), X86Vga::moveCursor(), and Framebuffer::swCreateBuffer().

Here is the caller graph for this function:

void PhysicalMemoryManager::freeMemoryRegionList

(

Vector< MemoryRegionInfo * > &

MemoryRegions

)

Free the memory region list created with allocateMemoryRegionList.

Parameters

[in,out]

MemoryRegions

container of the copy of the memory regions

Definition at line 50 of file PhysicalMemoryManager.cc.

References Vector< T >::count(), and Vector< T >::popBack().

virtual void PhysicalMemoryManager::freePage ( physical_uintptr_t  page )

pure virtual

Free a page allocated with the allocatePage() function

Parameters

[in]

page

physical address of the page

Implemented in X86CommonPhysicalMemoryManager, HostedPhysicalMemoryManager, PpcCommonPhysicalMemoryManager, MipsCommonPhysicalMemoryManager, and ArmV7PhysicalMemoryManager.

Referenced by MemoryMappedFile::compact(), Cache::evict(), VirtualAddressSpace::expandHeap(), HostedVirtualAddressSpace::freeStack(), X64VirtualAddressSpace::freeStack(), MemoryMappedFile::invalidate(), X64VirtualAddressSpace::maybeFreeTables(), AnonymousMemoryMap::remove(), MemoryMappedFile::remove(), X86VirtualAddressSpace::revertToKernelAddressSpace(), HostedVirtualAddressSpace::revertToKernelAddressSpace(), X64VirtualAddressSpace::revertToKernelAddressSpace(), VirtualAddressSpace::rollbackHeapExpansion(), AnonymousMemoryMap::trap(), KernelElf::unloadModule(), MIPS32VirtualAddressSpace::~MIPS32VirtualAddressSpace(), Thread::~Thread(), X64VirtualAddressSpace::~X64VirtualAddressSpace(), and X86VirtualAddressSpace::~X86VirtualAddressSpace().

Here is the caller graph for this function:

size_t PhysicalMemoryManager::freePageCount ( ) const

virtual

Specifies the number of pages that remain free on the system.

Reimplemented in X86CommonPhysicalMemoryManager.

Definition at line 32 of file PhysicalMemoryManager.cc.

Referenced by CacheManager::executeRequest().

Here is the caller graph for this function:

virtual void PhysicalMemoryManager::freePageUnlocked ( physical_uintptr_t  page )

privatepure virtual

Same as freePage, but without the lock. Will panic if the lock is unlocked.

Note

Use in the wrong place and you die.

Implemented in X86CommonPhysicalMemoryManager, HostedPhysicalMemoryManager, and ArmV7PhysicalMemoryManager.

Referenced by X86CommonPhysicalMemoryManager::freePage().

Here is the caller graph for this function:

static size_t PhysicalMemoryManager::getPageSize ( )

inlinestatic

Get the size of one page

Returns

size of one page in bytes

Definition at line 78 of file include/pedigree/kernel/processor/PhysicalMemoryManager.h.

References PAGE_SIZE.

Referenced by Device::Address::Address(), X86CommonPhysicalMemoryManager::PageStack::allocate(), Elf::allocate(), ArmV7PhysicalMemoryManager::allocateRegion(), HostedPhysicalMemoryManager::allocateRegion(), PpcCommonPhysicalMemoryManager::allocateRegion(), X86CommonPhysicalMemoryManager::allocateRegion(), ArmV7VirtualAddressSpace::allocateStack(), Archive::Archive(), PosixSubsystem::checkAddress(), PerProcessorScheduler::checkEventState(), MemoryMappedFile::compact(), X64VirtualAddressSpace::conditionalTableEntryAllocation(), X64VirtualAddressSpace::conditionalTableEntryMapping(), MemoryMapManager::contains(), HostedVirtualAddressSpace::doAllocateStack(), X64VirtualAddressSpace::doAllocateStack(), MappingCommand::execute(), VirtualAddressSpace::expandHeap(), Elf::finaliseModule(), ArmV7PhysicalMemoryManager::PageStack::free(), HostedPhysicalMemoryManager::PageStack::free(), X86CommonPhysicalMemoryManager::PageStack::free(), X86CommonPhysicalMemoryManager::freePageUnlocked(), HostedVirtualAddressSpace::freeStack(), X64VirtualAddressSpace::freeStack(), File::getBlockSize(), HostedVirtualAddressSpace::getMapping(), File::getPhysicalPage(), VbeFramebuffer::hwRedraw(), X86CommonPhysicalMemoryManager::initialisationDone(), X86CommonPhysicalMemoryManager::initialise(), MemoryPool::initialise(), KernelElf::initialise(), X86CommonPhysicalMemoryManager::initialise64(), PosixSubsystem::invoke(), CdiIrqHandler::irq(), HostedVirtualAddressSpace::isMapped(), PosixSubsystem::loadElf(), Elf::loadModule(), Device::Address::map(), HostedVirtualAddressSpace::map(), MemoryMapManager::mapAnon(), X86VirtualAddressSpace::mapCrossSpace(), MemoryMapManager::mapFile(), X64VirtualAddressSpace::mapHuge(), VirtualAddressSpace::mapHuge(), X86VirtualAddressSpace::mapPageStructures(), X86CommonPhysicalMemoryManager::PageStack::maybeMap(), VbeDisplay::newBuffer(), page_align(), File::read(), File::readIntoCache(), AnonymousMemoryMap::remove(), MemoryMappedFile::remove(), MemoryMapManager::remove(), File::returnPhysicalPage(), HostedVirtualAddressSpace::revertToKernelAddressSpace(), VirtualAddressSpace::rollbackHeapExpansion(), MemoryMapManager::sanitiseAddress(), HostedVirtualAddressSpace::setFlags(), MemoryMappedFile::setPermissions(), MemoryMapManager::setPermissions(), MemoryMappedFile::split(), HostedVirtualAddressSpace::switchAddressSpace(), DynamicLinker::trap(), AnonymousMemoryMap::trap(), MemoryMappedFile::trap(), MemoryMapManager::trap(), MemoryPool::trim(), KernelElf::unloadModule(), HostedVirtualAddressSpace::unmap(), PpcCommonPhysicalMemoryManager::unmapRegion(), HostedPhysicalMemoryManager::unmapRegion(), X86CommonPhysicalMemoryManager::unmapRegion(), File::useFillCache(), File::writeCallback(), X86VirtualAddressSpace::X86VirtualAddressSpace(), and PpcCommonPhysicalMemoryManager::~PpcCommonPhysicalMemoryManager().

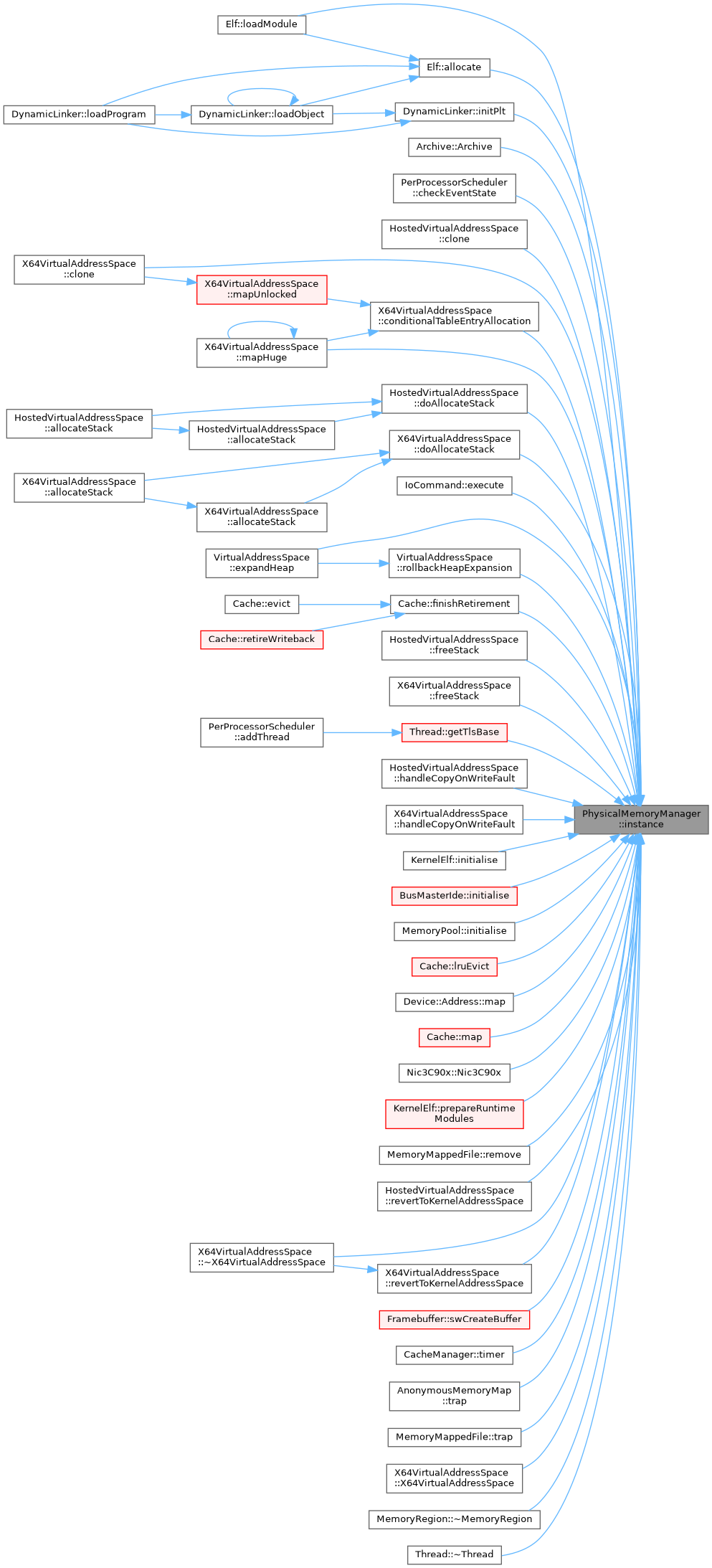

PhysicalMemoryManager & PhysicalMemoryManager::instance ( )

static

Get the PhysicalMemoryManager instance

Returns

instance of the PhysicalMemoryManager

Definition at line 29 of file armv7/PhysicalMemoryManager.cc.

References ArmV7PhysicalMemoryManager::instance().

Referenced by Elf::allocate(), ArmV7VirtualAddressSpace::allocateStack(), Archive::Archive(), PerProcessorScheduler::checkEventState(), PPC32VirtualAddressSpace::clone(), HostedVirtualAddressSpace::clone(), X64VirtualAddressSpace::clone(), MemoryMappedFile::compact(), X64VirtualAddressSpace::conditionalTableEntryAllocation(), HostedVirtualAddressSpace::doAllocateStack(), X64VirtualAddressSpace::doAllocateStack(), ArmV7VirtualAddressSpace::doMap(), Cache::evict(), IoCommand::execute(), CacheManager::executeRequest(), VirtualAddressSpace::expandHeap(), HostedVirtualAddressSpace::freeStack(), X64VirtualAddressSpace::freeStack(), X86VirtualAddressSpace::fromFlags(), MIPS32VirtualAddressSpace::generateNullChunk(), Thread::getTlsBase(), VbeFramebuffer::hwRedraw(), UsbUlpi::initialise(), PPCVga::initialise(), MemoryPool::initialise(), GPTimer::initialise(), Prcm::initialise(), BusMasterIde::initialise(), KernelElf::initialise(), Ehci::initialiseController(), ARMV7InterruptManager::initialiseProcessor(), DynamicLinker::initPlt(), MemoryMappedFile::invalidate(), Ipc::IpcMessage::IpcMessage(), CdiIrqHandler::irq(), Elf::loadModule(), Cache::lruEvict(), Device::Address::map(), Cache::map(), X86VirtualAddressSpace::mapCrossSpace(), X64VirtualAddressSpace::maybeFreeTables(), X86Vga::moveCursor(), VbeDisplay::newBuffer(), Nic3C90x::Nic3C90x(), AnonymousMemoryMap::remove(), MemoryMappedFile::remove(), X86VirtualAddressSpace::revertToKernelAddressSpace(), HostedVirtualAddressSpace::revertToKernelAddressSpace(), X64VirtualAddressSpace::revertToKernelAddressSpace(), VirtualAddressSpace::rollbackHeapExpansion(), ArmBeagleSerial::setBase(), Framebuffer::swCreateBuffer(), DynamicLinker::trap(), AnonymousMemoryMap::trap(), MemoryMappedFile::trap(), KernelElf::unloadModule(), X64VirtualAddressSpace::X64VirtualAddressSpace(), X86VirtualAddressSpace::X86VirtualAddressSpace(), MemoryRegion::~MemoryRegion(), MIPS32VirtualAddressSpace::~MIPS32VirtualAddressSpace(), Thread::~Thread(), X64VirtualAddressSpace::~X64VirtualAddressSpace(), and X86VirtualAddressSpace::~X86VirtualAddressSpace().

PhysicalMemoryManager& PhysicalMemoryManager::operator= ( const PhysicalMemoryManager &  )

private

The copy-constructor

Note

Not implemented (singleton)

virtual void PhysicalMemoryManager::pin ( physical_uintptr_t  page )

pure virtual

"Pin" a page, increasing its refcount.

Every time a pinned page is passed to freePage, its refcount is decreased, and the page is only freed once the refcount hits zero.

Note that an unpin function is not provided, as freePage offers the right semantics.

Implemented in X86CommonPhysicalMemoryManager, HostedPhysicalMemoryManager, and ArmV7PhysicalMemoryManager.

Referenced by HostedVirtualAddressSpace::clone(), X64VirtualAddressSpace::clone(), HostedVirtualAddressSpace::doAllocateStack(), X64VirtualAddressSpace::doAllocateStack(), VirtualAddressSpace::expandHeap(), X86VirtualAddressSpace::fromFlags(), and AnonymousMemoryMap::trap().

Here is the caller graph for this function:

virtual void PhysicalMemoryManager::unmapRegion ( MemoryRegion *  pRegion )

privatepure virtual

Unmaps a memory region - called ONLY from MemoryRegion's destructor.

Implemented in X86CommonPhysicalMemoryManager, HostedPhysicalMemoryManager, ArmV7PhysicalMemoryManager, and PpcCommonPhysicalMemoryManager.

Referenced by MemoryRegion::~MemoryRegion().

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class MemoryRegion

friend

MemoryRegion can access our unmapRegion function.

Definition at line 41 of file include/pedigree/kernel/processor/PhysicalMemoryManager.h.

Member Data Documentation

const size_t PhysicalMemoryManager::addressConstraints

static

Initial value:

=
        below1MB | below16MB | below4GB | below64GB

All address size constraints

Definition at line 66 of file include/pedigree/kernel/processor/PhysicalMemoryManager.h.

Referenced by X86CommonPhysicalMemoryManager::allocateRegion().

const size_t PhysicalMemoryManager::anonymous = 1 << 8

static

Don't track the memory region.

Definition at line 70 of file include/pedigree/kernel/processor/PhysicalMemoryManager.h.

Referenced by X86CommonPhysicalMemoryManager::allocateRegion().

const size_t PhysicalMemoryManager::below16MB = 1 << 5

static

The allocated pages should be below the 16MB mark

Definition at line 59 of file include/pedigree/kernel/processor/PhysicalMemoryManager.h.

Referenced by X86CommonPhysicalMemoryManager::allocateRegion().

const size_t PhysicalMemoryManager::below1MB = 1 << 4

static

The allocated pages should be below the 1MB mark

Definition at line 57 of file include/pedigree/kernel/processor/PhysicalMemoryManager.h.

Referenced by X86CommonPhysicalMemoryManager::allocateRegion().

const size_t PhysicalMemoryManager::below4GB = 1 << 6

static

The allocated pages should be below the 4GB mark

Definition at line 61 of file include/pedigree/kernel/processor/PhysicalMemoryManager.h.

Referenced by X86CommonPhysicalMemoryManager::PageStack::allocate().

const size_t PhysicalMemoryManager::below64GB = 1 << 7

static

The allocated pages should be below the 64GB mark

Definition at line 63 of file include/pedigree/kernel/processor/PhysicalMemoryManager.h.

Referenced by X86CommonPhysicalMemoryManager::PageStack::allocate().

const size_t PhysicalMemoryManager::continuous = 1 << 0

static

If this flag is set the pages are physically continuous

Definition at line 44 of file include/pedigree/kernel/processor/PhysicalMemoryManager.h.

Referenced by ArmV7PhysicalMemoryManager::allocateRegion(), PpcCommonPhysicalMemoryManager::allocateRegion(), X86CommonPhysicalMemoryManager::allocateRegion(), Archive::Archive(), VbeFramebuffer::hwRedraw(), UsbUlpi::initialise(), PPCVga::initialise(), GPTimer::initialise(), Prcm::initialise(), BusMasterIde::initialise(), KernelElf::initialise(), Ehci::initialiseController(), ARMV7InterruptManager::initialiseProcessor(), Ipc::IpcMessage::IpcMessage(), CdiIrqHandler::irq(), Device::Address::map(), X86Vga::moveCursor(), Nic3C90x::Nic3C90x(), and ArmBeagleSerial::setBase().

const size_t PhysicalMemoryManager::force = 1 << 2

static

If this flag is set we try to remove the range from the PhysicalMemoryManager, but if that fails, we still map the physical memory region

Definition at line 50 of file include/pedigree/kernel/processor/PhysicalMemoryManager.h.

Referenced by ArmV7PhysicalMemoryManager::allocateRegion(), PpcCommonPhysicalMemoryManager::allocateRegion(), X86CommonPhysicalMemoryManager::allocateRegion(), UsbUlpi::initialise(), PPCVga::initialise(), and Device::Address::map().

Vector<MemoryRegion *> PhysicalMemoryManager::m_MemoryRegions

protected

List of memory-regions

Definition at line 158 of file include/pedigree/kernel/processor/PhysicalMemoryManager.h.

Referenced by allocateMemoryRegionList(), ArmV7PhysicalMemoryManager::allocateRegion(), HostedPhysicalMemoryManager::allocateRegion(), PpcCommonPhysicalMemoryManager::allocateRegion(), X86CommonPhysicalMemoryManager::allocateRegion(), X86CommonPhysicalMemoryManager::initialise(), X86CommonPhysicalMemoryManager::shutdown(), PpcCommonPhysicalMemoryManager::unmapRegion(), HostedPhysicalMemoryManager::unmapRegion(), X86CommonPhysicalMemoryManager::unmapRegion(), and HostedPhysicalMemoryManager::~HostedPhysicalMemoryManager().

const size_t PhysicalMemoryManager::nonRamMemory = 1 << 1

static

If this flag is set we allocate pages that are not in RAM

Definition at line 46 of file include/pedigree/kernel/processor/PhysicalMemoryManager.h.

Referenced by PpcCommonPhysicalMemoryManager::allocateRegion(), X86CommonPhysicalMemoryManager::allocateRegion(), PPCVga::initialise(), Device::Address::map(), and X86Vga::moveCursor().

const size_t PhysicalMemoryManager::virtualOnly = 1 << 3

static

Only allocate virtual address space for the region.

Definition at line 52 of file include/pedigree/kernel/processor/PhysicalMemoryManager.h.

Referenced by X86CommonPhysicalMemoryManager::allocateRegion(), and MemoryPool::initialise().

---

The documentation for this class was generated from the following files:

• include/pedigree/kernel/processor/PhysicalMemoryManager.h
• armv7/PhysicalMemoryManager.cc
