HostedPhysicalMemoryManager Class Reference

Implementation of the PhysicalMemoryManager for common x86. More...

#include <PhysicalMemoryManager.h>

Inheritance diagram for HostedPhysicalMemoryManager:

Collaboration diagram for HostedPhysicalMemoryManager:

Classes
struct	page
class	PageHashable

Public Member Functions
virtual physical_uintptr_t	allocatePage (size_t pageConstraints=0) override
physical_uintptr_t	tryAllocatePage () override
bool	copyPhysicalPageToBuffer (physical_uintptr_t page, void *buffer) override
bool	copyPhysicalPageFromBuffer (physical_uintptr_t page, const void *buffer) override
MemorySnapshot	memorySnapshot () const override
virtual void	freePage (physical_uintptr_t page) override
virtual bool	allocateRegion (MemoryRegion &Region, size_t cPages, size_t pageConstraints, size_t Flags, physical_uintptr_t start=-1) override
virtual void	pin (physical_uintptr_t page) override
void	initialise (const BootstrapStruct_t &Info) INITIALISATION_ONLY
void	initialisationDone ()
const RangeList< uint64_t > &	getAcpiRanges () const
Public Member Functions inherited from PhysicalMemoryManager
void	allocateMemoryRegionList (Vector< MemoryRegionInfo * > &MemoryRegions)
void	freeMemoryRegionList (Vector< MemoryRegionInfo * > &MemoryRegions)
virtual size_t	freePageCount () const

Static Public Member Functions
static HostedPhysicalMemoryManager &	instance ()
Static Public Member Functions inherited from PhysicalMemoryManager
static PhysicalMemoryManager &	instance ()
static constexpr size_t	getPageSize () PURE

Protected Member Functions
	HostedPhysicalMemoryManager () INITIALISATION_ONLY
virtual	~HostedPhysicalMemoryManager () override
Protected Member Functions inherited from PhysicalMemoryManager
	PhysicalMemoryManager ()
virtual	~PhysicalMemoryManager ()

Private Types
using	PageStack = X86CommonPhysicalMemoryManager::PageStack
typedef HashTable< PageHashable, struct page >	MetadataTable

Private Member Functions
	HostedPhysicalMemoryManager (const HostedPhysicalMemoryManager &)
HostedPhysicalMemoryManager &	operator= (const HostedPhysicalMemoryManager &)
int	getBackingFile () const
void	unmapRegion (MemoryRegion *pRegion) override
virtual void	freePageUnlocked (physical_uintptr_t page) override

Private Attributes
PageStack	m_PageStack
RangeList< uint64_t >	m_PhysicalRanges
RangeList< uintptr_t >	m_MemoryRegions
RangeList< uint64_t >	m_AcpiRanges
Spinlock	m_Lock
Spinlock	m_RegionLock
HashTable< PageHashable, struct page >	m_PageMetadata
int	m_BackingFile

Static Private Attributes
static HostedPhysicalMemoryManager *	m_Instance = nullptr

Friends
class	CacheManager
class	Cache
class	PhysicalMemoryManager
class	HostedVirtualAddressSpace

Additional Inherited Members
Static Public Attributes inherited from PhysicalMemoryManager
static const size_t	continuous = 1 << 0
static const size_t	nonRamMemory = 1 << 1
static const size_t	force = 1 << 2
static const size_t	virtualOnly = 1 << 3
static const size_t	below1MB = 1 << 4
static const size_t	below16MB = 1 << 5
static const size_t	below4GB = 1 << 6
static const size_t	below64GB = 1 << 7
static const size_t	addressConstraints = below1MB | below16MB | below4GB | below64GB
static const size_t	anonymous = 1 << 8
Protected Attributes inherited from PhysicalMemoryManager
Vector< MemoryRegion * >	m_MemoryRegions

Detailed Description

Implementation of the PhysicalMemoryManager for common x86.

The common x86 implementation of the PhysicalMemoryManager

Definition at line 40 of file kernel/core/processor/hosted/PhysicalMemoryManager.h.

Member Typedef Documentation

MetadataTable

typedef HashTable<PageHashable, struct page> HostedPhysicalMemoryManager::MetadataTable

private

Definition at line 156 of file kernel/core/processor/hosted/PhysicalMemoryManager.h.

PageStack

using HostedPhysicalMemoryManager::PageStack = X86CommonPhysicalMemoryManager::PageStack

private

Definition at line 105 of file kernel/core/processor/hosted/PhysicalMemoryManager.h.

Constructor & Destructor Documentation

HostedPhysicalMemoryManager() [1/2]

HostedPhysicalMemoryManager::HostedPhysicalMemoryManager ( )

protected

The constructor

Definition at line 465 of file hosted/PhysicalMemoryManager.cc.

References m_BackingFile.

Referenced by instance().

Here is the caller graph for this function:

~HostedPhysicalMemoryManager()

HostedPhysicalMemoryManager::~HostedPhysicalMemoryManager ( )

overrideprotectedvirtual

The destructor

Definition at line 480 of file hosted/PhysicalMemoryManager.cc.

References Vector< T >::clear(), m_BackingFile, and PhysicalMemoryManager::m_MemoryRegions.

HostedPhysicalMemoryManager() [2/2]

HostedPhysicalMemoryManager::HostedPhysicalMemoryManager ( const HostedPhysicalMemoryManager &  )

private

The copy-constructor

Note

Not implemented (singleton)

Member Function Documentation

allocatePage()

physical_uintptr_t HostedPhysicalMemoryManager::allocatePage ( size_t  pageConstraints = 0 )

overridevirtual

Allocate a single page with optional constraints.

Returns

physical address of the page or 0 if no page available.

Implements PhysicalMemoryManager.

Definition at line 65 of file hosted/PhysicalMemoryManager.cc.

References Spinlock::acquire(), X86CommonPhysicalMemoryManager::PageStack::allocate(), MemoryPressureManager::compact(), MemoryPressureManager::compactingForCurrentExecution(), PhysicalMemoryManager::getPageSize(), ProcessorBase::m_Initialised, m_Lock, m_PageStack, panic(), and Spinlock::release().

Referenced by allocateRegion().

Here is the caller graph for this function:

allocateRegion()

bool HostedPhysicalMemoryManager::allocateRegion ( MemoryRegion &  Region, size_t  cPages, size_t  pageConstraints, size_t  Flags, physical_uintptr_t  start = -1  )

overridevirtual

Allocate a memory-region with specific constraints the pages need to fullfill.

Parameters

[in]	Region	reference to the MemoryRegion object
[in]	cPages	the number of pages to allocate for the MemoryRegion object
[in]	pageConstraints	the constraints the pages have to fullfill
[in]	Flags	flags from the VirtualAddressSpace class namespace
[in]	start	the physical address of the beginning of the region (optional)

Returns

true, if a valid MemoryRegion object is created, false otherwise

Implements PhysicalMemoryManager.

Definition at line 286 of file hosted/PhysicalMemoryManager.cc.

References PhysicalMemoryManager::addressConstraints, RangeList< T, Reversed >::allocate(), allocatePage(), RangeList< T, Reversed >::allocateSpecific(), PhysicalMemoryManager::anonymous, PhysicalMemoryManager::continuous, PhysicalMemoryManager::force, RangeList< T, Reversed >::free(), freePage(), VirtualAddressSpace::getMapping(), PhysicalMemoryManager::getPageSize(), ProcessorBase::information(), PhysicalMemoryManager::m_MemoryRegions, m_MemoryRegions, MemoryRegion::m_PhysicalAddress, m_PhysicalRanges, MemoryRegion::m_Size, MemoryRegion::m_VirtualAddress, VirtualAddressSpace::map(), PhysicalMemoryManager::nonRamMemory, panic(), Vector< T >::pushBack(), VirtualAddressSpace::unmap(), and PhysicalMemoryManager::virtualOnly.

Referenced by initialisationDone().

Here is the caller graph for this function:

copyPhysicalPageFromBuffer()

bool HostedPhysicalMemoryManager::copyPhysicalPageFromBuffer ( physical_uintptr_t  page, const void *  buffer  )

overridevirtual

Reimplemented from PhysicalMemoryManager.

Definition at line 192 of file hosted/PhysicalMemoryManager.cc.

copyPhysicalPageToBuffer()

bool HostedPhysicalMemoryManager::copyPhysicalPageToBuffer ( physical_uintptr_t  page, void *  buffer  )

overridevirtual

Reimplemented from PhysicalMemoryManager.

Definition at line 188 of file hosted/PhysicalMemoryManager.cc.

freePage()

void HostedPhysicalMemoryManager::freePage ( physical_uintptr_t  page )

overridevirtual

Free a page allocated with the allocatePage() function

Parameters

[in]

page

physical address of the page

Implements PhysicalMemoryManager.

Definition at line 198 of file hosted/PhysicalMemoryManager.cc.

References freePageUnlocked(), and m_Lock.

Referenced by allocateRegion(), and unmapRegion().

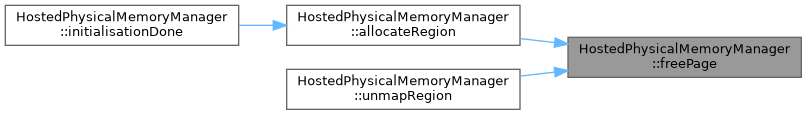

Here is the caller graph for this function:

freePageUnlocked()

void HostedPhysicalMemoryManager::freePageUnlocked ( physical_uintptr_t  page )

overrideprivatevirtual

Same as freePage, but without the lock. Will panic if the lock is unlocked.

Note

Use in the wrong place and you die.

Implements PhysicalMemoryManager.

Definition at line 203 of file hosted/PhysicalMemoryManager.cc.

References X86CommonPhysicalMemoryManager::PageStack::free(), PhysicalMemoryManager::getPageSize(), ProcessorBase::m_Initialised, m_Lock, m_PageMetadata, m_PageStack, and Spinlock::release().

Referenced by freePage().

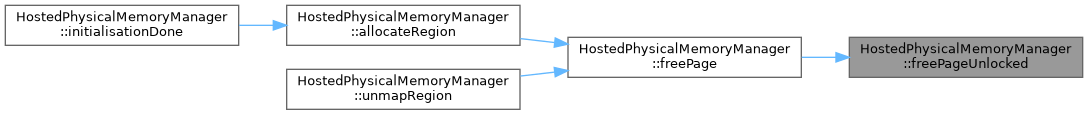

Here is the caller graph for this function:

getAcpiRanges()

const RangeList< uint64_t > & HostedPhysicalMemoryManager::getAcpiRanges ( ) const

inline

Definition at line 73 of file kernel/core/processor/hosted/PhysicalMemoryManager.h.

getBackingFile()

int HostedPhysicalMemoryManager::getBackingFile ( ) const

inlineprivate

Definition at line 91 of file kernel/core/processor/hosted/PhysicalMemoryManager.h.

initialisationDone()

void HostedPhysicalMemoryManager::initialisationDone

(

)

Unmap & free the .init section

Definition at line 426 of file hosted/PhysicalMemoryManager.cc.

References allocateRegion(), PhysicalMemoryManager::anonymous, Vector< T >::count(), VirtualAddressSpace::getKernelAddressSpace(), VirtualAddressSpace::isMapped(), VirtualAddressSpace::KernelMode, PhysicalMemoryManager::m_MemoryRegions, and MemoryRegion::virtualAddress().

initialise()

void HostedPhysicalMemoryManager::initialise

(

const BootstrapStruct_t &

Info

)

Initialise the page stack

Parameters

[in]

Info

reference to the multiboot information structure

Definition at line 392 of file hosted/PhysicalMemoryManager.cc.

References RangeList< T, Reversed >::Range::address, RangeList< T, Reversed >::allocateSpecific(), RangeList< T, Reversed >::free(), X86CommonPhysicalMemoryManager::PageStack::free(), PhysicalMemoryManager::getPageSize(), RangeList< T, Reversed >::getRange(), Hex, RangeList< T, Reversed >::Range::length, m_MemoryRegions, m_PageMetadata, m_PageStack, m_PhysicalRanges, X86CommonPhysicalMemoryManager::PageStack::markBelow4GReady(), and RangeList< T, Reversed >::size().

instance()

HostedPhysicalMemoryManager & HostedPhysicalMemoryManager::instance ( )

static

Get the HostedPhysicalMemoryManager instance

Returns

instance of the HostedPhysicalMemoryManager

Definition at line 58 of file hosted/PhysicalMemoryManager.cc.

References HostedPhysicalMemoryManager(), and m_Instance.

Referenced by HostedVirtualAddressSpace::handleCopyOnWriteFault(), HostedVirtualAddressSpace::map(), HostedVirtualAddressSpace::switchAddressSpace(), and HostedVirtualAddressSpace::tryWriteUser32().

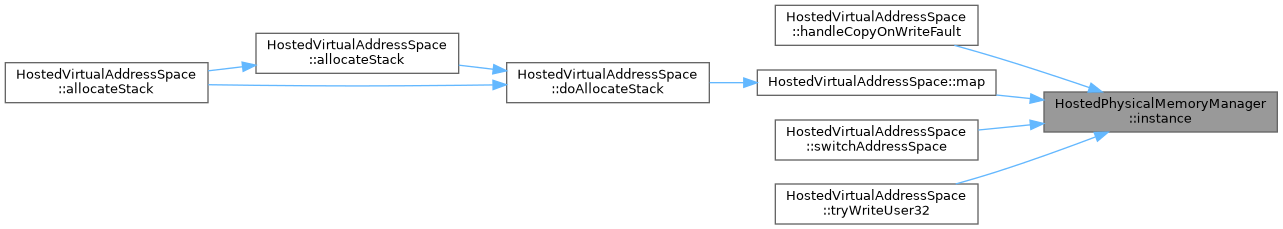

Here is the caller graph for this function:

memorySnapshot()

PhysicalMemoryManager::MemorySnapshot HostedPhysicalMemoryManager::memorySnapshot ( ) const

overridevirtual

Reimplemented from PhysicalMemoryManager.

Definition at line 182 of file hosted/PhysicalMemoryManager.cc.

operator=()

HostedPhysicalMemoryManager & HostedPhysicalMemoryManager::operator= ( const HostedPhysicalMemoryManager &  )

private

The copy-constructor

Note

Not implemented (singleton)

References m_BackingFile.

pin()

void HostedPhysicalMemoryManager::pin ( physical_uintptr_t  page )

overridevirtual

"Pin" a page, increasing its refcount.

Every time a pinned page is passed to freePage, its refcount is decreased, and the page is only freed once the refcount hits zero.

Note that an unpin function is not provided, as freePage offers the right semantics.

Implements PhysicalMemoryManager.

Definition at line 243 of file hosted/PhysicalMemoryManager.cc.

References m_Lock, and m_PageMetadata.

tryAllocatePage()

physical_uintptr_t HostedPhysicalMemoryManager::tryAllocatePage ( )

overridevirtual

Reimplemented from PhysicalMemoryManager.

Definition at line 135 of file hosted/PhysicalMemoryManager.cc.

unmapRegion()

void HostedPhysicalMemoryManager::unmapRegion ( MemoryRegion *  pRegion )

overrideprivatevirtual

Unmaps a memory region - called ONLY from MemoryRegion's destructor.

Implements PhysicalMemoryManager.

Definition at line 489 of file hosted/PhysicalMemoryManager.cc.

References Vector< T >::end(), Vector< T >::erase(), RangeList< T, Reversed >::free(), freePage(), VirtualAddressSpace::getKernelAddressSpace(), VirtualAddressSpace::getMapping(), PhysicalMemoryManager::getPageSize(), VirtualAddressSpace::isMapped(), PhysicalMemoryManager::m_MemoryRegions, m_MemoryRegions, m_PhysicalRanges, MemoryRegion::physicalAddress(), MemoryRegion::size(), VirtualAddressSpace::unmap(), and MemoryRegion::virtualAddress().

Friends And Related Symbol Documentation

Cache

friend class Cache

friend

Definition at line 42 of file kernel/core/processor/hosted/PhysicalMemoryManager.h.

CacheManager

friend class CacheManager

friend

Definition at line 41 of file kernel/core/processor/hosted/PhysicalMemoryManager.h.

HostedVirtualAddressSpace

friend class HostedVirtualAddressSpace

friend

For getBackingFile()

Definition at line 45 of file kernel/core/processor/hosted/PhysicalMemoryManager.h.

PhysicalMemoryManager

friend class PhysicalMemoryManager

friend

Definition at line 43 of file kernel/core/processor/hosted/PhysicalMemoryManager.h.

Member Data Documentation

m_AcpiRanges

RangeList<uint64_t> HostedPhysicalMemoryManager::m_AcpiRanges

private

Definition at line 118 of file kernel/core/processor/hosted/PhysicalMemoryManager.h.

m_BackingFile

int HostedPhysicalMemoryManager::m_BackingFile

private

Hosted: backing file for physical memory.

Definition at line 162 of file kernel/core/processor/hosted/PhysicalMemoryManager.h.

Referenced by HostedPhysicalMemoryManager(), operator=(), and ~HostedPhysicalMemoryManager().

m_Instance

HostedPhysicalMemoryManager * HostedPhysicalMemoryManager::m_Instance = nullptr

staticprivate

Static instance.

Definition at line 165 of file kernel/core/processor/hosted/PhysicalMemoryManager.h.

Referenced by instance().

m_Lock

Spinlock HostedPhysicalMemoryManager::m_Lock

private

To guard against multiprocessor reentrancy.

Definition at line 121 of file kernel/core/processor/hosted/PhysicalMemoryManager.h.

Referenced by allocatePage(), freePage(), freePageUnlocked(), and pin().

m_MemoryRegions

RangeList<uintptr_t> HostedPhysicalMemoryManager::m_MemoryRegions

private

Virtual-memory available for MemoryRegions

Todo:

rename this member (conflicts with PhysicalMemoryManager::m_MemoryRegions)

Definition at line 116 of file kernel/core/processor/hosted/PhysicalMemoryManager.h.

Referenced by allocateRegion(), initialise(), and unmapRegion().

m_PageMetadata

HashTable<PageHashable, struct page> HostedPhysicalMemoryManager::m_PageMetadata

private

Page metadata table

Definition at line 159 of file kernel/core/processor/hosted/PhysicalMemoryManager.h.

Referenced by freePageUnlocked(), initialise(), and pin().

m_PageStack

PageStack HostedPhysicalMemoryManager::m_PageStack

private

The page stack

Definition at line 108 of file kernel/core/processor/hosted/PhysicalMemoryManager.h.

Referenced by allocatePage(), freePageUnlocked(), and initialise().

m_PhysicalRanges

RangeList<uint64_t> HostedPhysicalMemoryManager::m_PhysicalRanges

private

RangeList of free physical memory

Definition at line 111 of file kernel/core/processor/hosted/PhysicalMemoryManager.h.

Referenced by allocateRegion(), initialise(), and unmapRegion().

m_RegionLock

Spinlock HostedPhysicalMemoryManager::m_RegionLock

private

Definition at line 121 of file kernel/core/processor/hosted/PhysicalMemoryManager.h.

---

The documentation for this class was generated from the following files:

• kernel/core/processor/hosted/PhysicalMemoryManager.h
• hosted/PhysicalMemoryManager.cc
