Classes | Public Types | Public Member Functions | Static Public Member Functions | Public Attributes | Static Public Attributes | Protected Member Functions | Protected Attributes | Private Member Functions | Private Attributes | Friends | List of all members
VirtualAddressSpace Class Referenceabstract
kernel » processor-specifc kernel

#include <VirtualAddressSpace.h>

+ Inheritance diagram for VirtualAddressSpace:
+ Collaboration diagram for VirtualAddressSpace:

Classes

struct  DetachedPage

struct  PageRemapRequest

class  PreparedPageRemap

struct  RemapRange

class  Stack


Public Types

enum class  ResidentCopyStatus { Success , Inaccessible , Unsupported }

enum class  RemapStatus {
  Success , InvalidRange , Unsupported , NoMemory ,
  Retry
}

using RemapAdmission = bool(*)(void *context)


Public Member Functions

RawUserMemory & rawUserMemory ()

virtual size_t runtimeMappingPages (uintptr_t, size_t)

MemoryLockAccount * memoryLockAccount () const

void setMemoryLockAccount (MemoryLockAccount *account)

UserMemoryPolicy * userMemoryPolicy () const

void setUserMemoryPolicy (UserMemoryPolicy *policy)

virtual void * expandHeap (ssize_t incr, size_t flags)

virtual bool isAddressValid (void *virtualAddress)=0

virtual bool isMapped (void *virtualAddress)=0

virtual bool map (physical_uintptr_t physicalAddress, void *virtualAddress, size_t flags)=0

virtual bool tryMapUserPage (physical_uintptr_t physical, void *address, size_t flags, size_t *committedTablePages=nullptr)

virtual bool tryDetachUserPage (void *address, physical_uintptr_t expected)

virtual bool mapHuge (physical_uintptr_t physAddress, void *virtualAddress, size_t count, size_t flags)

virtual bool getMapping (void *virtualAddress, physical_uintptr_t &physicalAddress, size_t &flags)=0

virtual bool handleCopyOnWriteFault (void *virtualAddress, bool userMode)=0

virtual ResidentCopyStatus copyResidentUserPage (uintptr_t userAddress, void *kernelBuffer, size_t bytes, bool write)

virtual bool tryWriteUser32 (uintptr_t address, uint32_t value)

virtual bool tryReadUser32 (uintptr_t address, uint32_t &value)

virtual bool tryReadUserPointer (uintptr_t address, uintptr_t &value)

virtual bool tryCompareExchangeUser32 (uintptr_t address, uint32_t &expected, uint32_t desired, bool &exchanged)

virtual void setFlags (void *virtualAddress, size_t newFlags)=0

virtual MUST_USE_RESULT bool trySetFlags (void *virtualAddress, size_t newFlags)

virtual void unmap (void *virtualAddress)=0

virtual bool detachMapping (void *virtualAddress, physical_uintptr_t &physical, size_t &flags, size_t requiredFlags=0)

virtual RemapStatus prepareRemap (const PageRemapRequest &request, UniquePointer< PreparedPageRemap > &plan)

virtual void setRemapPreparationFailureForTest (ssize_t allocations)

virtual Stack * allocateStack ()=0

virtual Stack * allocateStack (size_t stackSz)

virtual void freeStack (Stack *pStack)=0

virtual VirtualAddressSpace * clone (bool copyOnWrite=true)=0

virtual void revertToKernelAddressSpace ()=0

virtual ~VirtualAddressSpace ()

void setHeap (void *heap, void *heapEnd)

virtual bool memIsInKernelHeap (void *pMem)=0

virtual bool memIsInHeap (void *pMem)=0

virtual void * getEndOfHeap ()=0

virtual uintptr_t getKernelStart () const =0

virtual uintptr_t getUserStart () const =0

virtual uintptr_t getUserReservedStart () const =0

virtual uintptr_t getDynamicLinkerAddress () const =0

virtual uintptr_t getKernelHeapStart () const =0

virtual uintptr_t getKernelHeapEnd () const =0

virtual uintptr_t getKernelCacheStart () const =0

virtual uintptr_t getKernelCacheEnd () const =0

virtual uintptr_t getKernelEventBlockStart () const =0

virtual uintptr_t getKernelModulesStart () const =0

virtual uintptr_t getKernelModulesEnd () const =0

virtual uintptr_t getKernelVirtualPagestack () const

virtual uintptr_t getKernelVirtualPagestackAdd1 () const

virtual uintptr_t getKernelVirtualPagestackAdd2 () const

virtual uintptr_t getDynamicStart () const

virtual uintptr_t getDynamicEnd () const

virtual uintptr_t getGlobalInfoBlock () const


Static Public Member Functions

static EXPORTED_PUBLIC VirtualAddressSpace & getKernelAddressSpace ()

static VirtualAddressSpace * create ()


Public Attributes

void * m_Heap

void * m_HeapEnd


Static Public Attributes

static const size_t KernelMode = 0x01

static const size_t Write = 0x02

static const size_t Execute = 0x04

static const size_t WriteThrough = 0x08

static const size_t CacheDisable = 0x10

static const size_t CopyOnWrite = 0x20

static const size_t Swapped = 0x40

static const size_t Shared = 0x200

static const size_t WriteCombine = 0x400

static const size_t Accessed = 0x800

static const size_t Dirty = 0x1000

static const size_t ClearDirty = 0x2000

static const size_t NoAccess = 0x4000

static const size_t WriteProtected = 0x8000

static const size_t Borrowed = 0x10000

static const size_t RuntimeMapping = 0x20000

static constexpr size_t MaximumRemapPages = 65536

static physical_uintptr_t m_ZeroPage = 0


Protected Member Functions

bool admitRawMemoryChange (const PreparedMemoryLock &plan, bool privileged, MemoryLockCharge &charge) const

void commitRawMemoryChange (PreparedMemoryLock &plan, MemoryLockCharge charge)

bool prepareZeroPage ()

 VirtualAddressSpace (void *Heap)


Protected Attributes

uint64_t m_HeapRegionId = 0


Private Member Functions

 VirtualAddressSpace ()

 VirtualAddressSpace (const VirtualAddressSpace &)

VirtualAddressSpace & operator= (const VirtualAddressSpace &)

void rollbackHeapExpansion (void *virtualAddress, size_t pageCount)


Private Attributes

RawUserMemory m_RawUserMemory

MemoryLockAccount * m_MemoryLockAccount = nullptr

UserMemoryPolicy * m_UserMemoryPolicy = nullptr


Friends

class Debugger


Detailed Description

The VirtualAddressSpace encapsulates all the functionality of a virtual memory- management. This includes management of the mapping between physical and virtual memory, management of allocated physical memory pages and management of free/allocated virtual memory.

Definition at line 38 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

Member Typedef Documentation

◆ RemapAdmission

using VirtualAddressSpace::RemapAdmission = bool (*)(void* context)

Definition at line 273 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

Member Enumeration Documentation

◆ RemapStatus

enum class VirtualAddressSpace::RemapStatus
strong

Definition at line 254 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

◆ ResidentCopyStatus

enum class VirtualAddressSpace::ResidentCopyStatus
strong

Definition at line 174 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

Constructor & Destructor Documentation

◆ ~VirtualAddressSpace()

virtual VirtualAddressSpace::~VirtualAddressSpace ( )
inlinevirtual

The destructor does nothing

Definition at line 324 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

◆ VirtualAddressSpace() [1/3]

VirtualAddressSpace::VirtualAddressSpace ( void *  Heap)
inlineprotected

The constructor does nothing

Definition at line 461 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

◆ VirtualAddressSpace() [2/3]

VirtualAddressSpace::VirtualAddressSpace ( )
private

The default constructor

◆ VirtualAddressSpace() [3/3]

VirtualAddressSpace::VirtualAddressSpace ( const VirtualAddressSpace &  )
private

The copy-constructor

Note
NOT implemented

Member Function Documentation

◆ admitRawMemoryChange()

bool VirtualAddressSpace::admitRawMemoryChange ( const PreparedMemoryLock &  plan,
bool  privileged,
MemoryLockCharge &  charge
) const
protected

Definition at line 44 of file VirtualAddressSpace.cc.

◆ allocateStack() [1/2]

virtual Stack * VirtualAddressSpace::allocateStack ( )
pure virtual

Allocates a single stack for a thread. Will use the default kernel thread size.

Implemented in HostedVirtualAddressSpace, X64VirtualAddressSpace, Arm64VirtualAddressSpace, and Armv7VirtualAddressSpace.

Referenced by allocateStack(), Thread::allocateStackAtLevel(), and PerProcessorScheduler::checkEventState().

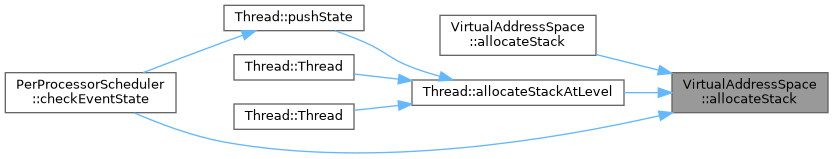

+ Here is the caller graph for this function:

◆ allocateStack() [2/2]

virtual Stack * VirtualAddressSpace::allocateStack ( size_t  stackSz)
inlinevirtual

Allocates a single stack of the given size for a thread.

Reimplemented in Arm64VirtualAddressSpace, Armv7VirtualAddressSpace, HostedVirtualAddressSpace, and X64VirtualAddressSpace.

Definition at line 299 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

References allocateStack().

◆ clone()

virtual VirtualAddressSpace * VirtualAddressSpace::clone ( bool  copyOnWrite = true)
pure virtual

Clone this VirtualAddressSpace. That means that we copy-on-write-map the application * image. *

Parameters
[in]copyOnWritewhether the new address space copies pages on write, or shares them with the parent address space.
Returns
pointer to the new VirtualAddressSpace

Implemented in HostedVirtualAddressSpace, X64VirtualAddressSpace, Arm64VirtualAddressSpace, and Armv7VirtualAddressSpace.

◆ commitRawMemoryChange()

void VirtualAddressSpace::commitRawMemoryChange ( PreparedMemoryLock &  plan,
MemoryLockCharge  charge
)
protected

Definition at line 64 of file VirtualAddressSpace.cc.

◆ copyResidentUserPage()

virtual ResidentCopyStatus VirtualAddressSpace::copyResidentUserPage ( uintptr_t  userAddress,
void *  kernelBuffer,
size_t  bytes,
bool  write
)
inlinevirtual

One-page, no-fault copy with a resident nonpageable kernel buffer.

Reimplemented in X64VirtualAddressSpace.

Definition at line 177 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

◆ create()

VirtualAddressSpace * VirtualAddressSpace::create ( )
static

Create a new VirtualAddressSpace. Only the kernel is mapped into that virtual address space

Returns
pointer to the new VirtualAddressSpace, 0 otherwise

Definition at line 43 of file arm64/VirtualAddressSpace.cc.

Referenced by HostedVirtualAddressSpace::clone(), and X64VirtualAddressSpace::clone().

+ Here is the caller graph for this function:

◆ detachMapping()

virtual bool VirtualAddressSpace::detachMapping ( void *  virtualAddress,
physical_uintptr_t &  physical,
size_t &  flags,
size_t  requiredFlags = 0
)
inlinevirtual

Atomically snapshot and detach a resident mapping. A flags mismatch leaves the mapping intact, but still returns its physical address and flags.

Reimplemented in Arm64VirtualAddressSpace, Armv7VirtualAddressSpace, HostedVirtualAddressSpace, and X64VirtualAddressSpace.

Definition at line 247 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

Referenced by MemoryMappedFile::compact(), HostedVirtualAddressSpace::detachMapping(), and rollbackHeapExpansion().

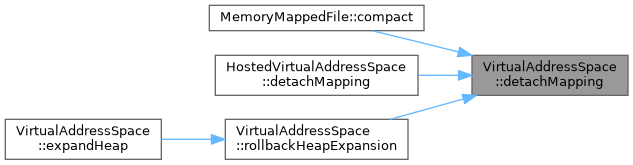

+ Here is the caller graph for this function:

◆ expandHeap()

void * VirtualAddressSpace::expandHeap ( ssize_t  incr,
size_t  flags
)
virtual

Expand the heap

Parameters
[in]pageCountthe number of pages that should be allocated and mapped to the heap end
[in]flagsflags that describe which accesses should be allowed on the page
Returns
pointer to the beginning of the newly allocated/mapped heap, 0 otherwise

Definition at line 91 of file VirtualAddressSpace.cc.

References CopyOnWrite, PhysicalMemoryManager::freePage(), getDynamicStart(), getKernelStart(), PhysicalMemoryManager::getPageSize(), PhysicalMemoryManager::instance(), m_Heap, m_HeapEnd, m_ZeroPage, map(), PhysicalMemoryManager::pin(), rollbackHeapExpansion(), and Write.

◆ freeStack()

virtual void VirtualAddressSpace::freeStack ( Stack *  pStack)
pure virtual

Frees a stack allocated with allocateStack.

Implemented in HostedVirtualAddressSpace, X64VirtualAddressSpace, Arm64VirtualAddressSpace, and Armv7VirtualAddressSpace.

Referenced by Thread::cleanStateLevel(), and Thread::notifySubsystemExit().

+ Here is the caller graph for this function:

◆ getDynamicEnd()

virtual uintptr_t VirtualAddressSpace::getDynamicEnd ( ) const
inlinevirtual

Gets address of the end of the dynamic memory mapping area.

Reimplemented in HostedVirtualAddressSpace, X64VirtualAddressSpace, Arm64VirtualAddressSpace, and Armv7VirtualAddressSpace.

Definition at line 402 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

◆ getDynamicLinkerAddress()

virtual uintptr_t VirtualAddressSpace::getDynamicLinkerAddress ( ) const
pure virtual

Gets address of the dynamic linker in the address space.

Implemented in HostedVirtualAddressSpace, X64VirtualAddressSpace, Arm64VirtualAddressSpace, and Armv7VirtualAddressSpace.

◆ getDynamicStart()

virtual uintptr_t VirtualAddressSpace::getDynamicStart ( ) const
inlinevirtual

Gets address of the start of the dynamic memory mapping area. This is an area in which memory mappings can be created for userspace applications. Systems that do not have room in the address space for this may return zero.

Reimplemented in HostedVirtualAddressSpace, X64VirtualAddressSpace, Arm64VirtualAddressSpace, and Armv7VirtualAddressSpace.

Definition at line 398 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

Referenced by expandHeap(), Thread::getTlsBase(), and Thread::~Thread().

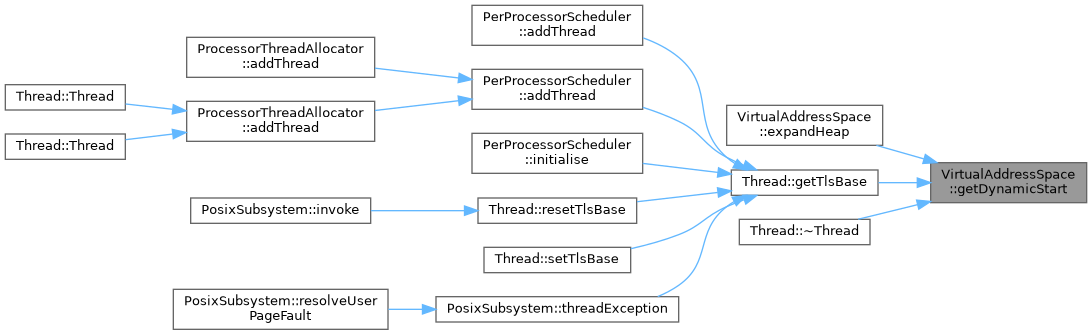

+ Here is the caller graph for this function:

◆ getEndOfHeap()

virtual void * VirtualAddressSpace::getEndOfHeap ( )
pure virtual

Gets a pointer to the byte after the end of the heap.

Implemented in HostedVirtualAddressSpace, X64VirtualAddressSpace, Arm64VirtualAddressSpace, and Armv7VirtualAddressSpace.

◆ getGlobalInfoBlock()

virtual uintptr_t VirtualAddressSpace::getGlobalInfoBlock ( ) const
inlinevirtual

Gets address of the global info block location.

Reimplemented in X64VirtualAddressSpace, Arm64VirtualAddressSpace, and Armv7VirtualAddressSpace.

Definition at line 407 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

◆ getKernelAddressSpace()

VirtualAddressSpace & VirtualAddressSpace::getKernelAddressSpace ( )
static

Get the kernel virtual address space

Returns
reference to the kernel virtual address space

Definition at line 39 of file arm64/VirtualAddressSpace.cc.

Referenced by Arm64PhysicalMemoryManager::allocateRegion(), Armv7PhysicalMemoryManager::allocateRegion(), Thread::allocateStackAtLevel(), Thread::cleanStateLevel(), Xhci::createTransaction(), MappingCommand::execute(), VirtioGpu::GpuFramebuffer::getPhysicalPage(), Event::getTrampoline(), HostedProcessorInformation::getVirtualAddressSpace(), X86CommonProcessorInformation::getVirtualAddressSpace(), HostedPhysicalMemoryManager::initialisationDone(), X86CommonPhysicalMemoryManager::initialisationDone(), X86CommonPhysicalMemoryManager::PageStack::initialise(), X86CommonPhysicalMemoryManager::initialise64(), KernelElf::loadModule(), X86CommonPhysicalMemoryManager::PageStack::maybeMap(), KernelElf::prepareRuntimeModules(), Debugger::start(), ProcessorBase::switchAddressSpace(), HostedPhysicalMemoryManager::unmapRegion(), X86CommonPhysicalMemoryManager::unmapRegion(), Arm64PhysicalMemoryManager::unmapRegion(), and Armv7PhysicalMemoryManager::unmapRegion().

+ Here is the caller graph for this function:

◆ getKernelCacheEnd()

virtual uintptr_t VirtualAddressSpace::getKernelCacheEnd ( ) const
pure virtual

Gets address of the end of the kernel's cache region.

Implemented in HostedVirtualAddressSpace, X64VirtualAddressSpace, Arm64VirtualAddressSpace, and Armv7VirtualAddressSpace.

◆ getKernelCacheStart()

virtual uintptr_t VirtualAddressSpace::getKernelCacheStart ( ) const
pure virtual

Gets address of the start of the kernel's cache region.

Implemented in HostedVirtualAddressSpace, X64VirtualAddressSpace, Arm64VirtualAddressSpace, and Armv7VirtualAddressSpace.

◆ getKernelEventBlockStart()

virtual uintptr_t VirtualAddressSpace::getKernelEventBlockStart ( ) const
pure virtual

Gets address of the start of the kernel's event handling block.

Implemented in HostedVirtualAddressSpace, X64VirtualAddressSpace, Arm64VirtualAddressSpace, and Armv7VirtualAddressSpace.

Referenced by Event::getTrampoline().

+ Here is the caller graph for this function:

◆ getKernelHeapEnd()

virtual uintptr_t VirtualAddressSpace::getKernelHeapEnd ( ) const
pure virtual

Gets address of the end of the kernel's heap region.

Implemented in HostedVirtualAddressSpace, X64VirtualAddressSpace, Arm64VirtualAddressSpace, and Armv7VirtualAddressSpace.

◆ getKernelHeapStart()

virtual uintptr_t VirtualAddressSpace::getKernelHeapStart ( ) const
pure virtual

Gets address of the start of the kernel's heap region.

Implemented in HostedVirtualAddressSpace, X64VirtualAddressSpace, Arm64VirtualAddressSpace, and Armv7VirtualAddressSpace.

◆ getKernelModulesEnd()

virtual uintptr_t VirtualAddressSpace::getKernelModulesEnd ( ) const
pure virtual

Gets address of the end of the kernel's module region.

Implemented in HostedVirtualAddressSpace, X64VirtualAddressSpace, Arm64VirtualAddressSpace, and Armv7VirtualAddressSpace.

Referenced by KernelElf::loadModule().

+ Here is the caller graph for this function:

◆ getKernelModulesStart()

virtual uintptr_t VirtualAddressSpace::getKernelModulesStart ( ) const
pure virtual

Gets address of the start of the kernel's module region.

Implemented in HostedVirtualAddressSpace, X64VirtualAddressSpace, Arm64VirtualAddressSpace, and Armv7VirtualAddressSpace.

Referenced by KernelElf::loadModule().

+ Here is the caller graph for this function:

◆ getKernelStart()

virtual uintptr_t VirtualAddressSpace::getKernelStart ( ) const
pure virtual

Gets start address of the kernel in the address space.

Implemented in HostedVirtualAddressSpace, X64VirtualAddressSpace, Arm64VirtualAddressSpace, and Armv7VirtualAddressSpace.

Referenced by PerProcessorScheduler::checkEventState(), and expandHeap().

+ Here is the caller graph for this function:

◆ getKernelVirtualPagestack()

virtual uintptr_t VirtualAddressSpace::getKernelVirtualPagestack ( ) const
inlinevirtual

Gets address of the physical page stack, if one exists.

Reimplemented in HostedVirtualAddressSpace, and X64VirtualAddressSpace.

Definition at line 377 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

Referenced by X86CommonPhysicalMemoryManager::PageStack::initialise().

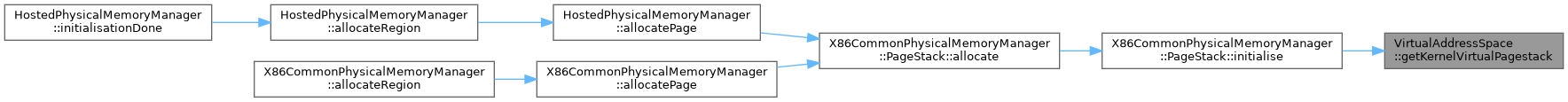

+ Here is the caller graph for this function:

◆ getKernelVirtualPagestackAdd1()

virtual uintptr_t VirtualAddressSpace::getKernelVirtualPagestackAdd1 ( ) const
inlinevirtual

Gets address of the first additional page stack, if one exists.

Reimplemented in X64VirtualAddressSpace.

Definition at line 382 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

Referenced by X86CommonPhysicalMemoryManager::PageStack::initialise().

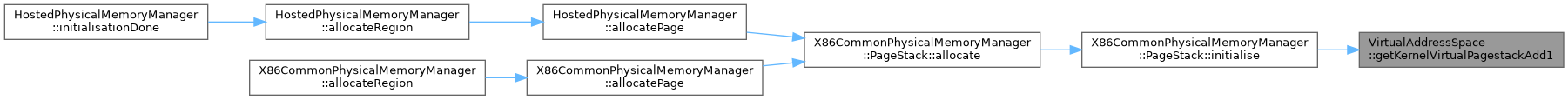

+ Here is the caller graph for this function:

◆ getKernelVirtualPagestackAdd2()

virtual uintptr_t VirtualAddressSpace::getKernelVirtualPagestackAdd2 ( ) const
inlinevirtual

Gets address of the second additional page stack, if one exists.

Reimplemented in X64VirtualAddressSpace.

Definition at line 387 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

Referenced by X86CommonPhysicalMemoryManager::PageStack::initialise().

+ Here is the caller graph for this function:

◆ getMapping()

virtual bool VirtualAddressSpace::getMapping ( void *  virtualAddress,
physical_uintptr_t &  physicalAddress,
size_t &  flags
)
pure virtual

Query the physical address and flags of a mapped or swapped-out page. Returns false without modifying the outputs when no mapping exists. The result does not pin the page; callers must protect its lifetime while using the returned physical address.

Implemented in Arm64VirtualAddressSpace, Armv7VirtualAddressSpace, HostedVirtualAddressSpace, and X64VirtualAddressSpace.

Referenced by BusMasterIde::add(), HostedPhysicalMemoryManager::allocateRegion(), X86CommonPhysicalMemoryManager::allocateRegion(), Arm64PhysicalMemoryManager::allocateRegion(), Armv7PhysicalMemoryManager::allocateRegion(), PosixSubsystem::checkAddress(), PerProcessorScheduler::checkEventState(), Xhci::createTransaction(), MappingCommand::execute(), Cache::finishRetirement(), File::getPhysicalPage(), VirtioGpu::GpuFramebuffer::getPhysicalPage(), X86CommonPhysicalMemoryManager::initialisationDone(), MemoryMappedFile::remove(), AnonymousMemoryMap::setPermissions(), MemoryMappedFile::setPermissions(), AnonymousMemoryMap::supportsPageOut(), HostedPhysicalMemoryManager::unmapRegion(), X86CommonPhysicalMemoryManager::unmapRegion(), Arm64PhysicalMemoryManager::unmapRegion(), Armv7PhysicalMemoryManager::unmapRegion(), and Thread::~Thread().

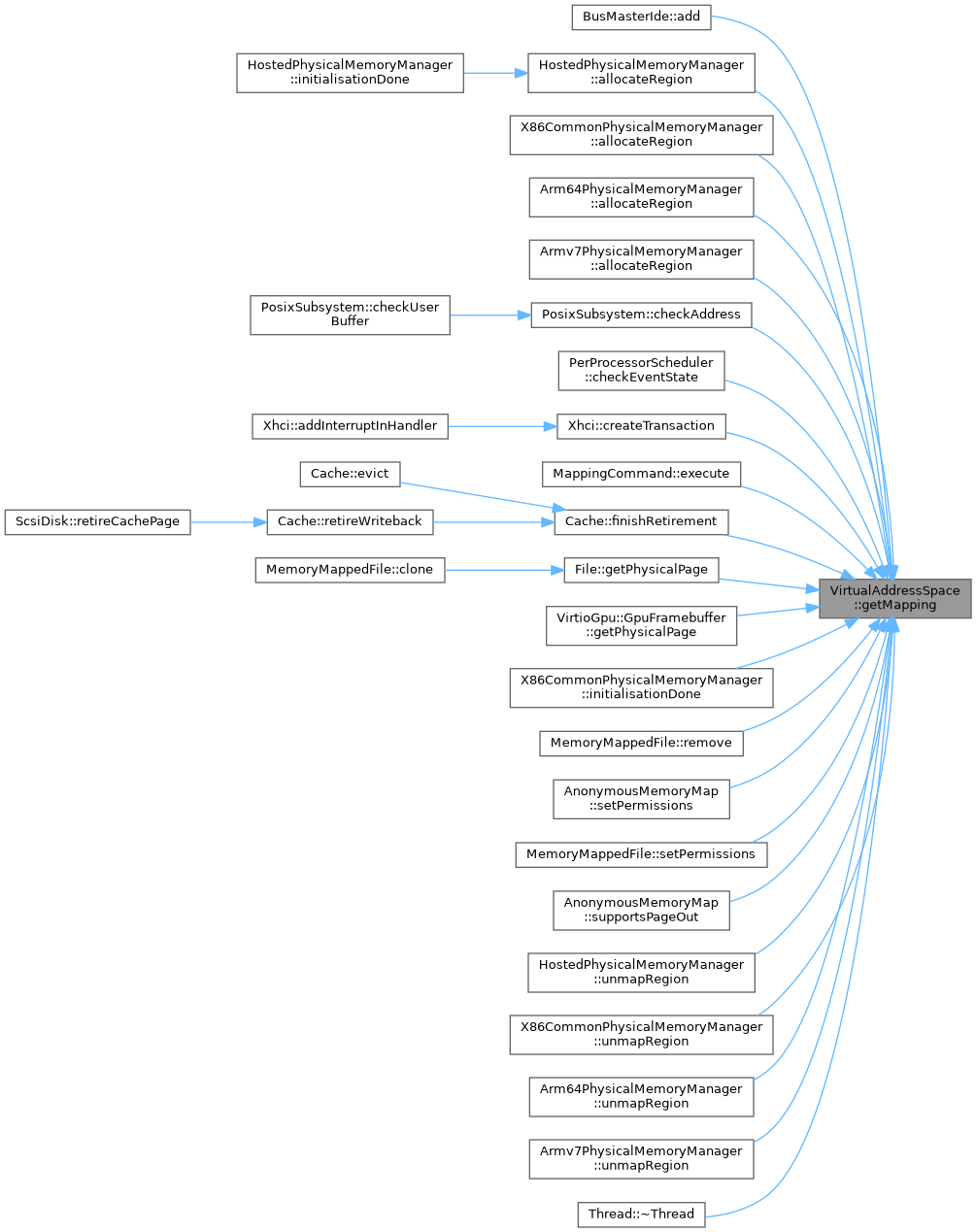

+ Here is the caller graph for this function:

◆ getUserReservedStart()

virtual uintptr_t VirtualAddressSpace::getUserReservedStart ( ) const
pure virtual

Gets start address of reserved areas of the userpace address space.

Implemented in HostedVirtualAddressSpace, X64VirtualAddressSpace, Arm64VirtualAddressSpace, and Armv7VirtualAddressSpace.

Referenced by PosixSubsystem::prepareExecutable().

+ Here is the caller graph for this function:

◆ getUserStart()

virtual uintptr_t VirtualAddressSpace::getUserStart ( ) const
pure virtual

Gets start address of the region usable and cloneable for userspace.

Implemented in HostedVirtualAddressSpace, X64VirtualAddressSpace, Arm64VirtualAddressSpace, and Armv7VirtualAddressSpace.

Referenced by PerProcessorScheduler::checkEventState(), and PosixSubsystem::prepareExecutable().

+ Here is the caller graph for this function:

◆ handleCopyOnWriteFault()

virtual bool VirtualAddressSpace::handleCopyOnWriteFault ( void *  virtualAddress,
bool  userMode
)
pure virtual

Resolve a write-protection fault on a copy-on-write mapping.

The replacement page is initialised before it becomes visible. Concurrent callers revalidate the mapping and treat an already-writable replacement as a successfully handled stale fault when the faulting privilege level may access it.

Parameters
[in]userModetrue when the faulting access came from user mode.

Implemented in Arm64VirtualAddressSpace, Armv7VirtualAddressSpace, HostedVirtualAddressSpace, and X64VirtualAddressSpace.

Referenced by HostedVirtualAddressSpace::handleCopyOnWriteFault(), and PageFaultHandler::interrupt().

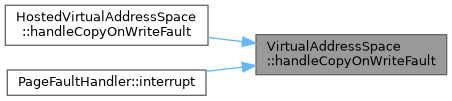

+ Here is the caller graph for this function:

◆ isAddressValid()

virtual bool VirtualAddressSpace::isAddressValid ( void *  virtualAddress)
pure virtual

Is a particular virtual address valid?

Parameters
[in]virtualAddressthe virtual address to check
Returns
true, if the address is valid, false otherwise

Implemented in Arm64VirtualAddressSpace, Armv7VirtualAddressSpace, HostedVirtualAddressSpace, and X64VirtualAddressSpace.

Referenced by PerProcessorScheduler::checkEventState().

+ Here is the caller graph for this function:

◆ isMapped()

virtual bool VirtualAddressSpace::isMapped ( void *  virtualAddress)
pure virtual

Checks whether a mapping the the specific virtual address exists. Pages marked as swapped out are not considered mapped; retained NoAccess pages are.

Note
This function must be valid on all the valid addresses within the virtual address space.
Parameters
[in]virtualAddressthe virtual address
Returns
true, if a mapping exists, false otherwise

Implemented in Arm64VirtualAddressSpace, Armv7VirtualAddressSpace, HostedVirtualAddressSpace, and X64VirtualAddressSpace.

Referenced by BusMasterIde::add(), PosixSubsystem::checkAddress(), PerProcessorScheduler::checkEventState(), HostedVirtualAddressSpace::clone(), MappingCommand::execute(), File::getPhysicalPage(), HostedPhysicalMemoryManager::initialisationDone(), HostedVirtualAddressSpace::isMapped(), Elf::loadModule(), X86CommonPhysicalMemoryManager::PageStack::maybeMap(), MemoryMappedFile::remove(), AnonymousMemoryMap::setPermissions(), MemoryMappedFile::setPermissions(), AnonymousMemoryMap::supportsPageOut(), HostedVirtualAddressSpace::switchAddressSpace(), AnonymousMemoryMap::trap(), MemoryMappedFile::trap(), HostedPhysicalMemoryManager::unmapRegion(), X86CommonPhysicalMemoryManager::unmapRegion(), and Thread::~Thread().

+ Here is the caller graph for this function:

◆ map()

virtual bool VirtualAddressSpace::map ( physical_uintptr_t  physicalAddress,
void *  virtualAddress,
size_t  flags
)
pure virtual

Map a specific physical page (of size PhysicalMemoryManager::getPageSize()) at a specific location into the virtual address space.

Note
This function must also work on pages marked as swapped out.
Parameters
[in]physicalAddressthe address of the physical page that should be mapped into the virtual address space.
[in]virtualAddressthe virtual address at which the page apears within the virtual address space.
[in]flagsflags that describe which accesses should be allowed on the page.
Returns
true, if successfull, false otherwise

Implemented in HostedVirtualAddressSpace, X64VirtualAddressSpace, Arm64VirtualAddressSpace, and Armv7VirtualAddressSpace.

Referenced by HostedPhysicalMemoryManager::allocateRegion(), X86CommonPhysicalMemoryManager::allocateRegion(), Arm64PhysicalMemoryManager::allocateRegion(), Armv7PhysicalMemoryManager::allocateRegion(), PerProcessorScheduler::checkEventState(), expandHeap(), Thread::getTlsBase(), Elf::loadModule(), HostedVirtualAddressSpace::map(), mapHuge(), X86CommonPhysicalMemoryManager::PageStack::maybeMap(), AnonymousMemoryMap::trap(), and MemoryMappedFile::trap().

+ Here is the caller graph for this function:

◆ mapHuge()

bool VirtualAddressSpace::mapHuge ( physical_uintptr_t  physAddress,
void *  virtualAddress,
size_t  count,
size_t  flags
)
virtual

Map a region of memory using the largest possible frame size. Where possible the largest page size should be used, degrading into smaller page sizes as needed (e.g. 1 GB, 2 MB, 4K) to reduce the overhead of the mapping on the system. Default implementation calls map() in a loop.

Returns
true if successful, false otherwise.

Reimplemented in X64VirtualAddressSpace.

Definition at line 163 of file VirtualAddressSpace.cc.

References PhysicalMemoryManager::getPageSize(), and map().

Referenced by X86CommonPhysicalMemoryManager::initialise64(), and X64VirtualAddressSpace::mapHuge().

+ Here is the caller graph for this function:

◆ memIsInHeap()

virtual bool VirtualAddressSpace::memIsInHeap ( void *  pMem)
pure virtual

Determines if a given point is within the virtual address space region dedicated to the kernel heap.

Implemented in Arm64VirtualAddressSpace, Armv7VirtualAddressSpace, HostedVirtualAddressSpace, and X64VirtualAddressSpace.

◆ memIsInKernelHeap()

virtual bool VirtualAddressSpace::memIsInKernelHeap ( void *  pMem)
pure virtual

Determines whether a given address is within the kernel's heap region.

Implemented in Arm64VirtualAddressSpace, Armv7VirtualAddressSpace, HostedVirtualAddressSpace, and X64VirtualAddressSpace.

◆ memoryLockAccount()

MemoryLockAccount * VirtualAddressSpace::memoryLockAccount ( ) const
inline

Definition at line 86 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

◆ operator=()

VirtualAddressSpace & VirtualAddressSpace::operator= ( const VirtualAddressSpace &  )
private

The copy-constructor

Note
Not implemented

◆ prepareRemap()

virtual RemapStatus VirtualAddressSpace::prepareRemap ( const PageRemapRequest &  request,
UniquePointer< PreparedPageRemap > &  plan
)
inlinevirtual

Preparation changes no live leaf or reservation; Retry changes neither.

Reimplemented in X64VirtualAddressSpace.

Definition at line 283 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

◆ prepareZeroPage()

bool VirtualAddressSpace::prepareZeroPage ( )
protected

Definition at line 70 of file VirtualAddressSpace.cc.

◆ rawUserMemory()

RawUserMemory & VirtualAddressSpace::rawUserMemory ( )
inline

Definition at line 80 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

◆ revertToKernelAddressSpace()

virtual void VirtualAddressSpace::revertToKernelAddressSpace ( )
pure virtual

Undo a clone() - this happens when an application is Exec()'d - we destroy all mappings not in the kernel address space so the space is 'clean'.

Implemented in HostedVirtualAddressSpace, X64VirtualAddressSpace, Arm64VirtualAddressSpace, and Armv7VirtualAddressSpace.

Referenced by PosixSubsystem::invoke(), and Process::~Process().

+ Here is the caller graph for this function:

◆ rollbackHeapExpansion()

void VirtualAddressSpace::rollbackHeapExpansion ( void *  virtualAddress,
size_t  pageCount
)
private

Reverts the heap expansion, that was begun with expandHeap

Parameters
[in]virtualAddresscurrent heap address
[in]pageCountnumber of mapped pages to unmap and free

Definition at line 153 of file VirtualAddressSpace.cc.

References detachMapping(), PhysicalMemoryManager::freePage(), PhysicalMemoryManager::getPageSize(), and PhysicalMemoryManager::instance().

Referenced by expandHeap().

+ Here is the caller graph for this function:

◆ runtimeMappingPages()

virtual size_t VirtualAddressSpace::runtimeMappingPages ( uintptr_t  ,
size_t
)
inlinevirtual

Definition at line 83 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

◆ setFlags()

virtual void VirtualAddressSpace::setFlags ( void *  virtualAddress,
size_t  newFlags
)
pure virtual

Set the flags of the page at a specific virtual address.

Note
The page must have been mapped with VirtualAddressSpace::map() and the page must still be mapped or marked as swapped out.
Parameters
[in]virtualAddressthe virtual address
[in]newFlagsthe flags

Implemented in Arm64VirtualAddressSpace, Armv7VirtualAddressSpace, HostedVirtualAddressSpace, and X64VirtualAddressSpace.

Referenced by Elf::finaliseModule(), HostedVirtualAddressSpace::setFlags(), AnonymousMemoryMap::setPermissions(), and MemoryMappedFile::setPermissions().

+ Here is the caller graph for this function:

◆ setHeap()

void VirtualAddressSpace::setHeap ( void *  heap,
void *  heapEnd
)
inline

Setter for the internal Heap and HeapEnd variables

Definition at line 327 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

References m_Heap, and m_HeapEnd.

◆ setMemoryLockAccount()

void VirtualAddressSpace::setMemoryLockAccount ( MemoryLockAccount *  account)
inline

Definition at line 89 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

◆ setRemapPreparationFailureForTest()

virtual void VirtualAddressSpace::setRemapPreparationFailureForTest ( ssize_t  allocations)
inlinevirtual

One-shot failure after the given number of successful preparation allocations.

Reimplemented in X64VirtualAddressSpace.

Definition at line 291 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

◆ setUserMemoryPolicy()

void VirtualAddressSpace::setUserMemoryPolicy ( UserMemoryPolicy *  policy)
inline

Definition at line 95 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

◆ tryCompareExchangeUser32()

virtual bool VirtualAddressSpace::tryCompareExchangeUser32 ( uintptr_t  address,
uint32_t &  expected,
uint32_t  desired,
bool &  exchanged
)
inlinevirtual

A successful access may still report a failed comparison.

Reimplemented in HostedVirtualAddressSpace, and X64VirtualAddressSpace.

Definition at line 211 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

◆ tryDetachUserPage()

virtual bool VirtualAddressSpace::tryDetachUserPage ( void *  address,
physical_uintptr_t  expected
)
inlinevirtual

Definition at line 142 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

◆ tryMapUserPage()

virtual bool VirtualAddressSpace::tryMapUserPage ( physical_uintptr_t  physical,
void *  address,
size_t  flags,
size_t *  committedTablePages = nullptr
)
inlinevirtual

Definition at line 134 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

◆ tryReadUser32()

virtual bool VirtualAddressSpace::tryReadUser32 ( uintptr_t  address,
uint32_t &  value
)
inlinevirtual

Atomic, no-fault accesses through a resident userspace mapping.

Reimplemented in HostedVirtualAddressSpace, and X64VirtualAddressSpace.

Definition at line 198 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

◆ tryReadUserPointer()

virtual bool VirtualAddressSpace::tryReadUserPointer ( uintptr_t  address,
uintptr_t &  value
)
inlinevirtual

Definition at line 204 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

◆ trySetFlags()

virtual MUST_USE_RESULT bool VirtualAddressSpace::trySetFlags ( void *  virtualAddress,
size_t  newFlags
)
inlinevirtual

Changes an existing mapping, returning false without publishing failed protection.

Reimplemented in Arm64VirtualAddressSpace, Armv7VirtualAddressSpace, HostedVirtualAddressSpace, and X64VirtualAddressSpace.

Definition at line 234 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

Referenced by HostedVirtualAddressSpace::trySetFlags().

+ Here is the caller graph for this function:

◆ tryWriteUser32()

virtual bool VirtualAddressSpace::tryWriteUser32 ( uintptr_t  address,
uint32_t  value
)
inlinevirtual

Stores one 32-bit value through a resident userspace mapping without switching into this address space. Implementations reject mappings that could fault or change backing storage while the write is in progress.

Reimplemented in HostedVirtualAddressSpace, and X64VirtualAddressSpace.

Definition at line 191 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

◆ unmap()

virtual void VirtualAddressSpace::unmap ( void *  virtualAddress)
pure virtual

Remove the page at the specific virtual address from the virtual address space.

Note
This function is only valid on memory that was mapped with VirtualAddressSpace::map() and that is still mapped or marked as swapped out.
Parameters
[in]virtualAddressthe virtual address

Implemented in Arm64VirtualAddressSpace, Armv7VirtualAddressSpace, HostedVirtualAddressSpace, and X64VirtualAddressSpace.

Referenced by HostedPhysicalMemoryManager::allocateRegion(), X86CommonPhysicalMemoryManager::allocateRegion(), Arm64PhysicalMemoryManager::allocateRegion(), Armv7PhysicalMemoryManager::allocateRegion(), Cache::finishRetirement(), X86CommonPhysicalMemoryManager::initialisationDone(), MemoryMappedFile::remove(), AnonymousMemoryMap::trap(), MemoryMappedFile::trap(), HostedVirtualAddressSpace::unmap(), HostedPhysicalMemoryManager::unmapRegion(), X86CommonPhysicalMemoryManager::unmapRegion(), Arm64PhysicalMemoryManager::unmapRegion(), Armv7PhysicalMemoryManager::unmapRegion(), and Thread::~Thread().

+ Here is the caller graph for this function:

◆ userMemoryPolicy()

UserMemoryPolicy * VirtualAddressSpace::userMemoryPolicy ( ) const
inline

Definition at line 92 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

Friends And Related Symbol Documentation

◆ Debugger

friend class Debugger
friend

Debugger can access our private members for statistics reporting.

Definition at line 41 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

Member Data Documentation

◆ Accessed

const size_t VirtualAddressSpace::Accessed = 0x800
static

Whether the page has been accessed.

Definition at line 66 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

Referenced by X64VirtualAddressSpace::fromFlags(), and X64VirtualAddressSpace::toFlags().

◆ Borrowed

const size_t VirtualAddressSpace::Borrowed = 0x10000
static

The backing object, rather than this address space, owns the physical page.

Definition at line 76 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

Referenced by HostedVirtualAddressSpace::clone(), X64VirtualAddressSpace::fromFlags(), Arm64VirtualAddressSpace::handleCopyOnWriteFault(), Armv7VirtualAddressSpace::handleCopyOnWriteFault(), HostedVirtualAddressSpace::handleCopyOnWriteFault(), HostedVirtualAddressSpace::revertToKernelAddressSpace(), AnonymousMemoryMap::supportsPageOut(), X64VirtualAddressSpace::toFlags(), and MemoryMappedFile::trap().

◆ CacheDisable

const size_t VirtualAddressSpace::CacheDisable = 0x10
static

If this flag is set, the cache is disabled.

Definition at line 56 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

Referenced by Arm64PhysicalMemoryManager::allocateRegion(), Armv7PhysicalMemoryManager::allocateRegion(), X64VirtualAddressSpace::fromFlags(), Device::Address::map(), X64VirtualAddressSpace::toFlags(), and MemoryMappedFile::trap().

◆ ClearDirty

const size_t VirtualAddressSpace::ClearDirty = 0x2000
static

Clear the dirty flag set by the above.

Definition at line 70 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

Referenced by X64VirtualAddressSpace::toFlags().

◆ CopyOnWrite

const size_t VirtualAddressSpace::CopyOnWrite = 0x20
static

If this flag is set, the page is copy-on-write

Definition at line 58 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

Referenced by PosixSubsystem::checkAddress(), HostedVirtualAddressSpace::clone(), HostedVirtualAddressSpace::doAllocateStack(), X64VirtualAddressSpace::doAllocateStack(), expandHeap(), X64VirtualAddressSpace::fromFlags(), Arm64VirtualAddressSpace::handleCopyOnWriteFault(), Armv7VirtualAddressSpace::handleCopyOnWriteFault(), HostedVirtualAddressSpace::handleCopyOnWriteFault(), AnonymousMemoryMap::supportsPageOut(), X64VirtualAddressSpace::toFlags(), and HostedVirtualAddressSpace::tryWriteUser32().

◆ Dirty

const size_t VirtualAddressSpace::Dirty = 0x1000
static

Whether the page has been dirtied.

Definition at line 68 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

Referenced by X64VirtualAddressSpace::fromFlags(), and X64VirtualAddressSpace::toFlags().

◆ Execute

const size_t VirtualAddressSpace::Execute = 0x04
static

The page is executable. If this flag is not set the page is not executable.

Definition at line 52 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

Referenced by Elf::allocate(), PosixSubsystem::checkAddress(), Elf::finaliseModule(), X64VirtualAddressSpace::fromFlags(), Armv7VirtualAddressSpace::getMapping(), DynamicLinker::initPlt(), PosixSubsystem::invoke(), Event::isValidHandlerMapping(), HostedVirtualAddressSpace::toFlags(), X64VirtualAddressSpace::toFlags(), AnonymousMemoryMap::trap(), and MemoryMappedFile::trap().

◆ KernelMode

const size_t VirtualAddressSpace::KernelMode = 0x01
static

The page is only accessible from kernel-mode. If this flag is not set the page is also accessible from user-mode.

Definition at line 47 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

Referenced by Arm64PhysicalMemoryManager::allocateRegion(), Armv7PhysicalMemoryManager::allocateRegion(), Arm64VirtualAddressSpace::allocateStack(), Armv7VirtualAddressSpace::allocateStack(), Archive::Archive(), PosixSubsystem::checkAddress(), PerProcessorScheduler::checkEventState(), HostedVirtualAddressSpace::clone(), HostedVirtualAddressSpace::doAllocateStack(), X64VirtualAddressSpace::doAllocateStack(), Elf::finaliseModule(), X64VirtualAddressSpace::fromFlags(), Armv7VirtualAddressSpace::getMapping(), Arm64VirtualAddressSpace::handleCopyOnWriteFault(), Armv7VirtualAddressSpace::handleCopyOnWriteFault(), HostedVirtualAddressSpace::handleCopyOnWriteFault(), HostedPhysicalMemoryManager::initialisationDone(), KernelElf::initialise(), MemoryPool::initialise(), X86CommonPhysicalMemoryManager::initialise64(), Event::isValidHandlerMapping(), Elf::loadModule(), HostedVirtualAddressSpace::map(), Arm64VirtualAddressSpace::map(), Armv7VirtualAddressSpace::map(), Device::Address::map(), Cache::map(), X86CommonPhysicalMemoryManager::PageStack::maybeMap(), KernelElf::prepareRuntimeModules(), HostedVirtualAddressSpace::setFlags(), AnonymousMemoryMap::supportsPageOut(), HostedVirtualAddressSpace::switchAddressSpace(), X64VirtualAddressSpace::toFlags(), and HostedVirtualAddressSpace::tryWriteUser32().

◆ m_Heap

void* VirtualAddressSpace::m_Heap

Pointer to the beginning of the heap

Definition at line 412 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

Referenced by HostedVirtualAddressSpace::clone(), X64VirtualAddressSpace::clone(), Arm64VirtualAddressSpace::clone(), Armv7VirtualAddressSpace::clone(), expandHeap(), X64VirtualAddressSpace::getEndOfHeap(), Arm64VirtualAddressSpace::memIsInHeap(), Armv7VirtualAddressSpace::memIsInHeap(), HostedVirtualAddressSpace::memIsInHeap(), X64VirtualAddressSpace::memIsInHeap(), X64VirtualAddressSpace::revertToKernelAddressSpace(), Arm64VirtualAddressSpace::revertToKernelAddressSpace(), Armv7VirtualAddressSpace::revertToKernelAddressSpace(), and setHeap().

◆ m_HeapEnd

void* VirtualAddressSpace::m_HeapEnd

Pointer to the current heap end

Definition at line 414 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

Referenced by HostedVirtualAddressSpace::clone(), X64VirtualAddressSpace::clone(), Arm64VirtualAddressSpace::clone(), Armv7VirtualAddressSpace::clone(), expandHeap(), X64VirtualAddressSpace::getEndOfHeap(), Arm64VirtualAddressSpace::memIsInHeap(), Armv7VirtualAddressSpace::memIsInHeap(), X64VirtualAddressSpace::revertToKernelAddressSpace(), Arm64VirtualAddressSpace::revertToKernelAddressSpace(), Armv7VirtualAddressSpace::revertToKernelAddressSpace(), and setHeap().

◆ m_HeapRegionId

uint64_t VirtualAddressSpace::m_HeapRegionId = 0
protected

Definition at line 458 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

◆ m_MemoryLockAccount

MemoryLockAccount* VirtualAddressSpace::m_MemoryLockAccount = nullptr
private

Definition at line 469 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

◆ m_RawUserMemory

RawUserMemory VirtualAddressSpace::m_RawUserMemory
private

Definition at line 468 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

◆ m_UserMemoryPolicy

UserMemoryPolicy* VirtualAddressSpace::m_UserMemoryPolicy = nullptr
private

Definition at line 470 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

◆ m_ZeroPage

physical_uintptr_t VirtualAddressSpace::m_ZeroPage = 0
static

Physical address of a zero page, always page-aligned.

Definition at line 416 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

Referenced by expandHeap().

◆ MaximumRemapPages

constexpr size_t VirtualAddressSpace::MaximumRemapPages = 65536
staticconstexpr

Definition at line 255 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

◆ NoAccess

const size_t VirtualAddressSpace::NoAccess = 0x4000
static

Retain the physical page while denying every access.

Definition at line 72 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

Referenced by PosixSubsystem::checkAddress(), X64VirtualAddressSpace::fromFlags(), Arm64VirtualAddressSpace::handleCopyOnWriteFault(), Armv7VirtualAddressSpace::handleCopyOnWriteFault(), HostedVirtualAddressSpace::handleCopyOnWriteFault(), AnonymousMemoryMap::supportsPageOut(), HostedVirtualAddressSpace::toFlags(), X64VirtualAddressSpace::toFlags(), and HostedVirtualAddressSpace::tryWriteUser32().

◆ RuntimeMapping

const size_t VirtualAddressSpace::RuntimeMapping = 0x20000
static

Kernel-provided user ABI storage, permanently resident until owner retirement.

Definition at line 78 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

Referenced by PerProcessorScheduler::checkEventState(), X64VirtualAddressSpace::fromFlags(), Thread::getTlsBase(), AnonymousMemoryMap::supportsPageOut(), and X64VirtualAddressSpace::toFlags().

◆ Shared

const size_t VirtualAddressSpace::Shared = 0x200
static

If this flag is set, the mapped physical page is shared.

Definition at line 62 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

Referenced by HostedVirtualAddressSpace::clone(), X64VirtualAddressSpace::fromFlags(), Arm64VirtualAddressSpace::handleCopyOnWriteFault(), Armv7VirtualAddressSpace::handleCopyOnWriteFault(), HostedVirtualAddressSpace::handleCopyOnWriteFault(), HostedVirtualAddressSpace::revertToKernelAddressSpace(), AnonymousMemoryMap::supportsPageOut(), X64VirtualAddressSpace::toFlags(), AnonymousMemoryMap::trap(), and MemoryMappedFile::trap().

◆ Swapped

const size_t VirtualAddressSpace::Swapped = 0x40
static

If this flag is set, the page is swapped out

Definition at line 60 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

Referenced by X64VirtualAddressSpace::fromFlags(), Arm64VirtualAddressSpace::handleCopyOnWriteFault(), Armv7VirtualAddressSpace::handleCopyOnWriteFault(), HostedVirtualAddressSpace::handleCopyOnWriteFault(), Armv7VirtualAddressSpace::isMapped(), HostedVirtualAddressSpace::revertToKernelAddressSpace(), HostedVirtualAddressSpace::toFlags(), X64VirtualAddressSpace::toFlags(), and HostedVirtualAddressSpace::tryWriteUser32().

◆ Write

const size_t VirtualAddressSpace::Write = 0x02
static

The page is writeable. If this flag is not set the page is read-only.

Definition at line 49 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

Referenced by Elf::allocate(), Arm64VirtualAddressSpace::allocateStack(), Armv7VirtualAddressSpace::allocateStack(), PosixSubsystem::checkAddress(), PerProcessorScheduler::checkEventState(), HostedVirtualAddressSpace::clone(), HostedVirtualAddressSpace::doAllocateStack(), X64VirtualAddressSpace::doAllocateStack(), expandHeap(), Elf::finaliseModule(), X64VirtualAddressSpace::fromFlags(), Armv7VirtualAddressSpace::getMapping(), Thread::getTlsBase(), Arm64VirtualAddressSpace::handleCopyOnWriteFault(), Armv7VirtualAddressSpace::handleCopyOnWriteFault(), HostedVirtualAddressSpace::handleCopyOnWriteFault(), KernelElf::initialise(), BusMasterIde::initialise(), MemoryPool::initialise(), X86CommonPhysicalMemoryManager::initialise64(), DynamicLinker::initPlt(), Elf::loadModule(), Device::Address::map(), Cache::map(), X86CommonPhysicalMemoryManager::PageStack::maybeMap(), Nic3C90x::Nic3C90x(), KernelElf::prepareRuntimeModules(), MemoryMappedFile::setPermissions(), AnonymousMemoryMap::supportsPageOut(), Framebuffer::swCreateBuffer(), HostedVirtualAddressSpace::toFlags(), X64VirtualAddressSpace::toFlags(), MemoryMappedFile::trap(), and HostedVirtualAddressSpace::tryWriteUser32().

◆ WriteCombine

const size_t VirtualAddressSpace::WriteCombine = 0x400
static

If this flag is set, the cache strategy is write-combine.

Definition at line 64 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

Referenced by X64VirtualAddressSpace::fromFlags(), Device::Address::map(), X64VirtualAddressSpace::toFlags(), and MemoryMappedFile::trap().

◆ WriteProtected

const size_t VirtualAddressSpace::WriteProtected = 0x8000
static

A read-only protection must not be bypassed by resolving copy-on-write.

Definition at line 74 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

Referenced by PosixSubsystem::checkAddress(), HostedVirtualAddressSpace::clone(), X64VirtualAddressSpace::fromFlags(), Arm64VirtualAddressSpace::handleCopyOnWriteFault(), Armv7VirtualAddressSpace::handleCopyOnWriteFault(), HostedVirtualAddressSpace::handleCopyOnWriteFault(), HostedVirtualAddressSpace::toFlags(), X64VirtualAddressSpace::toFlags(), and HostedVirtualAddressSpace::tryWriteUser32().

◆ WriteThrough

const size_t VirtualAddressSpace::WriteThrough = 0x08
static

If this flag is set, the cache strategy is write-through.

Definition at line 54 of file include/pedigree/kernel/processor/VirtualAddressSpace.h.

Referenced by X64VirtualAddressSpace::fromFlags(), Device::Address::map(), X64VirtualAddressSpace::toFlags(), and MemoryMappedFile::trap().

The documentation for this class was generated from the following files:
Generated on Sat Oct 3 2026 06:38:11 for The Pedigree Project by doxygen 1.9.8
