KernelElf Class Reference

Inheritance diagram for KernelElf:

Collaboration diagram for KernelElf:

Public Member Functions
bool	initialise (const BootstrapStruct_t &pBootstrap) INITIALISATION_ONLY
Module *	loadModule (uint8_t *pModule, size_t len, bool silent=false)
void	executeModules (bool silent=false, bool progress=true)
void	unloadModule (const char *name, bool silent=false, bool progress=true)
void	unloadModule (Module *module, bool silent=false, bool progress=true)
void	unloadModules ()
bool	moduleIsLoaded (char *name)
char *	getDependingModule (char *name)
uintptr_t	globalLookupSymbol (const char *pName)
const char *	globalLookupSymbol (uintptr_t addr, uintptr_t *startAddr=0)
MemoryAllocator &	getModuleAllocator ()
bool	hasPendingModules () const
void	updateModuleStatus (Module *module, bool status)
void	waitForModulesToLoad ()
Public Member Functions inherited from Elf
	Elf ()
virtual	~Elf ()
	Elf (const Elf &)
bool	validate (uint8_t *pBuffer, size_t length)
bool	create (uint8_t *pBuffer, size_t length)
bool	createNeededOnly (uint8_t *pBuffer, size_t length)
bool	loadModule (uint8_t *pBuffer, size_t length, uintptr_t &loadBase, size_t &loadSize, SymbolTable *pSymbolTableCopy=0)
bool	finaliseModule (uint8_t *pBuffer, uintptr_t length)
bool	allocate (uint8_t *pBuffer, size_t length, uintptr_t &loadBase, SymbolTable *pSymtab=0, bool bAllocate=true, size_t *pSize=0)
bool	load (uint8_t *pBuffer, size_t length, uintptr_t loadBase, SymbolTable *pSymtab=0, uintptr_t nStart=0, uintptr_t nEnd=~0, bool relocate=true)
List< char * > &	neededLibraries ()
String &	getInterpreter ()
uintptr_t	getLastAddress ()
uintptr_t	getInitFunc ()
uintptr_t	getFiniFunc ()
template<class T = ElfSymbol_t>
const char *	lookupSymbol (uintptr_t addr, uintptr_t *startAddr, T *symbolTable)
const char *	lookupSymbol (uintptr_t addr, uintptr_t *startAddr)
uintptr_t	lookupSymbol (const char *pName)
uintptr_t	lookupDynamicSymbolAddress (const char *str, uintptr_t loadBase)
uintptr_t	applySpecificRelocation (uintptr_t off, SymbolTable *pSymtab, uintptr_t loadBase, SymbolTable::Policy policy=SymbolTable::LocalFirst)
uintptr_t	getGlobalOffsetTable ()
size_t	getPltSize ()
void	populateSymbolTable (SymbolTable *pSymtab, uintptr_t loadBase)
void	preallocateSymbols (SymbolTable *pSymtabOverride=nullptr, SymbolTable *pAdditionalSymtab=nullptr)
SymbolTable *	getSymbolTable ()
uintptr_t	getEntryPoint ()
uintptr_t	debugFrameTable ()
uintptr_t	debugFrameTableLength ()
void	setName (const String &s)
const String &	getName () const

Static Public Member Functions
static KernelElf &	instance ()
Static Public Member Functions inherited from Elf
static bool	extractEntryPoint (uint8_t *pBuffer, size_t length, uintptr_t &entry)
static bool	extractInformation (uint8_t *pBuffer, size_t length, size_t &phdrCount, size_t &phdrEntrySize, uintptr_t &phdrAddress)

Private Types
typedef Elf32SectionHeader_t	KernelElfSectionHeader_t
typedef Elf32Symbol_t	KernelElfSymbol_t

Private Member Functions
	KernelElf () INITIALISATION_ONLY
	KernelElf (const KernelElf &)
virtual	~KernelElf ()
KernelElf &	operator= (const KernelElf &)
bool	moduleDependenciesSatisfied (Module *module)
bool	executeModule (Module *module)
void	lockModules ()
void	unlockModules ()

Static Private Member Functions
template<class T >
static T *	rebase (Module *module, T *ptr)

Private Attributes
MemoryRegion	m_AdditionalSectionContents
MemoryRegion *	m_AdditionalSectionHeaders
Vector< Module * >	m_Modules
MemoryAllocator	m_ModuleAllocator
Elf32SectionHeader_t *	m_pSectionHeaders
Elf32Symbol_t *	m_pSymbolTable
Semaphore	m_ModuleProgress
Spinlock	m_ModuleAdjustmentLock

Static Private Attributes
static KernelElf	m_Instance

Friends
void	system_reset ()

Additional Inherited Members
Protected Attributes inherited from Elf
struct Elf::ElfHeader_t	PACKED
struct Elf::ElfProgramHeader_t	PACKED
struct Elf::ElfSectionHeader_t	PACKED
struct Elf::Elf32SectionHeader_t	PACKED
struct Elf::ElfSymbol_t	PACKED
struct Elf::Elf32Symbol_t	PACKED
struct Elf::ElfDyn_t	PACKED
struct Elf::ElfRel_t	PACKED
struct Elf::ElfRela_t	PACKED
ElfSymbol_t *	m_pSymbolTable
size_t	m_nSymbolTableSize
char *	m_pStringTable
size_t	m_nStringTableSize
char *	m_pShstrtab
size_t	m_nShstrtabSize
uintptr_t *	m_pGotTable
ElfRel_t *	m_pRelTable
ElfRela_t *	m_pRelaTable
size_t	m_nRelTableSize
size_t	m_nRelaTableSize
ElfRel_t *	m_pPltRelTable
ElfRela_t *	m_pPltRelaTable
bool	m_bUsesRela
uint32_t *	m_pDebugTable
size_t	m_nDebugTableSize
ElfSymbol_t *	m_pDynamicSymbolTable
size_t	m_nDynamicSymbolTableSize
char *	m_pDynamicStringTable
size_t	m_nDynamicStringTableSize
ElfSectionHeader_t *	m_pSectionHeaders
size_t	m_nSectionHeaders
ElfProgramHeader_t *	m_pProgramHeaders
size_t	m_nProgramHeaders
size_t	m_nPltSize
uintptr_t	m_nEntry
List< char * >	m_NeededLibraries
SymbolTable	m_SymbolTable
uintptr_t	m_InitFunc
uintptr_t	m_FiniFunc
String	m_sInterpreter
String	m_Name
uintptr_t	m_LoadBase

Detailed Description

Definition at line 122 of file KernelElf.h.

Constructor & Destructor Documentation

KernelElf::KernelElf ( )

private

Default constructor does nothing

Definition at line 403 of file KernelElf.cc.

KernelElf::KernelElf ( const KernelElf &  )

private

Copy-constructor

Note

NOT implemented (singleton class)

KernelElf::~KernelElf ( )

privatevirtual

Destructor does nothing

Definition at line 417 of file KernelElf.cc.

Member Function Documentation

void KernelElf::executeModules	(	bool	silent = false,
		bool	progress = true
	)

Executes all modules.

Definition at line 569 of file KernelElf.cc.

References Vector< T >::begin(), Vector< T >::count(), DEBUG_LOG, loadModule(), m_Modules, NOTICE, and Vector< T >::pushBack().

char * KernelElf::getDependingModule

(

char *

name

)

Returns the name of the first module that have the specified module as dependency.

Definition at line 809 of file KernelElf.cc.

References Thread::detach(), FATAL, Elf::finaliseModule(), Processor::information(), instance(), Elf::lookupSymbol(), m_Modules, NOTICE, rebase(), updateModuleStatus(), and WARNING.

MemoryAllocator& KernelElf::getModuleAllocator ( )

inline

Returns the address space allocator for modules.

Definition at line 174 of file KernelElf.h.

References INITIALISATION_ONLY.

uintptr_t KernelElf::globalLookupSymbol

(

const char *

pName

)

Looks up the address of the symbol with name 'pName' globally, that is throughout all modules and the kernel itself.

Definition at line 1031 of file KernelElf.cc.

References SymbolTable::lookup().

Referenced by DisassembleCommand::execute(), LookupCommand::execute(), ThreadsCommand::execute(), SlamCommand::execute(), AllocationCommand::execute(), TraceCommand::execute(), LocksCommand::execute(), and Backtrace::performBpBacktrace().

Here is the caller graph for this function:

const char * KernelElf::globalLookupSymbol	(	uintptr_t	addr,
		uintptr_t *	startAddr = 0
	)

Todo:

This shouldn't match local or weak symbols.

Definition at line 1036 of file KernelElf.cc.

References Hex, lockModules(), Elf::lookupSymbol(), m_Modules, and unlockModules().

bool KernelElf::hasPendingModules

(

)

const

Do we have pending modules still?

Definition at line 1071 of file KernelElf.cc.

References m_Modules, and NOTICE.

bool KernelElf::initialise

(

const BootstrapStruct_t &

pBootstrap

)

Extracts the symbol and string tables from the given BootstrapInfo class.

Definition at line 105 of file KernelElf.cc.

References PhysicalMemoryManager::allocateRegion(), PhysicalMemoryManager::continuous, ERROR, PhysicalMemoryManager::getPageSize(), Hex, SymbolTable::insert(), PhysicalMemoryManager::instance(), VirtualAddressSpace::KernelMode, m_pSectionHeaders, NOTICE, SymbolTable::preallocate(), WARNING, and VirtualAddressSpace::Write.

static KernelElf& KernelElf::instance ( )

inlinestatic

Get the class instance

Returns

reference to the class instance

Definition at line 129 of file KernelElf.h.

References INITIALISATION_ONLY.

Referenced by Elf::applyRelocation(), DisassembleCommand::execute(), LookupCommand::execute(), AllocationCommand::execute(), SlamCommand::execute(), ThreadsCommand::execute(), TraceCommand::execute(), LocksCommand::execute(), getDependingModule(), Elf::loadModule(), Backtrace::performBacktrace(), Backtrace::performBpBacktrace(), and Backtrace::performDwarfBacktrace().

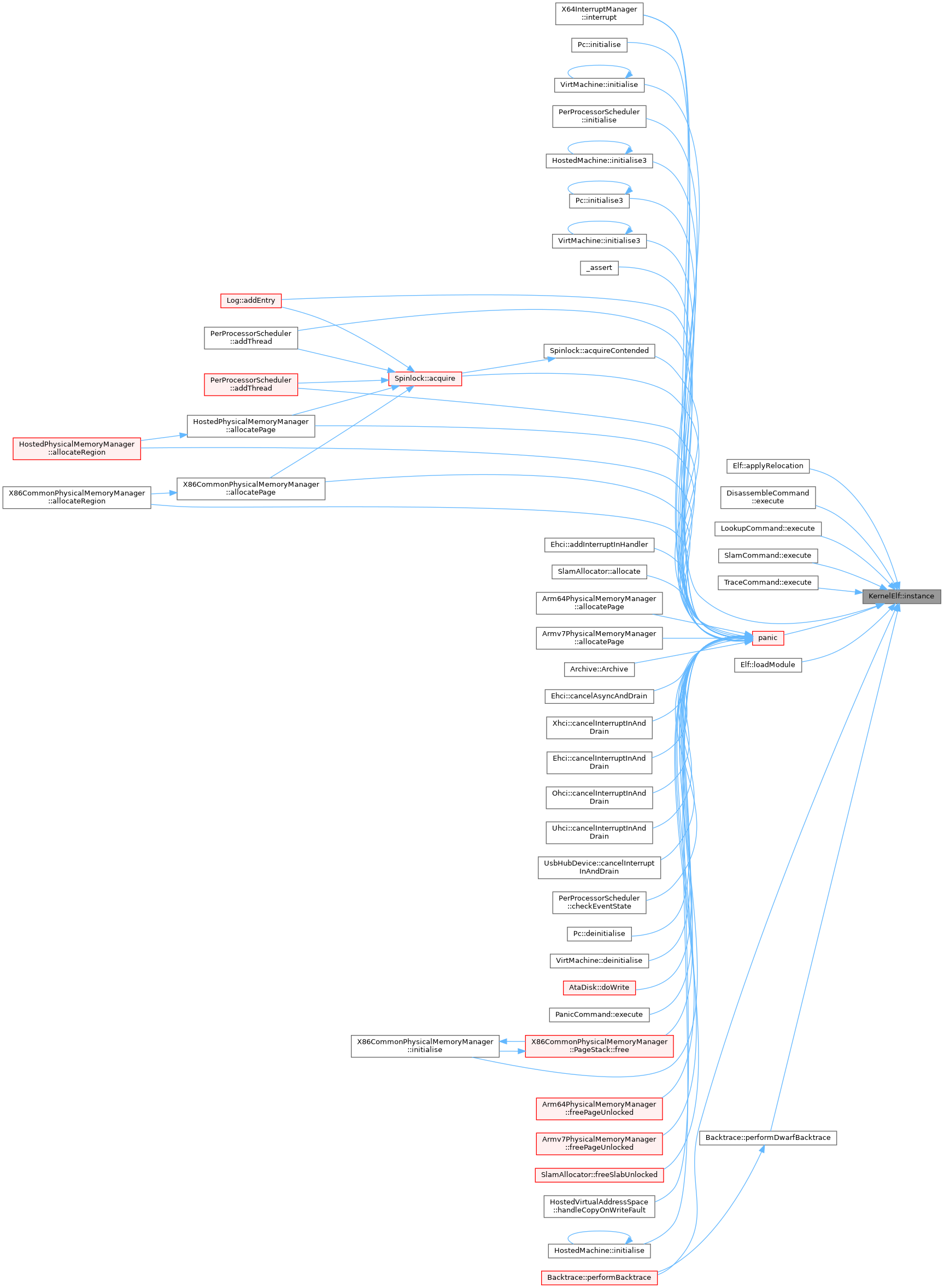

Here is the caller graph for this function:

Module * KernelElf::loadModule	(	uint8_t *	pModule,
		size_t	len,
		bool	silent = false
	)

Treats the given pointer as an ELF partially linked object file and loads it, relocates it and links it.

Parameters

pModule	A pointer to an ELF module/driver.
len	The length of pModule, in bytes.
silent	If true will not update the boot progress(default is false).

Returns

A pointer to a Elf class describing the loaded module.

Definition at line 432 of file KernelElf.cc.

References Vector< T >::count(), Elf::create(), DEBUG_LOG, Dec, Elf::Elf(), ERROR, FATAL, RangeList< T, Reversed >::free(), VirtualAddressSpace::getKernelAddressSpace(), VirtualAddressSpace::getKernelModulesEnd(), VirtualAddressSpace::getKernelModulesStart(), Hex, Elf::loadModule(), Elf::lookupSymbol(), m_ModuleAllocator, m_Modules, NOTICE, Vector< T >::pushBack(), rebase(), Elf::setName(), and UNLIKELY.

Referenced by executeModules().

Here is the caller graph for this function:

void KernelElf::lockModules ( )

private

Lock for access to the module data structures.

Definition at line 1084 of file KernelElf.cc.

References Spinlock::acquire().

Referenced by globalLookupSymbol().

Here is the caller graph for this function:

bool KernelElf::moduleIsLoaded

(

char *

name

)

Returns true if a module with the specified name has been loaded.

Definition at line 790 of file KernelElf.cc.

References m_Modules.

KernelElf& KernelElf::operator= ( const KernelElf &  )

private

Assignment operator

Note

NOT implemented (singleton class)

template<class T >

static T* KernelElf::rebase ( Module *  module, T *  ptr  )

inlinestaticprivate

Rebase a pointer for the given loaded module.

Definition at line 205 of file KernelElf.h.

Referenced by getDependingModule(), and loadModule().

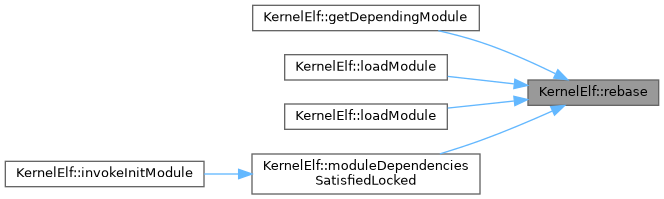

Here is the caller graph for this function:

void KernelElf::unloadModule	(	const char *	name,
		bool	silent = false,
		bool	progress = true
	)

Unloads the specified module.

Definition at line 665 of file KernelElf.cc.

References ERROR, RangeList< T, Reversed >::free(), PhysicalMemoryManager::freePage(), VirtualAddressSpace::getMapping(), PhysicalMemoryManager::getPageSize(), Processor::information(), PhysicalMemoryManager::instance(), VirtualAddressSpace::isMapped(), Elf::lookupSymbol(), m_ModuleAllocator, m_Modules, NOTICE, and VirtualAddressSpace::unmap().

Referenced by unloadModules(), and updateModuleStatus().

Here is the caller graph for this function:

void KernelElf::unloadModules

(

)

Unloads all loaded modules.

Definition at line 773 of file KernelElf.cc.

References m_Modules, and unloadModule().

void KernelElf::unlockModules ( )

private

Unlock access to module data structures.

Definition at line 1091 of file KernelElf.cc.

References Spinlock::release().

Referenced by globalLookupSymbol().

Here is the caller graph for this function:

void KernelElf::updateModuleStatus	(	Module *	module,
		bool	status
	)

Updates the status of the given module.

Definition at line 983 of file KernelElf.cc.

References m_ModuleProgress, NOTICE, Semaphore::release(), and unloadModule().

Referenced by getDependingModule().

Here is the caller graph for this function:

void KernelElf::waitForModulesToLoad

(

)

Waits for all modules to complete (whether successfully or not).

Definition at line 1003 of file KernelElf.cc.

References Semaphore::acquire(), Vector< T >::count(), m_ModuleProgress, m_Modules, and NOTICE.

Member Data Documentation

KernelElf KernelElf::m_Instance

staticprivate

Instance of the KernelElf class

Definition at line 222 of file KernelElf.h.

MemoryAllocator KernelElf::m_ModuleAllocator

private

Memory allocator for modules - where they can be loaded.

Definition at line 227 of file KernelElf.h.

Referenced by loadModule(), and unloadModule().

Semaphore KernelElf::m_ModuleProgress

private

Tracks the module loading process.

Definition at line 246 of file KernelElf.h.

Referenced by updateModuleStatus(), and waitForModulesToLoad().

Vector<Module *> KernelElf::m_Modules

private

List of modules

Definition at line 225 of file KernelElf.h.

Referenced by executeModules(), getDependingModule(), globalLookupSymbol(), hasPendingModules(), loadModule(), moduleIsLoaded(), unloadModule(), unloadModules(), and waitForModulesToLoad().

Elf32SectionHeader_t* KernelElf::m_pSectionHeaders

private

Override Elf base class members.

Definition at line 231 of file KernelElf.h.

Referenced by initialise().

---

The documentation for this class was generated from the following files:

• KernelElf.h
• KernelElf.cc
