X86CommonPhysicalMemoryManager Class Reference

Implementation of the PhysicalMemoryManager for common x86. More...

#include <PhysicalMemoryManager.h>

Inheritance diagram for X86CommonPhysicalMemoryManager:

Collaboration diagram for X86CommonPhysicalMemoryManager:

Classes
struct	page
class	PageHashable
class	PageStack
	The Stack of pages (below4GB, below64GB, no constraint). More...

Public Member Functions
virtual physical_uintptr_t	allocatePage (size_t pageConstraints=0) override
physical_uintptr_t	tryAllocatePage () override
bool	copyPhysicalPageToBuffer (physical_uintptr_t page, void *buffer) override
bool	copyPhysicalPageFromBuffer (physical_uintptr_t page, const void *buffer) override
MemorySnapshot	memorySnapshot () const override
virtual void	freePage (physical_uintptr_t page) override
virtual bool	allocateRegion (MemoryRegion &Region, size_t cPages, size_t pageConstraints, size_t Flags, physical_uintptr_t start=-1) override
virtual void	pin (physical_uintptr_t page) override
void	initialise (const BootstrapStruct_t &Info) INITIALISATION_ONLY
void	initialise64 (const BootstrapStruct_t &Info) INITIALISATION_ONLY
void	initialisationDone ()
void	shutdown ()
const RangeList< uint64_t > &	getAcpiRanges () const
virtual size_t	freePageCount () const override
Public Member Functions inherited from PhysicalMemoryManager
void	allocateMemoryRegionList (Vector< MemoryRegionInfo * > &MemoryRegions)
void	freeMemoryRegionList (Vector< MemoryRegionInfo * > &MemoryRegions)

Static Public Member Functions
static X86CommonPhysicalMemoryManager &	instance ()
Static Public Member Functions inherited from PhysicalMemoryManager
static PhysicalMemoryManager &	instance ()
static constexpr size_t	getPageSize () PURE

Protected Member Functions
	X86CommonPhysicalMemoryManager () INITIALISATION_ONLY
virtual	~X86CommonPhysicalMemoryManager () override
Protected Member Functions inherited from PhysicalMemoryManager
	PhysicalMemoryManager ()
virtual	~PhysicalMemoryManager ()

Private Types
typedef HashTable< PageHashable, struct page >	MetadataTable

Private Member Functions
	X86CommonPhysicalMemoryManager (const X86CommonPhysicalMemoryManager &)
X86CommonPhysicalMemoryManager &	operator= (const X86CommonPhysicalMemoryManager &)
void	unmapRegion (MemoryRegion *pRegion) override
virtual void	freePageUnlocked (physical_uintptr_t page) override

Private Attributes
PageStack	m_PageStack
RangeList< uint32_t >	m_RangeBelow1MB
RangeList< uint32_t >	m_RangeBelow16MB
RangeList< uint64_t >	m_PhysicalRanges
RangeList< uint64_t >	m_AcpiRanges
RangeList< uintptr_t >	m_MemoryRegions
Spinlock	m_Lock
Spinlock	m_RegionLock
HashTable< PageHashable, struct page >	m_PageMetadata
bool	m_PageMetadataReady
physical_uintptr_t	m_BootstrapPinnedPage
size_t	m_BootstrapPinnedPageRefcount

Static Private Attributes
static X86CommonPhysicalMemoryManager	m_Instance

Friends
class	CacheManager
class	Cache

Additional Inherited Members
Static Public Attributes inherited from PhysicalMemoryManager
static const size_t	continuous = 1 << 0
static const size_t	nonRamMemory = 1 << 1
static const size_t	force = 1 << 2
static const size_t	virtualOnly = 1 << 3
static const size_t	below1MB = 1 << 4
static const size_t	below16MB = 1 << 5
static const size_t	below4GB = 1 << 6
static const size_t	below64GB = 1 << 7
static const size_t	addressConstraints = below1MB | below16MB | below4GB | below64GB
static const size_t	anonymous = 1 << 8
Protected Attributes inherited from PhysicalMemoryManager
Vector< MemoryRegion * >	m_MemoryRegions

Detailed Description

Implementation of the PhysicalMemoryManager for common x86.

The common x86 implementation of the PhysicalMemoryManager

Definition at line 44 of file kernel/core/processor/x86_common/PhysicalMemoryManager.h.

Member Typedef Documentation

MetadataTable

typedef HashTable<PageHashable, struct page> X86CommonPhysicalMemoryManager::MetadataTable

private

Definition at line 255 of file kernel/core/processor/x86_common/PhysicalMemoryManager.h.

Constructor & Destructor Documentation

X86CommonPhysicalMemoryManager() [1/2]

X86CommonPhysicalMemoryManager::X86CommonPhysicalMemoryManager ( )

protected

The constructor

Definition at line 824 of file x86_common/PhysicalMemoryManager.cc.

~X86CommonPhysicalMemoryManager()

X86CommonPhysicalMemoryManager::~X86CommonPhysicalMemoryManager ( )

overrideprotectedvirtual

The destructor

Definition at line 837 of file x86_common/PhysicalMemoryManager.cc.

X86CommonPhysicalMemoryManager() [2/2]

X86CommonPhysicalMemoryManager::X86CommonPhysicalMemoryManager ( const X86CommonPhysicalMemoryManager &  )

private

The copy-constructor

Note

Not implemented (singleton)

Member Function Documentation

allocatePage()

physical_uintptr_t X86CommonPhysicalMemoryManager::allocatePage ( size_t  pageConstraints = 0 )

overridevirtual

Allocate a single page with optional constraints.

Returns

physical address of the page or 0 if no page available.

Implements PhysicalMemoryManager.

Definition at line 66 of file x86_common/PhysicalMemoryManager.cc.

References Spinlock::acquire(), X86CommonPhysicalMemoryManager::PageStack::allocate(), MemoryPressureManager::compact(), MemoryPressureManager::compactingForCurrentExecution(), EMIT_IF, ProcessorBase::m_Initialised, m_Lock, m_PageStack, panic(), and Spinlock::release().

Referenced by allocateRegion().

Here is the caller graph for this function:

allocateRegion()

bool X86CommonPhysicalMemoryManager::allocateRegion ( MemoryRegion &  Region, size_t  cPages, size_t  pageConstraints, size_t  Flags, physical_uintptr_t  start = -1  )

overridevirtual

Allocate a memory-region with specific constraints the pages need to fullfill.

Parameters

[in]	Region	reference to the MemoryRegion object
[in]	cPages	the number of pages to allocate for the MemoryRegion object
[in]	pageConstraints	the constraints the pages have to fullfill
[in]	Flags	flags from the VirtualAddressSpace class namespace
[in]	start	the physical address of the beginning of the region (optional)

Returns

true, if a valid MemoryRegion object is created, false otherwise

Implements PhysicalMemoryManager.

Definition at line 264 of file x86_common/PhysicalMemoryManager.cc.

References PhysicalMemoryManager::addressConstraints, RangeList< T, Reversed >::allocate(), allocatePage(), RangeList< T, Reversed >::allocateSpecific(), PhysicalMemoryManager::anonymous, PhysicalMemoryManager::below16MB, PhysicalMemoryManager::below1MB, PhysicalMemoryManager::continuous, PhysicalMemoryManager::force, RangeList< T, Reversed >::free(), freePage(), VirtualAddressSpace::getMapping(), PhysicalMemoryManager::getPageSize(), Hex, ProcessorBase::information(), PhysicalMemoryManager::m_MemoryRegions, m_MemoryRegions, MemoryRegion::m_PhysicalAddress, m_PhysicalRanges, m_RangeBelow16MB, m_RangeBelow1MB, MemoryRegion::m_Size, MemoryRegion::m_VirtualAddress, VirtualAddressSpace::map(), PhysicalMemoryManager::nonRamMemory, panic(), Vector< T >::pushBack(), VirtualAddressSpace::unmap(), and PhysicalMemoryManager::virtualOnly.

copyPhysicalPageFromBuffer()

bool X86CommonPhysicalMemoryManager::copyPhysicalPageFromBuffer ( physical_uintptr_t  page, const void *  buffer  )

overridevirtual

Reimplemented from PhysicalMemoryManager.

Definition at line 177 of file x86_common/PhysicalMemoryManager.cc.

copyPhysicalPageToBuffer()

bool X86CommonPhysicalMemoryManager::copyPhysicalPageToBuffer ( physical_uintptr_t  page, void *  buffer  )

overridevirtual

Reimplemented from PhysicalMemoryManager.

Definition at line 166 of file x86_common/PhysicalMemoryManager.cc.

freePage()

void X86CommonPhysicalMemoryManager::freePage ( physical_uintptr_t  page )

overridevirtual

Free a page allocated with the allocatePage() function

Parameters

[in]

page

physical address of the page

Implements PhysicalMemoryManager.

Definition at line 189 of file x86_common/PhysicalMemoryManager.cc.

References freePageUnlocked(), and m_Lock.

Referenced by allocateRegion(), and unmapRegion().

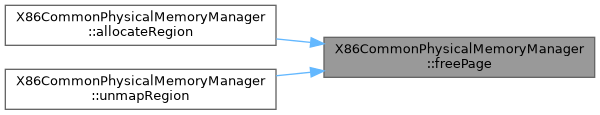

Here is the caller graph for this function:

freePageCount()

size_t X86CommonPhysicalMemoryManager::freePageCount ( ) const

overridevirtual

Specifies the number of pages that remain free on the system.

Reimplemented from PhysicalMemoryManager.

Definition at line 62 of file x86_common/PhysicalMemoryManager.cc.

References m_PageStack.

freePageUnlocked()

void X86CommonPhysicalMemoryManager::freePageUnlocked ( physical_uintptr_t  page )

overrideprivatevirtual

Same as freePage, but without the lock. Will panic if the lock is unlocked.

Note

Use in the wrong place and you die.

Implements PhysicalMemoryManager.

Definition at line 194 of file x86_common/PhysicalMemoryManager.cc.

References X86CommonPhysicalMemoryManager::PageStack::free(), PhysicalMemoryManager::getPageSize(), ProcessorBase::m_Initialised, m_Lock, m_PageMetadata, m_PageMetadataReady, and m_PageStack.

Referenced by freePage().

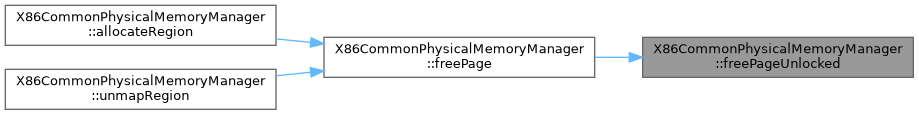

Here is the caller graph for this function:

getAcpiRanges()

const RangeList< uint64_t > & X86CommonPhysicalMemoryManager::getAcpiRanges ( ) const

inline

Definition at line 88 of file kernel/core/processor/x86_common/PhysicalMemoryManager.h.

initialisationDone()

void X86CommonPhysicalMemoryManager::initialisationDone

(

)

Unmap & free the .init section

Definition at line 788 of file x86_common/PhysicalMemoryManager.cc.

References Dec, EMIT_IF, RangeList< T, Reversed >::free(), VirtualAddressSpace::getKernelAddressSpace(), VirtualAddressSpace::getMapping(), PhysicalMemoryManager::getPageSize(), Hex, m_RangeBelow16MB, and VirtualAddressSpace::unmap().

initialise()

void X86CommonPhysicalMemoryManager::initialise

(

const BootstrapStruct_t &

Info

)

Initialise the page stack

Parameters

[in]

Info

reference to the multiboot information structure

Todo:

do this in initialise64 too, copying any existing entries.

Definition at line 448 of file x86_common/PhysicalMemoryManager.cc.

References RangeList< T, Reversed >::Range::address, RangeList< T, Reversed >::allocateSpecific(), EMIT_IF, RangeList< T, Reversed >::free(), X86CommonPhysicalMemoryManager::PageStack::free(), PhysicalMemoryManager::getPageSize(), RangeList< T, Reversed >::getRange(), Hex, RangeList< T, Reversed >::Range::length, m_AcpiRanges, m_Lock, m_MemoryRegions, m_PageMetadata, m_PageMetadataReady, m_PageStack, m_PhysicalRanges, m_RangeBelow16MB, m_RangeBelow1MB, X86CommonPhysicalMemoryManager::PageStack::markBelow4GReady(), panic(), and RangeList< T, Reversed >::size().

Referenced by X86CommonPhysicalMemoryManager::PageStack::free().

Here is the caller graph for this function:

initialise64()

void X86CommonPhysicalMemoryManager::initialise64

(

const BootstrapStruct_t &

Info

)

Initialise the page stack, with ranges above 4 GB. Requires ranges below 4 GB to be available (call initialise first).

Parameters

[in]

Info

reference to the multiboot information structure

Definition at line 633 of file x86_common/PhysicalMemoryManager.cc.

References RangeList< T, Reversed >::Range::address, RangeList< T, Reversed >::allocateSpecific(), EMIT_IF, RangeList< T, Reversed >::free(), X86CommonPhysicalMemoryManager::PageStack::free(), VirtualAddressSpace::getKernelAddressSpace(), PhysicalMemoryManager::getPageSize(), RangeList< T, Reversed >::getRange(), Hex, VirtualAddressSpace::KernelMode, RangeList< T, Reversed >::Range::length, m_AcpiRanges, m_PageStack, m_PhysicalRanges, VirtualAddressSpace::mapHuge(), X86CommonPhysicalMemoryManager::PageStack::markAbove4GReady(), panic(), RangeList< T, Reversed >::size(), and VirtualAddressSpace::Write.

instance()

static X86CommonPhysicalMemoryManager & X86CommonPhysicalMemoryManager::instance ( )

inlinestatic

Get the X86CommonPhysicalMemoryManager instance

Returns

instance of the X86CommonPhysicalMemoryManager

Definition at line 55 of file kernel/core/processor/x86_common/PhysicalMemoryManager.h.

References m_Instance.

memorySnapshot()

PhysicalMemoryManager::MemorySnapshot X86CommonPhysicalMemoryManager::memorySnapshot ( ) const

overridevirtual

Reimplemented from PhysicalMemoryManager.

Definition at line 160 of file x86_common/PhysicalMemoryManager.cc.

operator=()

X86CommonPhysicalMemoryManager & X86CommonPhysicalMemoryManager::operator= ( const X86CommonPhysicalMemoryManager &  )

private

The copy-constructor

Note

Not implemented (singleton)

pin()

void X86CommonPhysicalMemoryManager::pin ( physical_uintptr_t  page )

overridevirtual

"Pin" a page, increasing its refcount.

Every time a pinned page is passed to freePage, its refcount is decreased, and the page is only freed once the refcount hits zero.

Note that an unpin function is not provided, as freePage offers the right semantics.

Implements PhysicalMemoryManager.

Definition at line 235 of file x86_common/PhysicalMemoryManager.cc.

References m_Lock, m_PageMetadata, and m_PageMetadataReady.

shutdown()

void X86CommonPhysicalMemoryManager::shutdown

(

)

Clean up tracking structures.

Definition at line 442 of file x86_common/PhysicalMemoryManager.cc.

References Vector< T >::clear(), PhysicalMemoryManager::m_MemoryRegions, and m_PageMetadata.

tryAllocatePage()

physical_uintptr_t X86CommonPhysicalMemoryManager::tryAllocatePage ( )

overridevirtual

Reimplemented from PhysicalMemoryManager.

Definition at line 126 of file x86_common/PhysicalMemoryManager.cc.

unmapRegion()

void X86CommonPhysicalMemoryManager::unmapRegion ( MemoryRegion *  pRegion )

overrideprivatevirtual

Unmaps a memory region - called ONLY from MemoryRegion's destructor.

Implements PhysicalMemoryManager.

Definition at line 839 of file x86_common/PhysicalMemoryManager.cc.

References Vector< T >::end(), Vector< T >::erase(), RangeList< T, Reversed >::free(), freePage(), VirtualAddressSpace::getKernelAddressSpace(), VirtualAddressSpace::getMapping(), PhysicalMemoryManager::getPageSize(), VirtualAddressSpace::isMapped(), PhysicalMemoryManager::m_MemoryRegions, m_MemoryRegions, m_PhysicalRanges, m_RangeBelow16MB, m_RangeBelow1MB, MemoryRegion::physicalAddress(), MemoryRegion::size(), VirtualAddressSpace::unmap(), and MemoryRegion::virtualAddress().

Friends And Related Symbol Documentation

Cache

friend class Cache

friend

Definition at line 46 of file kernel/core/processor/x86_common/PhysicalMemoryManager.h.

CacheManager

friend class CacheManager

friend

Definition at line 45 of file kernel/core/processor/x86_common/PhysicalMemoryManager.h.

Member Data Documentation

m_AcpiRanges

RangeList<uint64_t> X86CommonPhysicalMemoryManager::m_AcpiRanges

private

RangeList of ACPI memory

Definition at line 209 of file kernel/core/processor/x86_common/PhysicalMemoryManager.h.

Referenced by initialise(), and initialise64().

m_BootstrapPinnedPage

physical_uintptr_t X86CommonPhysicalMemoryManager::m_BootstrapPinnedPage

private

Definition at line 266 of file kernel/core/processor/x86_common/PhysicalMemoryManager.h.

m_BootstrapPinnedPageRefcount

size_t X86CommonPhysicalMemoryManager::m_BootstrapPinnedPageRefcount

private

Definition at line 267 of file kernel/core/processor/x86_common/PhysicalMemoryManager.h.

m_Instance

X86CommonPhysicalMemoryManager X86CommonPhysicalMemoryManager::m_Instance

staticprivate

The X86CommonPhysicalMemoryManager class instance

Definition at line 217 of file kernel/core/processor/x86_common/PhysicalMemoryManager.h.

Referenced by instance().

m_Lock

Spinlock X86CommonPhysicalMemoryManager::m_Lock

private

To guard against multiprocessor reentrancy.

Definition at line 220 of file kernel/core/processor/x86_common/PhysicalMemoryManager.h.

Referenced by allocatePage(), freePage(), freePageUnlocked(), initialise(), and pin().

m_MemoryRegions

RangeList<uintptr_t> X86CommonPhysicalMemoryManager::m_MemoryRegions

private

Virtual-memory available for MemoryRegions

Todo:

rename this member (conflicts with PhysicalMemoryManager::m_MemoryRegions)

Definition at line 214 of file kernel/core/processor/x86_common/PhysicalMemoryManager.h.

Referenced by allocateRegion(), initialise(), and unmapRegion().

m_PageMetadata

HashTable<PageHashable, struct page> X86CommonPhysicalMemoryManager::m_PageMetadata

private

Page metadata table

Definition at line 258 of file kernel/core/processor/x86_common/PhysicalMemoryManager.h.

Referenced by freePageUnlocked(), initialise(), pin(), and shutdown().

m_PageMetadataReady

bool X86CommonPhysicalMemoryManager::m_PageMetadataReady

private

A shared SLAM zero page is pinned while this table is itself being allocated through SLAM. Keep that one bootstrap reference allocation-free until the table can own it.

Definition at line 265 of file kernel/core/processor/x86_common/PhysicalMemoryManager.h.

Referenced by freePageUnlocked(), initialise(), and pin().

m_PageStack

PageStack X86CommonPhysicalMemoryManager::m_PageStack

private

The page stack

Definition at line 198 of file kernel/core/processor/x86_common/PhysicalMemoryManager.h.

Referenced by allocatePage(), freePageCount(), freePageUnlocked(), initialise(), and initialise64().

m_PhysicalRanges

RangeList<uint64_t> X86CommonPhysicalMemoryManager::m_PhysicalRanges

private

RangeList of free physical memory

Definition at line 206 of file kernel/core/processor/x86_common/PhysicalMemoryManager.h.

Referenced by allocateRegion(), initialise(), initialise64(), and unmapRegion().

m_RangeBelow16MB

RangeList<uint32_t> X86CommonPhysicalMemoryManager::m_RangeBelow16MB

private

RangeList for the usable memory below 16MB

Definition at line 203 of file kernel/core/processor/x86_common/PhysicalMemoryManager.h.

Referenced by allocateRegion(), initialisationDone(), initialise(), and unmapRegion().

m_RangeBelow1MB

RangeList<uint32_t> X86CommonPhysicalMemoryManager::m_RangeBelow1MB

private

RangeList for the usable memory below 1MB

Definition at line 201 of file kernel/core/processor/x86_common/PhysicalMemoryManager.h.

Referenced by allocateRegion(), initialise(), and unmapRegion().

m_RegionLock

Spinlock X86CommonPhysicalMemoryManager::m_RegionLock

private

Definition at line 220 of file kernel/core/processor/x86_common/PhysicalMemoryManager.h.

---

The documentation for this class was generated from the following files:

• kernel/core/processor/x86_common/PhysicalMemoryManager.h
• x86_common/PhysicalMemoryManager.cc
