#include <3Com90x.h>

Inheritance diagram for Nic3C90x:

Collaboration diagram for Nic3C90x:

Classes
struct	RXD

struct	TXD

Public Member Functions
	Nic3C90x (Network *pDev)

virtual void	getName (String &str)

virtual bool	send (size_t nBytes, uintptr_t buffer)

virtual bool	setStationInfo (const StationInfo &info)

virtual const StationInfo &	getStationInfo ()

bool	isInitialised () const

virtual IrqDisposition	irq (irq_id_t number)

Public Member Functions inherited from Network
	Network (Network *pDev)

virtual Type	getType ()

virtual void	dump (String &str)

virtual bool	isConnected ()

virtual void	gotPacket ()

virtual void	droppedPacket ()
	Called when a packet is dropped by the system.

virtual void	badPacket ()

Public Member Functions inherited from Device
	Device (Device *p)

Device *	getParent () const

void	setParent (Device *p)

virtual const String &	getSpecificType ()

virtual void	setSpecificType (String str)

void	setPciPosition (uint32_t bus, uint32_t device, uint32_t func)

void	setPciIdentifiers (uint8_t classCode, uint8_t subclassCode, uint16_t vendorId, uint16_t deviceId, uint8_t progIf)

void	setPciConfigHeader (const PciBus::ConfigSpace &space)

PciBus::ConfigSpace	getPciConfigHeader () const

uint8_t	getPciClassCode ()

uint8_t	getPciSubclassCode ()

uint16_t	getPciVendorId ()

uint16_t	getPciDeviceId ()

uint8_t	getPciProgInterface ()

uint32_t	getPciBusPosition ()

uint32_t	getPciDevicePosition ()

uint32_t	getPciFunctionNumber ()

Device *	getPhysicalFunction () const

size_t	getVirtualFunctionIndex () const

void	setVirtualFunction (Device *physicalFunction, size_t index)

virtual Vector< Address * > &	addresses ()

virtual uintptr_t	getInterruptNumber ()

virtual void	setInterruptNumber (uintptr_t n)

void	addChild (Device *pDevice)

Device *	getChild (size_t n)

size_t	getNumChildren ()

void	removeChild (size_t n)

void	removeChild (Device *d)

void	replaceChild (Device src, Device dest)

Public Member Functions inherited from IrqHandler
virtual bool	acceptsSpuriousInterrupts () const

Public Attributes
IoBase *	m_pBase

Private Member Functions
bool	issueCommand (int cmd, int param)

int	setWindow (int window)

bool	waitForEepromReady ()

bool	readEeprom (int address, uint16_t &value)

int	writeEepromWord (int address, uint16_t value)

int	writeEeprom (int address, uint16_t value)

bool	reset ()

bool	quiesce ()

bool	stopDeviceLocked ()

struct Nic3C90x::TXD	__attribute__ ((aligned(8)))

struct Nic3C90x::RXD	__attribute__ ((aligned(8)))

	Nic3C90x (const Nic3C90x &)

void	operator= (const Nic3C90x &)

Private Attributes
uint8_t	m_isBrev

uint8_t	m_CurrentWindow

uint8_t *	m_pRxBuffVirt

uint8_t *	m_pTxBuffVirt

uintptr_t	m_pRxBuffPhys

uintptr_t	m_pTxBuffPhys

MemoryRegion	m_RxBuffMR

MemoryRegion	m_TxBuffMR

uintptr_t	m_pDPD

MemoryRegion	m_DPDMR

uintptr_t	m_pUPD

MemoryRegion	m_UPDMR

TXD *	m_TransmitDPD

RXD *	m_ReceiveUPD

uint8_t	m_ReceiveStaging [NUM_UPDS *ReceiveSlotSize]

Semaphore	m_TxMutex

Mutex	m_DeviceLock

Mutex	m_SendLock

size_t	m_RxConsumerIndex

irq_id_t	m_IrqId

bool	m_Active

bool	m_Stopping

bool	m_TxSuccessful

bool	m_Initialised

Static Private Attributes
static constexpr size_t	ReceiveSlotSize = 1536

Additional Inherited Members
Public Types inherited from Device
enum	Type { Generic , Root , Disk , Bus , Display , Network , Sound , Console , Mouse , Controller , UsbController , UsbGeneric , UsbContainer }

typedef Device (	Callback) (Device *)

Static Public Member Functions inherited from Network
static EXPORTED_PUBLIC uint32_t	convertToIpv4 (uint8_t a, uint8_t b, uint8_t c, uint8_t d)

static EXPORTED_PUBLIC IpAddress	convertToIpv6 (uint8_t a, uint8_t b=0, uint8_t c=0, uint8_t d=0, uint8_t e=0, uint8_t f=0, uint8_t g=0, uint8_t h=0, uint8_t i=0, uint8_t j=0, uint8_t k=0, uint8_t l=0, uint8_t m=0, uint8_t n=0, uint8_t o=0, uint8_t p=0)

static EXPORTED_PUBLIC uint16_t	calculateChecksum (uintptr_t buffer, size_t nBytes)

Static Public Member Functions inherited from Device
static bool	treeLockHeldByCurrentThread ()

static void	foreach (Callback callback, Device *root=0)

template<class F , class... Args>
static void	foreach (pedigree_std::Callable< F > &callback, Device *root, Args... args)

static void	addToRoot (Device *device)

static void	searchByVendorId (uint16_t vendorId, void(callback)(Device ), Device *root=0)

static void	searchByVendorIdAndDeviceId (uint16_t vendorId, uint16_t deviceId, void(callback)(Device ), Device *root=0)

static void	searchByClass (uint16_t classCode, void(callback)(Device ), Device *root=0)

static void	searchByClassAndSubclass (uint16_t classCode, uint16_t subclassCode, void(callback)(Device ), Device *root=0)

static void	searchByClassSubclassAndProgInterface (uint16_t classCode, uint16_t subclassCode, uint8_t progInterface, void(callback)(Device ), Device *root=0)

Protected Member Functions inherited from Device
	NOT_COPYABLE_OR_ASSIGNABLE (Device)

Protected Member Functions inherited from IrqHandler
virtual	~IrqHandler ()

Protected Member Functions inherited from IrqHandlerBase
virtual	~IrqHandlerBase ()

Static Protected Member Functions inherited from Device
static Device &	root ()

Protected Attributes inherited from Network
StationInfo	m_StationInfo

Protected Attributes inherited from Device
Vector< Address * >	m_Addresses

Vector< Device * >	m_Children

Device *	m_pParent

Device *	m_PhysicalFunction

size_t	m_VirtualFunctionIndex

uintptr_t	m_InterruptNumber

String	m_SpecificType

PciBus::ConfigSpace	m_ConfigHeader

uint8_t	m_ClassCode

uint8_t	m_SubclassCode

uint16_t	m_VendorId

uint16_t	m_DeviceId

uint8_t	m_ProgInterface

uint32_t	m_PciBusPos

uint32_t	m_PciDevicePos

uint32_t	m_PciFunctionNum

Static Protected Attributes inherited from Device
static Device	m_Root

static Mutex	m_TreeLock

Detailed Description

Device driver for the Nic3C90x class of network device

Definition at line 38 of file 3Com90x.h.

Constructor & Destructor Documentation

◆ Nic3C90x()

Nic3C90x::Nic3C90x ( Network * pDev )

10 Base TPO

10/100 T4

10/100 TPO

10 Base Combo

10 Base TPO

10 Base Combo

10 Base TPO and Base2

10 Base FL

10/100 TPO

10/100 T4

10 Base FX

Load EEPROM contents

Get the hardware address

Program the MAC address into the station address registers

Read the media options register, print a message and set default xcvr.

Uses Media Option command on B revision, Reset Option on non-B revision cards – same register address

mask out VCO bit that is defined as 10 base FL bit on B-rev cards

Determine transceiver type to use, depending on value stored in eeprom 0x16

Enable DC converter for 10-BASE-T

Set the link to the type we just determined

Now that we've set the xcvr type, reset TX and RX, re-enable

reset of the receiver on B-revision cards re-negotiates the link takes several seconds

Set the RX filter = receive only individual packets & multicast & broadcast

Configure indications but leave the physical source gated.

Definition at line 433 of file 3Com90x.cc.

References PhysicalMemoryManager::allocateRegion(), NetworkStack::deRegisterDevice(), NetworkStack::instance(), PhysicalMemoryManager::instance(), issueCommand(), Device::m_Addresses, m_isBrev, MemoryRegion::physicalAddress(), IoBase::read16(), IoBase::read32(), readEeprom(), NetworkStack::registerDevice(), IrqManager::registerPciIrqHandler(), reset(), Device::setSpecificType(), setWindow(), MemoryRegion::virtualAddress(), VirtualAddressSpace::Write, IoBase::write16(), IoBase::write32(), IoBase::write8(), and writeEeprom().

◆ ~Nic3C90x()

Nic3C90x::~Nic3C90x ( )

Definition at line 764 of file 3Com90x.cc.

Member Function Documentation

◆ getName()

virtual void Nic3C90x::getName ( String & str )

inlinevirtual

Stores the device's name in str.

Reimplemented from Network.

Definition at line 43 of file 3Com90x.h.

◆ getStationInfo()

const StationInfo & Nic3C90x::getStationInfo ( )

virtual

Gets station information (such as IP addresses)

Reimplemented from Network.

Definition at line 974 of file 3Com90x.cc.

◆ irq()

IrqDisposition Nic3C90x::irq ( irq_id_t number )

virtual

Handles a pending IRQ in thread context.

Implements IrqHandler.

Definition at line 786 of file 3Com90x.cc.

References NetworkStack::instance(), issueCommand(), Quiesced, IoBase::read16(), IoBase::read8(), NetworkStack::receive(), Semaphore::release(), IoBase::write32(), and IoBase::write8().

◆ isInitialised()

bool Nic3C90x::isInitialised ( ) const

inline

Definition at line 53 of file 3Com90x.h.

◆ issueCommand()

bool Nic3C90x::issueCommand	(	int	cmd,
		int	param
	)

private

Build the cmd.

Send the cmd to the cmd register

Wait for the cmd to complete, if necessary

Definition at line 95 of file 3Com90x.cc.

References Hex, IoBase::read16(), and IoBase::write16().

Referenced by irq(), Nic3C90x(), reset(), send(), and setWindow().

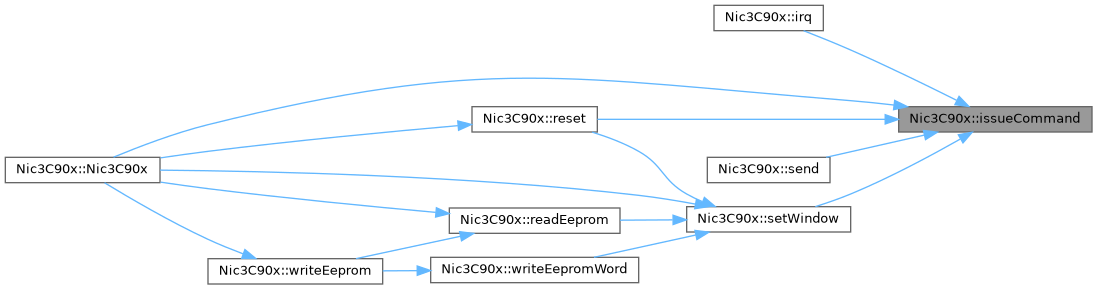

Here is the caller graph for this function:

◆ quiesce()

bool Nic3C90x::quiesce ( )

private

Definition at line 314 of file 3Com90x.cc.

◆ readEeprom()

bool Nic3C90x::readEeprom	(	int	address,
		uint16_t &	value
	)

private

Select correct window

Make sure the eeprom isn't busy

Read the value

Definition at line 158 of file 3Com90x.cc.

References IoBase::read16(), setWindow(), and IoBase::write16().

Referenced by Nic3C90x(), and writeEeprom().

Here is the caller graph for this function:

◆ reset()

bool Nic3C90x::reset ( )

private

Send the reset command to the card

Global reset command resets station mask, non-B revision cards require explicit reset of values

Issue transmit reset, wait for command completion

Reset of the receiver on B-revision cards re-negotiates the link Takes several seconds

Configure indications but leave the physical source gated.

Definition at line 242 of file 3Com90x.cc.

References issueCommand(), m_isBrev, IoBase::read32(), setWindow(), IoBase::write16(), IoBase::write32(), and IoBase::write8().

Referenced by Nic3C90x().

Here is the caller graph for this function:

◆ send()

bool Nic3C90x::send	(	size_t	nBytes,
		uintptr_t	buffer
	)

virtual

Sends a given packet through the device.

Parameters

nBytes	The number of bytes to send.
buffer	A buffer with the packet to send

Stall the download engine

Setup the DPD (download descriptor)

Set notification for transmission complete (bit 15)

Send the packet

End Stall and Wait for upload to complete.

Implements Network.

Definition at line 347 of file 3Com90x.cc.

References Semaphore::acquireForCompletion(), Dec, Semaphore::drainAvailable(), Hex, issueCommand(), IoBase::read32(), and IoBase::write32().

◆ setStationInfo()

bool Nic3C90x::setStationInfo ( const StationInfo & info )

virtual

Sets station information (such as IP addresses)

Parameters

info	The information to set as the station info

Reimplemented from Network.

Definition at line 947 of file 3Com90x.cc.

References Dec, StationInfo::gateway, Hex, and StationInfo::nDnsServers.

◆ setWindow()

int Nic3C90x::setWindow ( int window )

private

Window already as set?

Issue the window command

Definition at line 132 of file 3Com90x.cc.

References issueCommand().

Referenced by Nic3C90x(), readEeprom(), reset(), and writeEepromWord().

Here is the caller graph for this function:

◆ stopDeviceLocked()

bool Nic3C90x::stopDeviceLocked ( )

private

Definition at line 331 of file 3Com90x.cc.

◆ waitForEepromReady()

bool Nic3C90x::waitForEepromReady ( )

private

Definition at line 145 of file 3Com90x.cc.

◆ writeEeprom()

int Nic3C90x::writeEeprom	(	int	address,
		uint16_t	value
	)

private

Write the value.

Recompute the checksum

Write the checksum to the location in the eeprom

Definition at line 209 of file 3Com90x.cc.

References m_isBrev, readEeprom(), and writeEepromWord().

Referenced by Nic3C90x().

Here is the caller graph for this function:

◆ writeEepromWord()

int Nic3C90x::writeEepromWord	(	int	address,
		uint16_t	value
	)

private

Select register window

Verify Eeprom not busy

Issue WriteEnable, and wait for completion

Issue EraseReigster, and wait for completion

Send the new data to the eeprom, and wait for completion

Burn the new data into the eeprom, and wait for completion

Definition at line 176 of file 3Com90x.cc.

References setWindow(), and IoBase::write16().

Referenced by writeEeprom().

Here is the caller graph for this function:

Member Data Documentation

◆ m_Active

bool Nic3C90x::m_Active

private

Definition at line 132 of file 3Com90x.h.

◆ m_CurrentWindow

uint8_t Nic3C90x::m_CurrentWindow

private

Definition at line 81 of file 3Com90x.h.

◆ m_DeviceLock

Mutex Nic3C90x::m_DeviceLock

private

Definition at line 127 of file 3Com90x.h.

◆ m_DPDMR

MemoryRegion Nic3C90x::m_DPDMR

private

Definition at line 91 of file 3Com90x.h.

◆ m_Initialised

bool Nic3C90x::m_Initialised

private

Definition at line 135 of file 3Com90x.h.

◆ m_IrqId

irq_id_t Nic3C90x::m_IrqId

private

Definition at line 131 of file 3Com90x.h.

◆ m_isBrev

uint8_t Nic3C90x::m_isBrev

private

Local NIC information

Definition at line 80 of file 3Com90x.h.

Referenced by Nic3C90x(), reset(), and writeEeprom().

◆ m_pBase

IoBase* Nic3C90x::m_pBase

Definition at line 60 of file 3Com90x.h.

◆ m_pDPD

uintptr_t Nic3C90x::m_pDPD

private

Definition at line 90 of file 3Com90x.h.

◆ m_pRxBuffPhys

uintptr_t Nic3C90x::m_pRxBuffPhys

private

Definition at line 85 of file 3Com90x.h.

◆ m_pRxBuffVirt

uint8_t* Nic3C90x::m_pRxBuffVirt

private

Definition at line 83 of file 3Com90x.h.

◆ m_pTxBuffPhys

uintptr_t Nic3C90x::m_pTxBuffPhys

private

Definition at line 86 of file 3Com90x.h.

◆ m_pTxBuffVirt

uint8_t* Nic3C90x::m_pTxBuffVirt

private

Definition at line 84 of file 3Com90x.h.

◆ m_pUPD

uintptr_t Nic3C90x::m_pUPD

private

Definition at line 93 of file 3Com90x.h.

◆ m_ReceiveStaging

uint8_t Nic3C90x::m_ReceiveStaging[NUM_UPDS *ReceiveSlotSize]

private

Definition at line 120 of file 3Com90x.h.

◆ m_ReceiveUPD

RXD* Nic3C90x::m_ReceiveUPD

private

Definition at line 115 of file 3Com90x.h.

◆ m_RxBuffMR

MemoryRegion Nic3C90x::m_RxBuffMR

private

Definition at line 87 of file 3Com90x.h.

◆ m_RxConsumerIndex

size_t Nic3C90x::m_RxConsumerIndex

private

Definition at line 130 of file 3Com90x.h.

◆ m_SendLock

Mutex Nic3C90x::m_SendLock

private

Definition at line 128 of file 3Com90x.h.

◆ m_Stopping

bool Nic3C90x::m_Stopping

private

Definition at line 133 of file 3Com90x.h.

◆ m_TransmitDPD

TXD* Nic3C90x::m_TransmitDPD

private

Definition at line 114 of file 3Com90x.h.

◆ m_TxBuffMR

MemoryRegion Nic3C90x::m_TxBuffMR

private

Definition at line 88 of file 3Com90x.h.

◆ m_TxMutex

Semaphore Nic3C90x::m_TxMutex

private

Definition at line 125 of file 3Com90x.h.

◆ m_TxSuccessful

bool Nic3C90x::m_TxSuccessful

private

Definition at line 134 of file 3Com90x.h.

◆ m_UPDMR

MemoryRegion Nic3C90x::m_UPDMR

private

Definition at line 94 of file 3Com90x.h.

◆ ReceiveSlotSize

constexpr size_t Nic3C90x::ReceiveSlotSize = 1536

staticconstexprprivate

Definition at line 63 of file 3Com90x.h.

The documentation for this class was generated from the following files:

Classes

Public Member Functions

Public Attributes

Private Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Nic3C90x()

◆ ~Nic3C90x()

Member Function Documentation

◆ getName()

◆ getStationInfo()

◆ irq()

◆ isInitialised()

◆ issueCommand()

◆ quiesce()

◆ readEeprom()

◆ reset()

◆ send()

◆ setStationInfo()

◆ setWindow()

◆ stopDeviceLocked()

◆ waitForEepromReady()

◆ writeEeprom()

◆ writeEepromWord()

Member Data Documentation

◆ m_Active

◆ m_CurrentWindow

◆ m_DeviceLock

◆ m_DPDMR

◆ m_Initialised

◆ m_IrqId

◆ m_isBrev

◆ m_pBase

◆ m_pDPD

◆ m_pRxBuffPhys

◆ m_pRxBuffVirt

◆ m_pTxBuffPhys

◆ m_pTxBuffVirt

◆ m_pUPD

◆ m_ReceiveStaging

◆ m_ReceiveUPD

◆ m_RxBuffMR

◆ m_RxConsumerIndex

◆ m_SendLock

◆ m_Stopping

◆ m_TransmitDPD

◆ m_TxBuffMR

◆ m_TxMutex

◆ m_TxSuccessful

◆ m_UPDMR

◆ ReceiveSlotSize
