Inheritance diagram for ScsiDisk:

Collaboration diagram for ScsiDisk:

Classes
struct	Capacity

struct	Inquiry

struct	Sense

Public Member Functions
bool	initialise (class ScsiController *pController, size_t nUnit)

virtual uintptr_t	read (uint64_t location)

virtual void	write (uint64_t location)

virtual void	flush (uint64_t location)
	Flush a cached page to disk. More...

virtual void	align (uint64_t location)
	Sets the page boundary alignment after a specific location on the disk. More...

virtual void	getName (String &str)

virtual uint64_t	doRead (uint64_t location)

virtual uint64_t	doWrite (uint64_t location)

virtual uint64_t	doSync (uint64_t location)

virtual size_t	getSize () const
	Gets the size of the disk. More...

virtual size_t	getBlockCount () const

virtual size_t	getBlockSize () const
	Gets the block size of the disk. More...

virtual size_t	getNativeBlockSize () const

virtual void	pin (uint64_t location)
	Pins a cache page. More...

virtual void	unpin (uint64_t location)

Public Member Functions inherited from Disk
	Disk (Device *p)

virtual Type	getType ()

virtual SubType	getSubType ()

virtual void	dump (String &str)

virtual bool	cacheIsCritical ()
	Whether or not the cache is critical and cannot be flushed or deleted. More...

Public Member Functions inherited from Device
	Device (Device *p)

Device *	getParent () const

void	setParent (Device *p)

virtual String	getSpecificType ()

virtual void	setSpecificType (String str)

void	setPciPosition (uint32_t bus, uint32_t device, uint32_t func)

void	setPciIdentifiers (uint8_t classCode, uint8_t subclassCode, uint16_t vendorId, uint16_t deviceId, uint8_t progIf)

void	setPciConfigHeader (const PciBus::ConfigSpace &space)

PciBus::ConfigSpace	getPciConfigHeader () const

uint8_t	getPciClassCode ()

uint8_t	getPciSubclassCode ()

uint16_t	getPciVendorId ()

uint16_t	getPciDeviceId ()

uint8_t	getPciProgInterface ()

uint32_t	getPciBusPosition ()

uint32_t	getPciDevicePosition ()

uint32_t	getPciFunctionNumber ()

virtual Vector< Address * > &	addresses ()

virtual uintptr_t	getInterruptNumber ()

virtual void	setInterruptNumber (uintptr_t n)

void	addChild (Device *pDevice)

Device *	getChild (size_t n)

size_t	getNumChildren ()

void	removeChild (size_t n)

void	removeChild (Device *d)

void	replaceChild (Device src, Device dest)

Public Attributes
struct ScsiDisk::Sense	PACKED

struct ScsiDisk::Inquiry	PACKED

struct ScsiDisk::Capacity	PACKED

Protected Member Functions
Cache &	getCache ()

Inquiry *	getInquiry () const

Protected Member Functions inherited from Device
	NOT_COPYABLE_OR_ASSIGNABLE (Device)

Private Types
enum	ScsiPeripheralType { BlockDevice = 0x00, SequentialDevice = 0x01, PrinterDevice = 0x02, ProcessorDevice = 0x03, WriteOnceDevice = 0x04, CdDvdDevice = 0x05, OpticalMemoryDevice = 0x07, MediumChangerDevice = 0x08, ArrayDevice = 0x0C, EnclosureDevice = 0x0D, NoDevice = 0x1F }

Private Member Functions
bool	unitReady ()

bool	readSense (Sense *s)

bool	sendCommand (ScsiCommand *pCommand, uintptr_t pRespBuffer, uint16_t nRespBytes, bool bWrite=false)

bool	getCapacityInternal (size_t blockNumber, size_t blockSize)

virtual size_t	defaultBlockSize ()

Static Private Member Functions
static void	cacheCallback (CacheConstants::CallbackCause cause, uintptr_t loc, uintptr_t page, void *meta)

Private Attributes
class ScsiController *	m_pController

size_t	m_nUnit

Cache	m_Cache

Inquiry *	m_Inquiry

uint64_t	m_AlignPoints [8]

size_t	m_nAlignPoints

size_t	m_NumBlocks

size_t	m_BlockSize

size_t	m_NativeBlockSize

ScsiPeripheralType	m_DeviceType

Additional Inherited Members
Public Types inherited from Disk
enum	SubType { ATA = 0, ATAPI }

Public Types inherited from Device
enum	Type { Generic, Root, Disk, Bus, Display, Network, Sound, Console, Mouse, Controller, UsbController, UsbGeneric, UsbContainer }

typedef Device (	Callback) (Device *)

Static Public Member Functions inherited from Device
static void	foreach (Callback callback, Device *root=0)

template<class F , class... Args>
static void	foreach (pedigree_std::Callable< F > &callback, Device *root, Args...args)

static void	addToRoot (Device *device)

static void	searchByVendorId (uint16_t vendorId, void(callback)(Device ), Device *root=0)

static void	searchByVendorIdAndDeviceId (uint16_t vendorId, uint16_t deviceId, void(callback)(Device ), Device *root=0)

static void	searchByClass (uint16_t classCode, void(callback)(Device ), Device *root=0)

static void	searchByClassAndSubclass (uint16_t classCode, uint16_t subclassCode, void(callback)(Device ), Device *root=0)

static void	searchByClassSubclassAndProgInterface (uint16_t classCode, uint16_t subclassCode, uint8_t progInterface, void(callback)(Device ), Device *root=0)

Static Protected Member Functions inherited from Device
static Device &	root ()

Protected Attributes inherited from Device
Vector< Address * >	m_Addresses

Vector< Device * >	m_Children

Device *	m_pParent

uintptr_t	m_InterruptNumber

String	m_SpecificType

PciBus::ConfigSpace	m_ConfigHeader

uint8_t	m_ClassCode

uint8_t	m_SubclassCode

uint16_t	m_VendorId

uint16_t	m_DeviceId

uint8_t	m_ProgInterface

uint32_t	m_PciBusPos

uint32_t	m_PciDevicePos

uint32_t	m_PciFunctionNum

Static Protected Attributes inherited from Device
static Device	m_Root

static Mutex	m_TreeLock

Detailed Description

Definition at line 32 of file ScsiDisk.h.

Member Function Documentation

void ScsiDisk::align ( uint64_t location )

virtual

Sets the page boundary alignment after a specific location on the disk.

For example, if one has a partition starting on byte 512, one will probably want 4096-byte reads to be aligned with this (so reading 4096 bytes from byte 0 on the partition will create one page of cache and not span two). Without an align point a read of the first sector of a partition starting at byte 512 will have to have a location of 512 rather than 0.

Use this function to allow reads to fit into the 4096 byte buffers manipulated in read() or write() even when location isn't aligned on a 4096 byte boundary.

Reimplemented from Disk.

Definition at line 442 of file ScsiDisk.cc.

References assert.

virtual size_t ScsiDisk::defaultBlockSize ( )

inlineprivatevirtual

Default block size for a device

Reimplemented in AtaDisk.

Definition at line 179 of file ScsiDisk.h.

uint64_t ScsiDisk::doRead ( uint64_t location )

virtual

Todo:: Cache this somewhere.

Todo:: endianness issue?

Reimplemented in AtaDisk.

Definition at line 448 of file ScsiDisk.cc.

References ERROR, FATAL, and WARNING.

Referenced by AtaDisk::doRead(), and ScsiController::executeRequest().

Here is the caller graph for this function:

void ScsiDisk::flush ( uint64_t location )

virtual

Flush a cached page to disk.

Essentially a no-op if the given location is not actually in cache. Called either by filesystem drivers (on removable disks) or from a central cache manager which handles flushing caches back to the disk on a regular basis.

Will not remove the page from cache, that must be done by the caller.

Reimplemented from Disk.

Definition at line 392 of file ScsiDisk.cc.

References RequestQueue::addRequest(), ERROR, and Device::m_pParent.

virtual size_t ScsiDisk::getBlockSize ( ) const

inlinevirtual

Gets the block size of the disk.

This is the native block size with which all reads and writes are performed, regardless of how much data is available to be read/written.

Reimplemented from Disk.

Reimplemented in AtaDisk.

Definition at line 120 of file ScsiDisk.h.

Referenced by AtaDisk::getBlockSize().

Here is the caller graph for this function:

virtual void ScsiDisk::getName ( String & str )

inlinevirtual

Stores the device's name in str.

Reimplemented from Disk.

Reimplemented in AtaDisk.

Definition at line 99 of file ScsiDisk.h.

virtual size_t ScsiDisk::getNativeBlockSize ( ) const

inlinevirtual

Retrieves the native block size - that is, the logical block size. This differs from the main block size, which is for caching.

Reimplemented in AtaDisk.

Definition at line 129 of file ScsiDisk.h.

Referenced by AtaDisk::getNativeBlockSize().

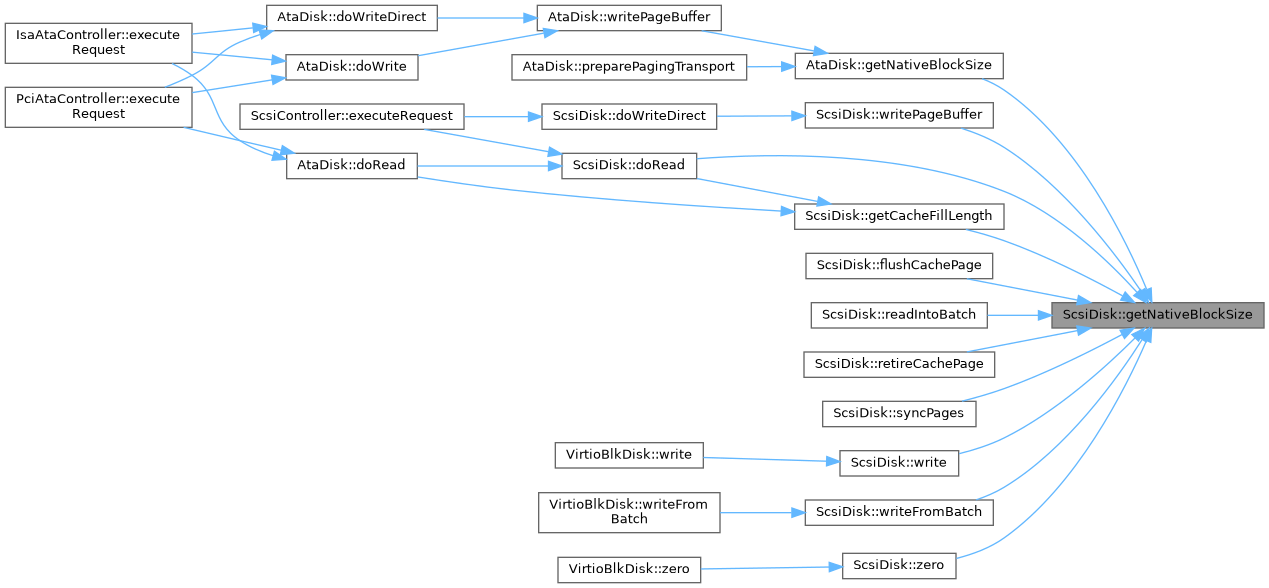

Here is the caller graph for this function:

virtual size_t ScsiDisk::getSize ( ) const

inlinevirtual

Gets the size of the disk.

This is the size in bytes of the disk. Reads or writes beyond this size will fail.

Reimplemented from Disk.

Reimplemented in AtaDisk.

Definition at line 110 of file ScsiDisk.h.

Referenced by AtaDisk::getSize().

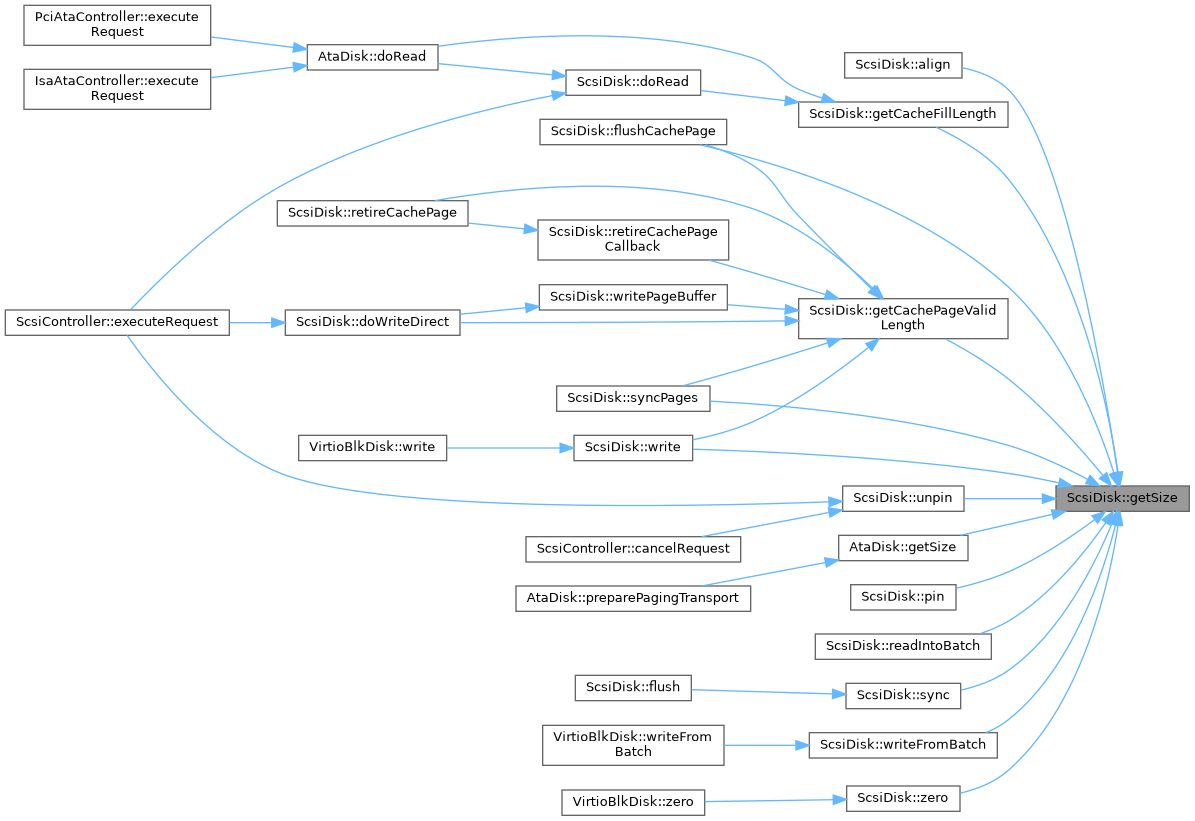

Here is the caller graph for this function:

bool ScsiDisk::initialise	(	class ScsiController *	pController,
		size_t	nUnit
	)

Todo:: Use this data to change how read() and write() work

Definition at line 78 of file ScsiDisk.cc.

References Dec, ServiceManager::enumerateOperations(), ERROR, ServiceManager::getService(), Hex, Device::m_pParent, NOTICE, ServiceFeatures::provides(), Service::serve(), and ServiceFeatures::touch.

Referenced by AtaDisk::initialise().

Here is the caller graph for this function:

void ScsiDisk::pin ( uint64_t location )

virtual

Pins a cache page.

This allows an upstream user of Disk pages to 'pin' cache pages, causing them to only be freed once all consumers have done an 'unpin'. The pin and unpin semantics allow for memory mappings to be made in a reasonably safe manner, as it can be assumed that the physical page for a particular cache block will not be freed.

Reimplemented from Disk.

Definition at line 697 of file ScsiDisk.cc.

uintptr_t ScsiDisk::read ( uint64_t location )

virtual

Read from location on disk and return a pointer to it. location must be 512 byte aligned. The pointer returned is within a page of cache that maps to 4096 bytes of disk area.

Note: If the Disk is backed by a Cache, the buffer returned should have its refcount incremented by one by a successful run of read(). Use unpin() to indicate you no longer care about the buffer.

Parameters

location The offset from the start of the device, in bytes, to start the read, must be multiple of 512.

Returns: Pointer to writable area of memory containing the data. If the data is written, the page is marked as dirty and may be written back to disk at any time (or forced with write() or flush() ).

Reimplemented from Disk.

Definition at line 277 of file ScsiDisk.cc.

References RequestQueue::addAsyncRequest(), RequestQueue::addRequest(), ERROR, Device::m_pParent, and WARNING.

bool ScsiDisk::readSense ( Sense * s )

private

Todo:: get the amount of data received from the SCSI device

Definition at line 198 of file ScsiDisk.cc.

References WARNING.

bool ScsiDisk::unitReady ( )

private

Todo:: this can fail with UNIT_ATTN or NOT_READY if the device is removable.

Definition at line 223 of file ScsiDisk.cc.

References WARNING.

void ScsiDisk::unpin ( uint64_t location )

virtual

Unpins a cache page (see pin() for more information and rationale).

Reimplemented from Disk.

Definition at line 702 of file ScsiDisk.cc.

void ScsiDisk::write ( uint64_t location )

virtual

This function schedules a cache writeback of the given location. The data to be written back is fetched from the cache (pointer returned by read() ).

Parameters

location The offset from the start of the device, in bytes, to start the write. Must be 512byte aligned.

Reimplemented from Disk.

Definition at line 342 of file ScsiDisk.cc.

References RequestQueue::addAsyncRequest(), ERROR, and Device::m_pParent.
