#include <AtaDisk.h>

Inheritance diagram for AtaDisk:

Collaboration diagram for AtaDisk:

Classes
struct	Buffer

Public Member Functions
	AtaDisk (class AtaController pDev, bool isMaster, IoBase commandRegs, IoBase controlRegs, BusMasterIde busMaster=0)

virtual void	getName (String &str)

bool	initialise (size_t nUnit=~0)

virtual uint64_t	doRead (uint64_t location)

virtual uint64_t	doWrite (uint64_t location)

virtual void	irqReceived ()

virtual BusMasterIde *	getBusMaster () const

virtual size_t	getSize () const
	Gets the size of the disk. More...

virtual size_t	getBlockSize () const
	Gets the block size of the disk. More...

virtual size_t	getNativeBlockSize () const

virtual size_t	getBlockCount () const

virtual bool	sendCommand (size_t nUnit, uintptr_t pCommand, uint8_t nCommandSize, uintptr_t pRespBuffer, uint16_t nRespBytes, bool bWrite)

Public Member Functions inherited from ScsiDisk
bool	initialise (class ScsiController *pController, size_t nUnit)

virtual uintptr_t	read (uint64_t location)

virtual void	write (uint64_t location)

virtual void	flush (uint64_t location)
	Flush a cached page to disk. More...

virtual void	align (uint64_t location)
	Sets the page boundary alignment after a specific location on the disk. More...

virtual uint64_t	doSync (uint64_t location)

virtual void	pin (uint64_t location)
	Pins a cache page. More...

virtual void	unpin (uint64_t location)

Public Member Functions inherited from Disk
	Disk (Device *p)

virtual Type	getType ()

virtual SubType	getSubType ()

virtual void	dump (String &str)

virtual bool	cacheIsCritical ()
	Whether or not the cache is critical and cannot be flushed or deleted. More...

Public Member Functions inherited from Device
	Device (Device *p)

Device *	getParent () const

void	setParent (Device *p)

virtual String	getSpecificType ()

virtual void	setSpecificType (String str)

void	setPciPosition (uint32_t bus, uint32_t device, uint32_t func)

void	setPciIdentifiers (uint8_t classCode, uint8_t subclassCode, uint16_t vendorId, uint16_t deviceId, uint8_t progIf)

void	setPciConfigHeader (const PciBus::ConfigSpace &space)

PciBus::ConfigSpace	getPciConfigHeader () const

uint8_t	getPciClassCode ()

uint8_t	getPciSubclassCode ()

uint16_t	getPciVendorId ()

uint16_t	getPciDeviceId ()

uint8_t	getPciProgInterface ()

uint32_t	getPciBusPosition ()

uint32_t	getPciDevicePosition ()

uint32_t	getPciFunctionNumber ()

virtual Vector< Address * > &	addresses ()

virtual uintptr_t	getInterruptNumber ()

virtual void	setInterruptNumber (uintptr_t n)

void	addChild (Device *pDevice)

Device *	getChild (size_t n)

size_t	getNumChildren ()

void	removeChild (size_t n)

void	removeChild (Device *d)

void	replaceChild (Device src, Device dest)

Private Types
enum	AtaDiskType { Block = 0x00, Sequential = 0x01, Printer = 0x02, Processor = 0x03, WriteOnce = 0x04, CdDvd = 0x05, OpticalMemory = 0x07, MediumChanger = 0x08, Raid = 0x0C, Enclosure = 0x0D, None = 0x1F, NotPacket = 0xFF }

Private Member Functions
void	setupLBA28 (uint64_t n, uint32_t nSectors)

void	setupLBA48 (uint64_t n, uint32_t nSectors)

virtual size_t	defaultBlockSize ()

void	setFeatures (uint8_t command, uint8_t countreg, uint8_t lowreg, uint8_t midreg, uint8_t hireg)

Private Attributes
bool	m_IsMaster

IdentifyData	m_pIdent

char	m_pName [64]

char	m_pSerialNumber [64]

char	m_pFirmwareRevision [64]

bool	m_SupportsLBA28

bool	m_SupportsLBA48

size_t	m_BlockSize

Mutex *	m_IrqReceived

Mutex	m_IrqLock

ConditionVariable	m_IrqCondition

AtaDiskType	m_AtaDiskType

uint8_t	m_PacketSize

bool	m_Removable

IoBase *	m_CommandRegs

IoBase *	m_ControlRegs

BusMasterIde *	m_BusMaster

Mutex	m_PrdTableLock

PhysicalRegionDescriptor *	m_PrdTable

size_t	m_LastPrdTableOffset

physical_uintptr_t	m_PrdTablePhys

MemoryRegion	m_PrdTableMemRegion

bool	m_bDma

Atomic< size_t >	m_IrqCount

Additional Inherited Members
Public Types inherited from Disk
enum	SubType { ATA = 0, ATAPI }

Public Types inherited from Device
enum	Type { Generic, Root, Disk, Bus, Display, Network, Sound, Console, Mouse, Controller, UsbController, UsbGeneric, UsbContainer }

typedef Device (	Callback) (Device *)

Static Public Member Functions inherited from Device
static void	foreach (Callback callback, Device *root=0)

template<class F , class... Args>
static void	foreach (pedigree_std::Callable< F > &callback, Device *root, Args...args)

static void	addToRoot (Device *device)

static void	searchByVendorId (uint16_t vendorId, void(callback)(Device ), Device *root=0)

static void	searchByVendorIdAndDeviceId (uint16_t vendorId, uint16_t deviceId, void(callback)(Device ), Device *root=0)

static void	searchByClass (uint16_t classCode, void(callback)(Device ), Device *root=0)

static void	searchByClassAndSubclass (uint16_t classCode, uint16_t subclassCode, void(callback)(Device ), Device *root=0)

static void	searchByClassSubclassAndProgInterface (uint16_t classCode, uint16_t subclassCode, uint8_t progInterface, void(callback)(Device ), Device *root=0)

Public Attributes inherited from ScsiDisk
struct ScsiDisk::Sense	PACKED

struct ScsiDisk::Inquiry	PACKED

struct ScsiDisk::Capacity	PACKED

Protected Member Functions inherited from ScsiDisk
Cache &	getCache ()

Inquiry *	getInquiry () const

Protected Member Functions inherited from Device
	NOT_COPYABLE_OR_ASSIGNABLE (Device)

Static Protected Member Functions inherited from Device
static Device &	root ()

Protected Attributes inherited from Device
Vector< Address * >	m_Addresses

Vector< Device * >	m_Children

Device *	m_pParent

uintptr_t	m_InterruptNumber

String	m_SpecificType

PciBus::ConfigSpace	m_ConfigHeader

uint8_t	m_ClassCode

uint8_t	m_SubclassCode

uint16_t	m_VendorId

uint16_t	m_DeviceId

uint8_t	m_ProgInterface

uint32_t	m_PciBusPos

uint32_t	m_PciDevicePos

uint32_t	m_PciFunctionNum

Static Protected Attributes inherited from Device
static Device	m_Root

static Mutex	m_TreeLock

Detailed Description

An ATA device.

This could be anything from an ATAPI device (eg, CDROM) to a pure and simple IDE disk. We inherit ScsiDisk as it is needed for ATAPI. Non-ATAPI disks simply don't use the ScsiDisk interface.

Definition at line 42 of file AtaDisk.h.

Member Function Documentation

virtual size_t AtaDisk::defaultBlockSize ( )

inlineprivatevirtual

Default block size for this device.

Reimplemented from ScsiDisk.

Definition at line 110 of file AtaDisk.h.

References m_AtaDiskType.

uint64_t AtaDisk::doRead ( uint64_t location )

virtual

Todo:: getPageSize() here

Todo:: logical sector size here

Todo:: What's the best way to handle this?

Todo:: What's the best way to handle this?

Reimplemented from ScsiDisk.

Definition at line 681 of file AtaDisk.cc.

References ALIGN, assert, AtaDisk::Buffer::buffer, ScsiDisk::doRead(), ERROR, FATAL, Device::getInterruptNumber(), Processor::getInterrupts(), AtaDisk::Buffer::offset, IoBase::read16(), IoBase::read8(), AtaStatus::reg, Processor::setInterrupts(), WARNING, and IoBase::write8().

Referenced by IsaAtaController::executeRequest(), PciAtaController::executeRequest(), and getName().

Here is the caller graph for this function:

uint64_t AtaDisk::doWrite ( uint64_t location )

virtual

Todo:: might still want to allow writes - assuming CDROM here...

Todo:: logical sector size here

Todo:: What's the best way to handle this?

Todo:: What's the best way to handle this?

Reimplemented from ScsiDisk.

Definition at line 943 of file AtaDisk.cc.

References FATAL, Device::getInterruptNumber(), Processor::getInterrupts(), NOTICE, panic(), IoBase::read8(), AtaStatus::reg, Processor::setInterrupts(), WARNING, IoBase::write16(), and IoBase::write8().

Referenced by IsaAtaController::executeRequest(), PciAtaController::executeRequest(), and getName().

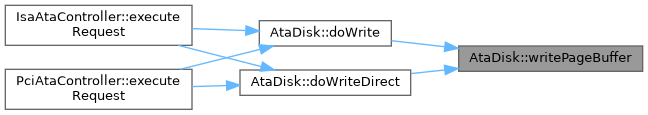

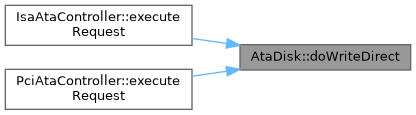

Here is the caller graph for this function:

size_t AtaDisk::getBlockSize ( ) const

virtual

Gets the block size of the disk.

This is the native block size with which all reads and writes are performed, regardless of how much data is available to be read/written.

Reimplemented from ScsiDisk.

Definition at line 1261 of file AtaDisk.cc.

References ScsiDisk::getBlockSize().

Referenced by AtaController::compareRequests(), and getBusMaster().

Here is the caller graph for this function:

virtual BusMasterIde* AtaDisk::getBusMaster ( ) const

inlinevirtual

Retrieve the BusMaster IDE interface for this disk.

Definition at line 88 of file AtaDisk.h.

References getBlockSize(), getNativeBlockSize(), getSize(), sendCommand(), setupLBA28(), and setupLBA48().

Referenced by PciAtaController::irq().

Here is the caller graph for this function:

virtual void AtaDisk::getName ( String & str )

inlinevirtual

Stores the device's name in str.

Reimplemented from ScsiDisk.

Definition at line 67 of file AtaDisk.h.

References doRead(), doWrite(), initialise(), irqReceived(), and m_pName.

size_t AtaDisk::getNativeBlockSize ( ) const

virtual

Retrieves the native block size - that is, the logical block size. This differs from the main block size, which is for caching.

Reimplemented from ScsiDisk.

Definition at line 1270 of file AtaDisk.cc.

References ScsiDisk::getNativeBlockSize().

Referenced by getBusMaster().

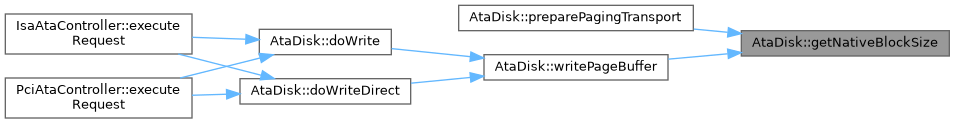

Here is the caller graph for this function:

size_t AtaDisk::getSize ( ) const

virtual

Gets the size of the disk.

This is the size in bytes of the disk. Reads or writes beyond this size will fail.

Reimplemented from ScsiDisk.

Definition at line 1228 of file AtaDisk.cc.

References ScsiDisk::getSize().

Referenced by getBusMaster().

Here is the caller graph for this function:

bool AtaDisk::initialise ( size_t nUnit = ~0 )

Initialises the device and detects its features, if it is present.

Returns: True if the device is present and was successfully initialised.

Todo:: should check that this doesn't break on ATAPI

Todo:: Testing needs to be done on more than just CD/DVD and block devices...

Definition at line 60 of file AtaDisk.cc.

References AtaStatus::__reg_contents, Dec, ERROR, Device::getInterruptNumber(), Hex, ScsiDisk::initialise(), Device::m_pParent, NOTICE, IoBase::read16(), IoBase::read8(), AtaStatus::reg, WARNING, and IoBase::write8().

Referenced by getName(), and PciAtaController::PciAtaController().

Here is the caller graph for this function:

void AtaDisk::irqReceived ( )

virtual

Called when an IRQ is received by the controller.

Definition at line 1156 of file AtaDisk.cc.

Referenced by getName(), IsaAtaController::irq(), and PciAtaController::irq().

Here is the caller graph for this function:

bool AtaDisk::sendCommand	(	size_t	nUnit,
		uintptr_t	pCommand,
		uint8_t	nCommandSize,
		uintptr_t	pRespBuffer,
		uint16_t	nRespBytes,
		bool	bWrite
	)

virtual

Todo:: What's the best way to handle this?

Definition at line 470 of file AtaDisk.cc.

References AtaStatus::__reg_contents, ERROR, NOTICE, IoBase::read16(), IoBase::read8(), AtaStatus::reg, WARNING, IoBase::write16(), and IoBase::write8().

Referenced by getBusMaster(), and PciAtaController::PciAtaController().

Here is the caller graph for this function:

void AtaDisk::setFeatures	(	uint8_t	command,
		uint8_t	countreg,
		uint8_t	lowreg,
		uint8_t	midreg,
		uint8_t	hireg
	)

private

Performs the SET FEATURES command.

Definition at line 1210 of file AtaDisk.cc.

References IoBase::write8().

void AtaDisk::setupLBA28	(	uint64_t	n,
		uint32_t	nSectors
	)

private

Sets the drive up for reading from address 'n' in LBA28 mode.

Definition at line 1162 of file AtaDisk.cc.

References IoBase::write8().

Referenced by getBusMaster().

Here is the caller graph for this function:

void AtaDisk::setupLBA48	(	uint64_t	n,
		uint32_t	nSectors
	)

private

Sets the drive up for reading from address 'n' in LBA48 mode.

Definition at line 1186 of file AtaDisk.cc.

References IoBase::write8().

Referenced by getBusMaster().

Here is the caller graph for this function:

Member Data Documentation

AtaDiskType AtaDisk::m_AtaDiskType

private

What type of disk are we?

Definition at line 160 of file AtaDisk.h.

Referenced by defaultBlockSize().

bool AtaDisk::m_bDma

private

Can we do DMA?

Definition at line 195 of file AtaDisk.h.

size_t AtaDisk::m_BlockSize

private

Block size in bytes for all read/write operations.

Definition at line 148 of file AtaDisk.h.

IoBase* AtaDisk::m_CommandRegs

private

Command & control registers, and DMA access for this disk

Definition at line 174 of file AtaDisk.h.

Atomic<size_t> AtaDisk::m_IrqCount

private

IRQ count.

Definition at line 198 of file AtaDisk.h.

Mutex* AtaDisk::m_IrqReceived

private

When we wait for an IRQ, we create a Mutex and assign it here. When an IRQ fires, the mutex is released and the locked thread can continue.

Todo:: A condvar would really be better here.

Definition at line 155 of file AtaDisk.h.

bool AtaDisk::m_IsMaster

private

Is this the master device on the bus?

Definition at line 133 of file AtaDisk.h.

size_t AtaDisk::m_LastPrdTableOffset

private

Last used offset into the PRD table (so we can run multiple ops at once)

Definition at line 186 of file AtaDisk.h.

uint8_t AtaDisk::m_PacketSize

private

Command packet size

Definition at line 163 of file AtaDisk.h.

char AtaDisk::m_pFirmwareRevision[64]

private

The firmware revision

Definition at line 142 of file AtaDisk.h.

IdentifyData AtaDisk::m_pIdent

private

The result of the IDENTIFY command.

Definition at line 136 of file AtaDisk.h.

char AtaDisk::m_pName[64]

private

The model name of the device.

Definition at line 138 of file AtaDisk.h.

Referenced by getName().

PhysicalRegionDescriptor* AtaDisk::m_PrdTable

private

PRD table (virtual)

Definition at line 182 of file AtaDisk.h.

Mutex AtaDisk::m_PrdTableLock

private

PRD table lock (only used when grabbing the offset)

Definition at line 179 of file AtaDisk.h.

MemoryRegion AtaDisk::m_PrdTableMemRegion

private

MemoryRegion for the PRD table

Definition at line 192 of file AtaDisk.h.

physical_uintptr_t AtaDisk::m_PrdTablePhys

private

PRD table (physical)

Definition at line 189 of file AtaDisk.h.

char AtaDisk::m_pSerialNumber[64]

private

The serial number of the device.

Definition at line 140 of file AtaDisk.h.

bool AtaDisk::m_Removable

private

Device flags

Definition at line 166 of file AtaDisk.h.

bool AtaDisk::m_SupportsLBA28

private

Does the device support LBA28?

Definition at line 144 of file AtaDisk.h.

bool AtaDisk::m_SupportsLBA48

private

Does the device support LBA48?

Definition at line 146 of file AtaDisk.h.

The documentation for this class was generated from the following files:

Classes

Public Member Functions

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

Member Data Documentation
