#include <SplitIrqHandler.h>

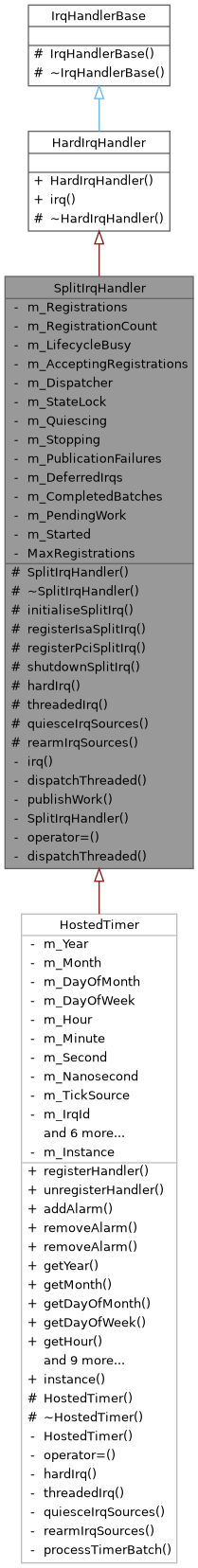

Inheritance diagram for SplitIrqHandler:

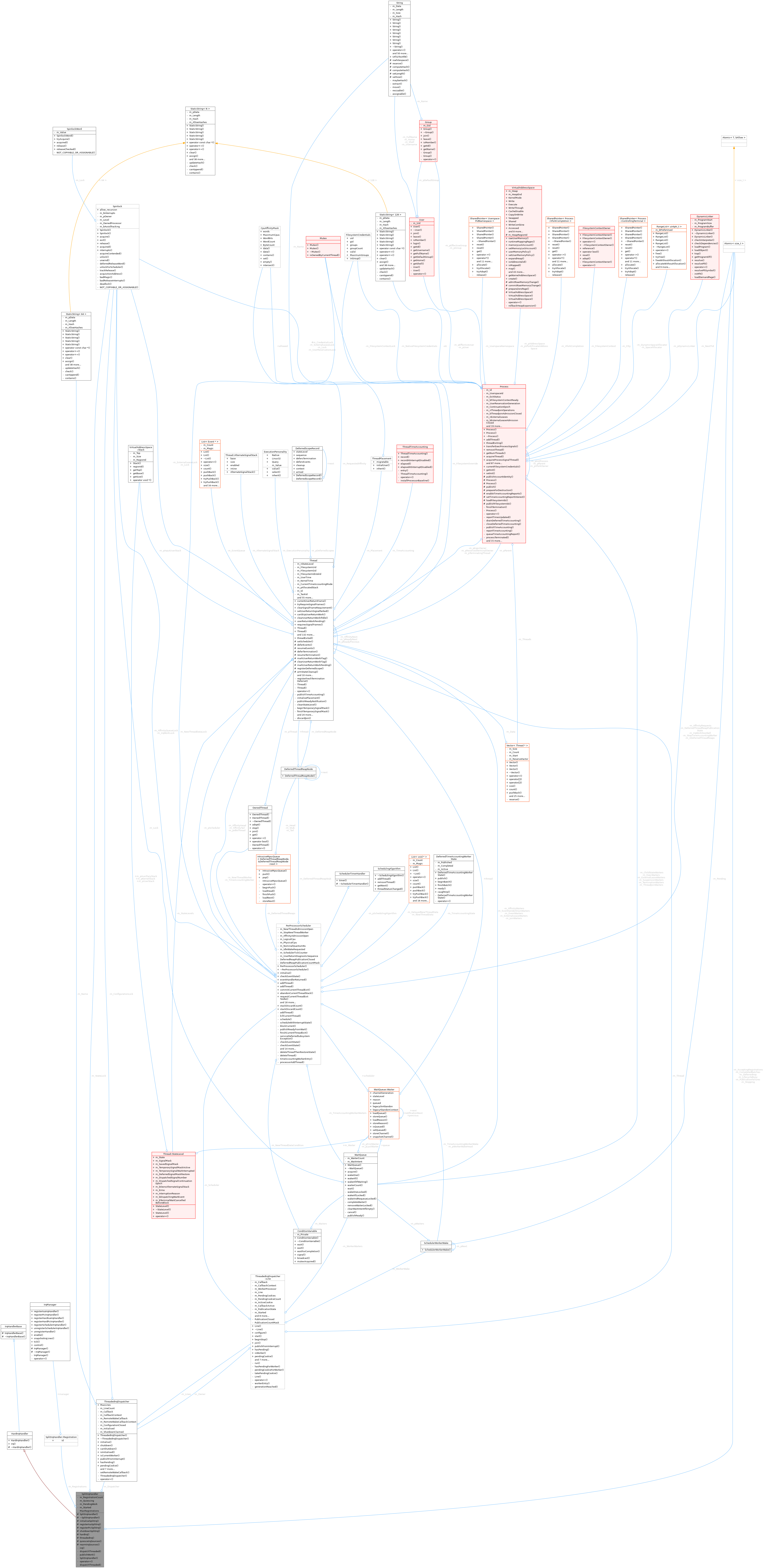

Collaboration diagram for SplitIrqHandler:

Classes
struct	Registration

Public Types
enum class	HardStageDisposition : size_t { NotHandled , Handled , Deferred }

Protected Member Functions
	SplitIrqHandler (const String &name)

bool	initialiseSplitIrq ()

irq_id_t	registerIsaSplitIrq (IrqManager &manager, uint8_t irq, const IrqPolicy &policy)

irq_id_t	registerPciSplitIrq (IrqManager &manager, Device &device, const IrqPolicy &policy)

bool	shutdownSplitIrq ()

virtual HardStageDisposition	hardIrq (irq_id_t number, InterruptState &state, size_t &work)=0

virtual void	threadedIrq (size_t work)=0

virtual bool	quiesceIrqSources ()=0

virtual void	rearmIrqSources (size_t work)=0

Private Member Functions
::HardIrqDisposition	irq (irq_id_t number, InterruptState &state) final

void	dispatchThreaded ()

bool	publishWork (size_t work)

	SplitIrqHandler (const SplitIrqHandler &)=delete

SplitIrqHandler &	operator= (const SplitIrqHandler &)=delete

virtual	~HardIrqHandler ()

Private Member Functions inherited from IrqHandlerBase
virtual	~IrqHandlerBase ()

Static Private Member Functions
static void	dispatchThreaded (void *context, uint8_t line, size_t cookie)

Private Attributes
Registration	m_Registrations [MaxRegistrations]

size_t	m_RegistrationCount

Atomic< size_t >	m_LifecycleBusy

Atomic< size_t >	m_AcceptingRegistrations

ThreadedIrqDispatcher	m_Dispatcher

Spinlock	m_StateLock

bool	m_Quiescing

Atomic< size_t >	m_Stopping

Atomic< size_t >	m_PublicationFailures

Atomic< size_t >	m_DeferredIrqs

Atomic< size_t >	m_CompletedBatches

size_t	m_PendingWork

bool	m_Started

Static Private Attributes
static constexpr size_t	MaxRegistrations = 16

Detailed Description

Owns a coalescing worker for an IRQ handler.

The hard callback is limited to claiming and quiescing the device source, capturing any data which cannot wait, and returning Deferred with a work bitmask. The worker receives only that bitmask: InterruptState never escapes the hard callback. If exact event counts matter, the hard callback must put them in a preallocated device-owned ring and the worker must drain it.

A Deferred result means the device source is already safe for the machine IRQ line to remain enabled. Level-triggered devices must mask or acknowledge their own source in hardIrq(). threadedIrq() drains the source but must not unmask it; the base calls rearmIrqSources() only while rearm is serialised against shutdown.

Definition at line 41 of file SplitIrqHandler.h.

Member Enumeration Documentation

◆ HardStageDisposition

enum class SplitIrqHandler::HardStageDisposition : size_t

strong

Definition at line 43 of file SplitIrqHandler.h.

Constructor & Destructor Documentation

◆ SplitIrqHandler()

SplitIrqHandler::SplitIrqHandler ( const String & name )

explicitprotected

Definition at line 41 of file SplitIrqHandler.cc.

◆ ~SplitIrqHandler()

SplitIrqHandler::~SplitIrqHandler ( )

protectedvirtual

Definition at line 63 of file SplitIrqHandler.cc.

Member Function Documentation

◆ dispatchThreaded() [1/2]

void SplitIrqHandler::dispatchThreaded ( )

private

Definition at line 263 of file SplitIrqHandler.cc.

◆ dispatchThreaded() [2/2]

void SplitIrqHandler::dispatchThreaded	(	void *	context,
		uint8_t	line,
		size_t	cookie
	)

staticprivate

Definition at line 259 of file SplitIrqHandler.cc.

◆ hardIrq()

virtual HardStageDisposition SplitIrqHandler::hardIrq	(	irq_id_t	number,
		InterruptState &	state,
		size_t &	work
	)

protectedpure virtual

Runs in hard IRQ context and must be bounded and nonblocking.

Implemented in HostedTimer.

Referenced by irq().

Here is the caller graph for this function:

◆ initialiseSplitIrq()

bool SplitIrqHandler::initialiseSplitIrq ( )

protected

Starts the owned worker before any device IRQ source is enabled.

Definition at line 73 of file SplitIrqHandler.cc.

References ThreadedIrqDispatcher::initialise().

Referenced by HostedTimer::initialise3().

Here is the caller graph for this function:

◆ irq()

HardIrqDisposition SplitIrqHandler::irq	(	irq_id_t	number,
		InterruptState &	state
	)

finalprivatevirtual

Handles an IRQ synchronously in hard interrupt context.

Implements HardIrqHandler.

Definition at line 246 of file SplitIrqHandler.cc.

References hardIrq(), and KeepMasked.

Referenced by registerIsaSplitIrq().

Here is the caller graph for this function:

◆ publishWork()

bool SplitIrqHandler::publishWork ( size_t work )

private

Definition at line 277 of file SplitIrqHandler.cc.

◆ quiesceIrqSources()

virtual bool SplitIrqHandler::quiesceIrqSources ( )

protectedpure virtual

Prevents new device interrupts before registry admission is closed. This runs in thread context and must be idempotent across failed retries.

Implemented in HostedTimer.

Referenced by shutdownSplitIrq().

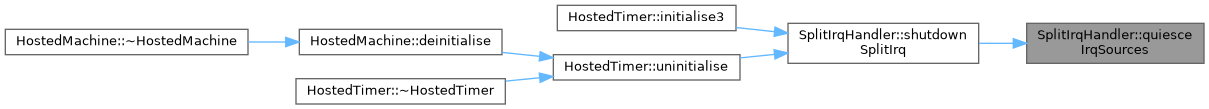

Here is the caller graph for this function:

◆ rearmIrqSources()

virtual void SplitIrqHandler::rearmIrqSources ( size_t work )

protectedpure virtual

Rearms drained device sources unless shutdown has begun.

This runs in thread context with interrupts disabled and is serialised against quiesceIrqSources(). It must be bounded and nonblocking.

Implemented in HostedTimer.

◆ registerIsaSplitIrq()

irq_id_t SplitIrqHandler::registerIsaSplitIrq	(	IrqManager &	manager,
		uint8_t	irq,
		const IrqPolicy &	policy
	)

protected

Registers this handler after its owned worker is running.

Definition at line 105 of file SplitIrqHandler.cc.

References irq(), and IrqManager::registerHardIsaIrqHandler().

Referenced by HostedTimer::initialise3().

Here is the caller graph for this function:

◆ registerPciSplitIrq()

irq_id_t SplitIrqHandler::registerPciSplitIrq	(	IrqManager &	manager,
		Device &	device,
		const IrqPolicy &	policy
	)

protected

Definition at line 131 of file SplitIrqHandler.cc.

◆ shutdownSplitIrq()

bool SplitIrqHandler::shutdownSplitIrq ( )

protected

Quiesces the hardware, closes every hard callback, drains accepted work, then joins the worker.

The derived owner must call this while its fields and the scheduler are alive. Calls from hard/atomic context or the owned worker are rejected before any lifecycle state changes.

Definition at line 157 of file SplitIrqHandler.cc.

References ProcessorBase::getInterrupts(), ProcessorBase::information(), ThreadedIrqDispatcher::isCurrentWorker(), quiesceIrqSources(), ThreadedIrqDispatcher::shutdown(), and IrqManager::unregisterHandler().

Referenced by HostedTimer::initialise3(), and HostedTimer::uninitialise().

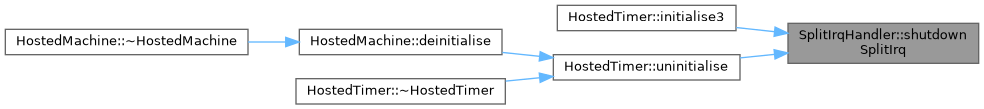

Here is the caller graph for this function:

◆ threadedIrq()

virtual void SplitIrqHandler::threadedIrq ( size_t work )

protectedpure virtual

Runs in ordinary thread context and may use blocking APIs. The owned worker normally calls it; teardown may call it synchronously after the worker is joined to drain a rejected publication. It must not re-enable an interrupt source.

Implemented in HostedTimer.

Member Data Documentation

◆ m_AcceptingRegistrations

Atomic<size_t> SplitIrqHandler::m_AcceptingRegistrations

private

Definition at line 125 of file SplitIrqHandler.h.

◆ m_CompletedBatches

Atomic<size_t> SplitIrqHandler::m_CompletedBatches

private

Definition at line 132 of file SplitIrqHandler.h.

◆ m_DeferredIrqs

Atomic<size_t> SplitIrqHandler::m_DeferredIrqs

private

Definition at line 131 of file SplitIrqHandler.h.

◆ m_Dispatcher

ThreadedIrqDispatcher SplitIrqHandler::m_Dispatcher

private

Definition at line 126 of file SplitIrqHandler.h.

◆ m_LifecycleBusy

Atomic<size_t> SplitIrqHandler::m_LifecycleBusy

private

Definition at line 124 of file SplitIrqHandler.h.

◆ m_PendingWork

size_t SplitIrqHandler::m_PendingWork

private

Definition at line 133 of file SplitIrqHandler.h.

◆ m_PublicationFailures

Atomic<size_t> SplitIrqHandler::m_PublicationFailures

private

Definition at line 130 of file SplitIrqHandler.h.

◆ m_Quiescing

bool SplitIrqHandler::m_Quiescing

private

Definition at line 128 of file SplitIrqHandler.h.

◆ m_RegistrationCount

size_t SplitIrqHandler::m_RegistrationCount

private

Definition at line 123 of file SplitIrqHandler.h.

◆ m_Registrations

Registration SplitIrqHandler::m_Registrations[MaxRegistrations]

private

Definition at line 122 of file SplitIrqHandler.h.

◆ m_Started

bool SplitIrqHandler::m_Started

private

Definition at line 134 of file SplitIrqHandler.h.

◆ m_StateLock

Spinlock SplitIrqHandler::m_StateLock

private

Definition at line 127 of file SplitIrqHandler.h.

◆ m_Stopping

Atomic<size_t> SplitIrqHandler::m_Stopping

private

Definition at line 129 of file SplitIrqHandler.h.

◆ MaxRegistrations

constexpr size_t SplitIrqHandler::MaxRegistrations = 16

staticconstexprprivate

Definition at line 109 of file SplitIrqHandler.h.

The documentation for this class was generated from the following files:
