#include <TextIO.h>

Inheritance diagram for TextIO:

Collaboration diagram for TextIO:

Classes
struct	VgaCell

Public Types
enum	InputMode { Standard, Raw }

Public Member Functions
	TextIO (String str, size_t inode, Filesystem pParentFS, File pParent)

bool	initialise (bool bClear=true)

void	writeStr (const char *s, size_t len)

virtual uint64_t	readBytewise (uint64_t location, uint64_t size, uintptr_t buffer, bool bCanBlock=true)

virtual uint64_t	writeBytewise (uint64_t location, uint64_t size, uintptr_t buffer, bool bCanBlock=true)

virtual int	select (bool bWriting=false, int timeout=0)

virtual void	flipThread ()

void	handleInput (InputManager::InputNotification &in)

void	markPrimary ()

void	unmarkPrimary ()

bool	isPrimary () const

void	setMode (InputMode mode)

InputMode	getMode () const

Public Member Functions inherited from File
	File ()

	File (const String &name, Time::Timestamp accessedTime, Time::Timestamp modifiedTime, Time::Timestamp creationTime, uintptr_t inode, class Filesystem pFs, size_t size, File pParent)

virtual	~File ()

virtual uint64_t	read (uint64_t location, uint64_t size, uintptr_t buffer, bool bCanBlock=true) final

virtual uint64_t	write (uint64_t location, uint64_t size, uintptr_t buffer, bool bCanBlock=true) final

virtual physical_uintptr_t	getPhysicalPage (size_t offset)

virtual void	returnPhysicalPage (size_t offset)

virtual void	sync ()

virtual void	sync (size_t offset, bool async)

Time::Timestamp	getCreationTime ()

void	setCreationTime (Time::Timestamp t)

Time::Timestamp	getAccessedTime ()

void	setAccessedTime (Time::Timestamp t)

Time::Timestamp	getModifiedTime ()

void	setModifiedTime (Time::Timestamp t)

String	getName () const

void	getName (String &s) const

virtual String	getFullPath (bool bWithLabel=true)

virtual void	truncate ()

size_t	getSize ()

void	setSize (size_t sz)

virtual bool	isSymlink ()

virtual bool	isDirectory ()

virtual bool	isPipe () const

virtual bool	isFifo () const

virtual bool	isSocket () const

uintptr_t	getInode () const

virtual void	setInode (uintptr_t inode)

Filesystem *	getFilesystem () const

void	setFilesystem (Filesystem *pFs)

virtual void	fileAttributeChanged ()

virtual void	increaseRefCount (bool bIsWriter)

virtual void	decreaseRefCount (bool bIsWriter)

void	setPermissions (uint32_t perms)

uint32_t	getPermissions () const

void	setUid (size_t uid)

size_t	getUid () const

void	setGid (size_t gid)

size_t	getGid () const

File *	getParent () const

void	monitor (Thread pThread, Event pEvent)

void	cullMonitorTargets (Thread *pThread)

virtual bool	supports (const size_t command) const

virtual int	command (const size_t command, void *buffer)

virtual size_t	getBlockSize () const

void	enableDirect ()

void	disableDirect ()

virtual void	preallocate (size_t expectedSize, bool zero=true)

virtual File *	open ()

Static Public Member Functions
static void	inputCallback (InputManager::InputNotification &in)

Private Types
enum	VgaColour { Black = 0, Blue = 1, Green = 2, Cyan = 3, Red = 4, Magenta = 5, Orange = 6, LightGrey = 7, DarkGrey = 8, LightBlue = 9, LightGreen = 10, LightCyan = 11, LightRed = 12, LightMagenta = 13, Yellow = 14, White = 15 }

enum	TerminalModes { LineFeedNewLine = 0x1, CursorKey = 0x2, AnsiVt52 = 0x4, Column = 0x8, Scrolling = 0x10, Screen = 0x20, Origin = 0x40, AutoWrap = 0x80, AutoRepeat = 0x100, Interlace = 0x200, Inverse = 0x100000, Bright = 0x200000, Blink = 0x400000, CharacterSetG0 = 0x1000000, CharacterSetG1 = 0x2000000 }

Private Member Functions
VgaColour	adjustColour (int colour, bool up)

virtual bool	isBytewise () const

void	setColour (VgaColour *which, size_t param, bool bBright=false)

void	doBackspace ()

void	doLinefeed ()

void	doCarriageReturn ()

void	doHorizontalTab ()

void	checkScroll ()

void	checkWrap ()

void	eraseSOS ()

void	eraseEOS ()

void	eraseEOL ()

void	eraseSOL ()

void	eraseLine ()

void	eraseScreen (uint8_t character)

void	goHome (ssize_t xmove=0, ssize_t ymove=0)

void	clearBackbuffer ()

void	flip (bool timer=false, bool hideState=false)

uint8_t	translate (uint32_t codepoint)

Private Attributes
bool	m_bInitialised

bool	m_bControlSeq

bool	m_bBracket

bool	m_bParenthesis

bool	m_bParams

bool	m_bQuestionMark

ssize_t	m_CursorX

ssize_t	m_CursorY

ssize_t	m_SavedCursorX

ssize_t	m_SavedCursorY

ssize_t	m_ScrollStart

ssize_t	m_ScrollEnd

ssize_t	m_LeftMargin

ssize_t	m_RightMargin

size_t	m_CurrentParam

size_t	m_Params [MAX_TEXTIO_PARAMS]

int	m_CurrentModes

VgaColour	m_Fore

VgaColour	m_Back

MemoryRegion	m_Backbuffer

uint16_t *	m_pFramebuffer

VgaCell *	m_pBackbuffer

Vga *	m_pVga

char	m_TabStops [BACKBUFFER_STRIDE]

Buffer< char >	m_OutBuffer

uint8_t	m_G0

uint8_t	m_G1

uint64_t	m_NextInterval

bool	m_bUtf8

uint32_t	m_nCharacter

size_t	m_nUtf8Handled

bool	m_bActive

Mutex	m_Lock

Thread *	m_pFlipThread

bool	m_bOwnsConsole

InputMode	m_InputMode

Static Private Attributes
static const int	COLOUR_BRIGHT_ADDEND = 8

static const ssize_t	BACKBUFFER_COLS_WIDE = 132

static const ssize_t	BACKBUFFER_COLS_NORMAL = 80

static const ssize_t	BACKBUFFER_ROWS = 25

static const ssize_t	BACKBUFFER_STRIDE = BACKBUFFER_COLS_WIDE

Additional Inherited Members
Protected Member Functions inherited from File
virtual uintptr_t	readBlock (uint64_t location)

virtual void	writeBlock (uint64_t location, uintptr_t addr)

virtual void	extend (size_t newSize)

virtual void	extend (size_t newSize, uint64_t location, uint64_t size)

void	dataChanged ()

void	getFilesystemLabel (HugeStaticString &s)

virtual void	pinBlock (uint64_t location)

virtual void	unpinBlock (uint64_t location)

void	evict (uint64_t location)

void	setPermissionsOnly (uint32_t perms)

void	setUidOnly (size_t uid)

void	setGidOnly (size_t gid)

Static Protected Member Functions inherited from File
static void	writeCallback (CacheConstants::CallbackCause cause, uintptr_t loc, uintptr_t page, void *meta)

Protected Attributes inherited from File
String	m_Name

Time::Timestamp	m_AccessedTime

Time::Timestamp	m_ModifiedTime

Time::Timestamp	m_CreationTime

uintptr_t	m_Inode

class Filesystem *	m_pFilesystem

size_t	m_Size

File *	m_pParent

size_t	m_nWriters

size_t	m_nReaders

size_t	m_Uid

size_t	m_Gid

uint32_t	m_Permissions

HashTable< DataCacheKey, uintptr_t >	m_DataCache

bool	m_bDirect

Cache	m_FillCache

Mutex	m_Lock

List< MonitorTarget * >	m_MonitorTargets

Detailed Description

Provides exceptionally simple VT100 emulation to the Vga class, if one exists. Note that this is NOT xterm emulation.

Definition at line 48 of file TextIO.h.

Member Enumeration Documentation

enum TextIO::TerminalModes

private

Enumerator
Inverse	AKA: 'Negative'.
Bright	AKA: 'Bold'.

Definition at line 85 of file TextIO.h.

Member Function Documentation

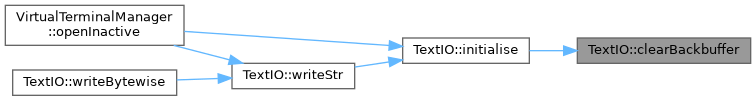

void TextIO::clearBackbuffer ( )

private

Clear backbuffer.

Definition at line 1588 of file TextIO.cc.

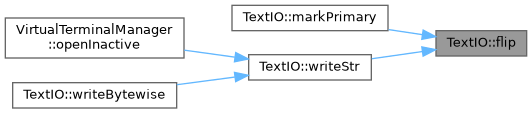

void TextIO::flip	(	bool	timer = `false`,
		bool	hideState = `false`
	)

private

Present backbuffer to the VGA instance.

Definition at line 1595 of file TextIO.cc.

References TextIO::VgaCell::hidden, and Process::m_Lock.

TextIO::InputMode TextIO::getMode ( ) const

Get the current input mode of the terminal.

Definition at line 2129 of file TextIO.cc.

bool TextIO::initialise ( bool bClear = true )

Initialise and prepare for rendering. Clears the screen as a side-effect, unless false is passed in for bClear.

Returns: True if we can now write, false otherwise.

Definition at line 104 of file TextIO.cc.

References Machine::getVga(), Processor::information(), Process::m_Lock, and Vga::setLargestTextMode().

Referenced by DevFs::initialise(), and VirtualTerminalManager::openInactive().

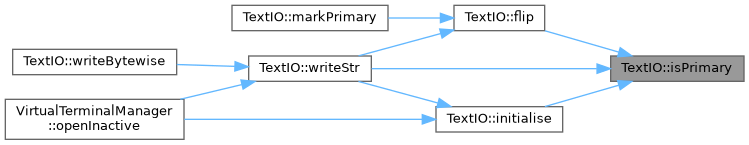

Here is the caller graph for this function:

virtual bool TextIO::isBytewise ( ) const

inlineprivatevirtual

File subclasses can define this and return true if they require read() calls to perform actual data reads, and false if readBlock() is otherwise sufficient.

Reimplemented from File.

Definition at line 186 of file TextIO.h.

bool TextIO::isPrimary ( ) const

Determine whether this console is primary or not.

Definition at line 2119 of file TextIO.cc.

void TextIO::markPrimary ( )

Mark this console as the "primary", which means it will receive keyboard input and actively flip to the screen.

Definition at line 2102 of file TextIO.cc.

uint64_t TextIO::readBytewise	(	uint64_t	location,
		uint64_t	size,
		uintptr_t	buffer,
		bool	bCanBlock = `true`
	)

virtual

VFS File interface.

Reimplemented from File.

Definition at line 1661 of file TextIO.cc.

int TextIO::select	(	bool	bWriting = `false`,
		int	timeout = `0`
	)

virtual

Similar to POSIX's select() function

Returns: 1 if ready for reading/writing, 0 otherwise

Note: Default implementation says always ready to read/write so be sure to override if that's not right

Reimplemented from File.

Definition at line 1674 of file TextIO.cc.

void TextIO::setMode ( InputMode mode )

Set the input mode of the terminal.

Definition at line 2124 of file TextIO.cc.

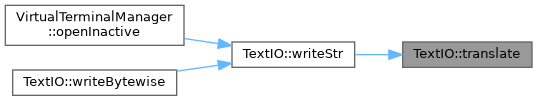

uint8_t TextIO::translate ( uint32_t codepoint )

private

Translate given UTF32 codepoint to an ASCII character for display.

Definition at line 1704 of file TextIO.cc.

References InputManager::Key, String::Utf32ToUtf8(), and WARNING.

void TextIO::unmarkPrimary ( )

Unmark this console as the primary, ceasing its screen updates and ceasing its reception of keyboard input.

Definition at line 2114 of file TextIO.cc.

uint64_t TextIO::writeBytewise	(	uint64_t	location,
		uint64_t	size,
		uintptr_t	buffer,
		bool	bCanBlock = `true`
	)

virtual

Writes bytes to the file, if isBytewise() == true.

Reimplemented from File.

Definition at line 1667 of file TextIO.cc.

void TextIO::writeStr	(	const char *	s,
		size_t	len
	)

Write a string to the screen, handling any VT100 control sequences embedded in the string along the way.

Parameters

str	The string to write.

Todo:: Should we handle this?

Todo:: hook in to Keyboard::setLedState!

Todo:: Sanity check.

Todo:: Error out if is Utf8

Todo:: implement me!

Todo:: implement me!

Definition at line 177 of file TextIO.cc.

References Dec, ERROR, FATAL, Hex, Terminal::initialise(), Process::m_Lock, NOTICE, and WARNING.

Referenced by VirtualTerminalManager::openInactive().

Here is the caller graph for this function:

Member Data Documentation

bool TextIO::m_bActive

private

Are we currently active? We only become active once data is first written.

Definition at line 285 of file TextIO.h.

bool TextIO::m_bOwnsConsole

private

Does this terminal own the output to the Vga instance?

Definition at line 302 of file TextIO.h.

bool TextIO::m_bUtf8

private

Are we dealing with a UTF-8 codepoint currently?

Definition at line 273 of file TextIO.h.

uint8_t TextIO::m_G0

private

Designated character sets - simply store the character which is used to designate a character set (eg, '1', 'A').

Definition at line 267 of file TextIO.h.

Mutex TextIO::m_Lock

private

Locks writing (used for timers in particular). Avoids the case where a timer flips an in-progress operation, causing incorrect rendering.

Definition at line 292 of file TextIO.h.

uint32_t TextIO::m_nCharacter

private

Current codepoint for handling.

Definition at line 276 of file TextIO.h.

uint64_t TextIO::m_NextInterval

private

Next interval to wait for (milliseconds).

Definition at line 270 of file TextIO.h.

size_t TextIO::m_nUtf8Handled

private

Number of Utf8 bits handled so far in this sequence.

Definition at line 279 of file TextIO.h.

Buffer<char> TextIO::m_OutBuffer

private

Output buffer - data that we as the emulator want to write back to the application (eg, cursor position reports)

Definition at line 261 of file TextIO.h.

Thread* TextIO::m_pFlipThread

private

Running flip thread for things like the cursor blinking.

Definition at line 297 of file TextIO.h.

The documentation for this class was generated from the following files:
