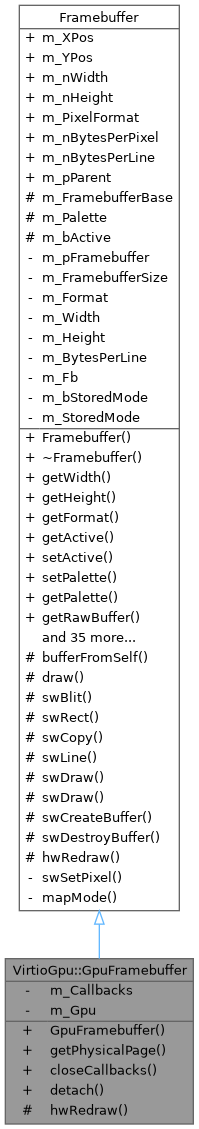

Inheritance diagram for VirtioGpu::GpuFramebuffer:

Collaboration diagram for VirtioGpu::GpuFramebuffer:

Public Member Functions
	GpuFramebuffer (VirtioGpu *gpu)

physical_uintptr_t	getPhysicalPage (size_t offset) const override

void	closeCallbacks ()

void	detach ()

Public Member Functions inherited from Framebuffer
size_t	getWidth () const

size_t	getHeight () const

Graphics::PixelFormat	getFormat () const

bool	getActive () const

void	setActive (bool b)

void	setPalette (uint32_t *palette, size_t nEntries)

uint32_t *	getPalette () const

virtual void *	getRawBuffer () const

virtual Graphics::Buffer *	createBuffer (const void srcData, Graphics::PixelFormat srcFormat, size_t width, size_t height, uint32_t pPalette=0)

virtual void	destroyBuffer (Graphics::Buffer *pBuffer)

void	redraw (size_t x=~0UL, size_t y=~0UL, size_t w=~0UL, size_t h=~0UL, bool bChild=false)

virtual void	blit (Graphics::Buffer *pBuffer, size_t srcx, size_t srcy, size_t destx, size_t desty, size_t width, size_t height, bool bLowestCall=true)

virtual void	draw (void *pBuffer, size_t srcx, size_t srcy, size_t destx, size_t desty, size_t width, size_t height, Graphics::PixelFormat format=Graphics::Bits32_Argb, bool bLowestCall=true)

virtual void	rect (size_t x, size_t y, size_t width, size_t height, uint32_t colour, Graphics::PixelFormat format=Graphics::Bits32_Argb, bool bLowestCall=true)

virtual void	copy (size_t srcx, size_t srcy, size_t destx, size_t desty, size_t w, size_t h, bool bLowestCall=true)

virtual void	line (size_t x1, size_t y1, size_t x2, size_t y2, uint32_t colour, Graphics::PixelFormat format=Graphics::Bits32_Argb, bool bLowestCall=true)

void	setPixel (size_t x, size_t y, uint32_t colour, Graphics::PixelFormat format=Graphics::Bits32_Argb, bool bLowestCall=true)

void	setXPos (size_t x)

void	setYPos (size_t y)

void	setWidth (size_t w)

void	setHeight (size_t h)

void	setFormat (Graphics::PixelFormat pf)

void	setBytesPerPixel (size_t b)

uint32_t	getBytesPerPixel () const

void	setBytesPerLine (size_t b)

uint32_t	getBytesPerLine () const

void	setParent (Framebuffer *p)

Framebuffer *	getParent () const

virtual void	setFramebuffer (uintptr_t p)

bool	initialise ()

void	storeMode ()

void	restoreMode ()

int	enterMode (size_t desiredW, size_t desiredH, size_t desiredBpp)

int	useCurrentMode ()

void *	getFramebuffer () const

void	flush (size_t x, size_t y, size_t w, size_t h)

cairo_format_t	getFormat () const

size_t	getWidth () const

size_t	getHeight () const

size_t	getBytesPerLine () const

Protected Member Functions
void	hwRedraw (size_t x, size_t y, size_t width, size_t height) override
	Inherited by drivers that provide a hardware redraw function.

Protected Member Functions inherited from Framebuffer
Graphics::Buffer	bufferFromSelf ()

virtual void	draw (Graphics::Buffer *pBuffer, size_t srcx, size_t srcy, size_t destx, size_t desty, size_t width, size_t height, bool bLowestCall=true)

void	swBlit (Graphics::Buffer *pBuffer, size_t srcx, size_t srcy, size_t destx, size_t desty, size_t width, size_t height)

void	swRect (size_t x, size_t y, size_t width, size_t height, uint32_t colour, Graphics::PixelFormat format)

void	swCopy (size_t srcx, size_t srcy, size_t destx, size_t desty, size_t w, size_t h)

void	swLine (size_t x1, size_t y1, size_t x2, size_t y2, uint32_t colour, Graphics::PixelFormat format)

void	swDraw (void *pBuffer, size_t srcx, size_t srcy, size_t destx, size_t desty, size_t width, size_t height, Graphics::PixelFormat format=Graphics::Bits32_Argb, bool bLowestCall=true)

void	swDraw (Graphics::Buffer *pBuffer, size_t srcx, size_t srcy, size_t destx, size_t desty, size_t width, size_t height, bool bLowestCall=true)

Graphics::Buffer *	swCreateBuffer (const void srcData, Graphics::PixelFormat srcFormat, size_t width, size_t height, uint32_t pPalette)

void	swDestroyBuffer (Graphics::Buffer *pBuffer)

Private Attributes
OperationBarrier	m_Callbacks

VirtioGpu *	m_Gpu

Additional Inherited Members
Public Attributes inherited from Framebuffer
size_t	m_XPos
	X position on our parent's framebuffer.

size_t	m_YPos
	Y position on our parent's framebuffer.

size_t	m_nWidth
	Width of the framebuffer in pixels.

size_t	m_nHeight
	Height of the framebuffer in pixels.

Graphics::PixelFormat	m_PixelFormat
	Framebuffer pixel format.

size_t	m_nBytesPerPixel
	Bytes per pixel in this framebuffer.

size_t	m_nBytesPerLine
	Bytes per line in this framebuffer.

Framebuffer *	m_pParent
	Parent of this framebuffer.

Protected Attributes inherited from Framebuffer
uintptr_t	m_FramebufferBase

uint32_t *	m_Palette
	Current graphics palette - an array of 256 32-bit RGBA entries.

bool	m_bActive
	Whether this framebuffer is active or not.

Detailed Description

Definition at line 37 of file VirtioGpu.h.

Constructor & Destructor Documentation

◆ GpuFramebuffer()

VirtioGpu::GpuFramebuffer::GpuFramebuffer ( VirtioGpu * gpu )

explicit

Definition at line 104 of file VirtioGpu.cc.

Member Function Documentation

◆ closeCallbacks()

void VirtioGpu::GpuFramebuffer::closeCallbacks ( )

Definition at line 122 of file VirtioGpu.cc.

◆ detach()

void VirtioGpu::GpuFramebuffer::detach ( )

Definition at line 126 of file VirtioGpu.cc.

◆ getPhysicalPage()

physical_uintptr_t VirtioGpu::GpuFramebuffer::getPhysicalPage ( size_t offset ) const

overridevirtual

Gets the physical page backing an offset in the framebuffer. This is used by direct framebuffer mappings such as /dev/fb. Providers backed only by a virtual buffer should retain the default failure.

Reimplemented from Framebuffer.

Definition at line 107 of file VirtioGpu.cc.

References VirtualAddressSpace::getKernelAddressSpace(), VirtualAddressSpace::getMapping(), PhysicalMemoryManager::getPageSize(), and MemoryRegion::virtualAddress().

◆ hwRedraw()

void VirtioGpu::GpuFramebuffer::hwRedraw	(	size_t	x,
		size_t	y,
		size_t	w,
		size_t	h
	)

overrideprotectedvirtual

Inherited by drivers that provide a hardware redraw function.

Reimplemented from Framebuffer.

Definition at line 133 of file VirtioGpu.cc.

Member Data Documentation

◆ m_Callbacks

OperationBarrier VirtioGpu::GpuFramebuffer::m_Callbacks

private

Definition at line 48 of file VirtioGpu.h.

◆ m_Gpu

VirtioGpu* VirtioGpu::GpuFramebuffer::m_Gpu

private

Definition at line 49 of file VirtioGpu.h.

The documentation for this class was generated from the following files:
