#include <Cache.h>

Inheritance diagram for CacheManager:

Collaboration diagram for CacheManager:

Classes
struct	CacheRequest

struct	TimerStamp

Public Member Functions
void	initialise ()

MUST_USE_RESULT bool	shutdown ()

void	registerCache (Cache *pCache)

void	unregisterCache (Cache *pCache)

bool	trimAll (size_t count=1)

virtual void	timer (uint64_t delta)

void	trimThread ()

Public Member Functions inherited from RequestQueue
	RequestQueue (const String &name)

virtual void	destroy ()

MUST_USE_RESULT uint64_t	addRequest (size_t priority, uint64_t p1=0, uint64_t p2=0, uint64_t p3=0, uint64_t p4=0, uint64_t p5=0, uint64_t p6=0, uint64_t p7=0, uint64_t p8=0)

MUST_USE_RESULT uint64_t	addRequest (size_t priority, ActionOnDuplicate action, uint64_t p1=0, uint64_t p2=0, uint64_t p3=0, uint64_t p4=0, uint64_t p5=0, uint64_t p6=0, uint64_t p7=0, uint64_t p8=0)

uint64_t	addAsyncRequest (size_t priority, uint64_t p1=0, uint64_t p2=0, uint64_t p3=0, uint64_t p4=0, uint64_t p5=0, uint64_t p6=0, uint64_t p7=0, uint64_t p8=0)

bool	canWaitForCompletion ()

MUST_USE_RESULT bool	waitForPreallocated (PreallocatedRequest &request)

MUST_USE_RESULT PreallocatedPublishResult	publishPreallocated (PreallocatedRequest &request, size_t priority, uint64_t p1=0, uint64_t p2=0, uint64_t p3=0, uint64_t p4=0, uint64_t p5=0, uint64_t p6=0, uint64_t p7=0, uint64_t p8=0)

MUST_USE_RESULT PreallocatedPublishResult	republishPreallocatedWhileReleasing (PreallocatedRequest &request, size_t priority, uint64_t p1=0, uint64_t p2=0, uint64_t p3=0, uint64_t p4=0, uint64_t p5=0, uint64_t p6=0, uint64_t p7=0, uint64_t p8=0)

MUST_USE_RESULT bool	halt ()

MUST_USE_RESULT bool	resume ()

LifecycleState	getLifecycleState ()

bool	drain ()

Static Public Member Functions
static CacheManager &	instance ()

static void	destroyInstance ()

Private Member Functions
void	stopPeriodicWork ()

void	timerTick (uint64_t delta, bool memoryPressure)

bool	findNextCache (uint64_t afterId, uint64_t maximumId, Cache *&cache, uint64_t &cacheId, bool timersOnly=false)

bool	takeTimerStamp (TimerStamp &stamp)

void	dispatchTimer (Cache *cache, const TimerStamp &stamp)

bool	callbackContext () const

bool	acquireCache (Cache *cache, uint64_t &generation, OperationBarrier::Lease &lease)

bool	acquireNextCache (uint64_t afterId, uint64_t maximumId, Cache *&cache, uint64_t &cacheId, OperationBarrier::Lease &lease, bool timersOnly=false)

uint64_t	cacheGenerationWatermark ()

uint64_t	addCacheRequest (Cache *cache, bool asynchronous, CacheConstants::CallbackCause cause, uintptr_t key, uintptr_t location=0, bool transferredPin=false, bool onlyIfDirty=false, bool batch=false)

virtual uint64_t	executeRequest (uint64_t p1, uint64_t p2, uint64_t p3, uint64_t p4, uint64_t p5, uint64_t p6, uint64_t p7, uint64_t p8)

virtual void	cancelRequest (const Request &request)

virtual bool	compareRequests (const Request &a, const Request &b)

Private Attributes
Tree< uint64_t, Cache * >	m_Caches

uint64_t	m_NextCacheId

TimerStamp	m_TimerClock

uint64_t	m_TrimDelta

Mutex	m_CachesLock

Thread *	m_pTrimThread

WaitQueue	m_TrimWaiters

bool	m_bTrimRequested

bool	m_bActive

Timer *	m_pTimer

Atomic< size_t >	m_TerminalState

Static Private Attributes
static CacheManager *	m_Instance = nullptr

Friends
class	Cache

class	CacheManagerTestPeer

Additional Inherited Members
Public Types inherited from RequestQueue
enum class	OverrunStatus { Clear , Armed , Stalled , Overloaded }

enum class	PreallocatedPublishResult { Accepted , TokenBusy , QueueStopped , QueueFull , InvalidPriority }

enum	ActionOnDuplicate { Block , NewRequest , ReturnImmediately }

enum class	LifecycleState { Stopped , Accepting , Stopping , Destroyed }

Protected Types inherited from RequestQueue
enum class	NextRequestResult { Item , Empty , Retry }

Protected Member Functions inherited from RequestQueue
virtual bool	workerPlacement (ThreadPlacement &) const

	RequestQueue (const RequestQueue &)

void	operator= (const RequestQueue &)

int	work ()

NextRequestResult	getNextRequest (Request *&request)

bool	drainIntakeLocked (size_t priority)

void	publishRequest (Request *request)

Request *	findDuplicate (const Request &request)

void	discardRequest (Request *request)

uint64_t	addAsyncRequestInternal (size_t priority, uint64_t p1, uint64_t p2, uint64_t p3, uint64_t p4, uint64_t p5, uint64_t p6, uint64_t p7, uint64_t p8)

PreallocatedPublishResult	publishPreallocatedRequest (PreallocatedRequest &request, PreallocatedRequest::State availableState, size_t priority, uint64_t p1, uint64_t p2, uint64_t p3, uint64_t p4, uint64_t p5, uint64_t p6, uint64_t p7, uint64_t p8)

void	releasePreallocatedRequest (Request *request)

void	invokeCancelRequest (const Request &request)

bool	callbackActiveOnCurrentThread () const

void	releaseRequest (Request *request)

uint64_t	waitForRequest (Request *request)

bool	startWorker ()

bool	stopWorker ()

void	closePreallocatedAdmission ()

void	waitForPreallocatedPublishers ()

Static Protected Member Functions inherited from RequestQueue
static int	trampoline (void *p)

static void	completeRequest (Request *request, uint64_t returnValue, bool rejected)

static void	retainRequest (Request *request)

Protected Attributes inherited from RequestQueue
IntakeLane	m_IntakeLanes [REQUEST_QUEUE_NUM_PRIORITIES]

Request *	m_pRequestQueue [REQUEST_QUEUE_NUM_PRIORITIES]

Request *	m_pRequestQueueTail [REQUEST_QUEUE_NUM_PRIORITIES]

Request *	m_pActiveRequest

Atomic< size_t >	m_State

Mutex	m_LifecycleMutex

WaitQueue	m_RequestQueueWaiters

WaitQueue	m_WorkerWaiters

Thread *	m_pThread

Atomic< PerProcessorScheduler * >	m_pWorkerScheduler

SchedulerWorkerWake	m_WorkerWake

Atomic< size_t >	m_bWorkerReady

Atomic< size_t >	m_bWorkerActive

size_t	m_WorkerProgressGeneration

RequestQueueOverrunChecker	m_OverrunChecker

Timer *	m_pOverrunTimer

Atomic< size_t >	m_PublicationState

size_t	m_nMaxAsyncRequests

Atomic< size_t >	m_nAsyncRequests

Atomic< size_t >	m_nTotalRequests

Atomic< size_t >	m_nActiveRequests

NormalStaticString	m_Name

Static Protected Attributes inherited from RequestQueue
static constexpr size_t	PublicationClosed = static_cast<size_t>(1) << ((sizeof(size_t) * 8) - 1)

static constexpr size_t	PublicationCountMask = ~PublicationClosed

Detailed Description

Provides a clean abstraction to a set of data caches.

Definition at line 66 of file Cache.h.

Constructor & Destructor Documentation

◆ CacheManager()

CacheManager::CacheManager ( )

Definition at line 65 of file Cache.cc.

◆ ~CacheManager()

CacheManager::~CacheManager ( )

virtual

Definition at line 82 of file Cache.cc.

Member Function Documentation

◆ acquireCache()

bool CacheManager::acquireCache	(	Cache *	cache,
		uint64_t &	generation,
		OperationBarrier::Lease &	lease
	)

private

Pins a registered Cache while a request is being published.

Definition at line 382 of file Cache.cc.

References Tree< K, E >::begin(), Tree< K, E >::end(), and m_CachesLock.

Referenced by addCacheRequest().

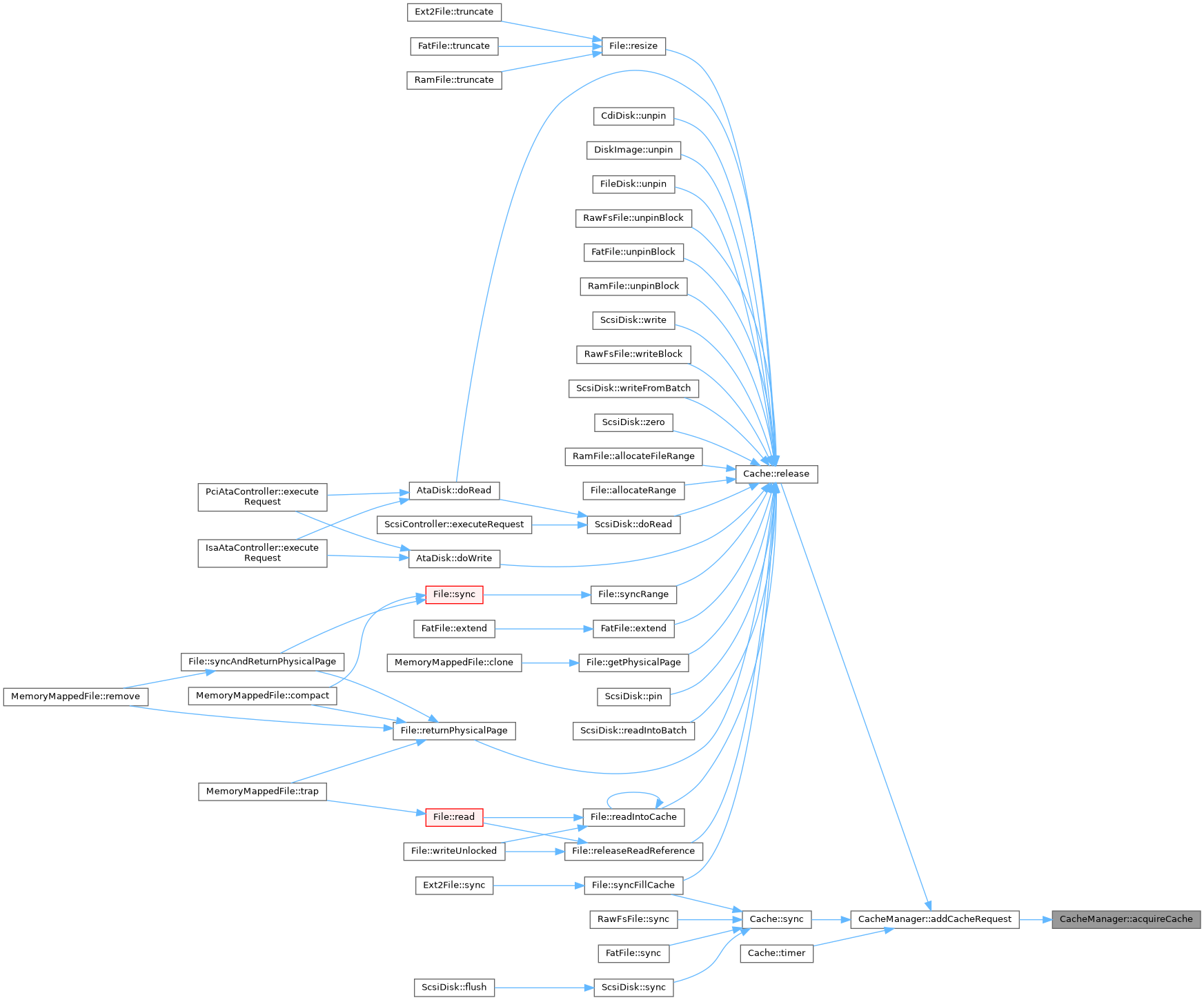

Here is the caller graph for this function:

◆ acquireNextCache()

bool CacheManager::acquireNextCache	(	uint64_t	afterId,
		uint64_t	maximumId,
		Cache *&	cache,
		uint64_t &	cacheId,
		OperationBarrier::Lease &	lease,
		bool	timersOnly = `false`
	)

private

Finds and pins the first registered cache after a stable manager ID.

Definition at line 400 of file Cache.cc.

References findNextCache(), and m_CachesLock.

Referenced by shutdown(), and trimAll().

Here is the caller graph for this function:

◆ addCacheRequest()

uint64_t CacheManager::addCacheRequest	(	Cache *	cache,
		bool	asynchronous,
		CacheConstants::CallbackCause	cause,
		uintptr_t	key,
		uintptr_t	location = `0`,
		bool	transferredPin = `false`,
		bool	onlyIfDirty = `false`,
		bool	batch = `false`
	)

private

Publishes a request which owns the target Cache lifetime.

Definition at line 421 of file Cache.cc.

References acquireCache(), RequestQueue::addAsyncRequest(), RequestQueue::addRequest(), RequestQueue::callbackActiveOnCurrentThread(), Mutex::isOwnedByCurrentThread(), RequestQueue::m_LifecycleMutex, and m_TerminalState.

Referenced by Cache::release(), Cache::sync(), and Cache::timer().

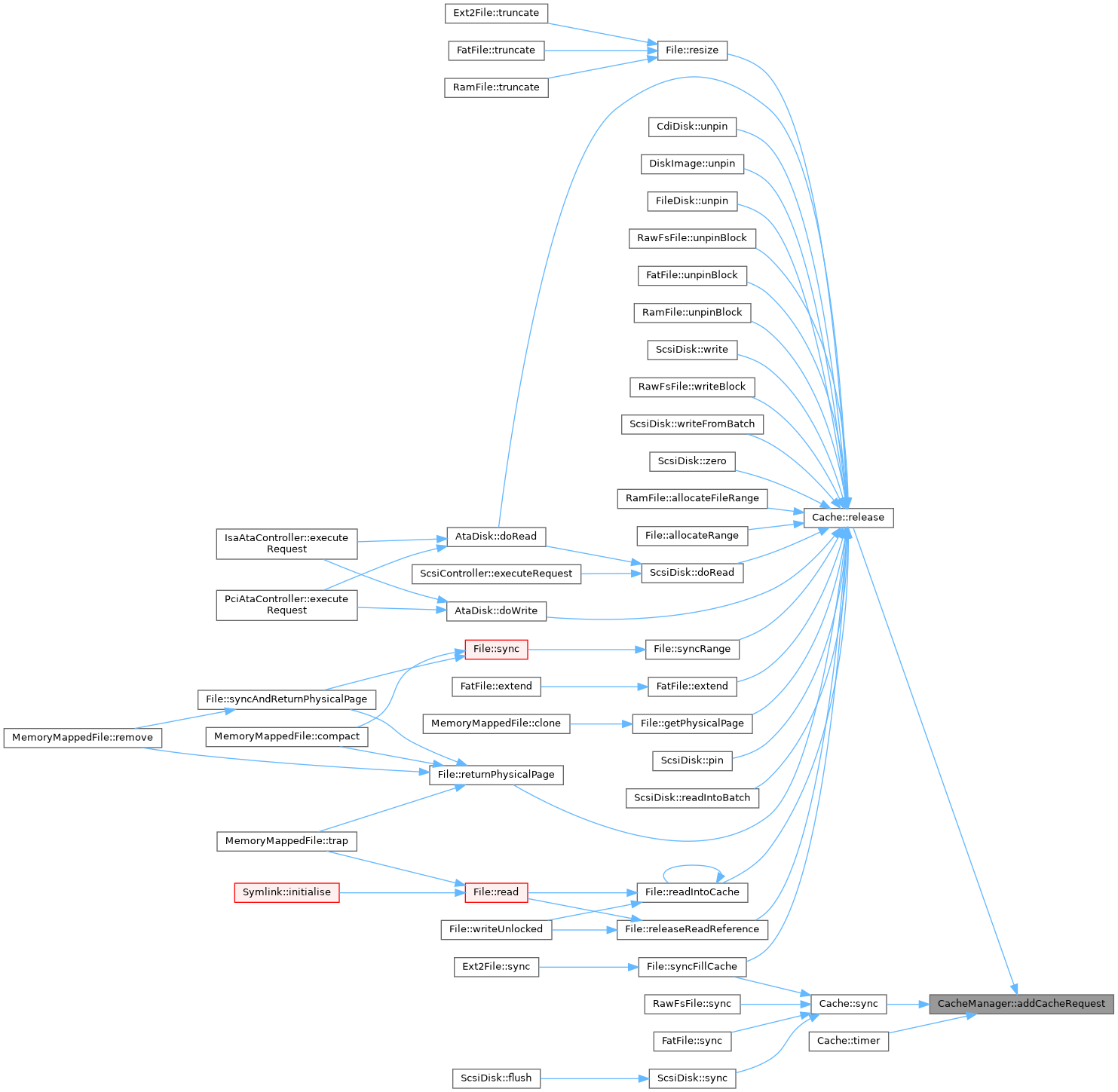

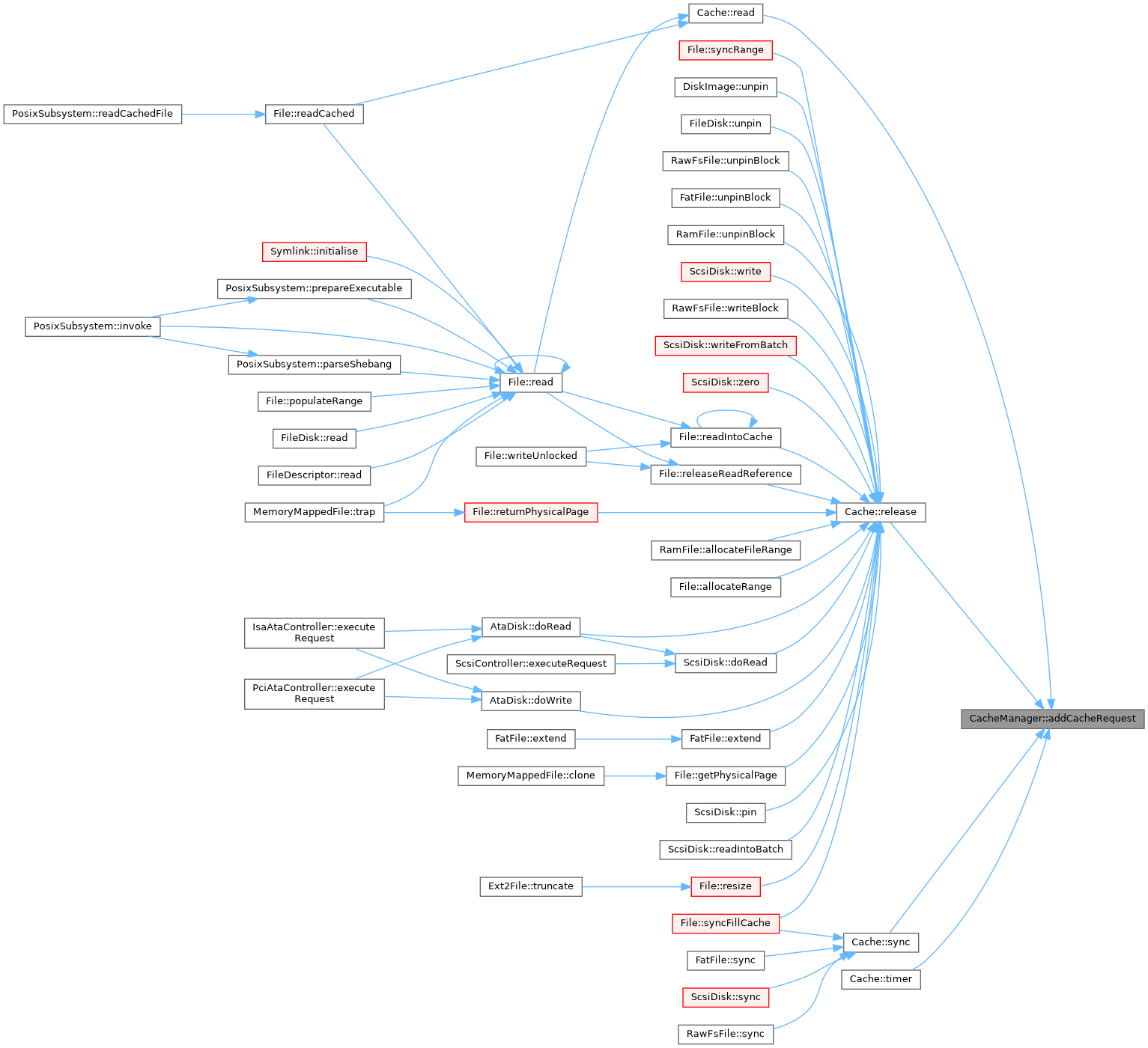

Here is the caller graph for this function:

◆ cacheGenerationWatermark()

uint64_t CacheManager::cacheGenerationWatermark ( )

private

Captures the last identity present at the start of a manager scan.

Definition at line 415 of file Cache.cc.

References m_CachesLock, and m_NextCacheId.

Referenced by shutdown(), and trimAll().

Here is the caller graph for this function:

◆ callbackContext()

bool CacheManager::callbackContext ( ) const

inlineprivate

Definition at line 142 of file Cache.h.

◆ cancelRequest()

void CacheManager::cancelRequest ( const Request & request )

privatevirtual

Releases payload ownership for a request that will not execute.

This runs without the queue guard for rejected candidates (including stopped queues, duplicates and capacity limits) and queued requests cancelled by destroy(). Implementations used by allocation-free producers must not sleep. Derived destructors must call destroy() while their override and member state are still alive. During destroy(), the lifecycle is serialized: halt() and resume() on this queue return false, while recursive destroy() is a fatal contract violation.

Reimplemented from RequestQueue.

Definition at line 513 of file Cache.cc.

◆ compareRequests()

virtual bool CacheManager::compareRequests	(	const Request &	a,
		const Request &	b
	)

inlineprivatevirtual

Used to ensure we only ever fire a WriteBack for the same page once - that is, we don't constantly write back the same page over and over while it's still queued.

Reimplemented from RequestQueue.

Definition at line 175 of file Cache.h.

◆ destroyInstance()

static void CacheManager::destroyInstance ( )

inlinestatic

Definition at line 85 of file Cache.h.

◆ dispatchTimer()

void CacheManager::dispatchTimer	(	Cache *	cache,
		const TimerStamp &	stamp
	)

private

Definition at line 359 of file Cache.cc.

◆ executeRequest()

uint64_t CacheManager::executeRequest	(	uint64_t	p1,
		uint64_t	p2,
		uint64_t	p3,
		uint64_t	p4,
		uint64_t	p5,
		uint64_t	p6,
		uint64_t	p7,
		uint64_t	p8
	)

privatevirtual

RequestQueue doer - children give us new jobs, and we call out to them when they hit the front of the queue.

Implements RequestQueue.

Definition at line 480 of file Cache.cc.

References Tree< K, E >::begin(), Tree< K, E >::end(), and Cache::executeRequest().

◆ findNextCache()

bool CacheManager::findNextCache	(	uint64_t	afterId,
		uint64_t	maximumId,
		Cache *&	cache,
		uint64_t &	cacheId,
		bool	timersOnly = `false`
	)

private

Registry lock must be held in threaded builds.

Definition at line 367 of file Cache.cc.

References Tree< K, E >::lowerBound().

Referenced by acquireNextCache(), shutdown(), and trimAll().

Here is the caller graph for this function:

◆ initialise()

void CacheManager::initialise ( )

virtual

Initialises the queue, spawning the worker thread.

Reimplemented from RequestQueue.

Definition at line 192 of file Cache.cc.

References Process::getParent(), Machine::getTimer(), ProcessorBase::information(), RequestQueue::initialise(), and m_bActive.

◆ instance()

static CacheManager & CacheManager::instance ( )

inlinestatic

Definition at line 78 of file Cache.h.

◆ registerCache()

void CacheManager::registerCache ( Cache * pCache )

Definition at line 218 of file Cache.cc.

◆ shutdown()

bool CacheManager::shutdown ( )

Stops background work and flushes dirty pages for terminal system shutdown. External cache users must already be quiesced; backend callbacks must remain usable. Retained owners and their page loans keep their storage and registry alive. This does not relax the ordinary destructor's empty-registry contract.

Definition at line 126 of file Cache.cc.

References acquireNextCache(), cacheGenerationWatermark(), Tree< K, E >::count(), RequestQueue::destroy(), findNextCache(), m_CachesLock, m_NextCacheId, and m_TerminalState.

◆ stopPeriodicWork()

void CacheManager::stopPeriodicWork ( )

private

Definition at line 101 of file Cache.cc.

◆ takeTimerStamp()

bool CacheManager::takeTimerStamp ( TimerStamp & stamp )

private

Timer waiter lock must be held in threaded builds.

Definition at line 349 of file Cache.cc.

◆ timer()

void CacheManager::timer ( uint64_t delta )

virtual

Called when the handler is registered with the Timer class and a timer event occurred.

Parameters

[in] delta time elapsed since the last event, in nanoseconds.

Implements TimerHandler.

Definition at line 292 of file Cache.cc.

References PhysicalMemoryManager::freePageCount(), PhysicalMemoryManager::instance(), and m_TerminalState.

◆ timerTick()

void CacheManager::timerTick	(	uint64_t	delta,
		bool	memoryPressure
	)

private

Definition at line 305 of file Cache.cc.

◆ trimAll()

bool CacheManager::trimAll ( size_t count = 1 )

Trim each cache we know about until 'count' pages have been evicted.

Definition at line 256 of file Cache.cc.

References acquireNextCache(), cacheGenerationWatermark(), findNextCache(), m_NextCacheId, and m_TerminalState.

◆ trimThread()

void CacheManager::trimThread ( )

Definition at line 539 of file Cache.cc.

◆ unregisterCache()

void CacheManager::unregisterCache ( Cache * pCache )

Definition at line 240 of file Cache.cc.

Friends And Related Symbol Documentation

◆ Cache

friend class Cache

friend

Definition at line 71 of file Cache.h.

◆ CacheManagerTestPeer

friend class CacheManagerTestPeer

friend

Definition at line 72 of file Cache.h.

Member Data Documentation

◆ m_bActive

bool CacheManager::m_bActive

private

Protected by m_TrimWaiters when threading is enabled.

Definition at line 199 of file Cache.h.

Referenced by initialise().

◆ m_bTrimRequested

bool CacheManager::m_bTrimRequested

private

Definition at line 195 of file Cache.h.

◆ m_Caches

Tree<uint64_t, Cache*> CacheManager::m_Caches

private

Definition at line 182 of file Cache.h.

◆ m_CachesLock

Mutex CacheManager::m_CachesLock

private

Serialises cache registration with callback admission.

Definition at line 191 of file Cache.h.

Referenced by acquireCache(), acquireNextCache(), cacheGenerationWatermark(), and shutdown().

◆ m_Instance

CacheManager * CacheManager::m_Instance = nullptr

staticprivate

Definition at line 180 of file Cache.h.

◆ m_NextCacheId

uint64_t CacheManager::m_NextCacheId

private

Monotonic identity used to walk caches without retaining iterators.

Definition at line 185 of file Cache.h.

Referenced by cacheGenerationWatermark(), shutdown(), and trimAll().

◆ m_pTimer

Timer* CacheManager::m_pTimer

private

Definition at line 201 of file Cache.h.

◆ m_pTrimThread

Thread* CacheManager::m_pTrimThread

private

Definition at line 193 of file Cache.h.

◆ m_TerminalState

Atomic<size_t> CacheManager::m_TerminalState

private

0 running, 1 terminal drain, 2 completed, 3 writeback failure.

Definition at line 203 of file Cache.h.

Referenced by addCacheRequest(), shutdown(), timer(), and trimAll().

◆ m_TimerClock

TimerStamp CacheManager::m_TimerClock

private

Definition at line 186 of file Cache.h.

◆ m_TrimDelta

uint64_t CacheManager::m_TrimDelta

private

Definition at line 187 of file Cache.h.

◆ m_TrimWaiters

WaitQueue CacheManager::m_TrimWaiters

private

Definition at line 194 of file Cache.h.

The documentation for this class was generated from the following files:

Classes

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Static Private Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ CacheManager()

◆ ~CacheManager()

Member Function Documentation

◆ acquireCache()

◆ acquireNextCache()

◆ addCacheRequest()

◆ cacheGenerationWatermark()

◆ callbackContext()

◆ cancelRequest()

◆ compareRequests()

◆ destroyInstance()

◆ dispatchTimer()

◆ executeRequest()

◆ findNextCache()

◆ initialise()

◆ instance()

◆ registerCache()

◆ shutdown()

◆ stopPeriodicWork()

◆ takeTimerStamp()

◆ timer()

◆ timerTick()

◆ trimAll()

◆ trimThread()

◆ unregisterCache()

Friends And Related Symbol Documentation

◆ Cache

◆ CacheManagerTestPeer

Member Data Documentation

◆ m_bActive

◆ m_bTrimRequested

◆ m_Caches

◆ m_CachesLock

◆ m_Instance

◆ m_NextCacheId

◆ m_pTimer

◆ m_pTrimThread

◆ m_TerminalState

◆ m_TimerClock

◆ m_TrimDelta

◆ m_TrimWaiters
