#include <RequestQueue.h>

Inheritance diagram for RequestQueue:

Collaboration diagram for RequestQueue:

Classes
class	IntakeLane

struct	IntakeNode

class	PreallocatedRequest

class	Request

class	RequestQueueOverrunChecker

Public Types
enum class	OverrunStatus { Clear , Armed , Stalled , Overloaded }

enum class	PreallocatedPublishResult { Accepted , TokenBusy , QueueStopped , QueueFull , InvalidPriority }

enum	ActionOnDuplicate { Block , NewRequest , ReturnImmediately }

enum class	LifecycleState { Stopped , Accepting , Stopping , Destroyed }

Public Member Functions
	RequestQueue (const String &name)

virtual void	initialise ()

virtual void	destroy ()

MUST_USE_RESULT uint64_t	addRequest (size_t priority, uint64_t p1=0, uint64_t p2=0, uint64_t p3=0, uint64_t p4=0, uint64_t p5=0, uint64_t p6=0, uint64_t p7=0, uint64_t p8=0)

MUST_USE_RESULT uint64_t	addRequest (size_t priority, ActionOnDuplicate action, uint64_t p1=0, uint64_t p2=0, uint64_t p3=0, uint64_t p4=0, uint64_t p5=0, uint64_t p6=0, uint64_t p7=0, uint64_t p8=0)

uint64_t	addAsyncRequest (size_t priority, uint64_t p1=0, uint64_t p2=0, uint64_t p3=0, uint64_t p4=0, uint64_t p5=0, uint64_t p6=0, uint64_t p7=0, uint64_t p8=0)

MUST_USE_RESULT bool	publishAsyncRequest (size_t priority, uint64_t p1=0, uint64_t p2=0, uint64_t p3=0, uint64_t p4=0, uint64_t p5=0, uint64_t p6=0, uint64_t p7=0, uint64_t p8=0)

bool	canWaitForCompletion ()

MUST_USE_RESULT bool	waitForPreallocated (PreallocatedRequest &request)

MUST_USE_RESULT PreallocatedPublishResult	publishPreallocated (PreallocatedRequest &request, size_t priority, uint64_t p1=0, uint64_t p2=0, uint64_t p3=0, uint64_t p4=0, uint64_t p5=0, uint64_t p6=0, uint64_t p7=0, uint64_t p8=0)

MUST_USE_RESULT PreallocatedPublishResult	republishPreallocatedWhileReleasing (PreallocatedRequest &request, size_t priority, uint64_t p1=0, uint64_t p2=0, uint64_t p3=0, uint64_t p4=0, uint64_t p5=0, uint64_t p6=0, uint64_t p7=0, uint64_t p8=0)

MUST_USE_RESULT bool	halt ()

MUST_USE_RESULT bool	resume ()

LifecycleState	getLifecycleState ()

bool	drain ()

Protected Types
enum class	NextRequestResult { Item , Empty , Retry }

Protected Member Functions
virtual bool	workerPlacement (ThreadPlacement &) const

virtual uint64_t	executeRequest (uint64_t p1, uint64_t p2, uint64_t p3, uint64_t p4, uint64_t p5, uint64_t p6, uint64_t p7, uint64_t p8)=0

	RequestQueue (const RequestQueue &)

void	operator= (const RequestQueue &)

virtual bool	compareRequests (const Request &a, const Request &b)

virtual void	cancelRequest (const Request &request)

int	work ()

NextRequestResult	getNextRequest (Request *&request)

bool	drainIntakeLocked (size_t priority)

void	publishRequest (Request *request)

Request *	findDuplicate (const Request &request)

void	discardRequest (Request *request)

uint64_t	addAsyncRequestInternal (size_t priority, uint64_t p1, uint64_t p2, uint64_t p3, uint64_t p4, uint64_t p5, uint64_t p6, uint64_t p7, uint64_t p8)

PreallocatedPublishResult	publishPreallocatedRequest (PreallocatedRequest &request, PreallocatedRequest::State availableState, size_t priority, uint64_t p1, uint64_t p2, uint64_t p3, uint64_t p4, uint64_t p5, uint64_t p6, uint64_t p7, uint64_t p8)

void	releasePreallocatedRequest (Request *request)

void	invokeCancelRequest (const Request &request)

bool	callbackActiveOnCurrentThread () const

void	releaseRequest (Request *request)

uint64_t	waitForRequest (Request *request)

bool	startWorker ()

bool	stopWorker ()

void	closePreallocatedAdmission ()

void	waitForPreallocatedPublishers ()

Static Protected Member Functions
static int	trampoline (void *p)

static void	completeRequest (Request *request, uint64_t returnValue, bool rejected)

static void	retainRequest (Request *request)

Protected Attributes
IntakeLane	m_IntakeLanes [REQUEST_QUEUE_NUM_PRIORITIES]

Request *	m_pRequestQueue [REQUEST_QUEUE_NUM_PRIORITIES]

Request *	m_pRequestQueueTail [REQUEST_QUEUE_NUM_PRIORITIES]

Request *	m_pActiveRequest

Atomic< size_t >	m_State

Mutex	m_LifecycleMutex

WaitQueue	m_RequestQueueWaiters

WaitQueue	m_WorkerWaiters

Thread *	m_pThread

Atomic< PerProcessorScheduler * >	m_pWorkerScheduler

SchedulerWorkerWake	m_WorkerWake

Atomic< size_t >	m_bWorkerReady

Atomic< size_t >	m_bWorkerActive

size_t	m_WorkerProgressGeneration

RequestQueueOverrunChecker	m_OverrunChecker

Timer *	m_pOverrunTimer

Atomic< size_t >	m_PublicationState

size_t	m_nMaxAsyncRequests

Atomic< size_t >	m_nAsyncRequests

Atomic< size_t >	m_nTotalRequests

Atomic< size_t >	m_nActiveRequests

NormalStaticString	m_Name

Static Protected Attributes
static constexpr size_t	PublicationClosed = static_cast<size_t>(1) << ((sizeof(size_t) * 8) - 1)

static constexpr size_t	PublicationCountMask = ~PublicationClosed

Detailed Description

Implements a request queue with one worker thread.

Synchronous callers wait on a request completion owned by the queue. Asynchronous requests are placed directly on the same queue and never need a wrapper thread.

Definition at line 52 of file RequestQueue.h.

Member Enumeration Documentation

◆ ActionOnDuplicate

enum RequestQueue::ActionOnDuplicate

Definition at line 269 of file RequestQueue.h.

◆ LifecycleState

enum class RequestQueue::LifecycleState

strong

Definition at line 278 of file RequestQueue.h.

◆ NextRequestResult

enum class RequestQueue::NextRequestResult

strongprotected

Definition at line 452 of file RequestQueue.h.

◆ OverrunStatus

enum class RequestQueue::OverrunStatus

strong

Definition at line 56 of file RequestQueue.h.

◆ PreallocatedPublishResult

enum class RequestQueue::PreallocatedPublishResult

strong

Definition at line 252 of file RequestQueue.h.

Constructor & Destructor Documentation

◆ RequestQueue()

RequestQueue::RequestQueue ( const String & name )

Creates a new RequestQueue.

Definition at line 197 of file RequestQueue.cc.

References m_pRequestQueue.

◆ ~RequestQueue()

RequestQueue::~RequestQueue ( )

virtual

Definition at line 242 of file RequestQueue.cc.

Member Function Documentation

◆ addAsyncRequest()

uint64_t RequestQueue::addAsyncRequest	(	size_t	priority,
		uint64_t	p1 = `0`,
		uint64_t	p2 = `0`,
		uint64_t	p3 = `0`,
		uint64_t	p4 = `0`,
		uint64_t	p5 = `0`,
		uint64_t	p6 = `0`,
		uint64_t	p7 = `0`,
		uint64_t	p8 = `0`
	)

Adds an asynchronous request to the queue without waiting for execution.

Returns: One if the request was accepted, zero if it was rejected or deduplicated. During a destroy-time cancelRequest() callback, nested allocation-backed publication is rejected before allocation or another cancellation callback; the caller retains any proposed payload.

Definition at line 591 of file RequestQueue.cc.

Referenced by CacheManager::addCacheRequest().

Here is the caller graph for this function:

◆ addAsyncRequestInternal()

uint64_t RequestQueue::addAsyncRequestInternal	(	size_t	priority,
		uint64_t	p1,
		uint64_t	p2,
		uint64_t	p3,
		uint64_t	p4,
		uint64_t	p5,
		uint64_t	p6,
		uint64_t	p7,
		uint64_t	p8
	)

protected

Definition at line 736 of file RequestQueue.cc.

◆ addRequest() [1/2]

uint64_t RequestQueue::addRequest	(	size_t	priority,
		ActionOnDuplicate	action,
		uint64_t	p1 = `0`,
		uint64_t	p2 = `0`,
		uint64_t	p3 = `0`,
		uint64_t	p4 = `0`,
		uint64_t	p5 = `0`,
		uint64_t	p6 = `0`,
		uint64_t	p7 = `0`,
		uint64_t	p8 = `0`
	)

Adds a request to the queue with optional behavior on duplicate detection.

Definition at line 506 of file RequestQueue.cc.

References callbackActiveOnCurrentThread(), discardRequest(), drainIntakeLocked(), executeRequest(), findDuplicate(), ProcessorBase::information(), Scheduler::instance(), Mutex::isOwnedByCurrentThread(), m_LifecycleMutex, m_nTotalRequests, m_RequestQueueWaiters, m_State, publishRequest(), retainRequest(), and Scheduler::yield().

◆ addRequest() [2/2]

uint64_t RequestQueue::addRequest	(	size_t	priority,
		uint64_t	p1 = `0`,
		uint64_t	p2 = `0`,
		uint64_t	p3 = `0`,
		uint64_t	p4 = `0`,
		uint64_t	p5 = `0`,
		uint64_t	p6 = `0`,
		uint64_t	p7 = `0`,
		uint64_t	p8 = `0`
	)

Adds a request to the queue. Blocks until it finishes and returns the result, deferring signal and terminal interruption until completion.

Parameters

priority The priority to attach to this request. Lower number is higher priority. During a destroy-time cancelRequest() callback, nested allocation-backed publication is rejected before allocation or another cancellation callback; the caller retains any proposed payload.

Definition at line 501 of file RequestQueue.cc.

References addRequest().

Referenced by CacheManager::addCacheRequest(), addRequest(), ScsiDisk::flushCachePage(), ScsiDisk::retireCachePageCallback(), and ScsiDisk::syncAll().

Here is the caller graph for this function:

◆ callbackActiveOnCurrentThread()

bool RequestQueue::callbackActiveOnCurrentThread ( ) const

protected

True when the current Thread is inside this queue's callback.

Definition at line 851 of file RequestQueue.cc.

Referenced by CacheManager::addCacheRequest(), addRequest(), canWaitForCompletion(), destroy(), drain(), halt(), publishAsyncRequest(), and resume().

Here is the caller graph for this function:

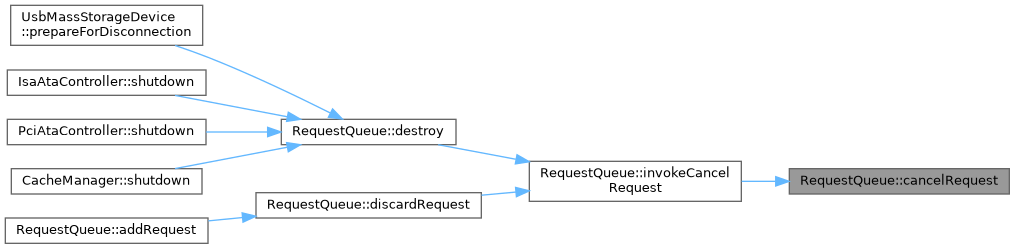

◆ cancelRequest()

virtual void RequestQueue::cancelRequest ( const Request & request )

inlineprotectedvirtual

Releases payload ownership for a request that will not execute.

This runs without the queue guard for rejected candidates (including stopped queues, duplicates and capacity limits) and queued requests cancelled by destroy(). Implementations used by allocation-free producers must not sleep. Derived destructors must call destroy() while their override and member state are still alive. During destroy(), the lifecycle is serialized: halt() and resume() on this queue return false, while recursive destroy() is a fatal contract violation.

Reimplemented in ScsiController, CacheManager, ZombieQueue, Ehci, Ohci, Uhci, Xhci, and UsbHubDevice.

Definition at line 444 of file RequestQueue.h.

Referenced by invokeCancelRequest().

Here is the caller graph for this function:

◆ canWaitForCompletion()

bool RequestQueue::canWaitForCompletion ( )

False for worker/callback callers or contexts which cannot sleep.

Definition at line 855 of file RequestQueue.cc.

References callbackActiveOnCurrentThread(), ProcessorBase::getInterrupts(), ProcessorBase::information(), Mutex::isOwnedByCurrentThread(), m_LifecycleMutex, and m_RequestQueueWaiters.

Referenced by waitForPreallocated().

Here is the caller graph for this function:

◆ closePreallocatedAdmission()

void RequestQueue::closePreallocatedAdmission ( )

protected

Definition at line 420 of file RequestQueue.cc.

◆ compareRequests()

virtual bool RequestQueue::compareRequests	(	const Request &	a,
		const Request &	b
	)

inlineprotectedvirtual

Defaults to never comparing as equal. Used to determine duplicates among allocation-backed synchronous and asynchronous requests. Preallocated tokens use identity instead and are never passed here. This runs under the queue's non-sleeping guard and therefore must not block.

Reimplemented in CacheManager, and AtaController.

Definition at line 429 of file RequestQueue.h.

Referenced by findDuplicate().

Here is the caller graph for this function:

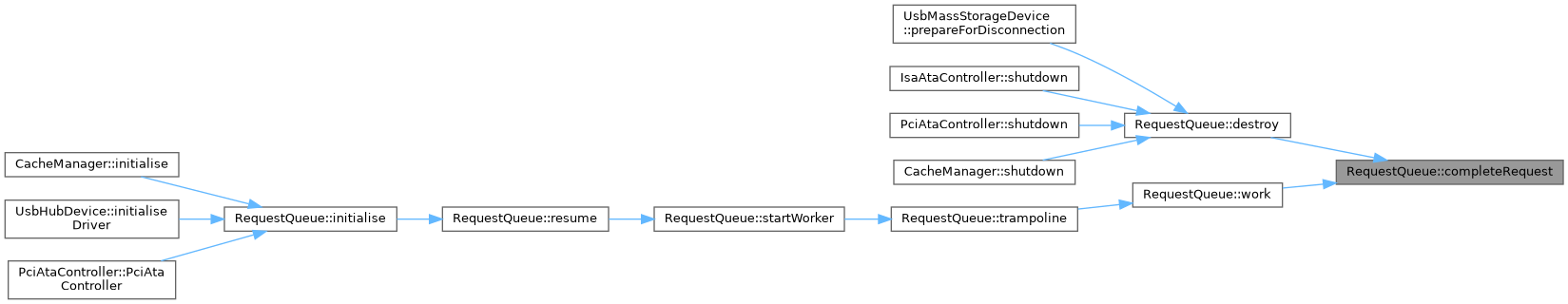

◆ completeRequest()

void RequestQueue::completeRequest	(	Request *	request,
		uint64_t	returnValue,
		bool	rejected
	)

staticprotected

Complete a request and wake every synchronous caller.

Definition at line 1029 of file RequestQueue.cc.

Referenced by destroy(), and work().

Here is the caller graph for this function:

◆ destroy()

void RequestQueue::destroy ( )

virtual

Destroys the queue and joins its worker.

Every external IRQ, timer, and thread producer must already be quiesced. Closing admission drains callers which already entered the publication gate; it cannot extend this object's lifetime around future callers. The queue worker itself must not call this synchronous drain operation.

Definition at line 434 of file RequestQueue.cc.

References callbackActiveOnCurrentThread(), completeRequest(), drainIntakeLocked(), invokeCancelRequest(), Mutex::isOwnedByCurrentThread(), m_LifecycleMutex, m_nActiveRequests, m_nTotalRequests, m_pActiveRequest, m_pRequestQueue, m_RequestQueueWaiters, and m_State.

Referenced by UsbMassStorageDevice::prepareForDisconnection(), IsaAtaController::shutdown(), PciAtaController::shutdown(), and CacheManager::shutdown().

Here is the caller graph for this function:

◆ discardRequest()

void RequestQueue::discardRequest ( Request * request )

protected

Reject and delete a candidate that was never published.

Definition at line 1044 of file RequestQueue.cc.

References invokeCancelRequest().

Referenced by addRequest().

Here is the caller graph for this function:

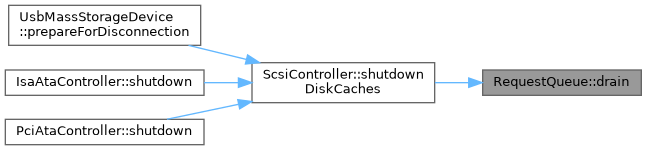

◆ drain()

bool RequestQueue::drain ( )

Waits until every request published before and during the wait has completed. Producers must already be quiesced; the queue remains accepting so callbacks may publish dependent work while draining.

Definition at line 887 of file RequestQueue.cc.

References callbackActiveOnCurrentThread(), ProcessorBase::information(), m_nTotalRequests, m_RequestQueueWaiters, and m_State.

Referenced by ScsiController::shutdownDiskCaches().

Here is the caller graph for this function:

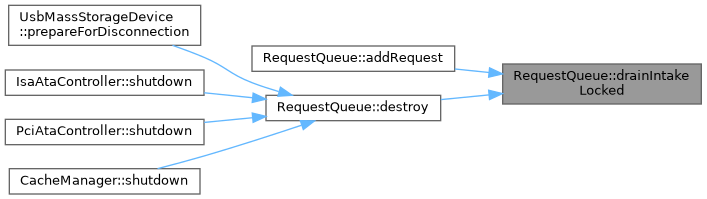

◆ drainIntakeLocked()

bool RequestQueue::drainIntakeLocked ( size_t priority )

protected

Move one priority's accepted intake into its guarded ready list.

Definition at line 944 of file RequestQueue.cc.

References m_IntakeLanes, and m_pRequestQueue.

Referenced by addRequest(), and destroy().

Here is the caller graph for this function:

◆ executeRequest()

virtual uint64_t RequestQueue::executeRequest	(	uint64_t	p1,
		uint64_t	p2,
		uint64_t	p3,
		uint64_t	p4,
		uint64_t	p5,
		uint64_t	p6,
		uint64_t	p7,
		uint64_t	p8
	)

protectedpure virtual

Callback - classes are expected to inherit and override this function. It's called when a request needs to be executed (by the worker thread).

Implemented in IsaAtaController, PciAtaController, ScsiController, CacheManager, ZombieQueue, UsbHubDevice, Ehci, Ohci, Uhci, and Xhci.

Referenced by addRequest(), and work().

Here is the caller graph for this function:

◆ findDuplicate()

RequestQueue::Request * RequestQueue::findDuplicate ( const Request & request )

protected

Find an equivalent queued or executing request.

Definition at line 1011 of file RequestQueue.cc.

References compareRequests(), m_pActiveRequest, and m_pRequestQueue.

Referenced by addRequest().

Here is the caller graph for this function:

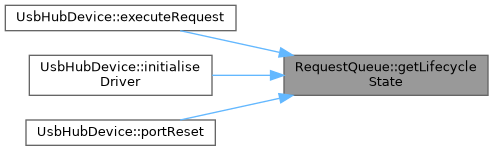

◆ getLifecycleState()

RequestQueue::LifecycleState RequestQueue::getLifecycleState ( )

Returns the current worker lifecycle state.

Definition at line 847 of file RequestQueue.cc.

References m_State.

Referenced by UsbHubDevice::executeRequest(), UsbHubDevice::initialiseDriver(), and UsbHubDevice::portReset().

Here is the caller graph for this function:

◆ getNextRequest()

RequestQueue::NextRequestResult RequestQueue::getNextRequest ( Request *& request )

protected

Get the next request without bypassing a transient higher priority.

Definition at line 972 of file RequestQueue.cc.

References m_IntakeLanes, and m_pRequestQueue.

Referenced by work().

Here is the caller graph for this function:

◆ halt()

bool RequestQueue::halt ( )

Stop and join the worker, retaining queued requests for resume(). A worker self-call returns false without changing the queue. A failed external join returns false with admission closed and the lifecycle in Stopping; a later halt() or destroy() must retry the drain.

Definition at line 807 of file RequestQueue.cc.

References callbackActiveOnCurrentThread(), Mutex::isOwnedByCurrentThread(), and m_LifecycleMutex.

◆ initialise()

void RequestQueue::initialise ( )

virtual

Initialises the queue, spawning the worker thread.

Reimplemented in CacheManager.

Definition at line 261 of file RequestQueue.cc.

References resume().

Referenced by CacheManager::initialise(), UsbHubDevice::initialiseDriver(), and PciAtaController::PciAtaController().

Here is the caller graph for this function:

◆ invokeCancelRequest()

void RequestQueue::invokeCancelRequest ( const Request & request )

protected

Calls a derived cancellation hook inside a cleanup-safe boundary.

Definition at line 1049 of file RequestQueue.cc.

References cancelRequest().

Referenced by destroy(), and discardRequest().

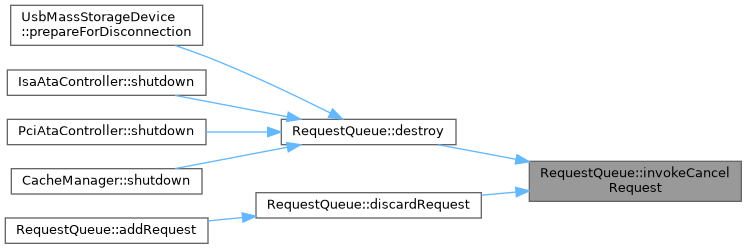

Here is the caller graph for this function:

◆ publishAsyncRequest()

bool RequestQueue::publishAsyncRequest	(	size_t	priority,
		uint64_t	p1 = `0`,
		uint64_t	p2 = `0`,
		uint64_t	p3 = `0`,
		uint64_t	p4 = `0`,
		uint64_t	p5 = `0`,
		uint64_t	p6 = `0`,
		uint64_t	p7 = `0`,
		uint64_t	p8 = `0`
	)

Publish distinct asynchronous work, including from this queue's worker. This path allocates a request, then uses the non-waiting intake gate: it does not compare requests or wait for backlog space. The caller must be in a waitable thread context and retains payload ownership on rejection. It is not a hard-IRQ publication path.

Definition at line 597 of file RequestQueue.cc.

References callbackActiveOnCurrentThread(), ProcessorBase::executionContext(), ProcessorBase::getInterrupts(), Mutex::isOwnedByCurrentThread(), m_LifecycleMutex, m_nTotalRequests, m_PublicationState, m_State, and publishRequest().

◆ publishPreallocated()

RequestQueue::PreallocatedPublishResult RequestQueue::publishPreallocated	(	PreallocatedRequest &	request,
		size_t	priority,
		uint64_t	p1 = `0`,
		uint64_t	p2 = `0`,
		uint64_t	p3 = `0`,
		uint64_t	p4 = `0`,
		uint64_t	p5 = `0`,
		uint64_t	p6 = `0`,
		uint64_t	p7 = `0`,
		uint64_t	p8 = `0`
	)

Publishes allocation-free work using a preallocated token.

This path performs no allocation, deallocation, logging, or blocking. It does not participate in compareRequests(): token identity provides coalescing, and allocation-backed requests are always a distinct duplicate domain. Preallocated work bypasses the allocation-backed asynchronous backlog limit. The same token cannot be republished until execution or cancellation has returned it to Idle. TokenBusy is returned only for work whose queue admission can no longer fail. The queue and token owner must outlive this call; destroy() requires every producer to be quiesced first.

Raw hardware handlers must defer through the typed IRQ dispatcher, not call RequestQueue publication directly.

Definition at line 640 of file RequestQueue.cc.

◆ publishPreallocatedRequest()

RequestQueue::PreallocatedPublishResult RequestQueue::publishPreallocatedRequest	(	PreallocatedRequest &	request,
		PreallocatedRequest::State	availableState,
		size_t	priority,
		uint64_t	p1,
		uint64_t	p2,
		uint64_t	p3,
		uint64_t	p4,
		uint64_t	p5,
		uint64_t	p6,
		uint64_t	p7,
		uint64_t	p8
	)

protected

Definition at line 654 of file RequestQueue.cc.

◆ publishRequest()

void RequestQueue::publishRequest ( Request * request )

protected

Publish an accepted request through its priority's MPSC intake.

Definition at line 922 of file RequestQueue.cc.

References m_IntakeLanes, m_pWorkerScheduler, and PerProcessorScheduler::ringIrqWorkDoorbell().

Referenced by addRequest(), and publishAsyncRequest().

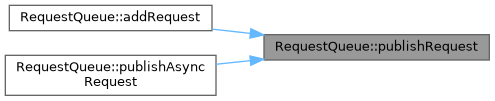

Here is the caller graph for this function:

◆ releasePreallocatedRequest()

void RequestQueue::releasePreallocatedRequest ( Request * request )

protected

Returns an executed or cancelled preallocated request to its owner.

Definition at line 1054 of file RequestQueue.cc.

References m_RequestQueueWaiters.

◆ releaseRequest()

void RequestQueue::releaseRequest ( Request * request )

protected

Definition at line 1104 of file RequestQueue.cc.

◆ republishPreallocatedWhileReleasing()

RequestQueue::PreallocatedPublishResult RequestQueue::republishPreallocatedWhileReleasing	(	PreallocatedRequest &	request,
		size_t	priority,
		uint64_t	p1 = `0`,
		uint64_t	p2 = `0`,
		uint64_t	p3 = `0`,
		uint64_t	p4 = `0`,
		uint64_t	p5 = `0`,
		uint64_t	p6 = `0`,
		uint64_t	p7 = `0`,
		uint64_t	p8 = `0`
	)

Republishes a token while its release callback is retiring it.

This is accepted only from the Releasing state. A release callback may use this narrowly scoped allocation-free handoff to preserve an already-observed follow-up; other same-queue publication is rejected.

Definition at line 647 of file RequestQueue.cc.

◆ resume()

bool RequestQueue::resume ( )

Resume RequestQueue operations.

Definition at line 820 of file RequestQueue.cc.

References Timer::armHandler(), callbackActiveOnCurrentThread(), Machine::getTimer(), Mutex::isOwnedByCurrentThread(), m_LifecycleMutex, startWorker(), and Timer::supportsDeadlines().

Referenced by initialise().

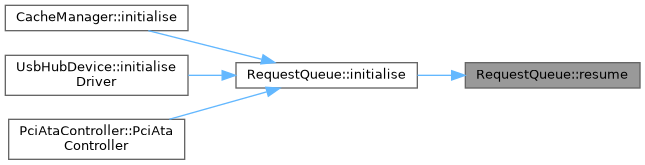

Here is the caller graph for this function:

◆ retainRequest()

void RequestQueue::retainRequest ( Request * request )

staticprotected

Reference management for requests shared by worker and callers.

Definition at line 1100 of file RequestQueue.cc.

Referenced by addRequest().

Here is the caller graph for this function:

◆ startWorker()

bool RequestQueue::startWorker ( )

protected

Start/stop helpers called with m_LifecycleMutex held.

Definition at line 268 of file RequestQueue.cc.

References Scheduler::instance(), m_bWorkerReady, m_PublicationState, m_pWorkerScheduler, m_RequestQueueWaiters, m_State, trampoline(), and Scheduler::yield().

Referenced by resume().

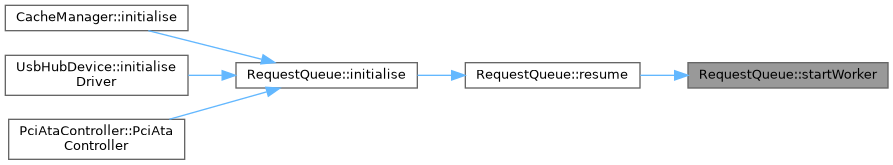

Here is the caller graph for this function:

◆ stopWorker()

bool RequestQueue::stopWorker ( )

protected

Definition at line 357 of file RequestQueue.cc.

◆ trampoline()

int RequestQueue::trampoline ( void * p )

staticprotected

Thread trampoline

Definition at line 917 of file RequestQueue.cc.

References work().

Referenced by startWorker().

Here is the caller graph for this function:

◆ waitForPreallocated()

bool RequestQueue::waitForPreallocated ( PreallocatedRequest & request )

Joins execution, cancellation, and release callback retirement. The caller retains this queue and owns the token until this returns.

Definition at line 869 of file RequestQueue.cc.

References canWaitForCompletion(), m_RequestQueueWaiters, and WaitQueue::Guard::waitForCompletion().

◆ waitForPreallocatedPublishers()

void RequestQueue::waitForPreallocatedPublishers ( )

protected

Definition at line 424 of file RequestQueue.cc.

◆ waitForRequest()

uint64_t RequestQueue::waitForRequest ( Request * request )

protected

Definition at line 1116 of file RequestQueue.cc.

◆ work()

int RequestQueue::work ( )

protected

Thread worker function

Definition at line 1141 of file RequestQueue.cc.

References completeRequest(), executeRequest(), getNextRequest(), ProcessorBase::information(), Scheduler::instance(), m_bWorkerActive, m_bWorkerReady, m_nActiveRequests, m_nTotalRequests, m_pActiveRequest, m_RequestQueueWaiters, m_State, m_WorkerProgressGeneration, WaitQueue::Guard::wait(), and Scheduler::yield().

Referenced by trampoline().

Here is the caller graph for this function:

◆ workerPlacement()

virtual bool RequestQueue::workerPlacement ( ThreadPlacement & ) const

inlineprotectedvirtual

Definition at line 409 of file RequestQueue.h.

Member Data Documentation

◆ m_bWorkerActive

Atomic<size_t> RequestQueue::m_bWorkerActive

protected

Keeps a preempted worker accounted inside queue critical sections.

Definition at line 542 of file RequestQueue.h.

Referenced by work().

◆ m_bWorkerReady

Atomic<size_t> RequestQueue::m_bWorkerReady

protected

The worker has entered work() and installed its lifetime deferral.

Definition at line 539 of file RequestQueue.h.

Referenced by startWorker(), and work().

◆ m_IntakeLanes

IntakeLane RequestQueue::m_IntakeLanes[REQUEST_QUEUE_NUM_PRIORITIES]

protected

Lock-free intake shared by allocated and preallocated producers.

Definition at line 512 of file RequestQueue.h.

Referenced by drainIntakeLocked(), getNextRequest(), and publishRequest().

◆ m_LifecycleMutex

Mutex RequestQueue::m_LifecycleMutex

protected

Serialises initialise/halt/resume/destroy, including worker joins.

Definition at line 526 of file RequestQueue.h.

Referenced by CacheManager::addCacheRequest(), addRequest(), canWaitForCompletion(), destroy(), halt(), publishAsyncRequest(), and resume().

◆ m_nActiveRequests

Atomic<size_t> RequestQueue::m_nActiveRequests

protected

One while the single worker is executing or releasing a request.

Definition at line 576 of file RequestQueue.h.

Referenced by destroy(), and work().

◆ m_Name

NormalStaticString RequestQueue::m_Name

protected

Definition at line 578 of file RequestQueue.h.

◆ m_nAsyncRequests

Atomic<size_t> RequestQueue::m_nAsyncRequests

protected

Definition at line 570 of file RequestQueue.h.

◆ m_nMaxAsyncRequests

size_t RequestQueue::m_nMaxAsyncRequests

protected

Allocation admission limit and total active async request count.

Definition at line 569 of file RequestQueue.h.

◆ m_nTotalRequests

Atomic<size_t> RequestQueue::m_nTotalRequests

protected

Number of queued or executing requests.

Definition at line 573 of file RequestQueue.h.

Referenced by addRequest(), destroy(), drain(), publishAsyncRequest(), and work().

◆ m_OverrunChecker

RequestQueueOverrunChecker RequestQueue::m_OverrunChecker

protected

Definition at line 547 of file RequestQueue.h.

◆ m_pActiveRequest

Request* RequestQueue::m_pActiveRequest

protected

The request currently being executed by the worker.

Definition at line 519 of file RequestQueue.h.

Referenced by destroy(), findDuplicate(), and work().

◆ m_pOverrunTimer

Timer* RequestQueue::m_pOverrunTimer

protected

Definition at line 548 of file RequestQueue.h.

◆ m_pRequestQueue

Request* RequestQueue::m_pRequestQueue[REQUEST_QUEUE_NUM_PRIORITIES]

protected

The request queue

Definition at line 515 of file RequestQueue.h.

Referenced by destroy(), drainIntakeLocked(), findDuplicate(), getNextRequest(), and RequestQueue().

◆ m_pRequestQueueTail

Request* RequestQueue::m_pRequestQueueTail[REQUEST_QUEUE_NUM_PRIORITIES]

protected

Definition at line 516 of file RequestQueue.h.

◆ m_pThread

Thread* RequestQueue::m_pThread

protected

Definition at line 532 of file RequestQueue.h.

◆ m_PublicationState

Atomic<size_t> RequestQueue::m_PublicationState

protected

High bit closes preallocated publication; low bits count publishers.

Definition at line 551 of file RequestQueue.h.

Referenced by publishAsyncRequest(), and startWorker().

◆ m_pWorkerScheduler

Atomic<PerProcessorScheduler*> RequestQueue::m_pWorkerScheduler

protected

Scheduler which owns the worker and its IRQ doorbell.

Definition at line 535 of file RequestQueue.h.

Referenced by publishRequest(), and startWorker().

◆ m_RequestQueueWaiters

WaitQueue RequestQueue::m_RequestQueueWaiters

protected

Non-sleeping request-list lock and worker wait queue.

Definition at line 529 of file RequestQueue.h.

Referenced by addRequest(), canWaitForCompletion(), destroy(), drain(), releasePreallocatedRequest(), startWorker(), waitForPreallocated(), and work().

◆ m_State

Atomic<size_t> RequestQueue::m_State

protected

Worker lifecycle, atomically visible to the worker wait predicate.

Definition at line 522 of file RequestQueue.h.

Referenced by addRequest(), destroy(), drain(), getLifecycleState(), publishAsyncRequest(), startWorker(), and work().

◆ m_WorkerProgressGeneration

size_t RequestQueue::m_WorkerProgressGeneration

protected

Changes whenever the worker claims another queued request.

Definition at line 545 of file RequestQueue.h.

Referenced by work().

◆ m_WorkerWaiters

WaitQueue RequestQueue::m_WorkerWaiters

protected

Definition at line 530 of file RequestQueue.h.

◆ m_WorkerWake

SchedulerWorkerWake RequestQueue::m_WorkerWake

protected

Definition at line 536 of file RequestQueue.h.

◆ PublicationClosed

constexpr size_t RequestQueue::PublicationClosed = static_cast<size_t>(1) << ((sizeof(size_t) * 8) - 1)

staticconstexprprotected

Definition at line 508 of file RequestQueue.h.

◆ PublicationCountMask

constexpr size_t RequestQueue::PublicationCountMask = ~PublicationClosed

staticconstexprprotected

Definition at line 509 of file RequestQueue.h.

The documentation for this class was generated from the following files:

Classes

Public Types

Public Member Functions

Protected Types

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Member Enumeration Documentation

◆ ActionOnDuplicate

◆ LifecycleState

◆ NextRequestResult

◆ OverrunStatus

◆ PreallocatedPublishResult

Constructor & Destructor Documentation

◆ RequestQueue()

◆ ~RequestQueue()

Member Function Documentation

◆ addAsyncRequest()

◆ addAsyncRequestInternal()

◆ addRequest() [1/2]

◆ addRequest() [2/2]

◆ callbackActiveOnCurrentThread()

◆ cancelRequest()

◆ canWaitForCompletion()

◆ closePreallocatedAdmission()

◆ compareRequests()

◆ completeRequest()

◆ destroy()

◆ discardRequest()

◆ drain()

◆ drainIntakeLocked()

◆ executeRequest()

◆ findDuplicate()

◆ getLifecycleState()

◆ getNextRequest()

◆ halt()

◆ initialise()

◆ invokeCancelRequest()

◆ publishAsyncRequest()

◆ publishPreallocated()

◆ publishPreallocatedRequest()

◆ publishRequest()

◆ releasePreallocatedRequest()

◆ releaseRequest()

◆ republishPreallocatedWhileReleasing()

◆ resume()

◆ retainRequest()

◆ startWorker()

◆ stopWorker()

◆ trampoline()

◆ waitForPreallocated()

◆ waitForPreallocatedPublishers()

◆ waitForRequest()

◆ work()

◆ workerPlacement()

Member Data Documentation

◆ m_bWorkerActive

◆ m_bWorkerReady

◆ m_IntakeLanes

◆ m_LifecycleMutex

◆ m_nActiveRequests

◆ m_Name

◆ m_nAsyncRequests

◆ m_nMaxAsyncRequests

◆ m_nTotalRequests

◆ m_OverrunChecker

◆ m_pActiveRequest

◆ m_pOverrunTimer

◆ m_pRequestQueue

◆ m_pRequestQueueTail

◆ m_pThread

◆ m_PublicationState

◆ m_pWorkerScheduler

◆ m_RequestQueueWaiters

◆ m_State

◆ m_WorkerProgressGeneration

◆ m_WorkerWaiters

◆ m_WorkerWake
