#include <Uhci.h>

Inheritance diagram for Uhci:

Collaboration diagram for Uhci:

Classes
struct	QH

struct	TD

Public Member Functions
	Uhci (Device *pDev)

struct Uhci::TD	ALIGN (16)

struct Uhci::QH	ALIGN (16)

virtual void	getName (String &str)

virtual void	addTransferToTransaction (uintptr_t pTransaction, bool bToggle, UsbPid pid, uintptr_t pBuffer, size_t nBytes)
	Adds a new transfer to an existent transaction.

virtual uintptr_t	createTransaction (UsbEndpoint endpointInfo)
	Creates a new transaction with the given endpoint data.

virtual void	doAsync (uintptr_t pTransaction, void(*pCallback)(uintptr_t, ssize_t)=0, uintptr_t pParam=0)

virtual void	addInterruptInHandler (UsbEndpoint endpointInfo, uintptr_t pBuffer, uint16_t nBytes, void(*pCallback)(uintptr_t, ssize_t), uintptr_t pParam=0)
	Adds a new handler for an interrupt IN transaction.

virtual bool	irq (irq_id_t number, InterruptState &state)
	IRQ handler. More...

void	doDequeue () NORETURN

void	timer (uint64_t delta, InterruptState &state)
	Timer callback to handle port status changes.

virtual bool	portReset (uint8_t nPort, bool bErrorResponse=false)
	Gets a UsbDevice from a given vendor:product pair. More...

Public Member Functions inherited from UsbHub
	UsbHub (Device *p)

virtual Type	getType ()

bool	deviceConnected (uint8_t nPort, UsbSpeed speed)
	Called when a device is connected to a port on the hub.

void	deviceDisconnected (uint8_t nPort)
	Called when a device is disconnected from a port on the hub.

ssize_t	doSync (uintptr_t nTransaction, uint32_t timeout=5000)

void	ignoreConnectionChanges (uint8_t nPort, bool bIgnore=true)

Public Member Functions inherited from Device
	Device (Device *p)

Device *	getParent () const

void	setParent (Device *p)

virtual String	getSpecificType ()

virtual void	setSpecificType (String str)

void	setPciPosition (uint32_t bus, uint32_t device, uint32_t func)

void	setPciIdentifiers (uint8_t classCode, uint8_t subclassCode, uint16_t vendorId, uint16_t deviceId, uint8_t progIf)

void	setPciConfigHeader (const PciBus::ConfigSpace &space)

PciBus::ConfigSpace	getPciConfigHeader () const

uint8_t	getPciClassCode ()

uint8_t	getPciSubclassCode ()

uint16_t	getPciVendorId ()

uint16_t	getPciDeviceId ()

uint8_t	getPciProgInterface ()

uint32_t	getPciBusPosition ()

uint32_t	getPciDevicePosition ()

uint32_t	getPciFunctionNumber ()

virtual void	dump (String &str)

virtual Vector< Address * > &	addresses ()

virtual uintptr_t	getInterruptNumber ()

virtual void	setInterruptNumber (uintptr_t n)

void	addChild (Device *pDevice)

Device *	getChild (size_t n)

size_t	getNumChildren ()

void	removeChild (size_t n)

void	removeChild (Device *d)

void	replaceChild (Device src, Device dest)

Public Member Functions inherited from RequestQueue
	RequestQueue (const String &name)

virtual void	initialise ()

virtual void	destroy ()

MUST_USE_RESULT uint64_t	addRequest (size_t priority, uint64_t p1=0, uint64_t p2=0, uint64_t p3=0, uint64_t p4=0, uint64_t p5=0, uint64_t p6=0, uint64_t p7=0, uint64_t p8=0)

MUST_USE_RESULT uint64_t	addRequest (size_t priority, ActionOnDuplicate action, uint64_t p1=0, uint64_t p2=0, uint64_t p3=0, uint64_t p4=0, uint64_t p5=0, uint64_t p6=0, uint64_t p7=0, uint64_t p8=0)

uint64_t	addAsyncRequest (size_t priority, uint64_t p1=0, uint64_t p2=0, uint64_t p3=0, uint64_t p4=0, uint64_t p5=0, uint64_t p6=0, uint64_t p7=0, uint64_t p8=0)

void	halt ()

void	resume ()

Protected Member Functions
virtual uint64_t	executeRequest (uint64_t p1=0, uint64_t p2=0, uint64_t p3=0, uint64_t p4=0, uint64_t p5=0, uint64_t p6=0, uint64_t p7=0, uint64_t p8=0)

Protected Member Functions inherited from Device
	NOT_COPYABLE_OR_ASSIGNABLE (Device)

Protected Member Functions inherited from IrqHandler
virtual	~IrqHandler ()

Protected Member Functions inherited from RequestQueue
	RequestQueue (const RequestQueue &)

void	operator= (const RequestQueue &)

virtual bool	compareRequests (const Request &a, const Request &b)

bool	isRequestValid (const Request *r)

int	work ()

Request *	getNextRequest ()

Private Types
enum	UhciConstants { UHCI_CMD = 0x00, UHCI_STS = 0x02, UHCI_INTR = 0x04, UHCI_FRMN = 0x06, UHCI_FRLP = 0x08, UHCI_PORTSC = 0x10, UHCI_CMD_GRES = 0x04, UHCI_CMD_HCRES = 0x02, UHCI_CMD_RUN = 0x01, UHCI_STS_HALT = 0x20, UHCI_STS_ERR = 0x02, UHCI_STS_INT = 0x01, UHCI_PORTSC_PRES = 0x200, UHCI_PORTSC_LOSPEED = 0x100, UHCI_PORTSC_EDCH = 0x8, UHCI_PORTSC_ENABLE = 0x4, UHCI_PORTSC_CSCH = 0x2, UHCI_PORTSC_CONN = 0x1 }

Private Member Functions
void	stop ()
	Stops the UHCI controller.

void	start ()
	Starts the UHCI controller.

	Uhci (const Uhci &)

void	operator= (const Uhci &)

Private Attributes
enum Uhci::UhciConstants	ALIGN

IoBase *	m_pBase

uint8_t	m_nPorts

Mutex	m_Mutex

Spinlock	m_AsyncQueueListChangeLock

uint32_t *	m_pFrameList

uintptr_t	m_pFrameListPhys

TD *	m_pTDList

uintptr_t	m_pTDListPhys

ExtensibleBitmap	m_TDBitmap

QH *	m_pAsyncQH

QH *	m_pPeriodicQH

QH *	m_pQHList

uintptr_t	m_pQHListPhys

ExtensibleBitmap	m_QHBitmap

MemoryRegion	m_UhciMR

QH *	m_pCurrentAsyncQueueTail

QH *	m_pCurrentAsyncQueueHead

List< QH * >	m_AsyncSchedule
	List of QHs in the active asynchronous schedule.

List< QH * >	m_DequeueList
	List of QHs ready for dequeue.

Semaphore	m_DequeueCount
	Semaphore for the dequeue list.

uint64_t	m_nPortCheckTicks
	The time passed since last port check.

Additional Inherited Members
Public Types inherited from Device
enum	Type { Generic, Root, Disk, Bus, Display, Network, Sound, Console, Mouse, Controller, UsbController, UsbGeneric, UsbContainer }

typedef Device (	Callback) (Device *)

Public Types inherited from RequestQueue
enum	ActionOnDuplicate { Block, NewRequest, ReturnImmediately }

Static Public Member Functions inherited from Device
static void	foreach (Callback callback, Device *root=0)

template<class F , class... Args>
static void	foreach (pedigree_std::Callable< F > &callback, Device *root, Args...args)

static void	addToRoot (Device *device)

static void	searchByVendorId (uint16_t vendorId, void(callback)(Device ), Device *root=0)

static void	searchByVendorIdAndDeviceId (uint16_t vendorId, uint16_t deviceId, void(callback)(Device ), Device *root=0)

static void	searchByClass (uint16_t classCode, void(callback)(Device ), Device *root=0)

static void	searchByClassAndSubclass (uint16_t classCode, uint16_t subclassCode, void(callback)(Device ), Device *root=0)

static void	searchByClassSubclassAndProgInterface (uint16_t classCode, uint16_t subclassCode, uint8_t progInterface, void(callback)(Device ), Device *root=0)

Static Protected Member Functions inherited from Device
static Device &	root ()

Static Protected Member Functions inherited from RequestQueue
static int	trampoline (void *p)

static int	doAsync (void *p)

Protected Attributes inherited from UsbHub
ExtensibleBitmap	m_IgnoredPorts
	Bitmap of ports to ignore connection changes on.

Protected Attributes inherited from Device
Vector< Address * >	m_Addresses

Vector< Device * >	m_Children

Device *	m_pParent

uintptr_t	m_InterruptNumber

String	m_SpecificType

PciBus::ConfigSpace	m_ConfigHeader

uint8_t	m_ClassCode

uint8_t	m_SubclassCode

uint16_t	m_VendorId

uint16_t	m_DeviceId

uint8_t	m_ProgInterface

uint32_t	m_PciBusPos

uint32_t	m_PciDevicePos

uint32_t	m_PciFunctionNum

Protected Attributes inherited from RequestQueue
Request *	m_pRequestQueue [REQUEST_QUEUE_NUM_PRIORITIES]

volatile bool	m_Stop

Mutex	m_RequestQueueMutex

ConditionVariable	m_RequestQueueCondition

ConditionVariable	m_AsyncRequestQueueCondition

Thread *	m_pThread

bool	m_Halted

Mutex	m_HaltAcknowledged

RequestQueueOverrunChecker	m_OverrunChecker

size_t	m_nMaxAsyncRequests

size_t	m_nAsyncRequests

size_t	m_nTotalRequests

String	m_Name

Static Protected Attributes inherited from Device
static Device	m_Root

static Mutex	m_TreeLock

Detailed Description

Device driver for the Uhci class

Definition at line 47 of file Uhci.h.

Member Function Documentation

void Uhci::doAsync	(	uintptr_t	pTransaction,
		void(*)(uintptr_t, ssize_t)	pCallback = `0`,
		uintptr_t	pParam = `0`
	)

virtual

Performs a transaction asynchronously, calling the given callback on completion

Implements UsbHub.

Definition at line 620 of file Uhci.cc.

References ERROR.

Referenced by getName().

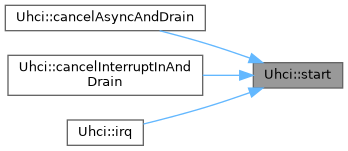

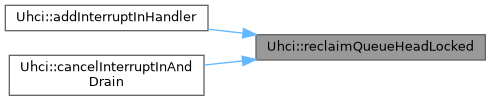

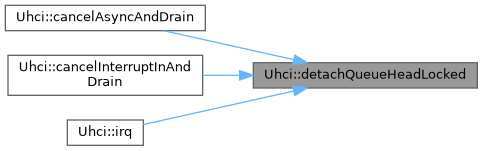

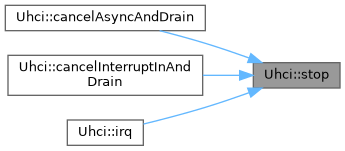

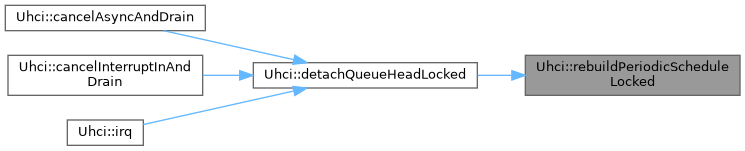

Here is the caller graph for this function:

uint64_t Uhci::executeRequest	(	uint64_t	p1 = `0`,
		uint64_t	p2 = `0`,
		uint64_t	p3 = `0`,
		uint64_t	p4 = `0`,
		uint64_t	p5 = `0`,
		uint64_t	p6 = `0`,
		uint64_t	p7 = `0`,
		uint64_t	p8 = `0`
	)

protectedvirtual

Callback - classes are expected to inherit and override this function. It's called when a request needs to be executed (by the worker thread).

Implements RequestQueue.

Definition at line 794 of file Uhci.cc.

References DEBUG_LOG, Dec, Hex, and WARNING.

Referenced by getName().

Here is the caller graph for this function:

virtual void Uhci::getName ( String & str )

inlinevirtual

Stores the device's name in str.

Reimplemented from Device.

Definition at line 146 of file Uhci.h.

References addInterruptInHandler(), addTransferToTransaction(), createTransaction(), doAsync(), executeRequest(), irq(), NORETURN, portReset(), start(), stop(), and timer().

bool Uhci::irq	(	irq_id_t	number,
		InterruptState &	state
	)

virtual

IRQ handler.

Note: The reason LockGuard isn't used here is because C++ is free to decide when to; destruct an object whenever it wants. This is a really easy way to create a; case where it is possible for a deadlock to occur simply by trusting the; language to do the "right" thing ("Do what I mean", not "Do what I say").

Implements IrqHandler.

Definition at line 261 of file Uhci.cc.

References List< T, nodePoolSize >::begin(), List< T, nodePoolSize >::count(), DEBUG_LOG, Dec, List< T, nodePoolSize >::end(), List< T, nodePoolSize >::erase(), Hex, Uhci::QH::MetaData::id, List< T, nodePoolSize >::popFront(), List< T, nodePoolSize >::pushBack(), and List< T, nodePoolSize >::pushFront().

Referenced by getName().

Here is the caller graph for this function:

bool Uhci::portReset	(	uint8_t	nPort,
		bool	bErrorResponse = `false`
	)

virtual

Gets a UsbDevice from a given vendor:product pair.

Performs a port reset for the given port. Should only be used in situations where a device cannot recover from an error without a complete reset.

Note: Assumes the port is at CONNECTED with a VALID DEVICE attached.

Parameters

bErrorResponse true if this is a reset as a response to an error. Error responses are allowed to use significantly longer delays in their reset logic.

Implements UsbHub.

Definition at line 724 of file Uhci.cc.

References DEBUG_LOG.

Referenced by getName().

Here is the caller graph for this function:

Member Data Documentation

QH* Uhci::m_pCurrentAsyncQueueHead

private

Pointer to the current queue head. Used to fill pNext automatically for new queue heads inserted to the asynchronous schedule.

Definition at line 240 of file Uhci.h.

QH* Uhci::m_pCurrentAsyncQueueTail

private

Pointer to the current queue tail, which allows insertion of new queue heads to the asynchronous schedule.

Definition at line 236 of file Uhci.h.

The documentation for this class was generated from the following files:

Classes

Public Member Functions

Protected Member Functions

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

Member Data Documentation
